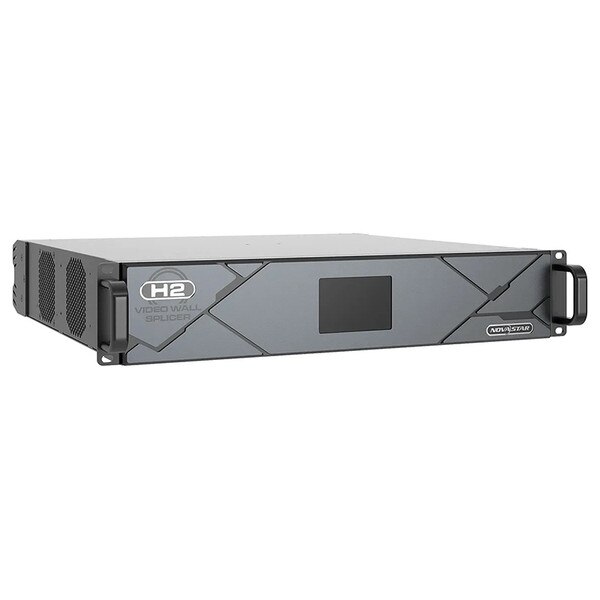

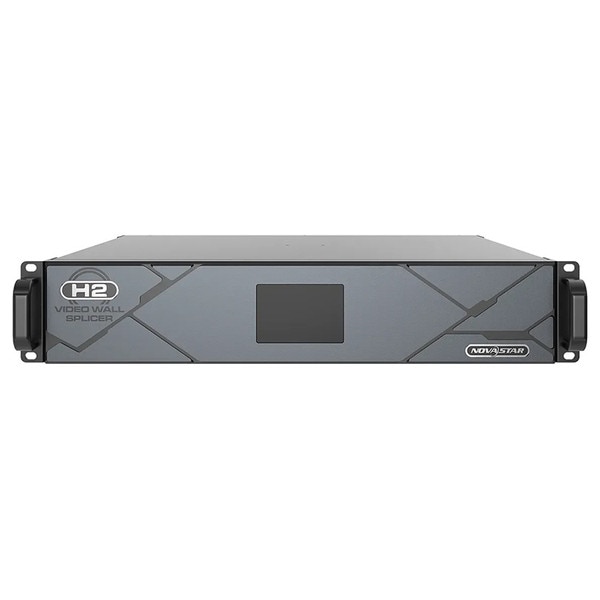

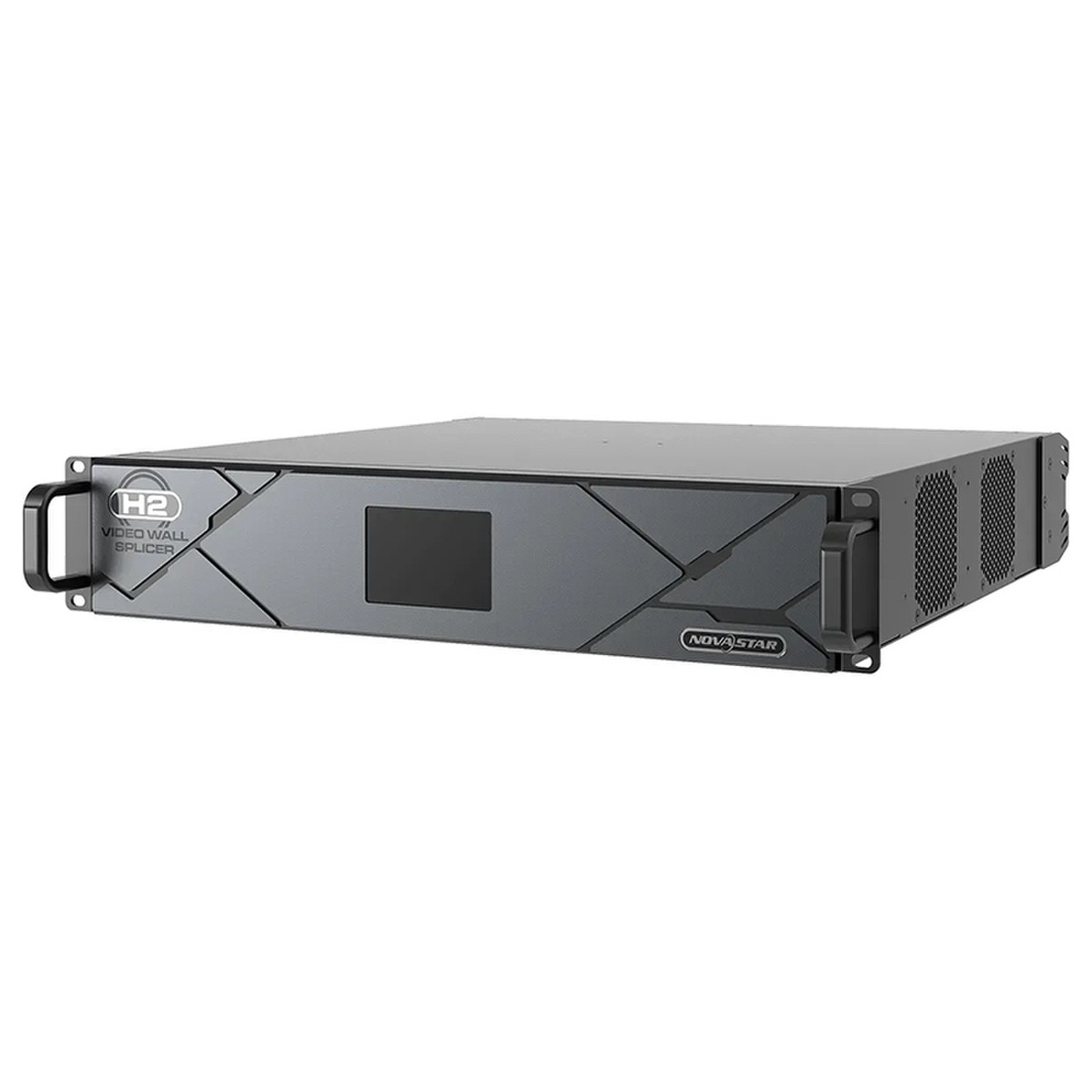

NovaStar H2 All-In-One Splicer and Controller

At A Glance:

• 2 rack space unit with control card and PS
• Multi-screen management for centralized control
• Modular plug-in component configuration

Video Splicing Processor:

H Series is NovaStar's flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.

Flexible Configuration:

H2 offers a modular plug-in design, with a variety of connector modules available. It comes with the control card and power supply. A minimum of 1 additional input card, and 1 output card is required for full functionality.

ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.

Available Cards - Description:

• H_4xDVI - 4x DVI Input Card
• H_4xHDMI - 4x HDMI Input Card
• H_1xHDMI2.0 - 1x HDMI2.0 Input Card
• H_1xHDMI2.0+1xDP1.2 - 1x HDMI2.0 + 1x DP1.2 Input Card
• H_2xRJ45 IP - 2x RJ45 IP Camera Input Card
• H_4x3G SDI - 4x 3G-SDI Input Card
• H_12G SDI Input Card - 1x 12G SDI Input Card
• H_2xCVBS+2xVGA - 2x CVBS + 2x VGA Input Card
• H_4xVGA - 4x VGA Input Card
• H_16xRJ45+2xFiber - 16x Ethernet Output Port and 2x Optical Ports
• H_2xRJ45+1xHDMI1.3 - 2x Ethernet and 1x HDMI1.3 for Monitoring
• H_20xRJ45 - 20x Ethernet Port Output Card

Tech Specs
True 4K Video Processing:

H Series utilizes a full hardware slot structure with high-performance FPGA processing and ultra-speed crosspoint matrix switching technology, providing you with powerful signal processing capabilities.

Power & Current:

• 100-240VAC
• 50/60Hz
• Power consumption: 210W
• 10A-5A
• Backup PS: optional

Dimensions:

• 18" x 3.5" x 19"
• 34.4lbs

General Specs:

• Rack space: 2U
• Minimum cards = 1 input, 1 output
• Input cards: 4 max.
• Input channels: 16 max.
• Output cards: 2
• Load capacity (4K card): 26m pixels
• Max. layers: 32

In the Box:

• Power cord
• RJ45 Ethernet cable
• Grounding cable
• HDMI cable
• Quick start guide
• Certificate of approval
• Safety manual

Warranty:

• 3 Year
