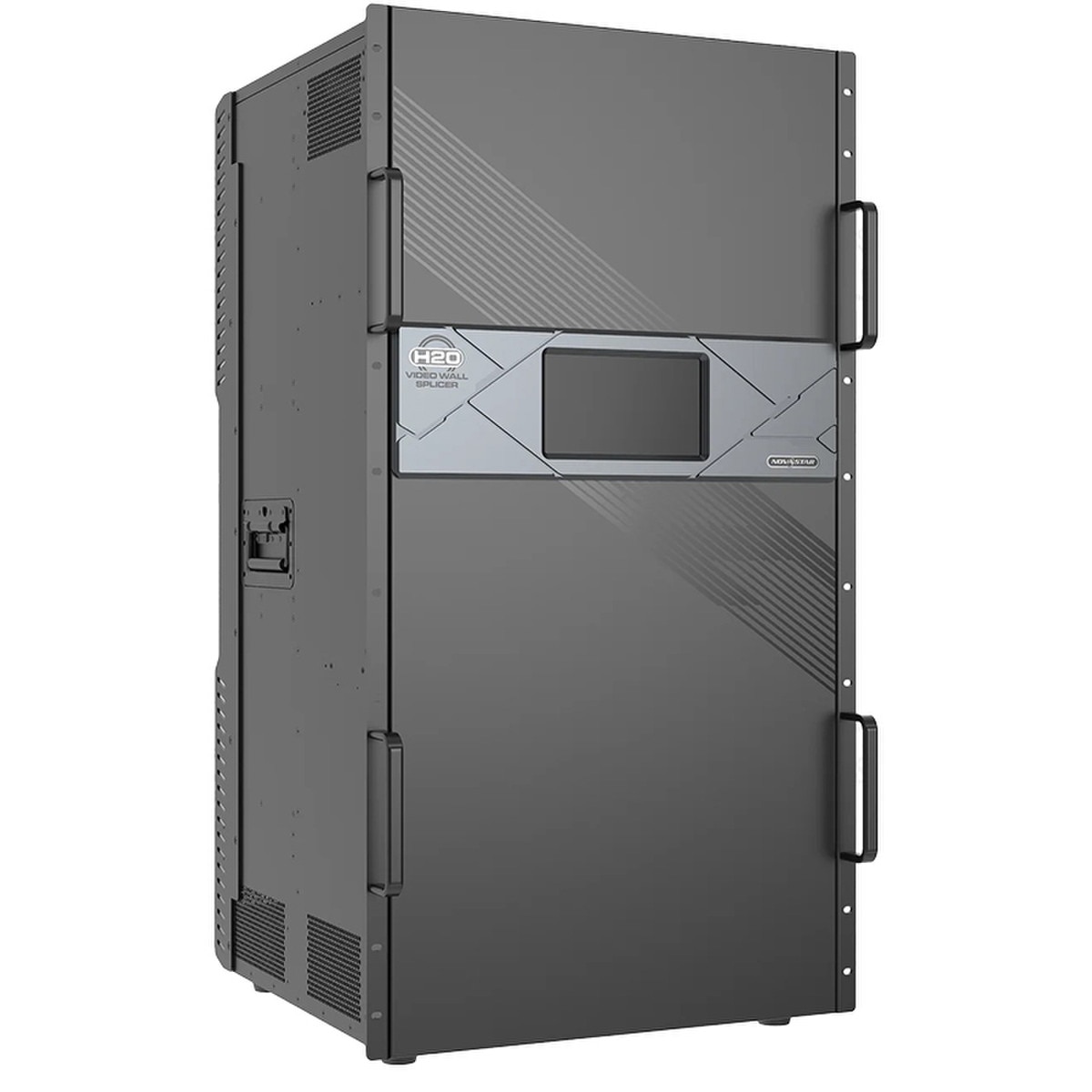

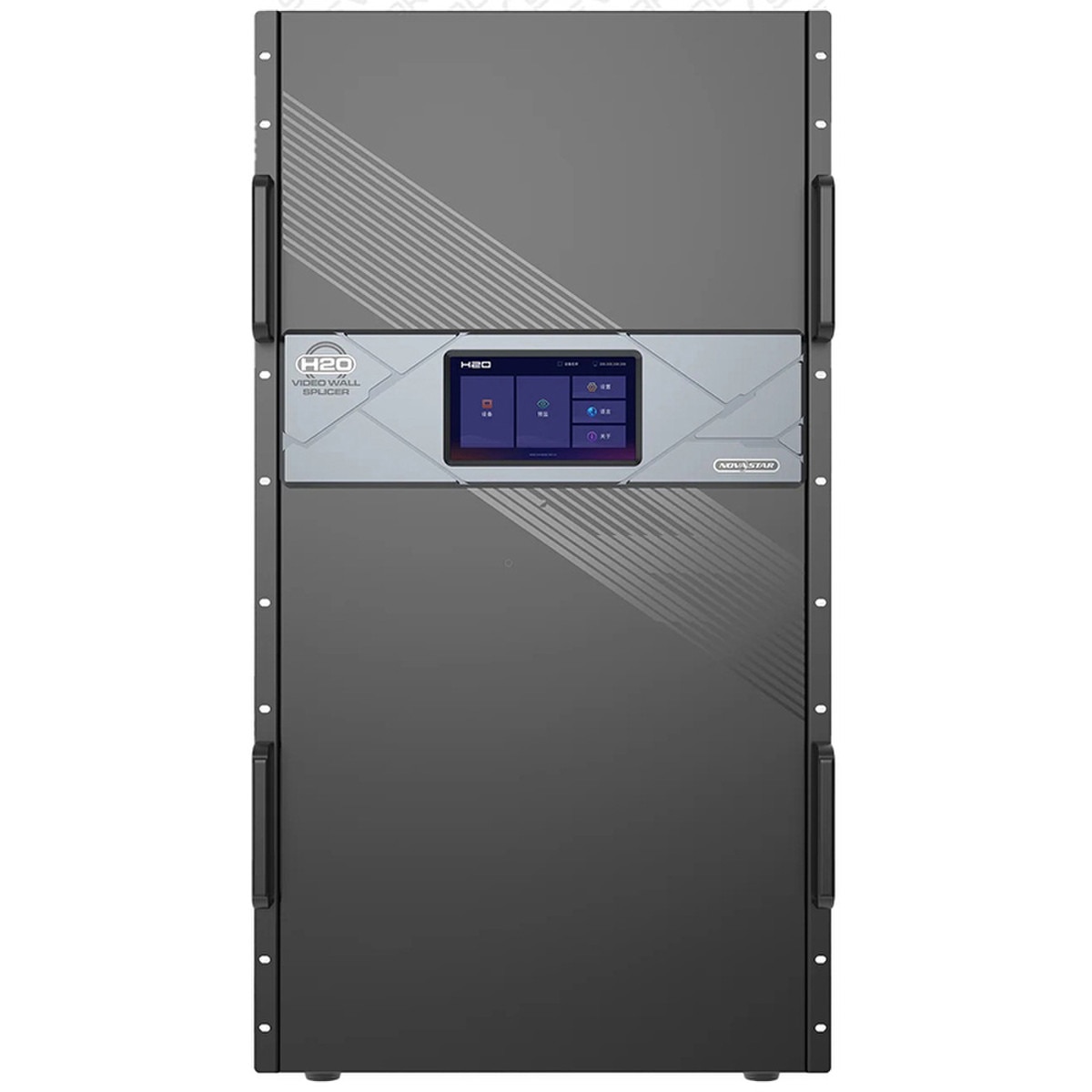

NovaStar H20 All-In-One Splicer and Controller

The H20 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H20 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H20 can be used in a wide range of applications.

Hardware Features:

• Three different types of 4K Sending Cards available:
• H_20xRJ45: Manages up to 13 million pixels
• H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• H_4xSFP+: Manages up to 20.8 million pixels
• Different configurations possible on one Sending Card:
• 4x 2K×1K@60Hz, 2x 4K×1K@60Hz ,2x 4Kx2K@60Hz, 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-Swap" function for all in- & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• multi-screen management
• web control

Specifications:

• Max. Number of input cards: 40
• Max. Number of output cards: 20
• Max. Number of input channels: 160
• Max. Loading Capacity: 460,000,000 pixels
• Max. Number of layers: 160

General Specifications:

• Supply voltage: AC 100-240V, 50/60HZ (The device is delivered with three power supplies. The installation of a backup power supply is optionally possible).
• Power consumption: 1800 watts
• Dimensions: 482.6 x 905.2 x 533.0mm (WxDxH)
• Weight: 61,8kg

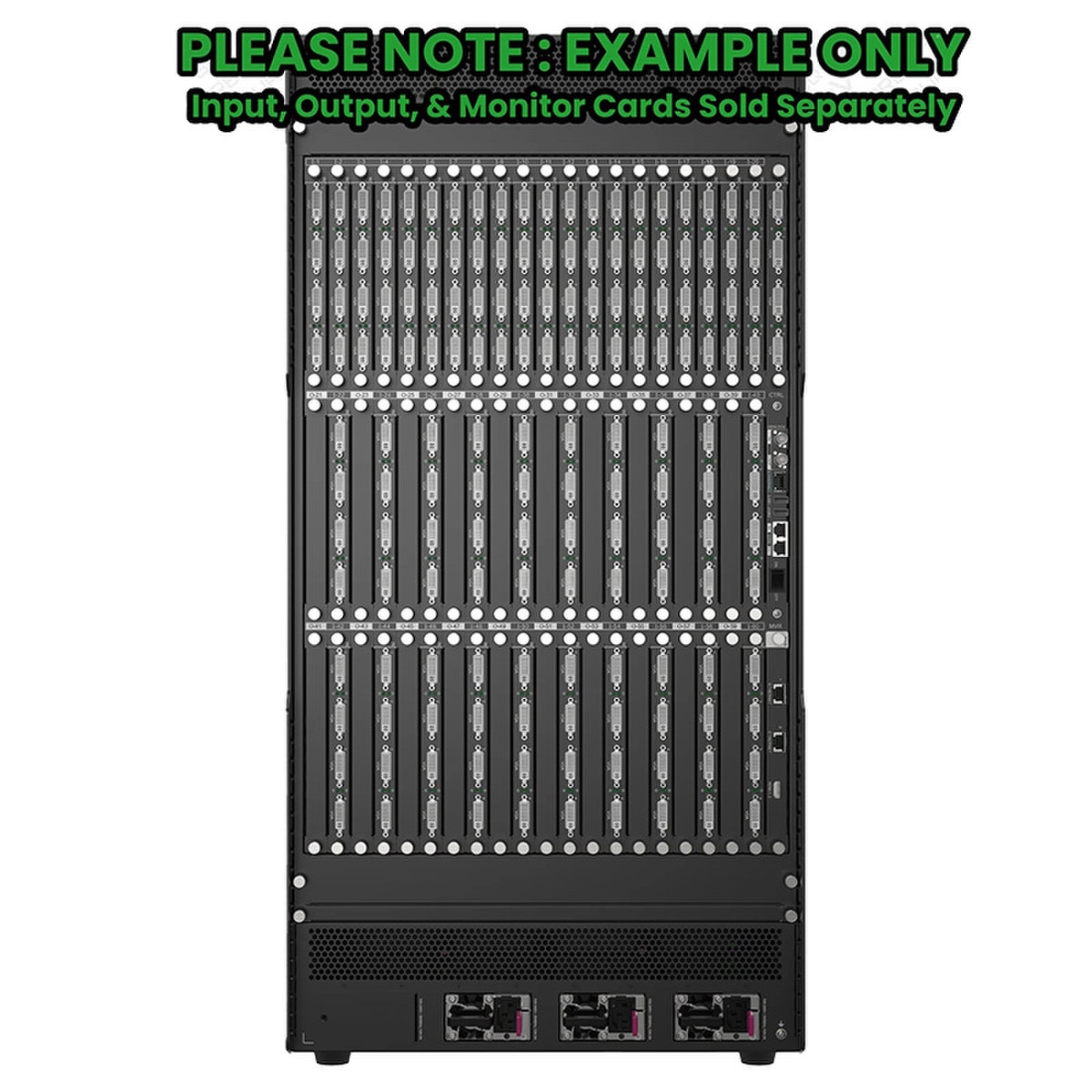

• ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.
