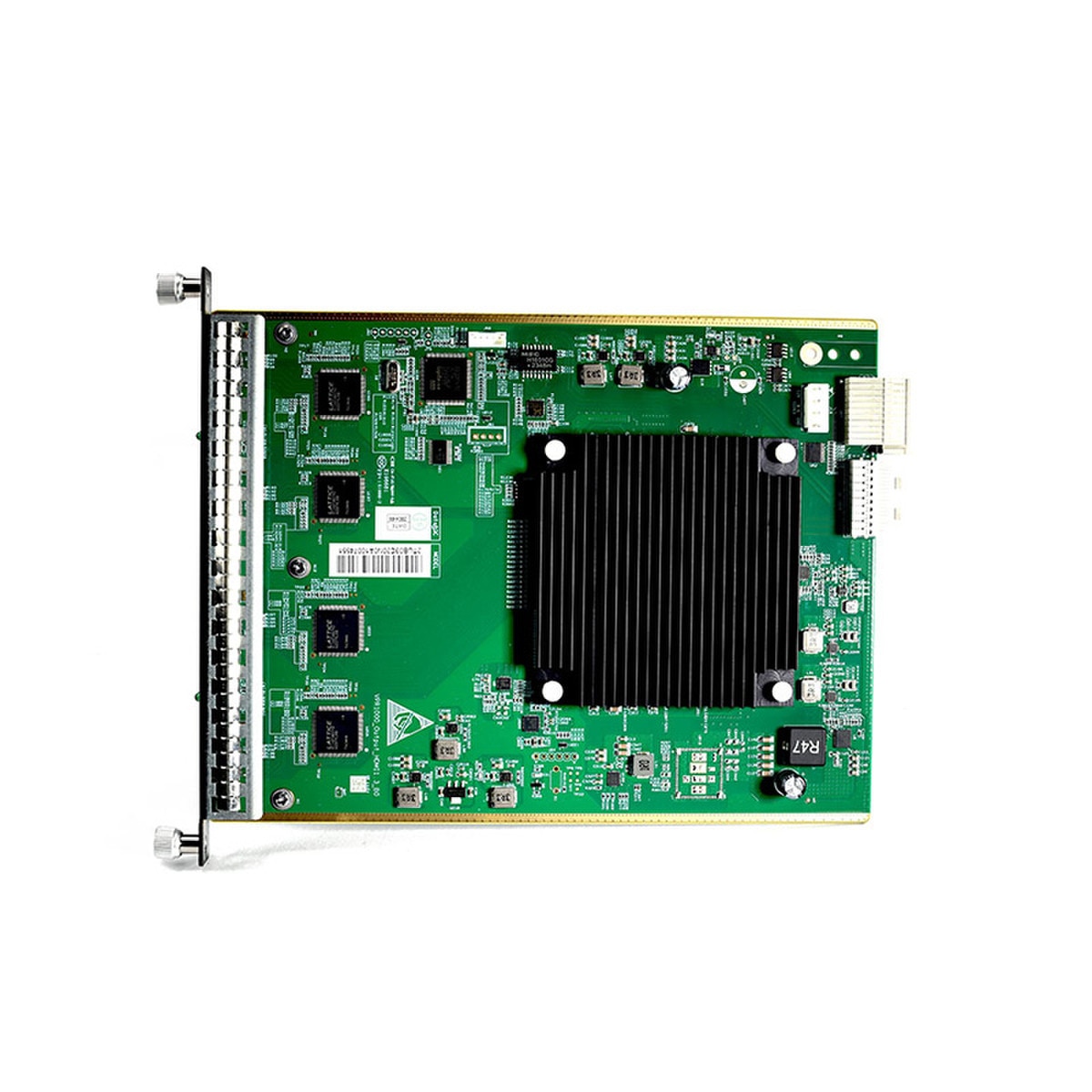

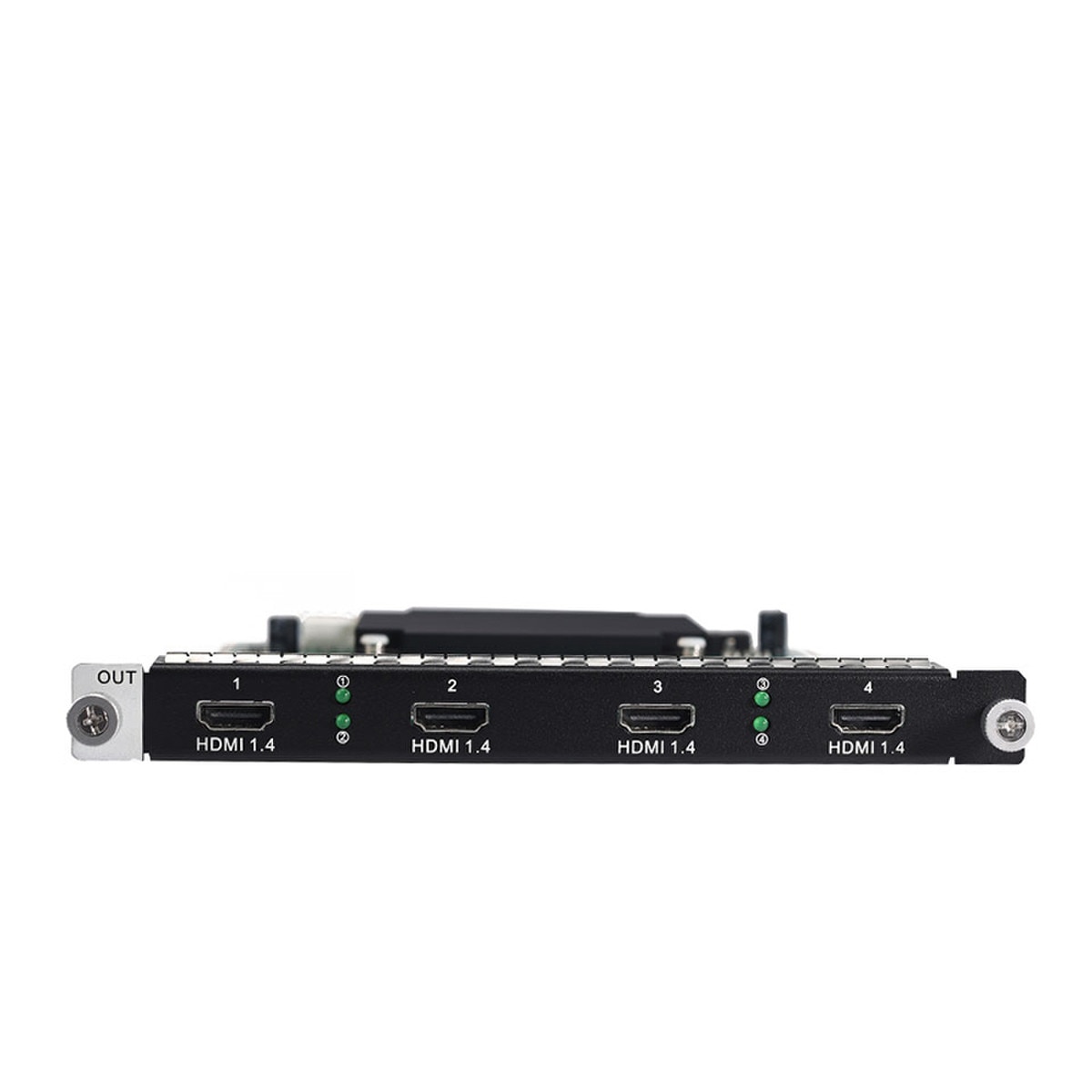

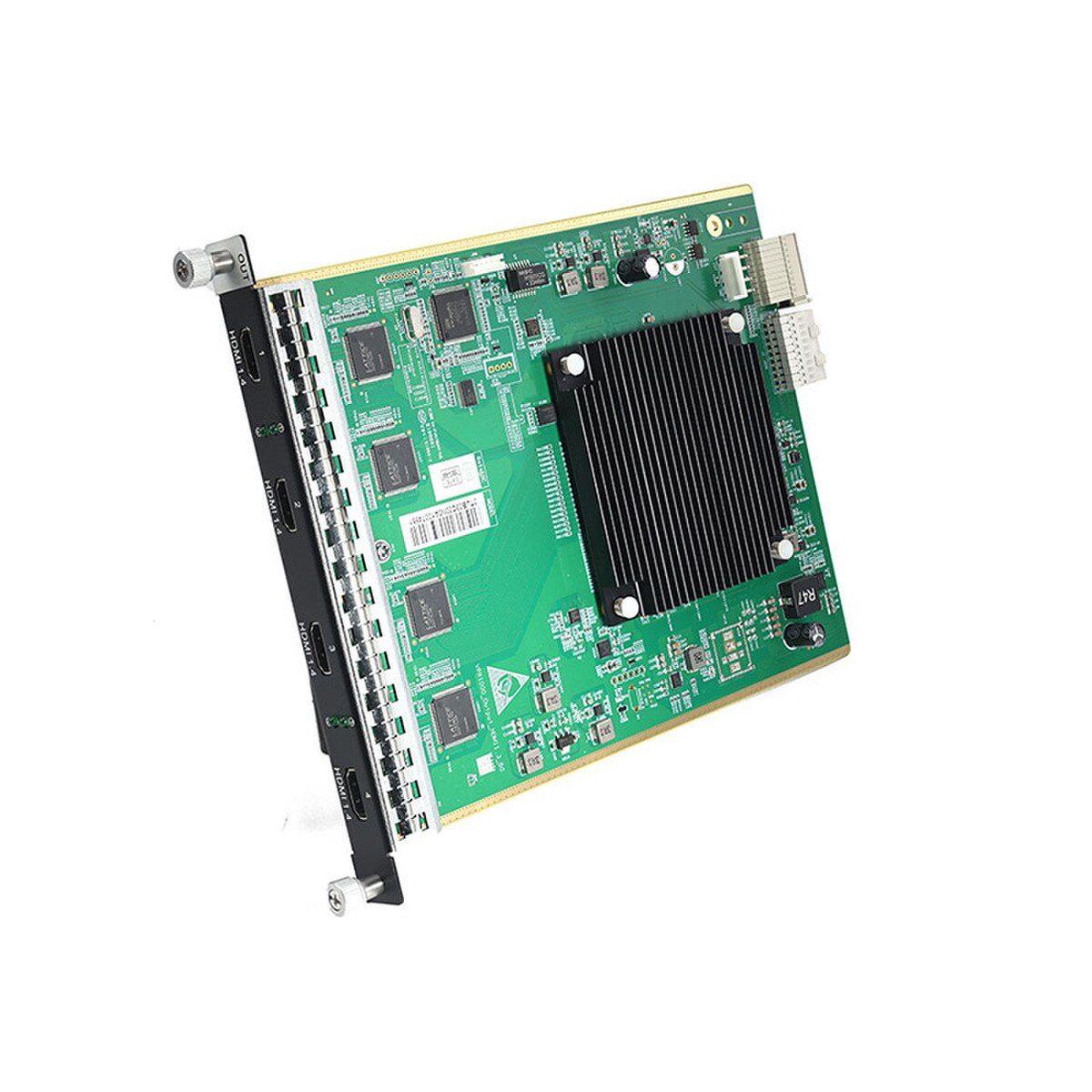

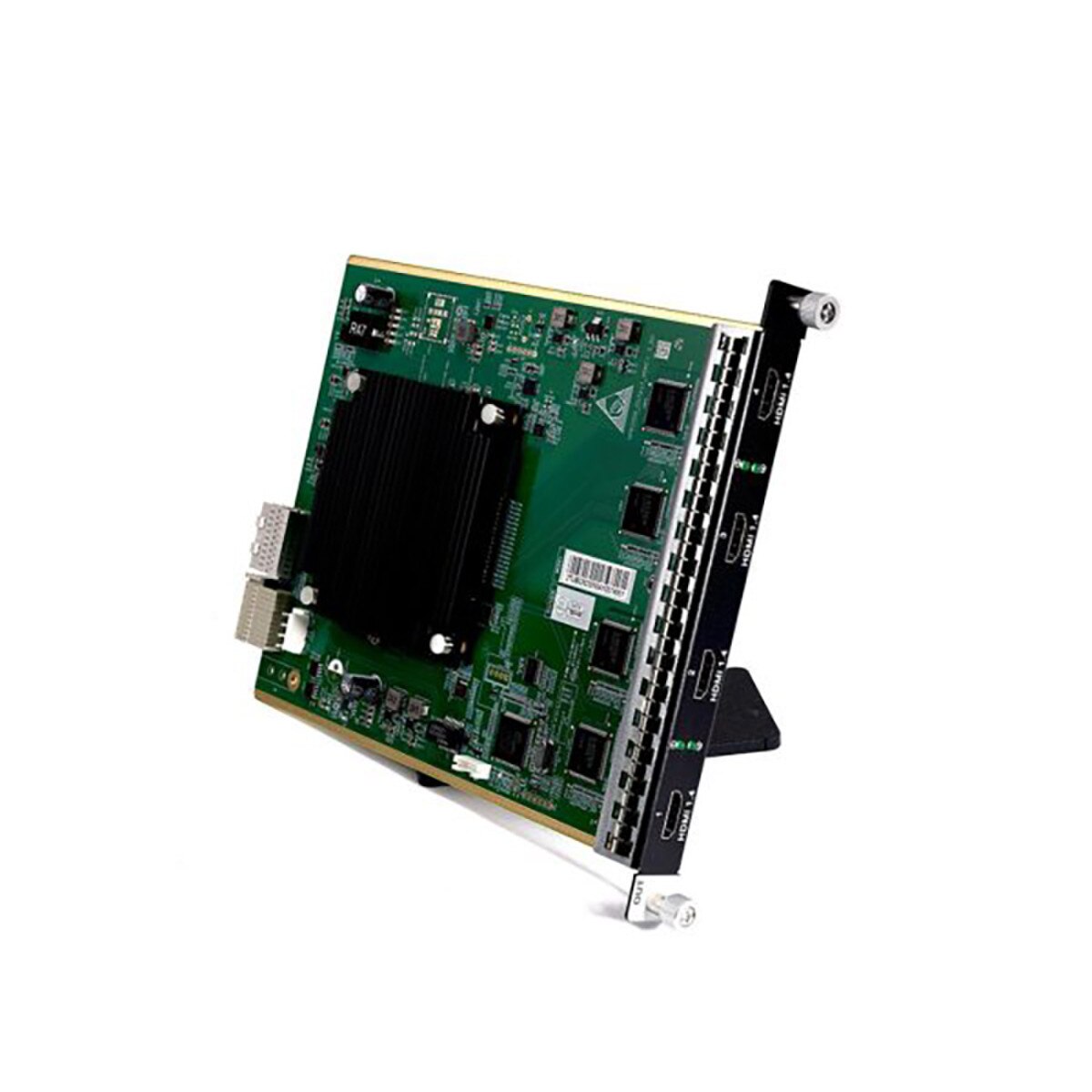

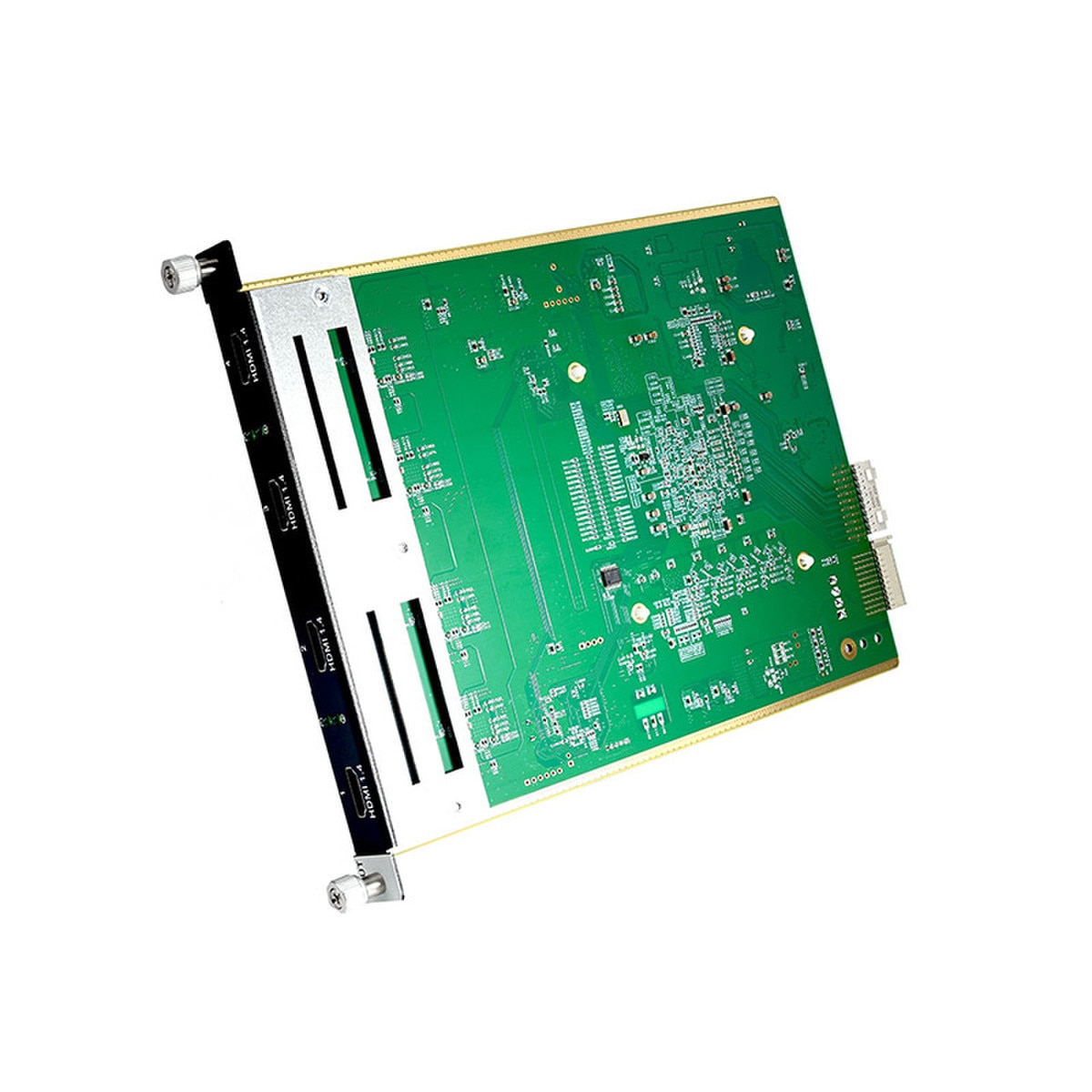

NovaStar H_4xHDMI Output Card

Video output card for the H-series controllers.

Specifications:

• Max. Resolution per output: 2048 x 1152@60Hz
• Custom-EDID's: Max. Width: 2560 pixels (2560 x 972@60Hz), max. height: 2560 pixels (884 x 2560@60Hz)
• Supported sampling rates with 8-bit: RGB 4:4:4 / YbCbCr 4:4:4 / YbCbCr 4:2:2
• Supported sampling rates at 10-bit: YbCbCr 4:4:4
• Weight: 8 kg
• Size: 59 × 31 × 21 cm
• WEEE number: DE 501 113 91
