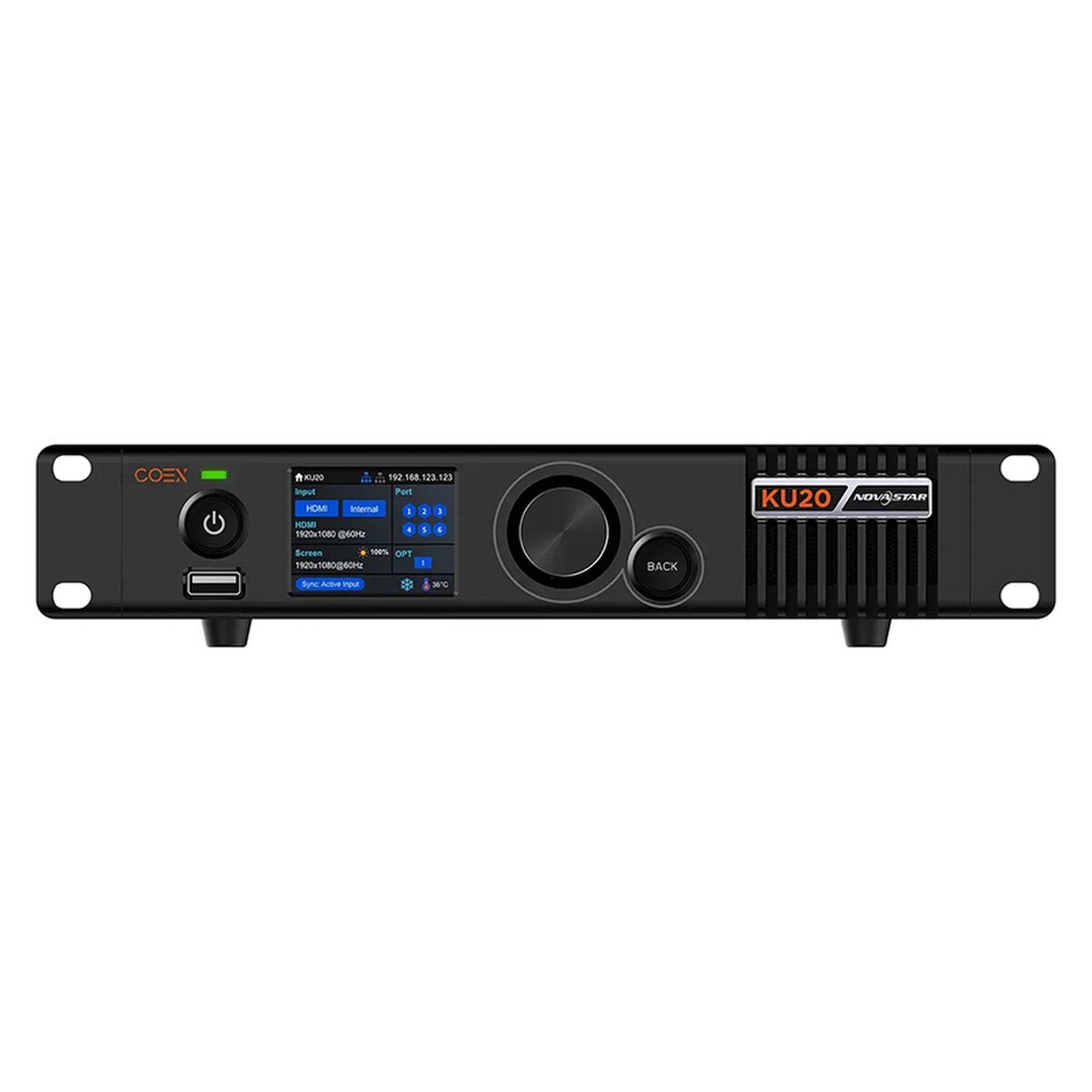

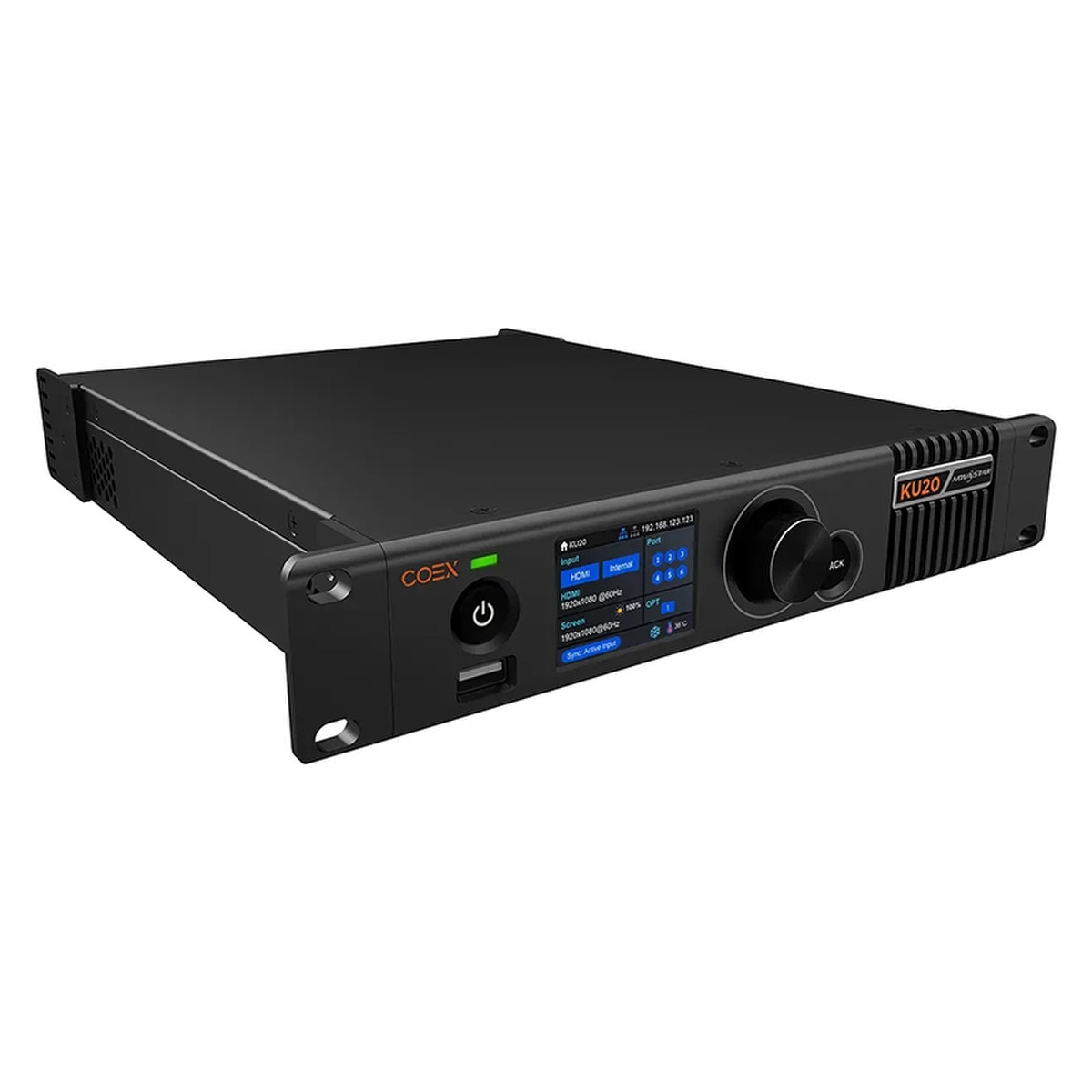

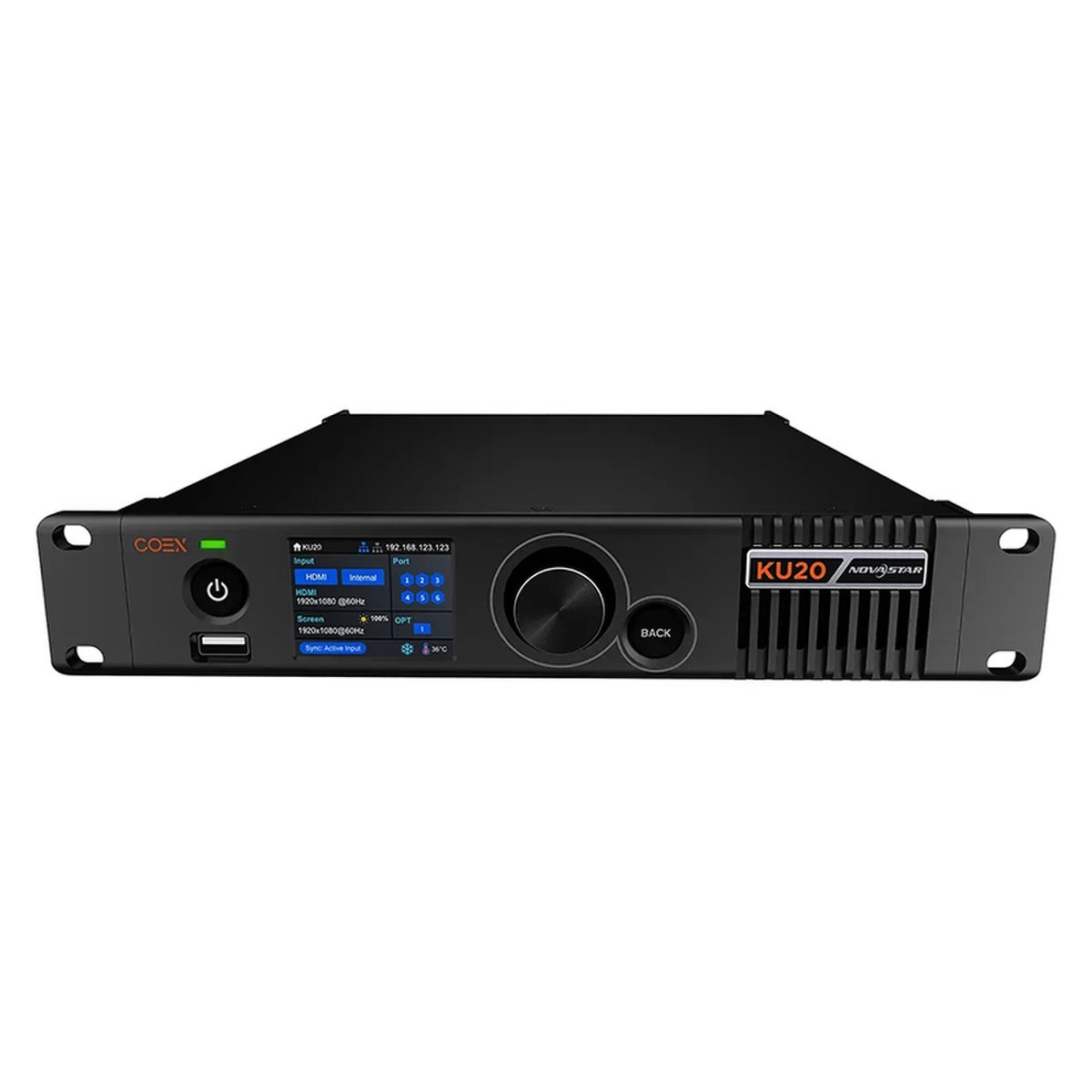

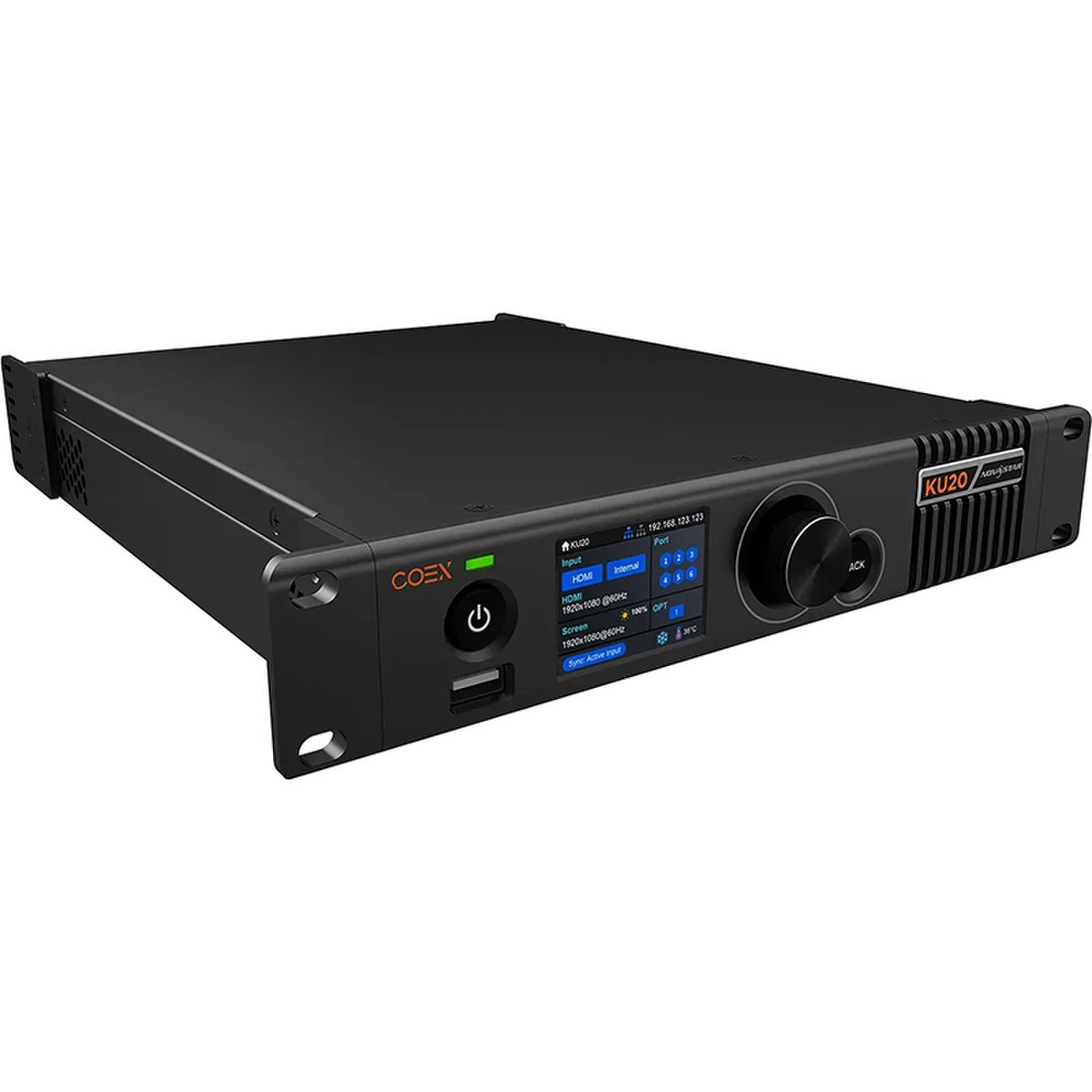

NovaStar KU20

At A Glance:

• Product Type: Video Controller
• Input Resolution: 1920×1200 @60Hz
• Capacity: 2.3 Million Pixels

Tech Specs
LED Display Controller:

The KU20 is a cost-effective LED display controller in the new-generation control system COEX series. It offers 1x HDMI input, 6x Ethernet outputs, and 1x optical output. It can also work with the brand-new VMP (Vision Management Platform) software to provide a better operation and control experience.

Advanced Features:

It offers full grayscale calibration, pixel level brightness, chroma calibration, and low latency support with the latency at the sending card being 0 frames (less than 1 ms), all with the loading capacity not being reduced. An optional video delay of up to 2 frames can be added at the sending card.

Control:

• Cascading control via Ethernet
• VMP software control

Power & Current:

• AC 100V-240V~50/60Hz

Power consumption:

• 25W

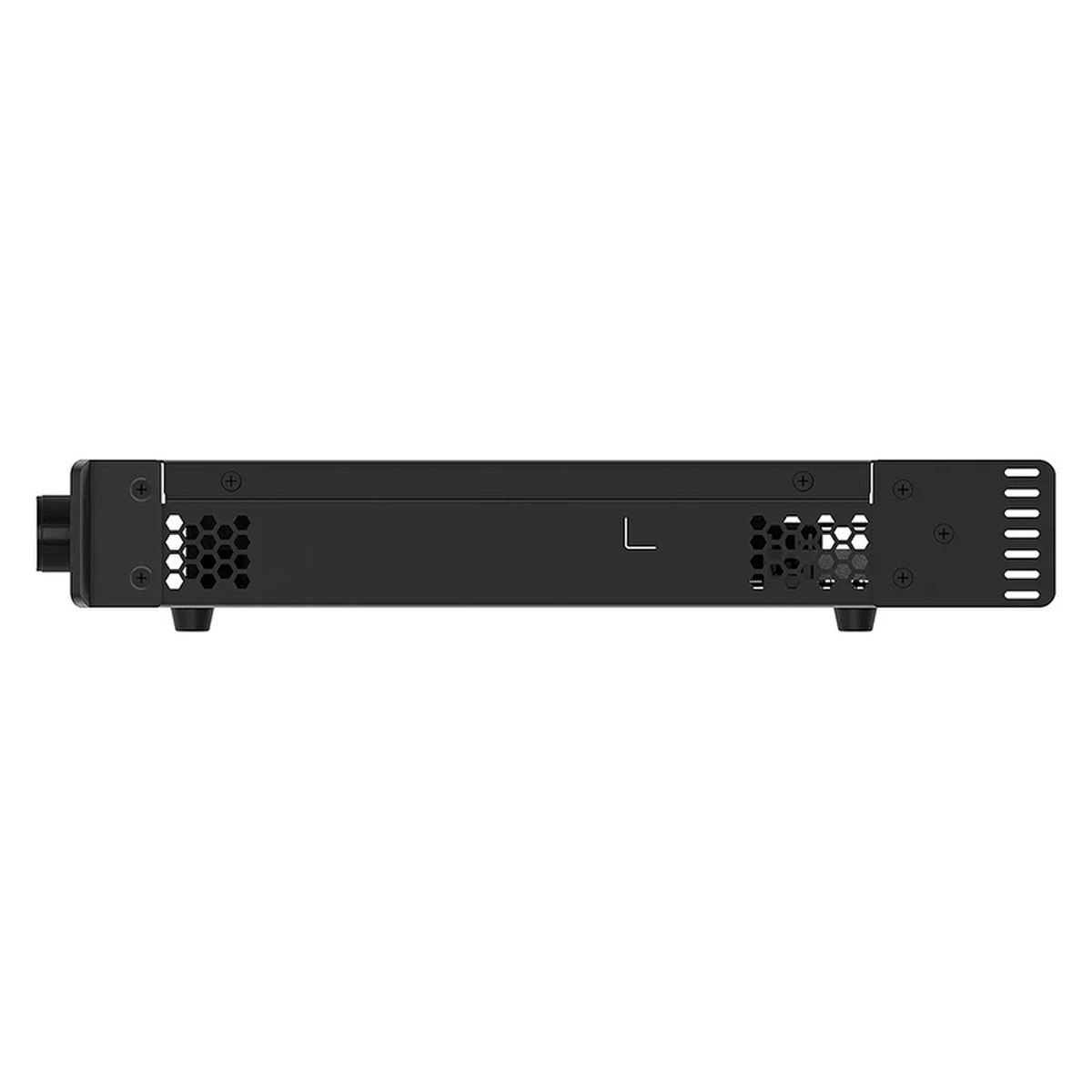

Dimensions:

• 2" x 11.4" x 10"
• 4.63lbs

General Specs:

• KU20 is half-1U in width, so 2 units can be mounted in a 19-inch width rack.
• Works with VMP software for enhanced operation and control.
• Operating temperature: –20°C to +60°C
• Operating humidity: 0% RH to 80% RH, non-condensing

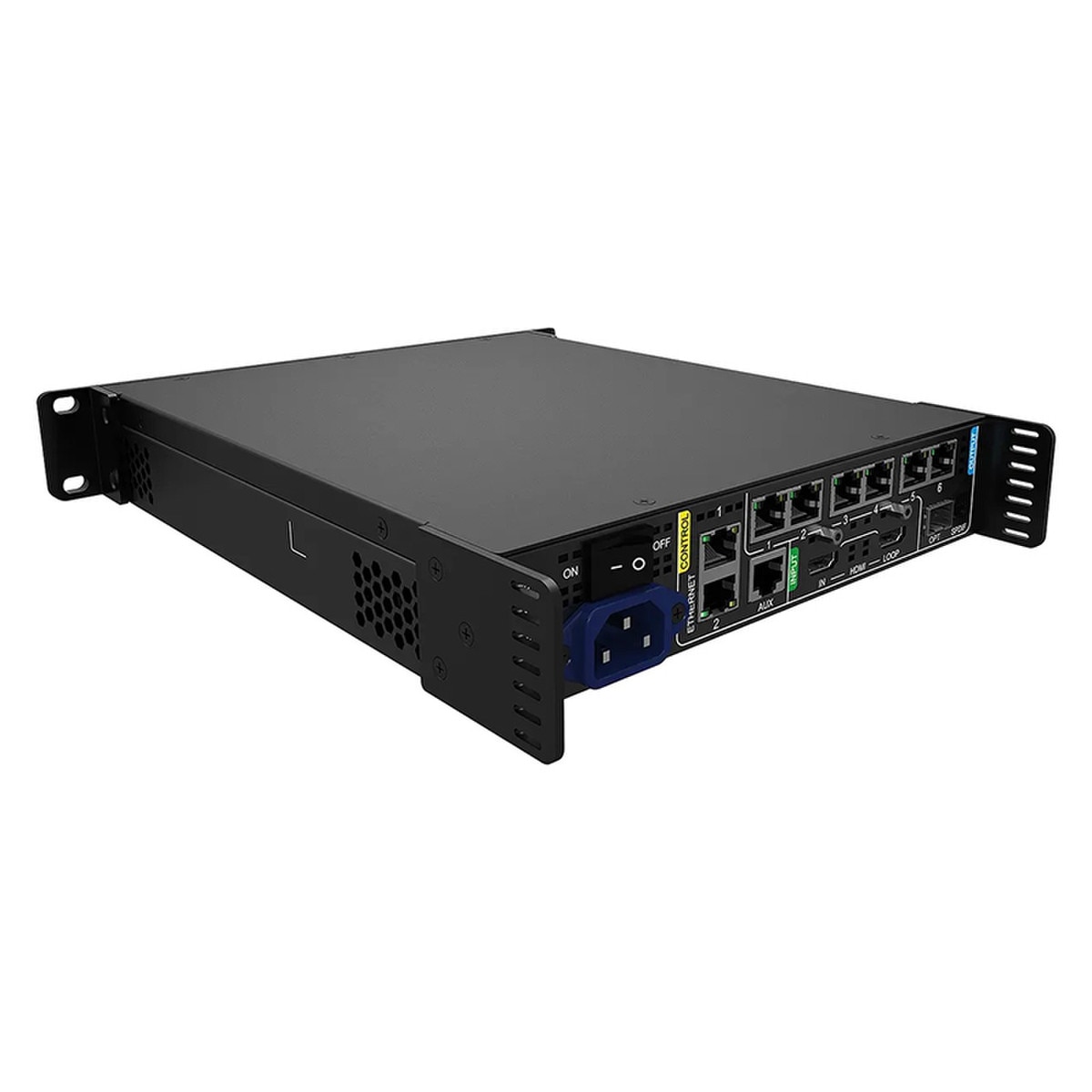

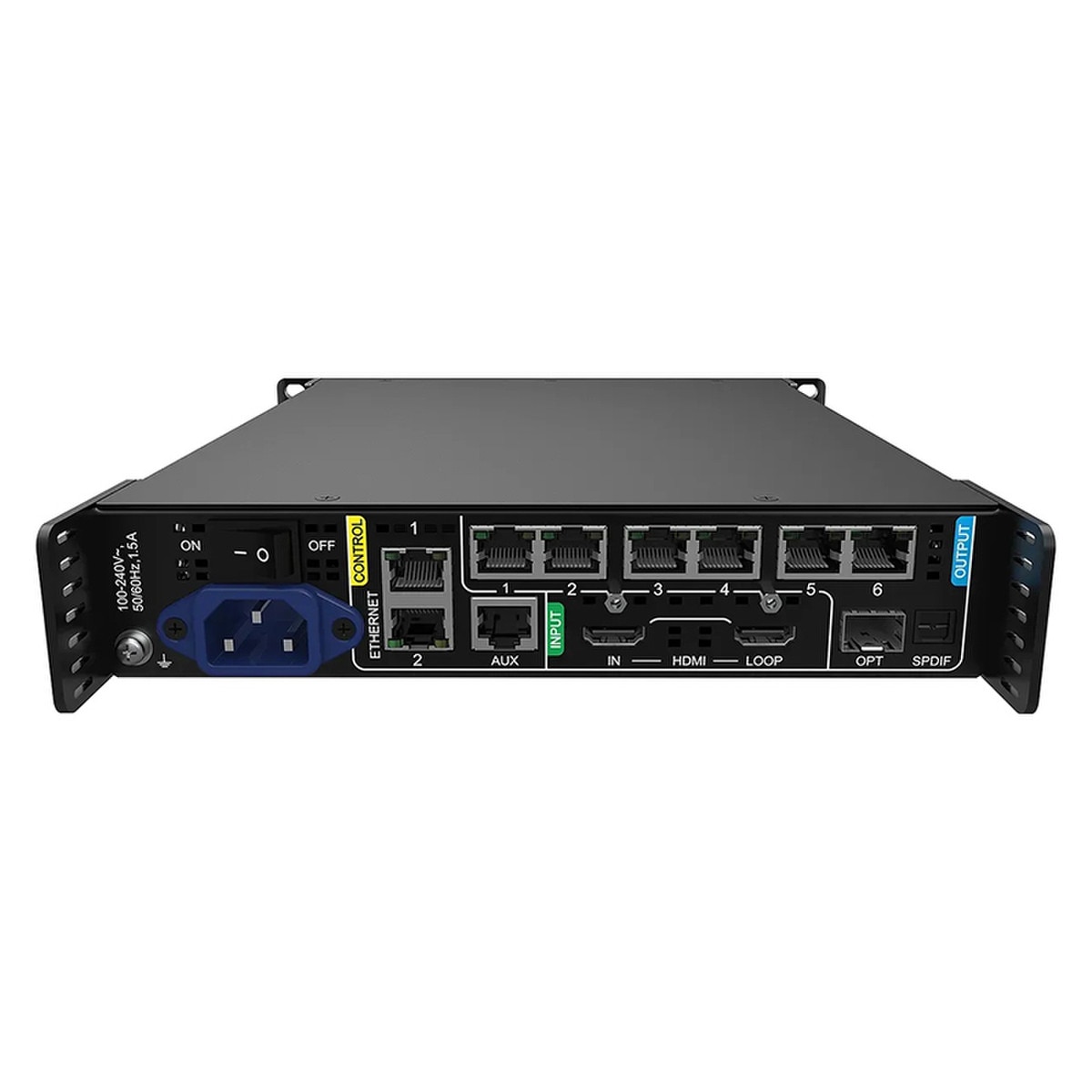

Connectors
Inputs:

• 1x HDMI 1.3 (with loop through, 8bit/10bit)

Outputs:

• 6x RJ45 Gigabit Ethernet ports
• 1x HDMI Loop
• 1x 10G SFP+ port
• 1x SPDIF (reserved)

Warranty:

• 3 Year

NovaStar KU20 User Manual.pdf
NovaStar KU20 Controller Specifications.pdf
NovaStar KU20 Vision Management Platform.pdf
