NovaStar MCTRL300 Independent Controller

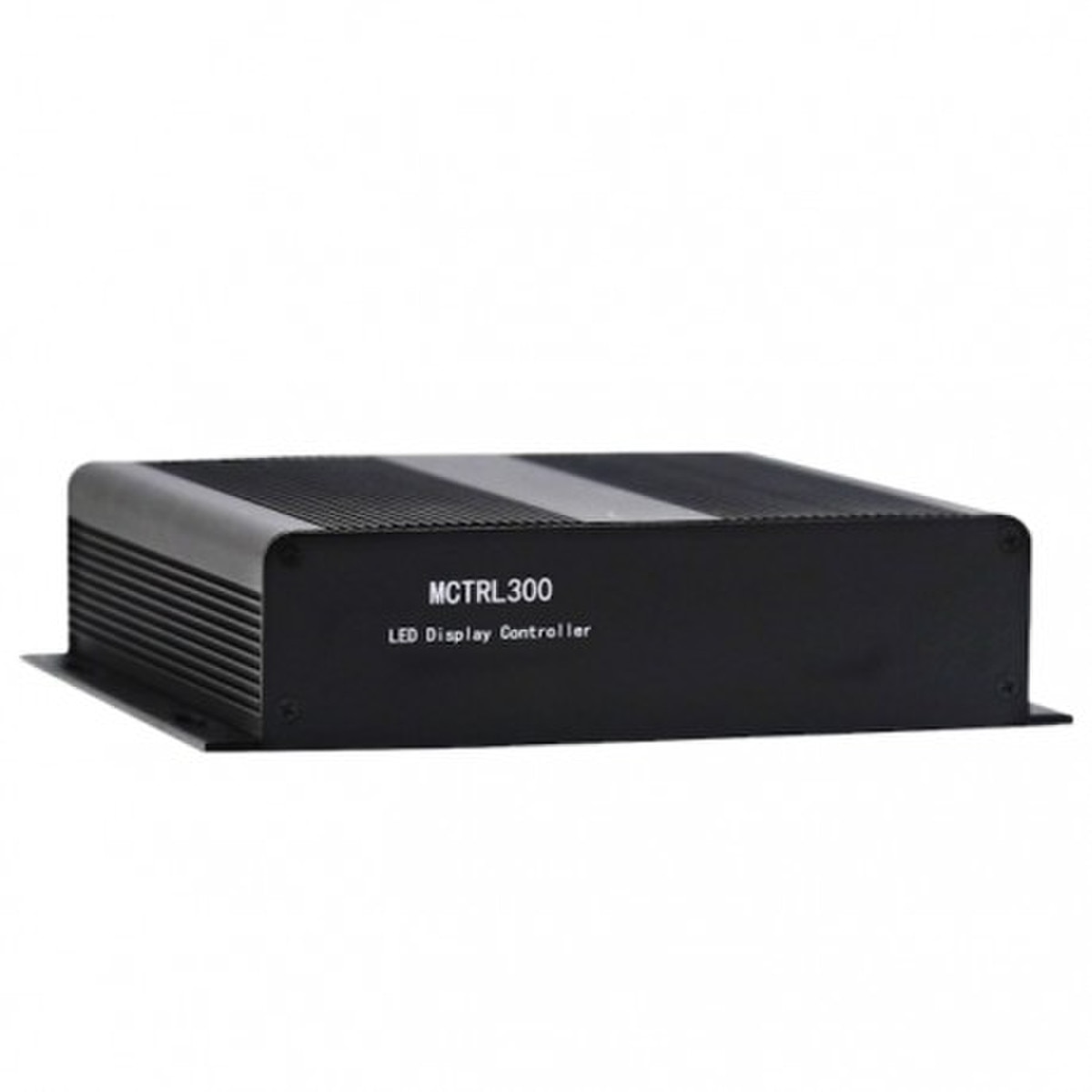

The MCTRL300 box is a Novastar™ MSD300 sending card inside of an aluminum enclosure with a built-in power supply. It will communicate with Novastar™ receiving cards inside of an LED display. This box has a built-in light sensor port to connect the NS048C or NS060 light sensors. You can purchase the stand-alone MSD300 card if you do not need the enclosure.

Features:

• 1x DVI video input
• 1x audio input
• 2x Ethernet port outputs
• USB interface which can be cascaded for uniform control
• Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668
• 1x light sensor interface
• Independent power supply
• Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable

Specifications:

• Electrical Parameters
  • Input voltage: AC 100 V–240 V, 50/60 Hz
  • Rated Power Consumption: 10 W
• Operating Environment
  • Temperature: -20°C–60°C
  • Humidity: 0% RH–90% RH, non-condensing
• Dimensions: 204 mm × 160 mm × 48 mm
• Net Weight: 2.29lbs (1.04 kg)
• Space Requirement: 1U
• Certifications: EAC, RoHS, EMC, FCC, IC, LVD, PFOS
• Packing Box:
  • Eac(more...)
