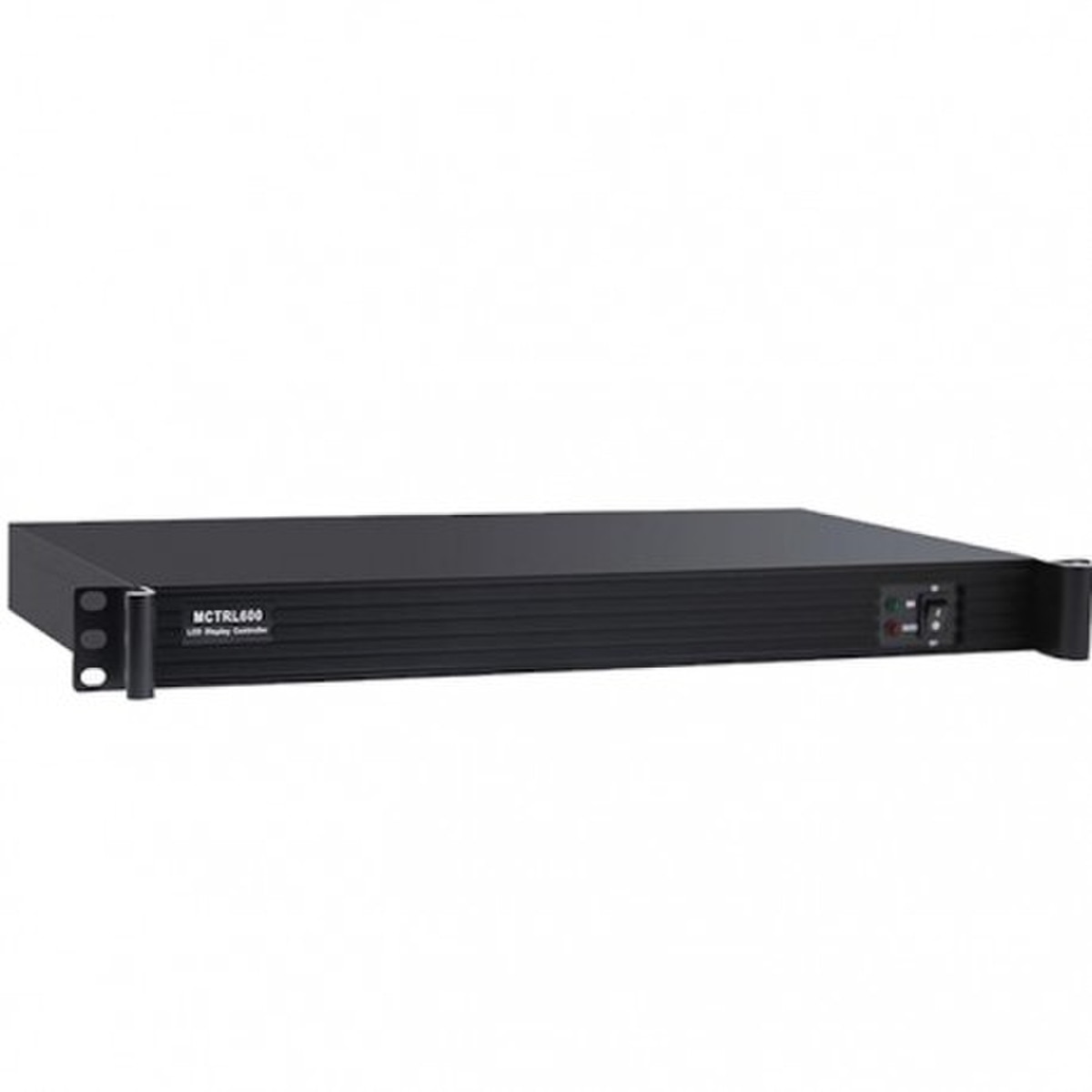

NovaStar MCTRL600 Synchronous LED Display Controller

MCTRL600 is an advanced model of Nova controllers, which supports extra-large resolution. With HDMI/DVI video input and four Ethernet port outputs, a single unit is able to load 2560×960. Multiple units can be cascaded for uniform control.

Features:

• 12-bit / 10-bit HDMI input, DVI input.
• HDMI / external audio input.
• HDCP Blu-Ray input.
• Resolutions Supported:
  • 2048×1152@60Hz, (8-bit)
  • 1920×1200@60Hz
  • 2560× 960@60Hz
  • Customized resolution supported, maximum width/height up to 3840 pixels
• 1 light sensor interface, for auto brightness adjustment.
• Cascading supported.
• Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.
• Certification: CE, RoHS, FCC, EAC, IC.

Specifications:

• Overall Power Consumption 16W
• Temperature of Working Environment -20℃~60℃
• Humidity of Working Environment 0%~95%
• Net Weight: 5.95 lbs (2.7 Kg)
• USB Cable 1.5 M
• DVI Cable 1.5 M
