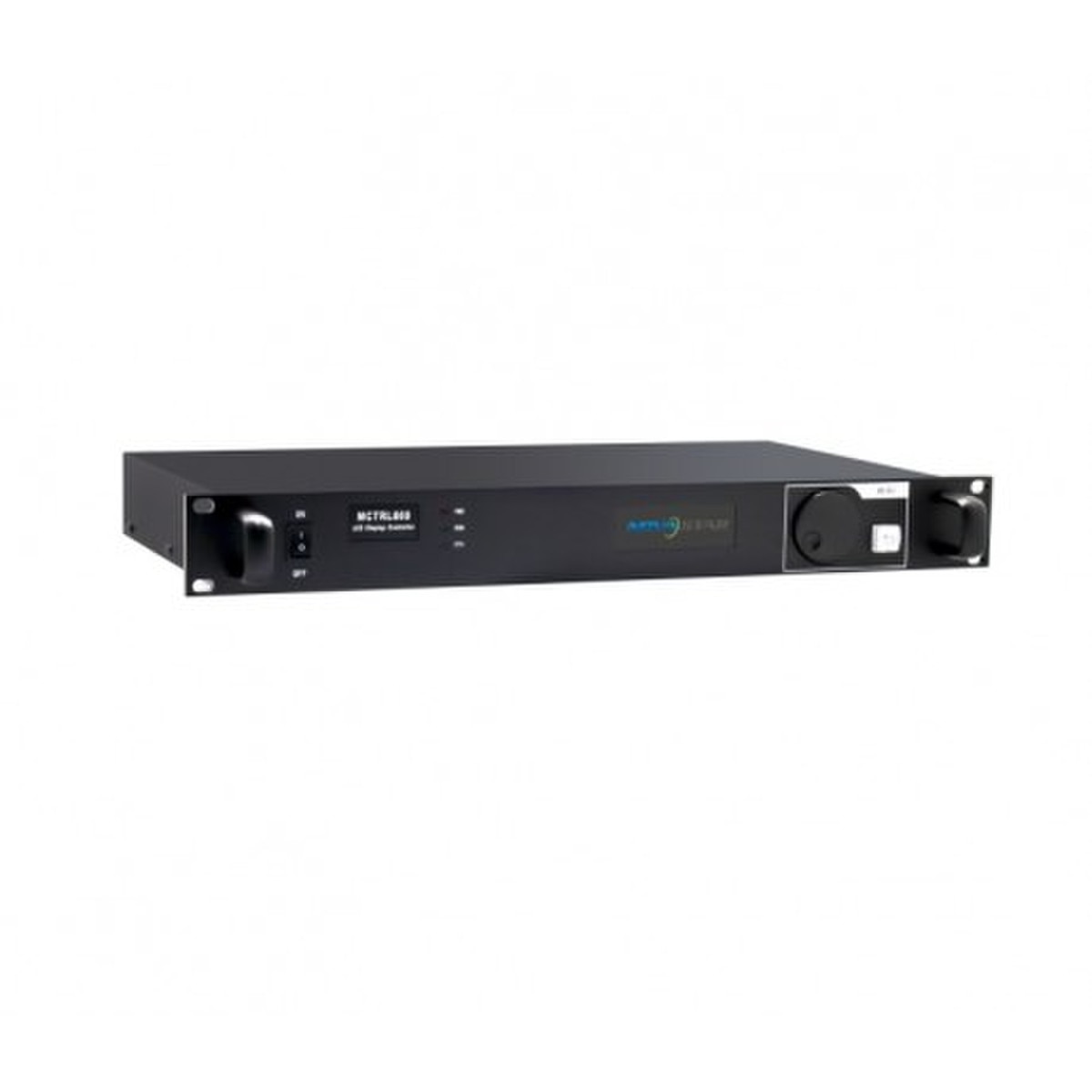

NovaStar MCTRL660 LED Video Display Controller

The MCTRL660 is an independent master controller which allows screen configuration at any time without a computer. It offers an LCD menu for independent control of the screen set up process, where configuration can be accomplished in seconds. Outstanding features, ease of use, and affordability make the MCTRL660 a rock-solid choice. It is an advanced video controller that supports high pixel resolution. Colors are gradated at extremely high levels with uniformity and depth that allows the LED display to present life-like imagery. With HDMI/DVI video input and four Ethernet port outputs, a single unit is able to load 2560×960. Multiple units can also be cascaded for uniform control.

Features:

• Product Type: Video Controller
• Capacity: 2.3 Million Pixels
• Nova G4 Engine, Flicker-Free
• Control Method: USB Interface
• Video Interface: HDMI/DVI
• Audio Interface: HDMI/3.5mm
• Video Format: RGB, YCrCb4:2:2, YCrCb4:4:4
• Output Interface: 4x Ethernet Ports
• Bit Depth Of Video Resource: 8/10/12-bit
• Resolution Supported: 2048×1152, 1920×1200, 2560×960
• Resolution Supported: 1440×900 (12-bit/10-bit)
• Cascading Supported
• White Balance Calibration & Color Gamut Mapping
• 18-bit Gray Scale Processing & Presentation
• Certification: CE, ROHS, FCC, UL, EAC

Specifications:

• Input Power: AC 100-240V, 50/60Hz
• Overall Power Consumption: 16W
• Temperature of Working Environment: -20~60℃
• Humidity of Working Environment: 0%~95%
• Net Weight: 3.9 Kg
• USB Cable: 1.5M
• DVI Cable: 1.5M
• Dimensions: 19 x 15.3 x 3.5" (483 x 389 x 88.2mm)
• Weight: 7.9 lbs. (3.6 kg)
