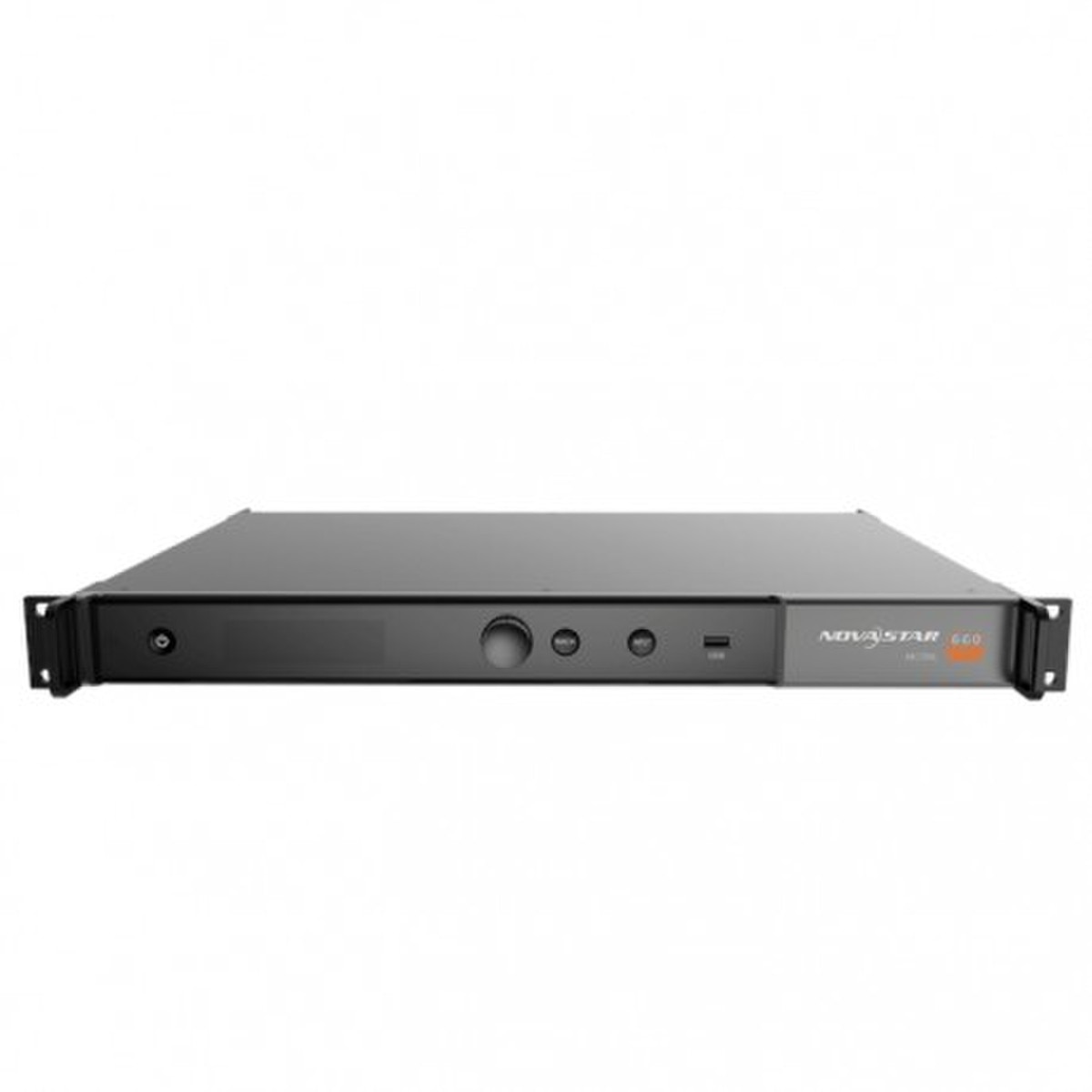

NovaStar MCTRL660 PRO LED Video Display Controller
Details
The MCTRL660 PRO is a professional controller developed by NovaStar. A single MCTRL660 PRO has a loading capacity of up to 1920×1200@60Hz. It allows users to customize resolutions to configure ultra-large screen width and heights.
Features:
- Product Type: Video Controller
- Input Resolution: 1920×1200 @60Hz
- Capacity: 2.3 Million Pixels
- Control Method: USB, ETHERNET, GENLOCK
- Video Interface: HDMI/DVI/3G-SDI
- Video Format: RGB444/YCbCr444/YCbCr422/YCbCr420
- Audio Interface: HDMI/3.5mm audio connector
- Output: 6× Gigabit Ethernet ports, 2× 10G optical ports
- Bit Depth Of Video Resource: 8/10/12-bit
- Input Resolution: 1920×1200 @60Hz
- Cascading Supported
- Independent gamma adjustment of RGB
- A low latency of less than 1 frame (≤ 10 lines)
- Dual working modes: sending card and fiber converter
- One-click backup and quick recovery
- Image flip/mirroring stage effects
- Auto LED screen configuration
- Web control
- Pixel level brightness and chroma calibration
- Monitoring of inputs
- Certification: CE, ROHS, FCC, UL, EAC
Specifications:
- Input voltage: 100 V–240 V AC
- Rated Power Consumption: 20.0 W
- Operating Temperature: -20°C–60°C
- Operating Humidity: 0% RH–90% RH, non-condensing
- Dimensions: 19 x 13.8 x 2" (482.6 mm × 349.0 mm × 50.7 mm)
- Net Weight: 10.2lbs (4.6 kg)
- Space Requirement: 1U
- Packing Carrying Case: 550 mm × 440 mm × 175 mm, white cardboard box
- Packing Box: 530 mm × 140 mm × 410 mm, craft paper box
- Accessory Box: White cardboard box
- 1 × MCTRL660 PRO unit
- 1 × Ethernet cable (1.5 m)
- 1 × DVI cable (1.5 m, double magnetic ring design, EMC)
- 1 × USB cable (1.5 m)
- 1 × HDMI cable (1.5 m)
- 1 × Power cord
