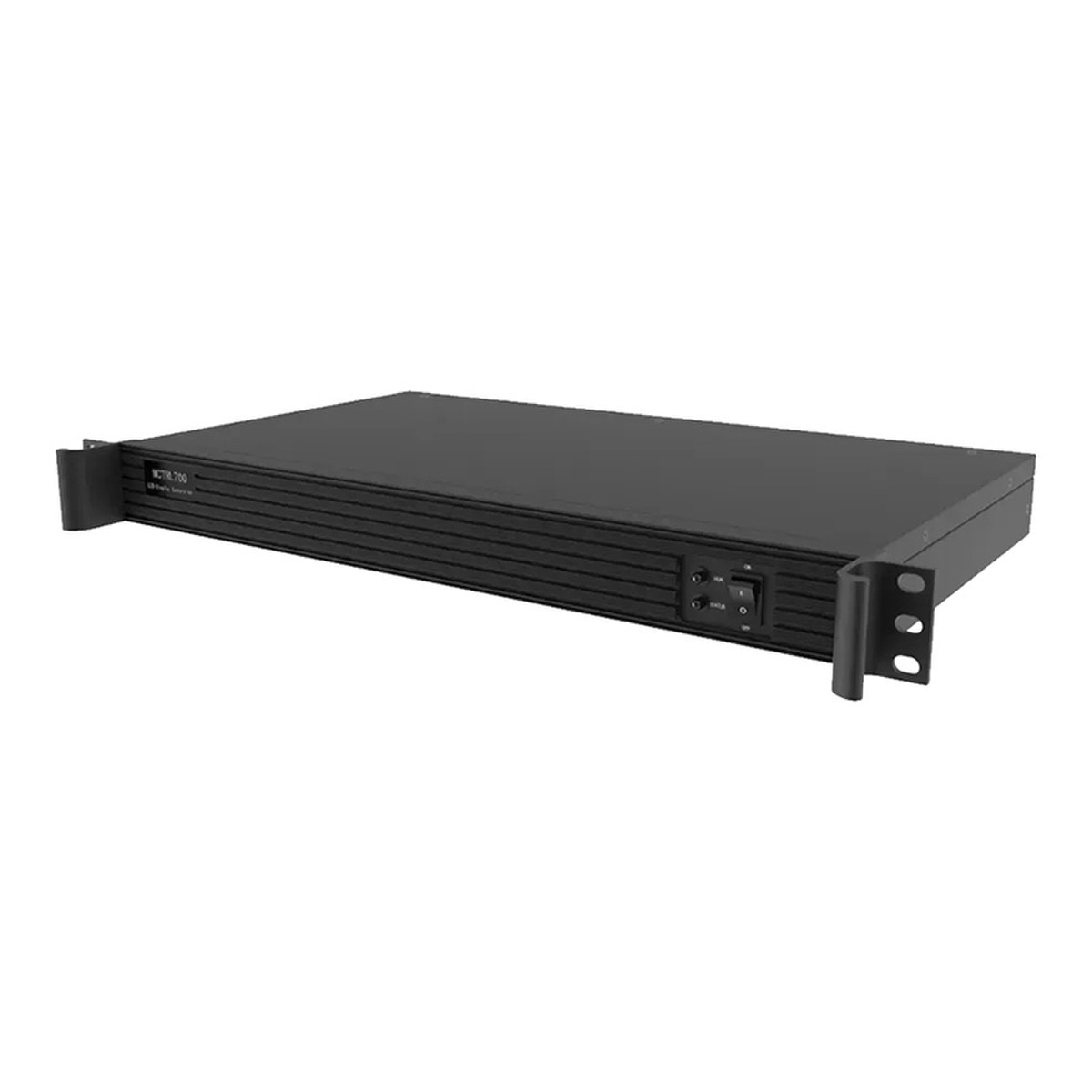

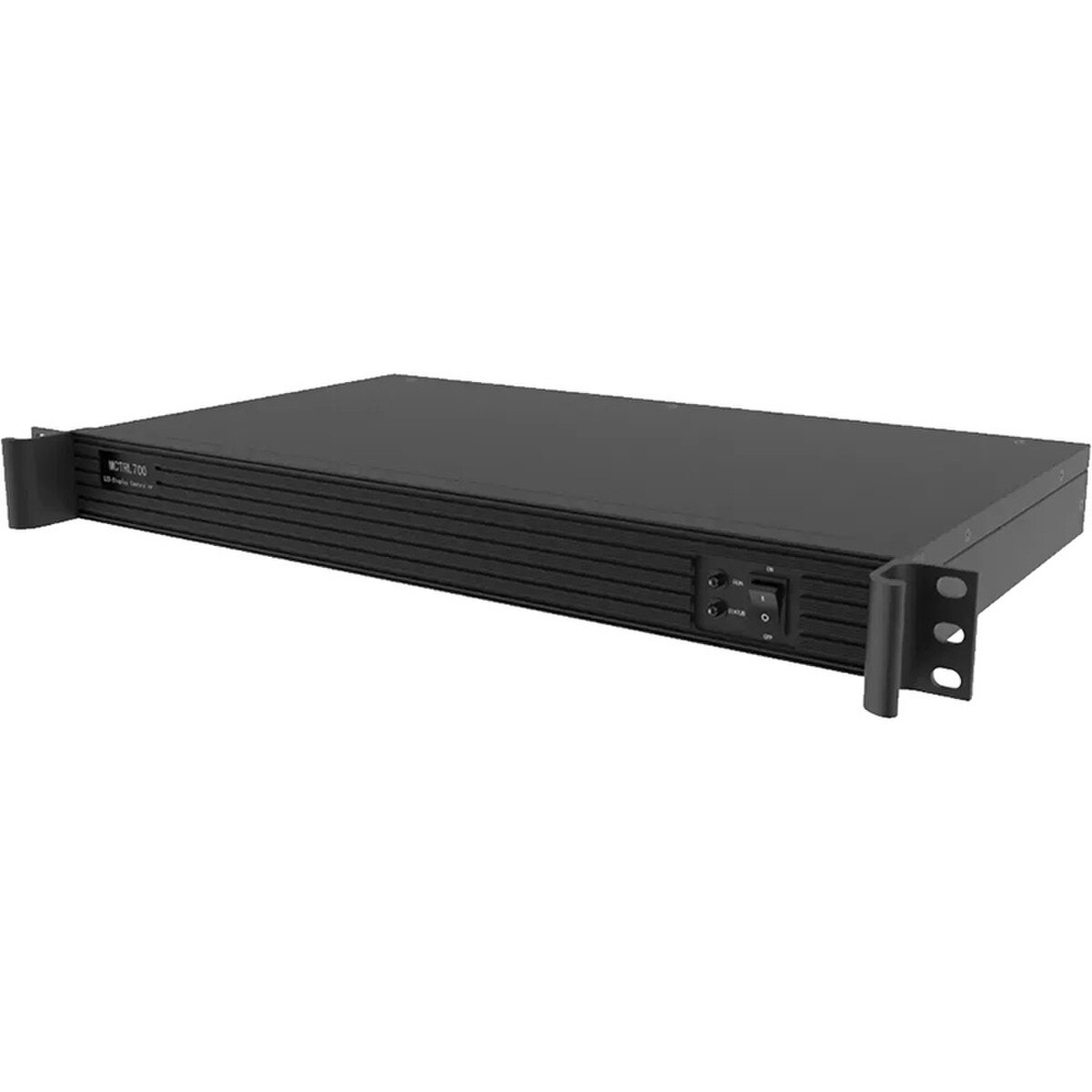

NovaStar MCTRL700

At A Glance:

• Product Type: Video Controller
• Input Resolution: 1920Ã?1200 @60Hz
• Capacity: 650K Pixels (per port)

Tech Specs
LED Video Controller:

MCTRL700 is a video controller that supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs. A single unit can load 1920x1200@60Hz.

High Image Quality:

Point-to-point calibration can further enhance the image quality when using NovaStar™ NOVACLB to reduce any color discrepancies, and ensure uniform brightness.

Control:

• Type-B USB 2.0 port to connect to PC
• UART IN/OUT to cascade up to 20 devices

Power & Current:

• AC 100V-240V~50/60Hz
• Power consumption: 12W

Dimensions:

• 1.8" x 10.6" x 19"
• 5.8 lbs.lbs

General Specs:

• Operating temperature: -20°C to +60°C
• Operating humidity: 10% RH to 90% RH, non-condensing
• Pixel level brightness and chroma calibration via NovaCLB

Connectors
Inputs:

• 1x SL-DVI
• 1x HDMI 1.3
• 1x Audio IN

Outputs:

• 6x RJ45 Gigabit Ethernet ports
• 1x HDMI 1.3
• 1x SL-DV

Warranty:

• 3 Year

NovaStar MCTRL700 Controller Specifications.pdf
