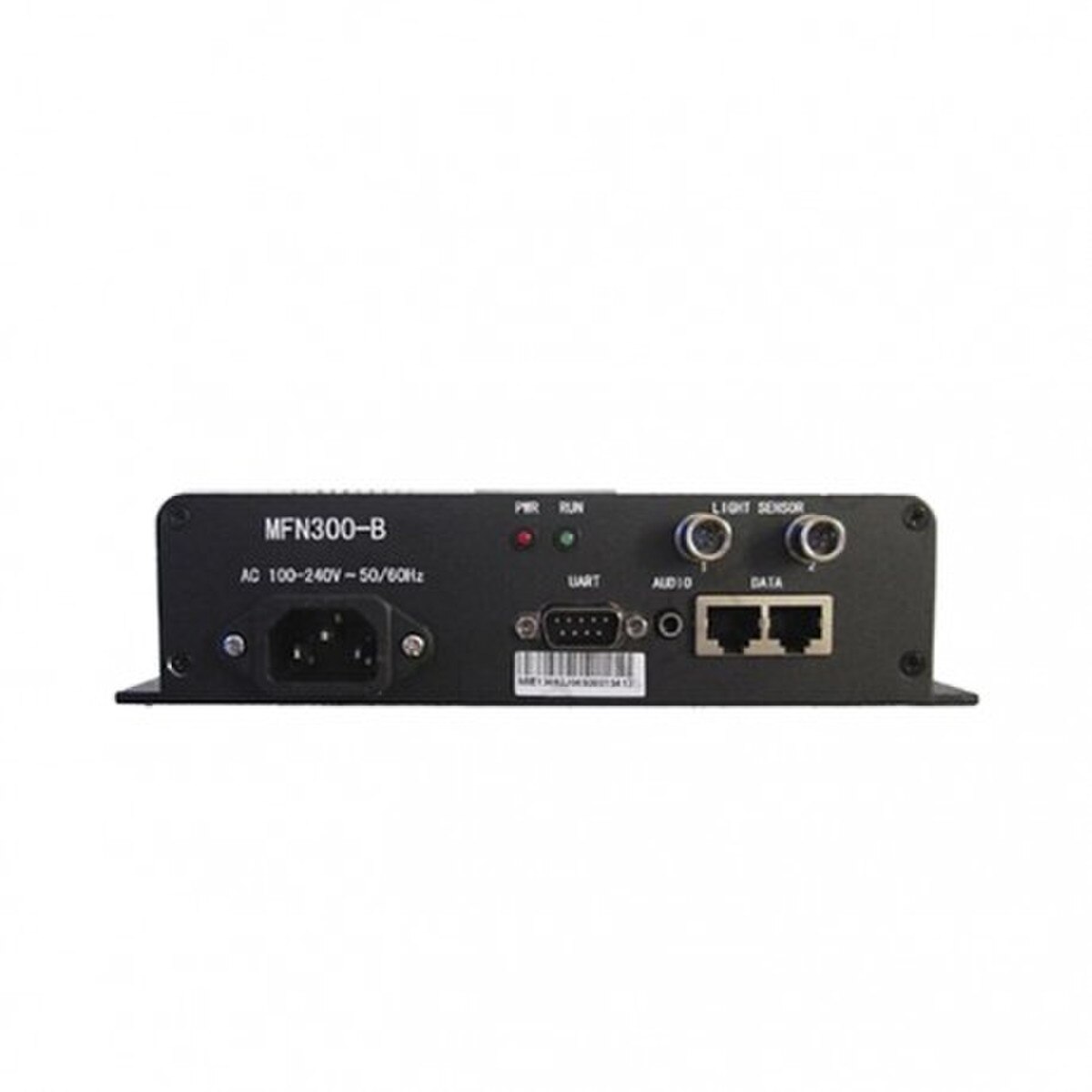

NovaStar MFN300-B Multifunctional Auxiliary Box

This is a multifunctional box with a variety of auxiliary functions such as RS232 serial or Gigabit Ethernet port communication, connection between two receiving cards, timer function, distribution box temperature, and humidity detection, 4-way light sensor connection, and 8-way power switch control.

Features

• RS232 serial or Gigabit Ethernet port communication
• Ethernet port connection between 2 receiving cards or at end
• Timer function which is able to replace timer and delayer
• Temperature detection of power distribution box
• Humidity detection of power distribution box
• Audio output
• 4-way light sensor connection to achieve automatic brightness adjustment
• Temperature and humidity module connection
• 8-way power switch control

Specifications

• Weight: 4.19 lbs. (1.9 kg)
• Input Voltage: DC 4.5V ~ 5.5V
• Rated Current: 0.38A
• Operating Temperature: -20°C ~ 75°C
• Operating Humidity: 10 ~ 90%
• Warranty: Limited 2-year warranty
