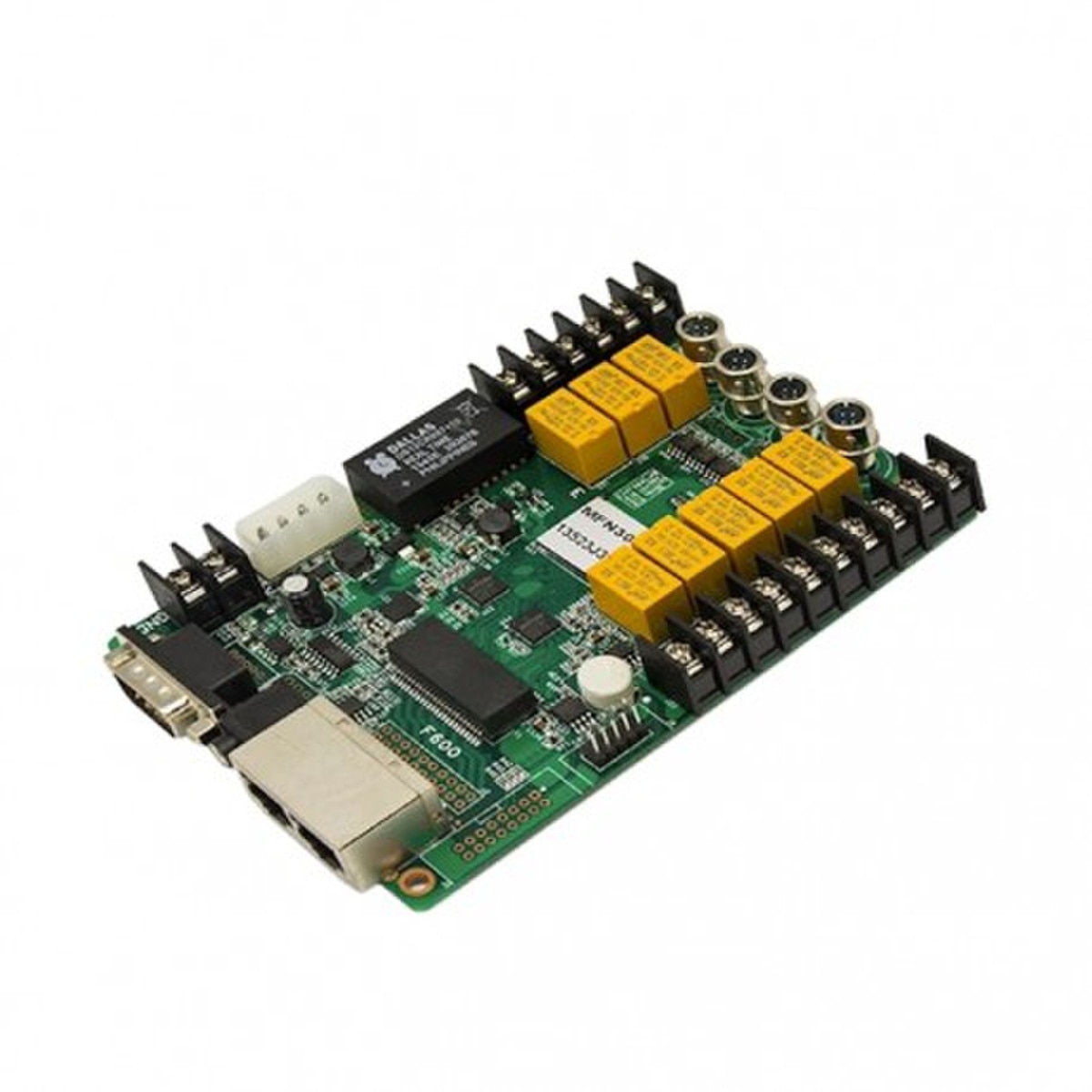

NovaStar MFN300 Multifunctional Auxiliary Card
Details
This is a multifunctional card with a variety of auxiliary functions such as RS232 serial or Gigabit Ethernet port communication, connection between two receiving cards, timer function, distribution box temperature and humidity detection, 4-way light sensor connection, and 8-way power switch control.
Features
- RS232 serial or Gigabit Ethernet port communication
- Ethernet port connection between 2 receiving cards or at end
- Timer function which is able to replace timer and delayer
- Temperature detection of power distribution box
- Humidity detection of power distribution box
- Audio output
- Temperature and humidity module connection
Specifications
- Weight: 4.19 lbs. (1.9 kg)
- Input Voltage: DC 4.5V ~ 5.5V
- Rated Current: 0.38A
- Operating Temperature: -20°C ~ 75°C
- Operating Humidity: 10 ~ 90%
- Warranty: Limited 2-year warranty
