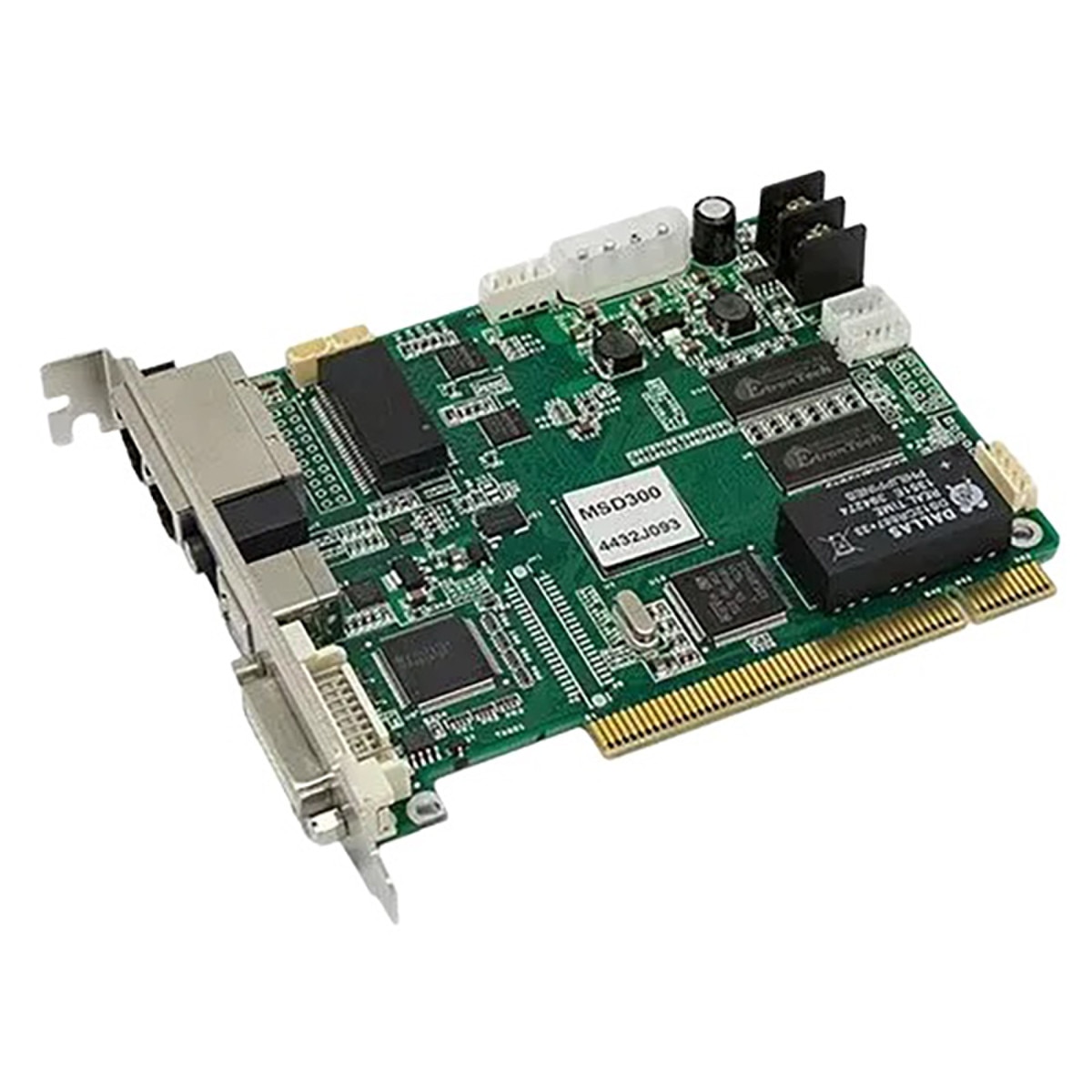

NovaStar MSD300-1

At A Glance:

• 1x DVI video input
• 1x audio input
• 2x Ethernet port outputs

Tech Specs
Sending Card:

The NovaStar MSD300 is a standard model of sending card.

Power & Current:

• Voltage: 4.5-5.5V
• Current: 5.2-5.7A

Dimensions:

• 0.1" x 3.9" x 5"
• 0.24 lbs.lbs

General Specs:

• Working temp.: -20-60° C
• Humidity: 0-95%
• Capacity: 1.3 million pixels
• Supply Voltage: 5.0V
• Control Method: USB Interface
• Video Interface: DVI
• Audio Interface: 3.5mm
• Video Format: RGB
• Output Interface: 2 Ethernet ports
• Bit Depth Of Video Resource: 8bit

Warranty:

• 3 Year

NovaStar MSD300-1 Cutsheet.pdf
