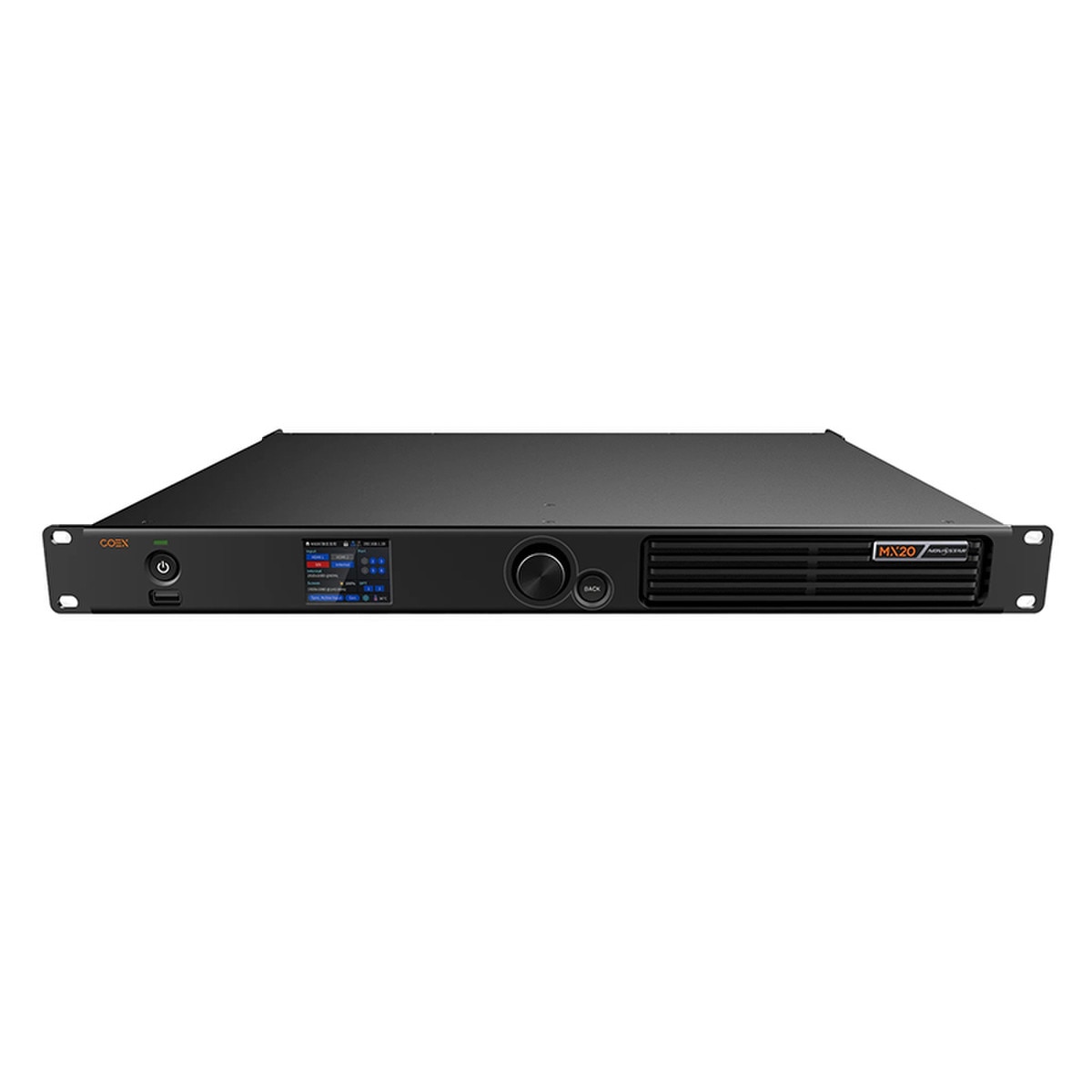

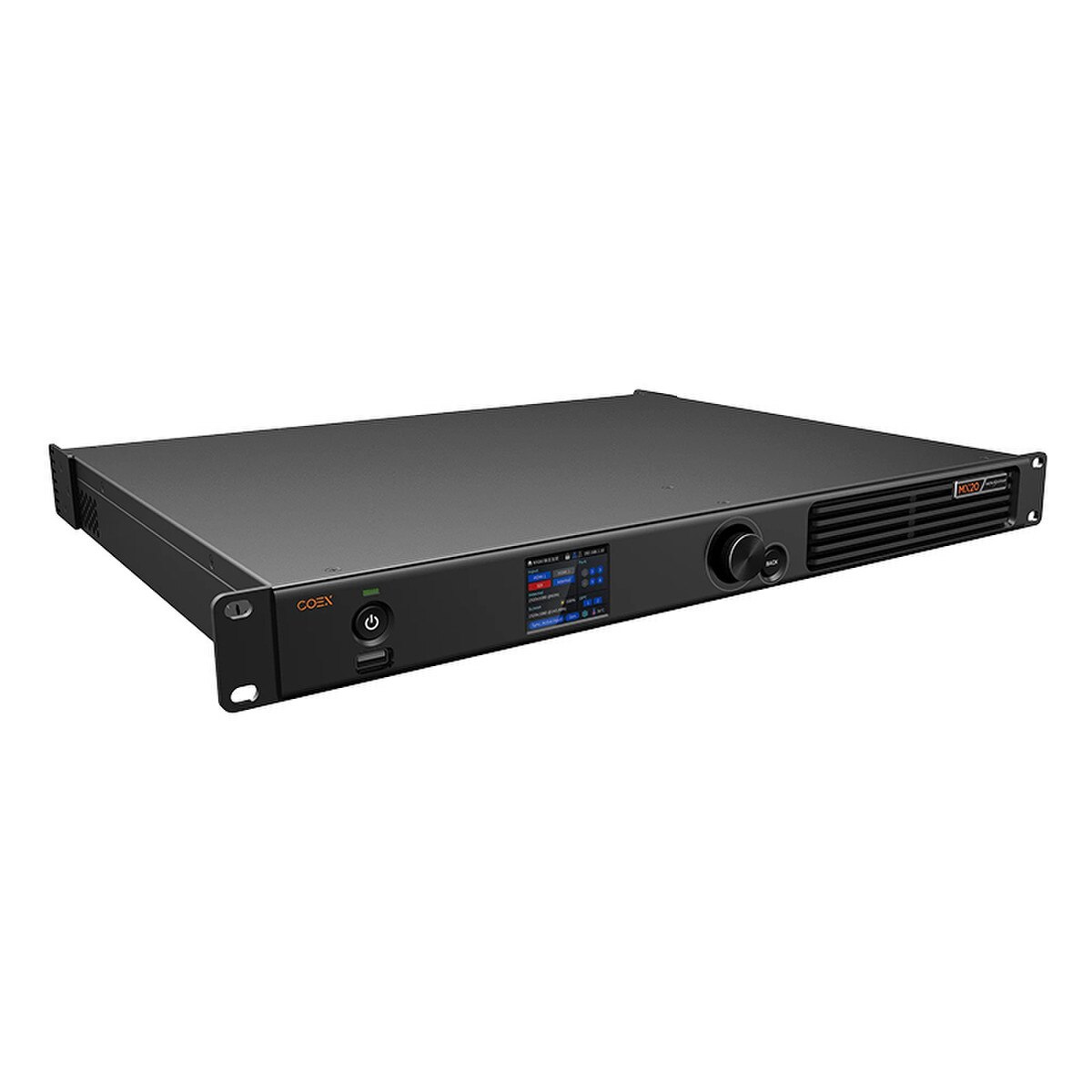

NovaStar MX20 All-In-1 Controller

The MX20 is an all-in-one LED display controller in the brand-new control system COEX series NovaStar. This controller integrates video processing and video control into one box and offers 2x HDMI 1.3, 1x 3G-SDI input connectors, 6x Ethernet output ports, and 2x 10G optical ports. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

The MX20 includes features such as:

• Genlock
• Image Scaling
• 14CH Color Correction
• Full Greyscale Calibration
• Low Latency (1 frame in All-In-One Controller working mode)
• Frame Rate Adaptive

Function Limitations:

• The Frame Rate Adaptive function only works with the A10s Pro receiving card. Currently supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059 and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
• The Full Grayscale Calibration function only works with the A10s Pro receiving card.
• Low latency not available when Genlock is used.

Built-In Scaling (Auto Fit Content to Wall):

• Yes

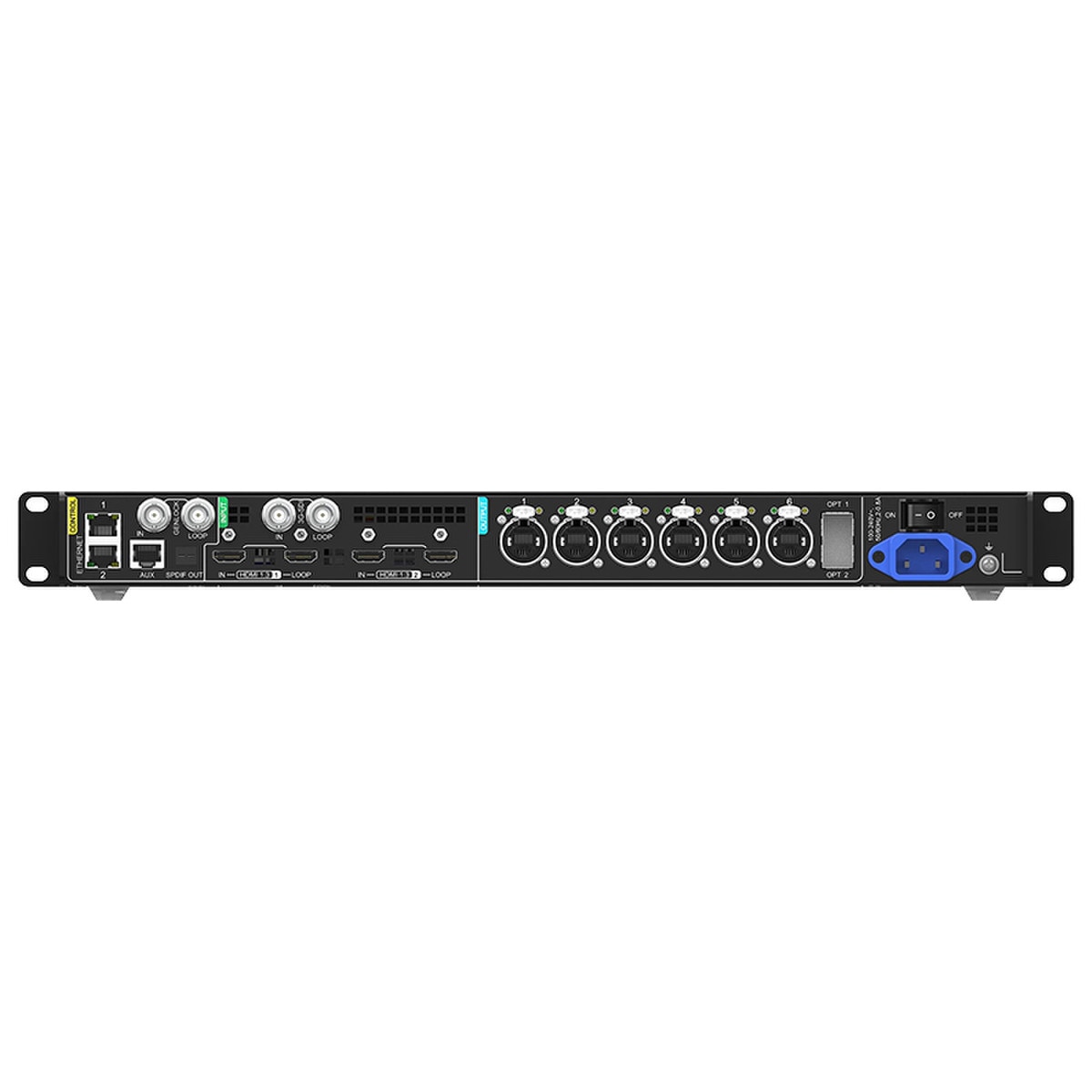

Inputs:

• 2x HDMI 1.3, 1x 3G-SDI

Outputs:

• LED Outputs - 6

Genlock:

• Yes

Built in Fiber Slots:

• Yes - 2 10G OPT Ports (1 primary and 1 backup)

Control:

• Ethernet (2x ports)

Loading Capacity:

• Max Pixels Per LED Output: 650,000 pixels

Total Pixels:

• 3.9 million pixels

Maximum Input Resolution:

• 1920 X 1080 @ 60Hz

Max Output Width/Height:

• 3840 pixels x 2560 pixels (W x H or H x W)
