NovaStar MX2000 Pro

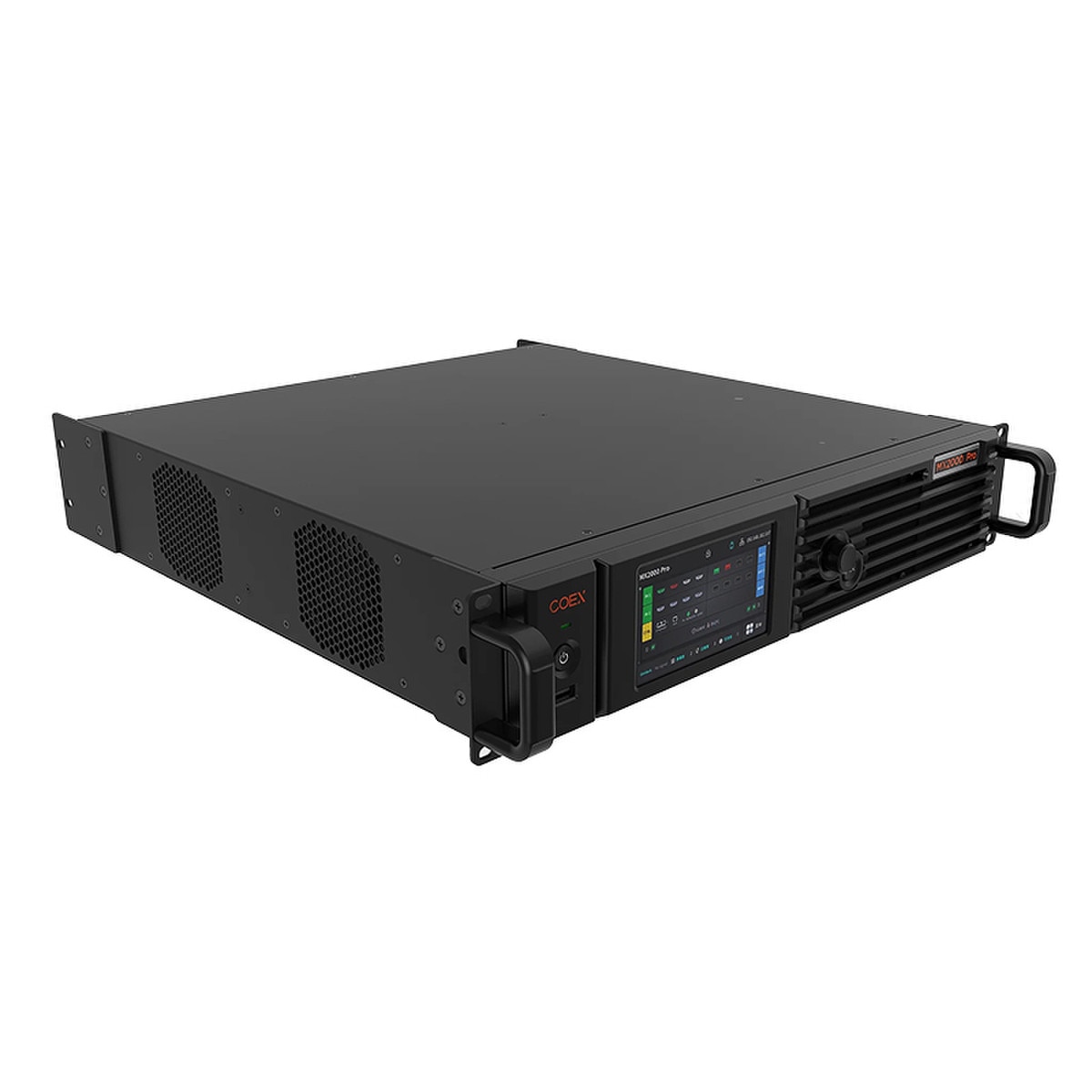

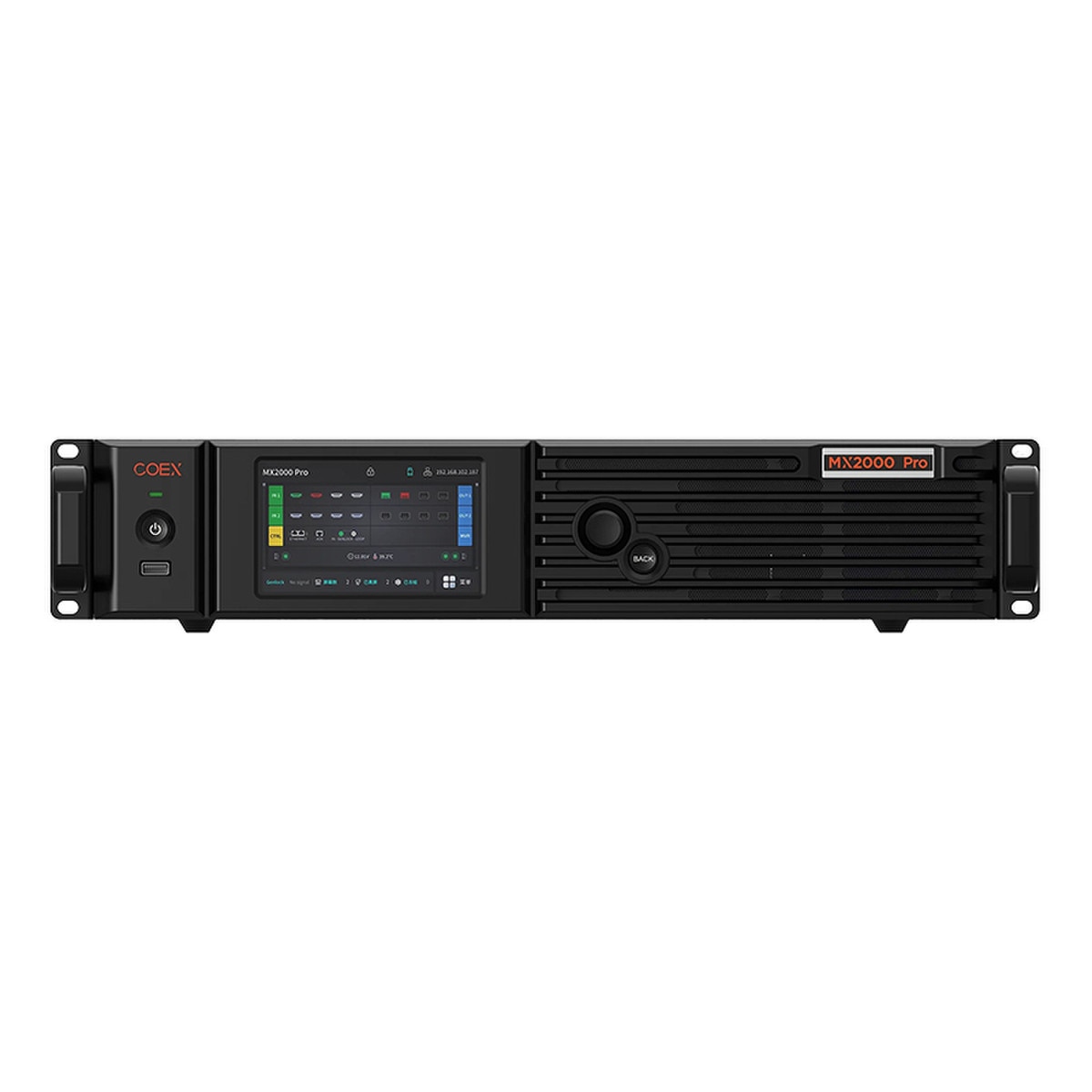

The MX2000 Pro is a professional 8K LED display controller from NovaStar, designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability providing precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based modular design is specifically tailored for future LED displays allowing for flexible input and output card configurations that are stable and easy to maintain. With a compact 2U size, it supports up to 8x 4K or 4x 8K video inputs with a maximum load capacity of 35.38 million pixels making it ideal for large-screen configurations.

Additionally, it supports seamless backup and automatic switching between devices and cards. In case of any malfunction it promptly switches over while issuing automatic alerts ensuring stable output on-site. It also works with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

The MX2000 includes features such as:

• Genlock
• Image Scaling
• 4CH Color Correction
• Color Replacement
• Full Greyscale Calibration
• Low Latency (1 frame in All-In-One Controller working mode)
• Frame Rate Adaptive
• Frame Multiplication
• 3D
• Shutter Fit

Function Limitations:

• The Frame Rate Adaptive function only works with the A10s Pro receiving card. Currently supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059 and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
• The Full Grayscale Calibration function only works with the A10s Pro receiving card.
• Low latency not available when Genlock is used.
• The MX2000 input and output cards are sold separately.

Built-In Scaling (Auto Fit Content to Wall):

• Yes

Inputs:

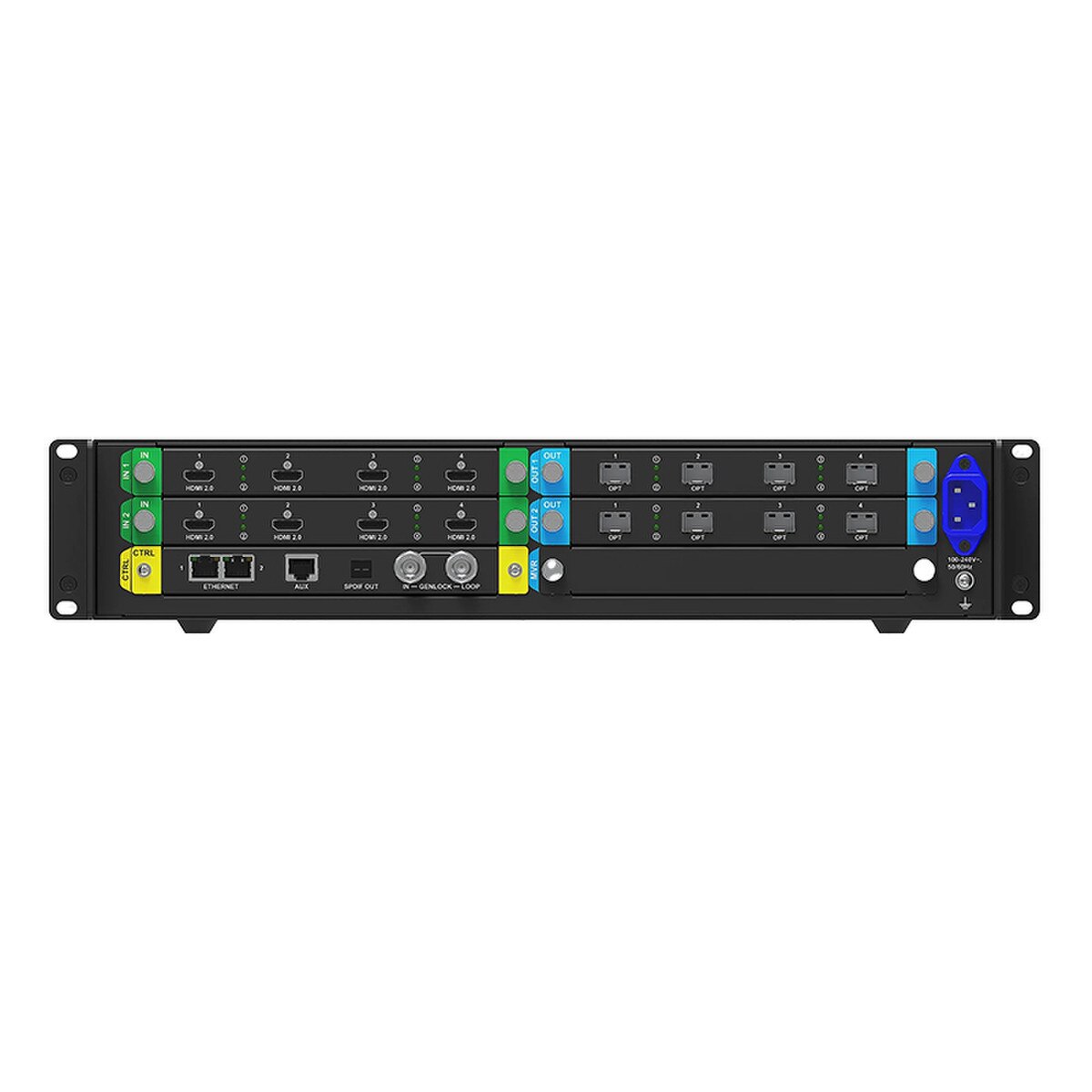

• 4x HDMI 2.0 (4K Inputs) or 2x DP 1.4 (8K Inputs)

Outputs:

• Up to 8x 10G Fiber Output ports. Each OPT port is equal to 10 RJ45 Output ports.

Genlock:

• Yes

Built in Fiber Slots:

• Yes - Up to 8x 10G OPT Ports

Control:

• Ethernet

Loading Capacity:

• Max Pixels Per Opt Output: 6,550,000 pixels (8-bit @60Hz)

Total Pixels:

• 35.38 million pixels (8-bit @ 60Hz)

Maximum Input Resolution:

• 7680 x 4320 @ 30Hz (using DP 1.4 Input)

Max Output Width/Height:

• 8192 pixels x 8192 pixels (W x H or H x W)
