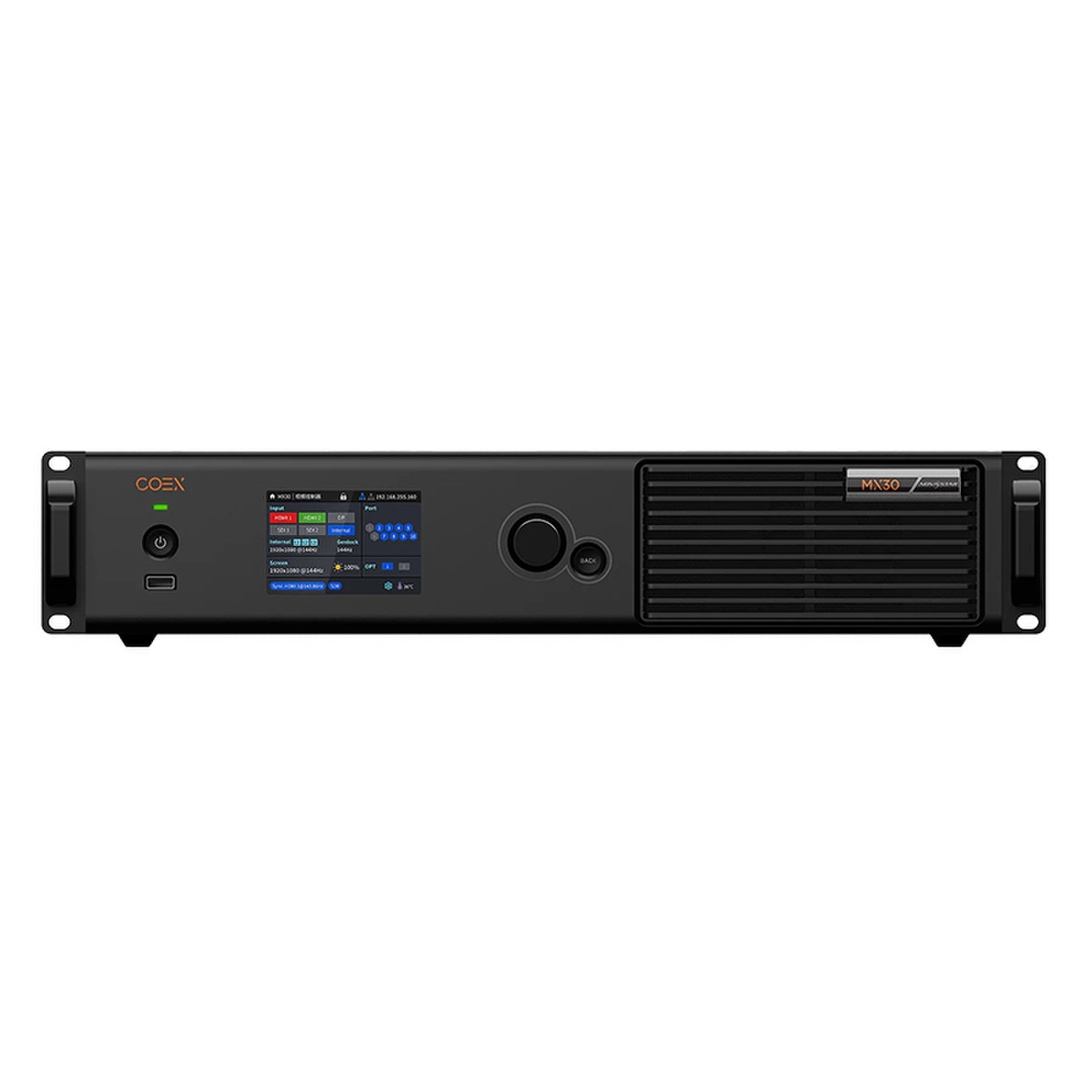

NovaStar MX30 All-In-1 Controller

The MX30 is an all-in-one LED display controller in the brand-new control system COEX series. This controller integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, HDMI 1.4, DP 1.1 and 3G-SDI), 10x Ethernet output ports and 2x 10G optical ports. It works with the brand-new VMP (Vision Management Platform) software to provide a better operation and control experience.

The MX30 includes features such as:

• Genlock
• Image Scaling
• 14CH Color Correction
• Full Greyscale Calibration
• HDR
• Low Latency (1 frame in All-In-One Controller working mode)
• Frame Rate Adaptive

Function Limitations:

• The Frame Rate Adaptive function only works with the A10s Pro receiving card. Currently supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059 and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
• The Full Grayscale Calibration function only works with the A10s Pro receiving card.
• Using the HDR function reduces the MX30 load capacity by less than half when the MX30 works with the A10s Pro receiving card.

Built-In Scaling (Auto Fit Content to Wall):

• Yes

Inputs:

• 1x HDMI 2.0
• 1x HDMI 1.4
• 1x DP 1.1
• 2x 3G-SDI

Outputs:

• LED Outputs - 10

Genlock:

• Yes

Built In Fiber Slots:

• Yes - 2 10G OPT Ports (1 primary and 1 backup)

Control:

• Ethernet (2x ports)

Loading Capacity:

• Max Pixels Per LED Output: 650,000 pixels

Total Pixels:

• 6.5 million pixels

Maximum Input Resolution:

• 4096 x 2160 @ 60Hz (When using HDMI 2.0 Input)

Max Output Width/Height:

• 8192 pixels x 7680 pixels (W x H or H x W)
