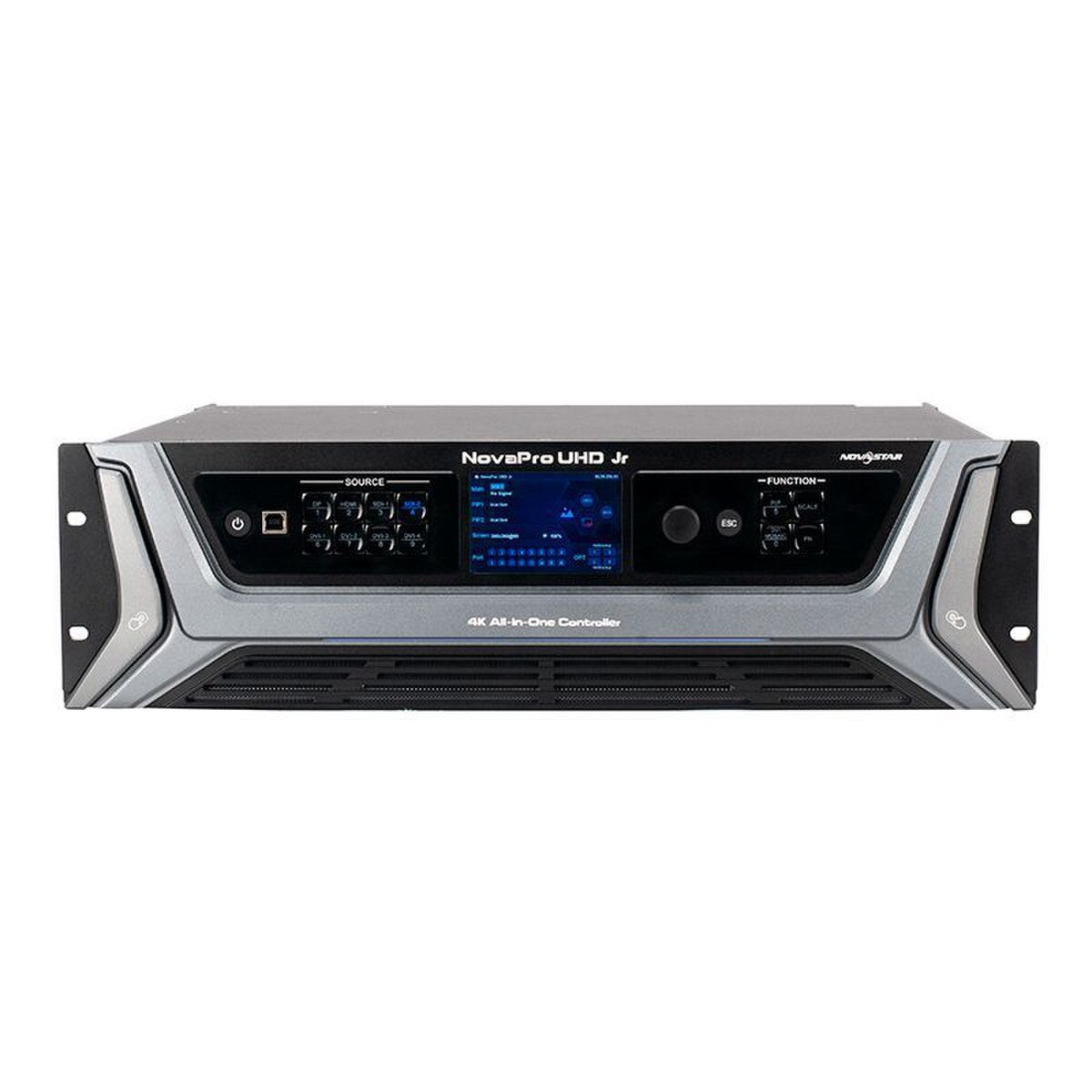

NovaStar NovaPro UHD Jr

Product Overview:

The NovaPro UHD Jr is NovaStar's all-in-one controller that integrates video processing with sending card functions.The NovaPro UHD Jr features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet ports and 4 optical fiber ports. Thanks to 4Kx2K@60Hz ultra high-definition inputs and outputs, the product can be widely used for applications, such as stage control systems, conference sites and exhibition sites.

Product Features:

• Various inputs and outputs. Provides 1 x DP 1.2, 4 x DVI, 1 x HDMI 2.0 with loop output and 2 x 12G-SDI with loop output.
• More output connectors, larger loading capacity. Provides 16 x Neutrik Ethernet output and 4 x optical fiber output, with loading capacity up to 8,300,000 pixels.
• DVI mosaic An input source can be made up of at most 4 DVI input sources.
• HDR output Greatly enhances display image quality, providing more clear and vivid image.
• 3D image output
• Decimal refresh rate
• Low-latency output Realizes zero frame latency from device to receiving card.
• Customized BKG settings Supports pure color and image BKGs.
• Personalized image scaling Supports 3 kinds of image scali(more...)
