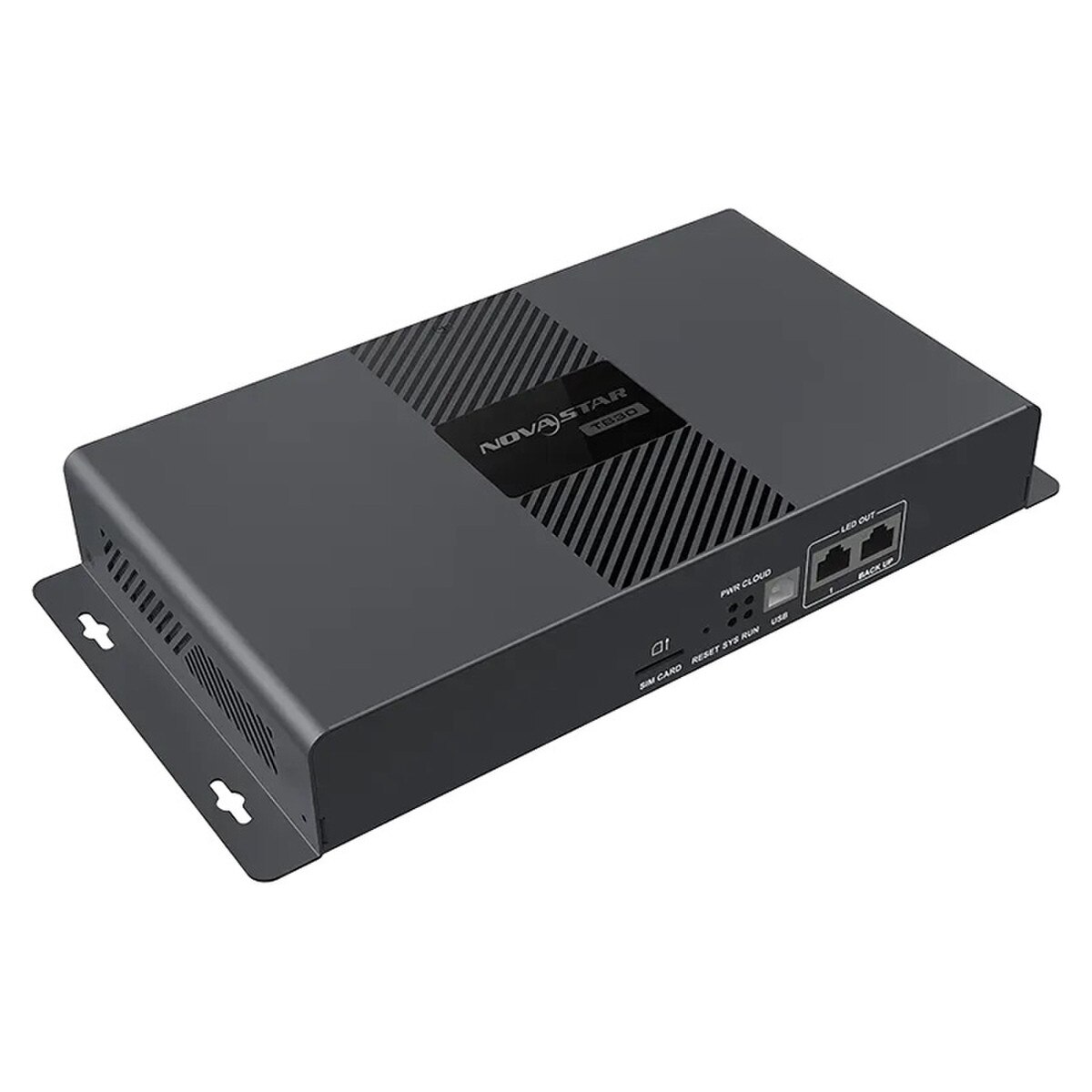

NovaStar TB30 Multimedia Player

At A Glance:

• Loading capacity up to 650,000 pixels
• Synchronization mechanism for multi-screen playing
• Powerful processing capability

HD Multimedia Player:

The TB30 is the third generation of multimedia player created by NovaStar for full-color LED displays. It integrates playback and sending capabilities, allowing users to publish content and control LED displays with a PC, mobile phone, or tablet. The TB30 replaces the TB3 as the recommended multimedia player for its class.

Intelligent Control:

Thanks to its reliability, ease of use, and intelligent control, the TB30 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and more.

Tech Specs

Manage Via PC, Smartphone, Or Tablet:

Working with NovaStar's cloud-based publishing and monitoring, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Note: The NovaStar™ TB3 is discontinued, with the TB30 now being its replacement with comparable features.

Power & Current:

• 100-240V~, 50/60Hz, 0.6A
• Max. power consumption: 18W

Dimensions:

• 1.6" x 5.5" x 10.8"
• 2.7lbs

General Specs:

• Synchronization display
• Powerful processing capability
• All-round control plans
• Wi-Fi AP and Wi-Fi STA
• Synchronous playback across multiple screens
• Support for 4G modules (sold separately)

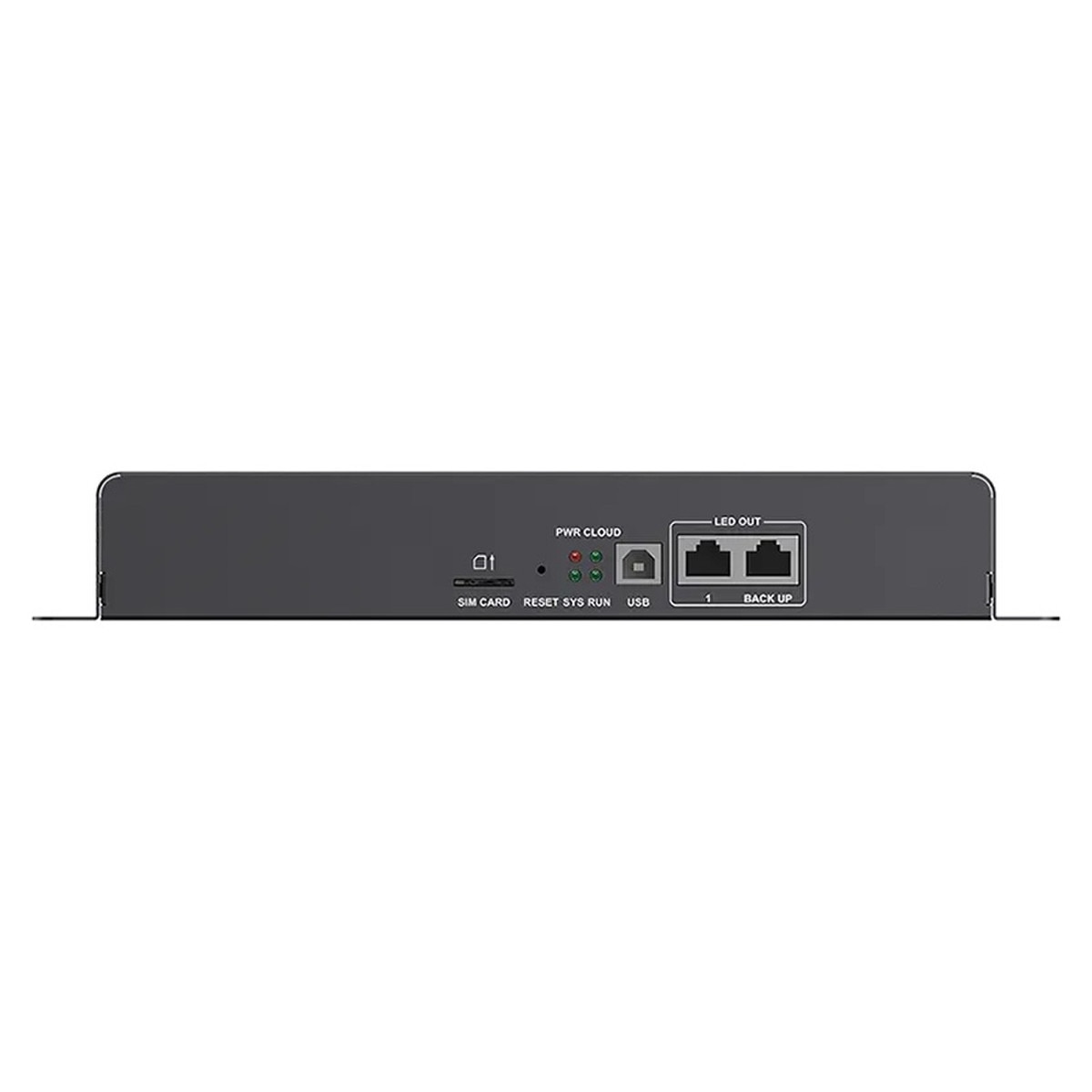

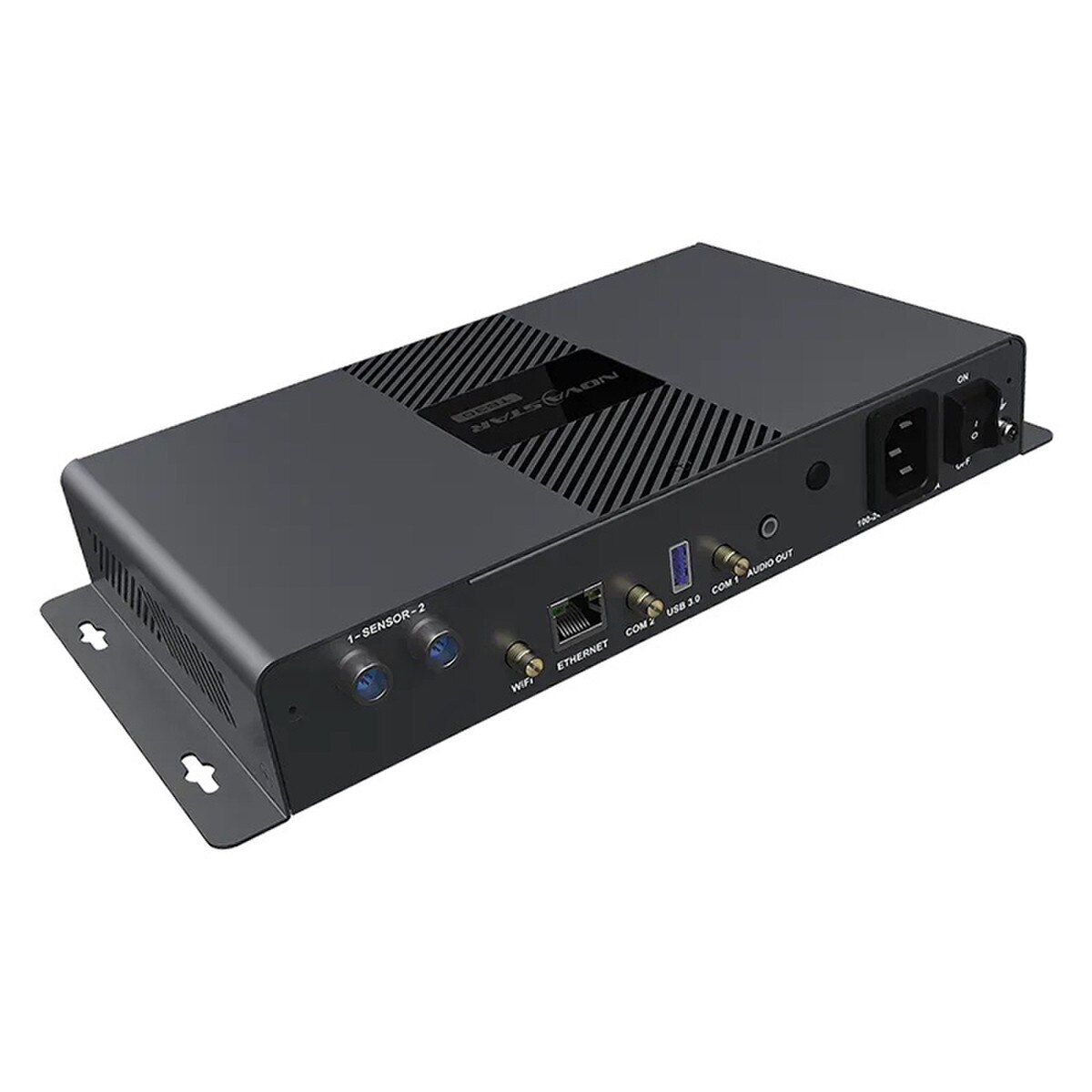

Connectors:

• 1x SIM card slot
• 1x USB Type B (reserved)
• 2x Gigabit Ethernet outputs (LED out)
• 2x Sensor connections
• 1x Wi-Fi antenna connector
• 1x Gigabit Ethernet port (LAN/PC)
• 2x GPS & 4G antenna connectors (COM1 & COM 2)
• 1x Audio Out

Tech Specs:

• 650,000 pixel capacity
• 16 GB of internal storage
• Quad-core ARM A55 processor @1.8 GHz
• 1x 4K video playback or 2x 1080p video playback
• 1 GB of onboard RAM

Warranty:

• 3 Year
