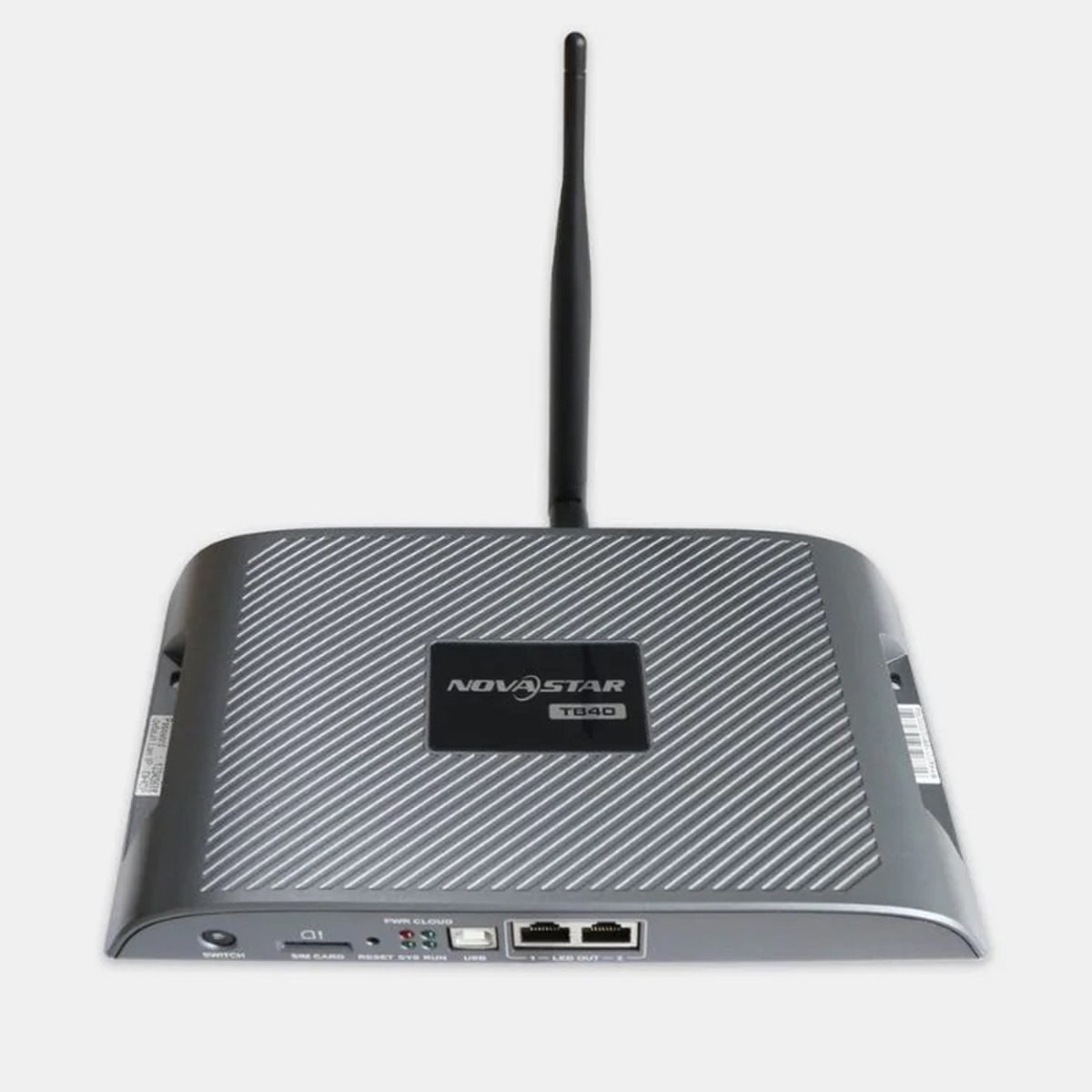

NovaStar TB40 Multimedia Player

At A Glance:

• LED Multimedia Player
• Loading Capacity: 1.3 million pixels
• Synchronous and Asynchronous Modes
• Flawless Playback
• Powerful Processing Capability

NovaStar TB40 is an LED multimedia player created by Nova for LED displays. It integrates playback and sending capabilities. Working with our cloud-based publishing and monitoring platforms, the TB40 enables users to manage LED screens from an Internet-connected device anywhere and anytime.

Connectors

Inputs:

• 1 x HDMI 1.4
• 2 x Sensor Connectors

Outputs:

• 2 x Gigabit Ethernet Ports
• 1 x Stereo Audio Connector
• 1 x HDMI 1.4

Control:

• 1 x USB 3.0 (Type A)
• 1 x USB (Type B)
• 1 x Gigabit Ethernet Port

Features

1 x USB 3.0 (Type A) port:

• Allows for playback of content imported from a USB drive and firmware upgrade over USB.

1 x USB (Type B) port Reserved:

1 x Gigabit Ethernet port:

• Connects to a LAN, public network, or computer for content publishing and screen control.

Powerful processing capacity:

• Quad-core ARM A55 processor @1.8 GHz
• Support for H.264/H.265 4K@60Hz video decoding
• 1 GB of onboard RAM
• 16 GB of internal storage

Flawless playback:

• 2 x 4K, 6 x 1080p, 10 x 720p, or 20 x 360p video playback

All-round control plans:

• Enables users to publish content and control screens from a computer, mobile phone, or tablet.
• Allows users to publish content and control screens from anywhere, anytime.
• Allows users to monitor screens from anywhere, anytime.

Switching between Wi-Fi AP and Wi-Fi STA:

• In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB40. The default SSID is “AP+Last 8 digits of SN”, and the default password is “12345678”.
• In Wi-Fi STA mode, the user terminal and the TB40 are connected to the Wi-Fi hotspot of a router.

Synchronous and asynchronous modes:

• In asynchronous mode, the internal video source works.
• In synchronous mode, the video source input from the HDMI connector works.

Synchronous playback across multiple screens:

• NTP time synchronization
• GPS time synchronization (The specified 4G module must be installed.)

Support for 4G modules:

• The TB40 ships without a 4G module. Users have to purchase 4G modules separately if needed.
• Network connection priority: Wired network > WiFi network > 4G network
• When multiple types of networks are available, the TB40 will choose a signal automatically according to the priority.
