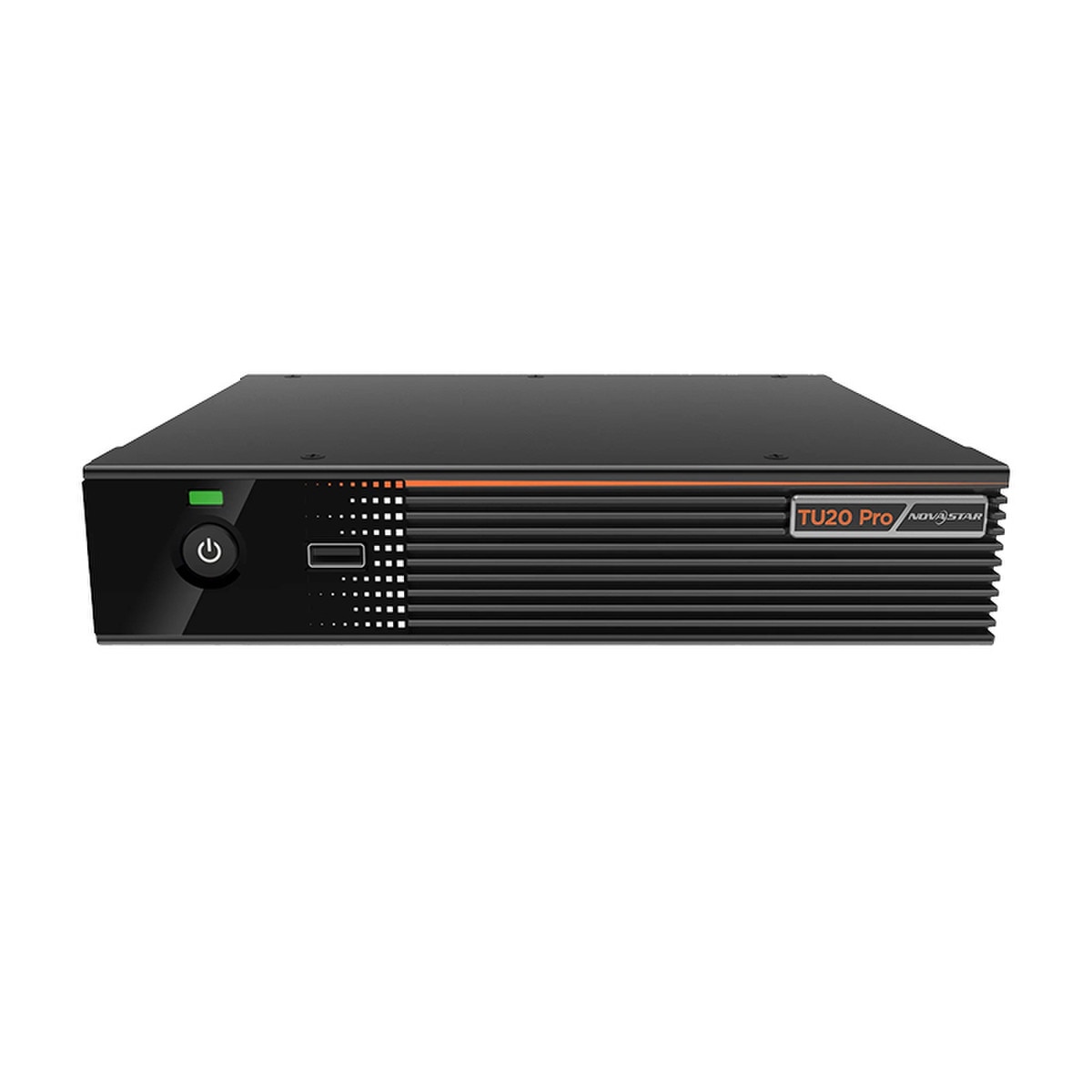

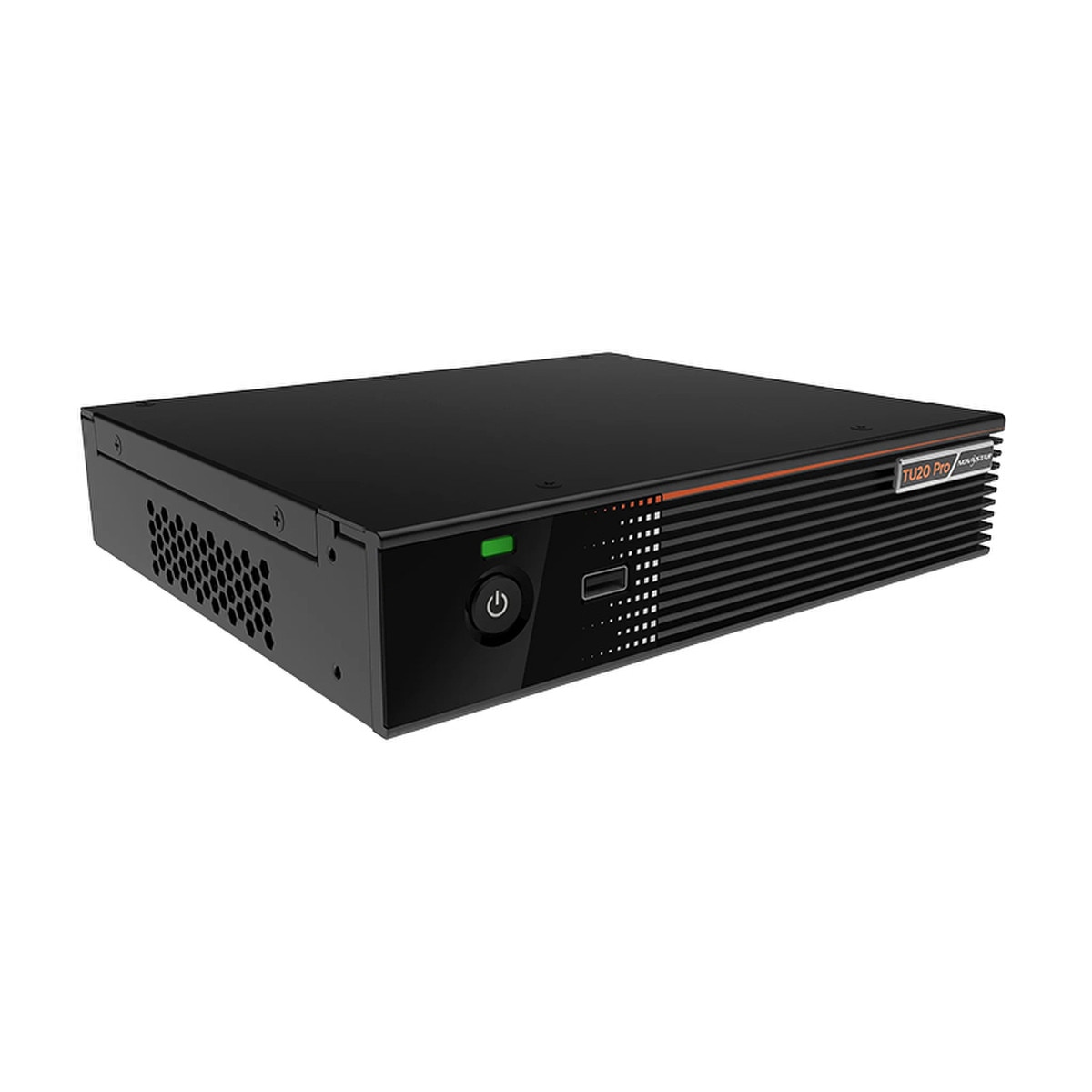

NovaStar TU20 Pro

The TU20 Pro is a playback control processor specially designed for indoor LED screens. It integrates the Android system and sending card functions into one unit and allows third-party apps to run on it. It features powerful interaction and playback control capabilities.

The TU20 Pro supports wireless screen mirroring from Windows, macOS, iOS and Android terminals at up to 60 fps with a system latency of less than or equal to 80 ms at 8 meters. For different application scenarios it provides 4 modes to let the document presentation, video playback, and remote meetings have the optimal display effect.

Built-In Scaling (Auto Fit Content to Wall):

• Yes

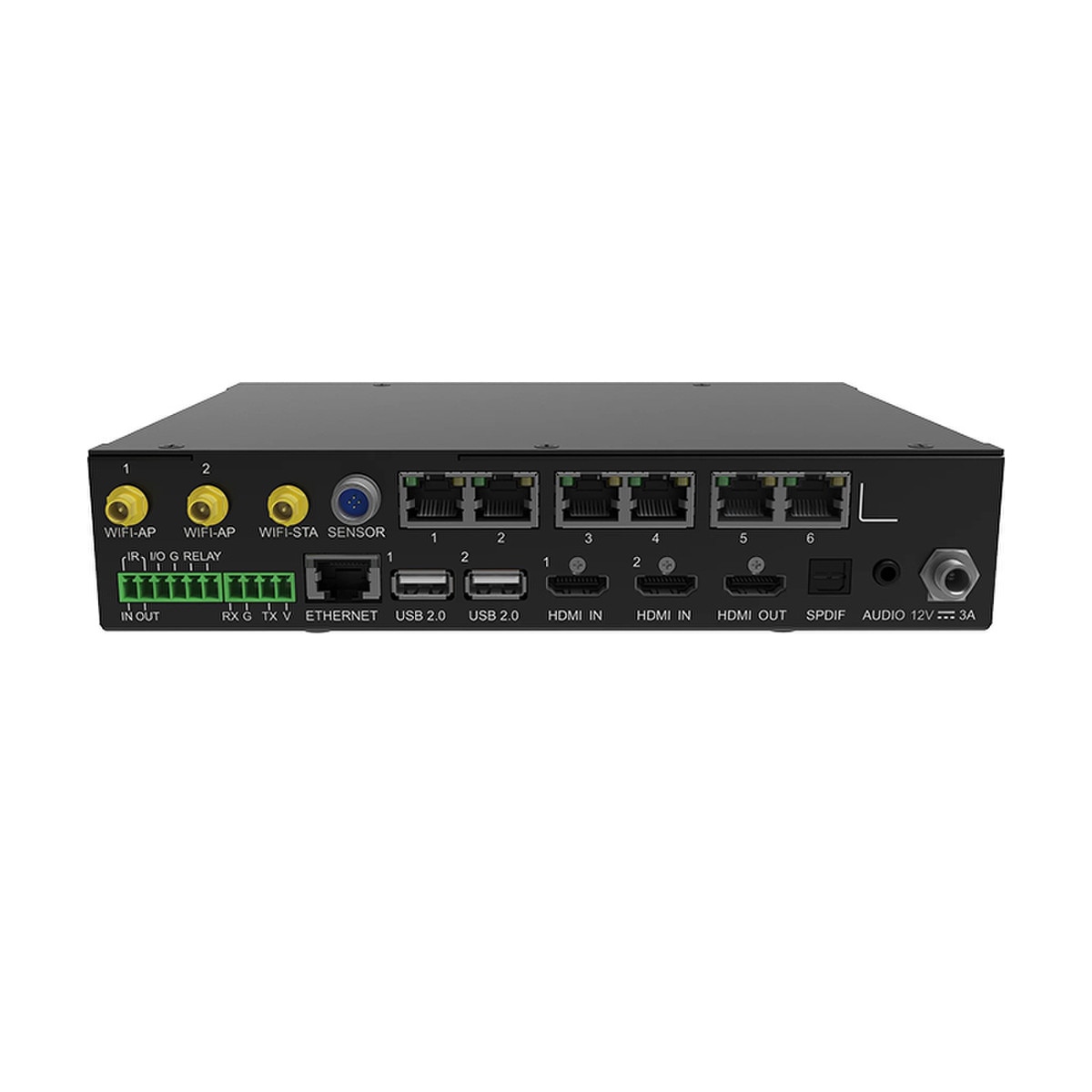

Inputs:

• 4 - 2x HDMI 1.3
• 2x USB2.0

Outputs:

• LED Outputs - 6

Genlock:

• No

Video Loop:

• HDMI Loop

Monitor:

• No

Control:

• Ethernet (For communicating via network) / WiFi
• Phoenix Connector (4 pin) - 1x RS232
• Phoenix connector (6 pin) - 1x IR In

Loading Capacity:

• Max Pixels Per LED Output: 650,000 pixels
• Total Pixels: 3.9 million pixels
• Maximum Input Resolution: 2048 x 1152 @ 60Hz
• Max Output Width/Height: 4096 pixels width or height
• Minimum Output Width/Height: 800 pixels x 600 pixels
