NovaStar TU40 Pro LED Playback Control Processor

The TU40 Pro is an LED playback control processor specially designed by NovaStar for LED screen applications. It integrates the Android system, sending card and video processing functions into one unit, and allows third party apps to run on it, featuring powerful interaction, display and playback control capabilities.

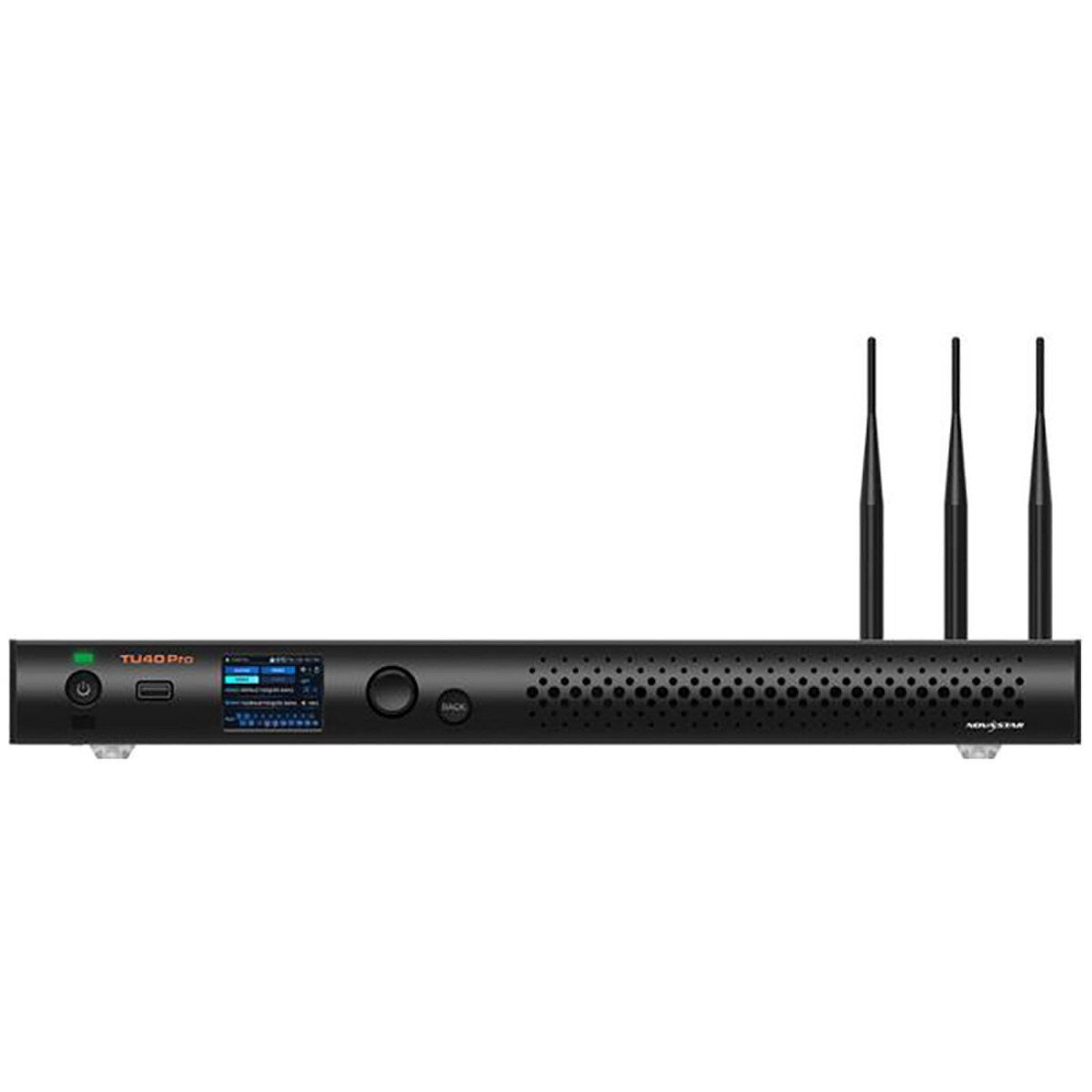

The TU40 Pro supports a maximum load capacity of 13 million pixels and offers convenient LED screen control via the front panel LCD or a remote control. It also supports wireless screen mirroring across multiple platforms including Windows, macOS, iOS, and Android. To cater to different application scenarios, the TU40 Pro features advanced image processing capabilities and provides 4 modes to let the document presentation, video playback and remote meetings have the optimal display effect.

The TU40 Pro has no requirements of redesigning or changing the screen structure and can be mounted on the wall or placed on a surface or into a cabinet, allowing for quick environment setup and use. It is highly versatile and suitable for a broad range of applications such as corporate showrooms, conference rooms, auditoriums, and outdoor standalone LED display screens.

Specifications

Model:

• Release Date: March 2025
• Production Status: In Production
• Typical Street Price: $2,000

Input Parameters:

• Max Input Resolution: 4096 x 2160 pixels
• Max Input Color Depth: 10-bit

Output Parameters:

• Max Output Pixels: 13,000,000 pixels
• Max Output Resolution: 16,384 x 8,192 pixels

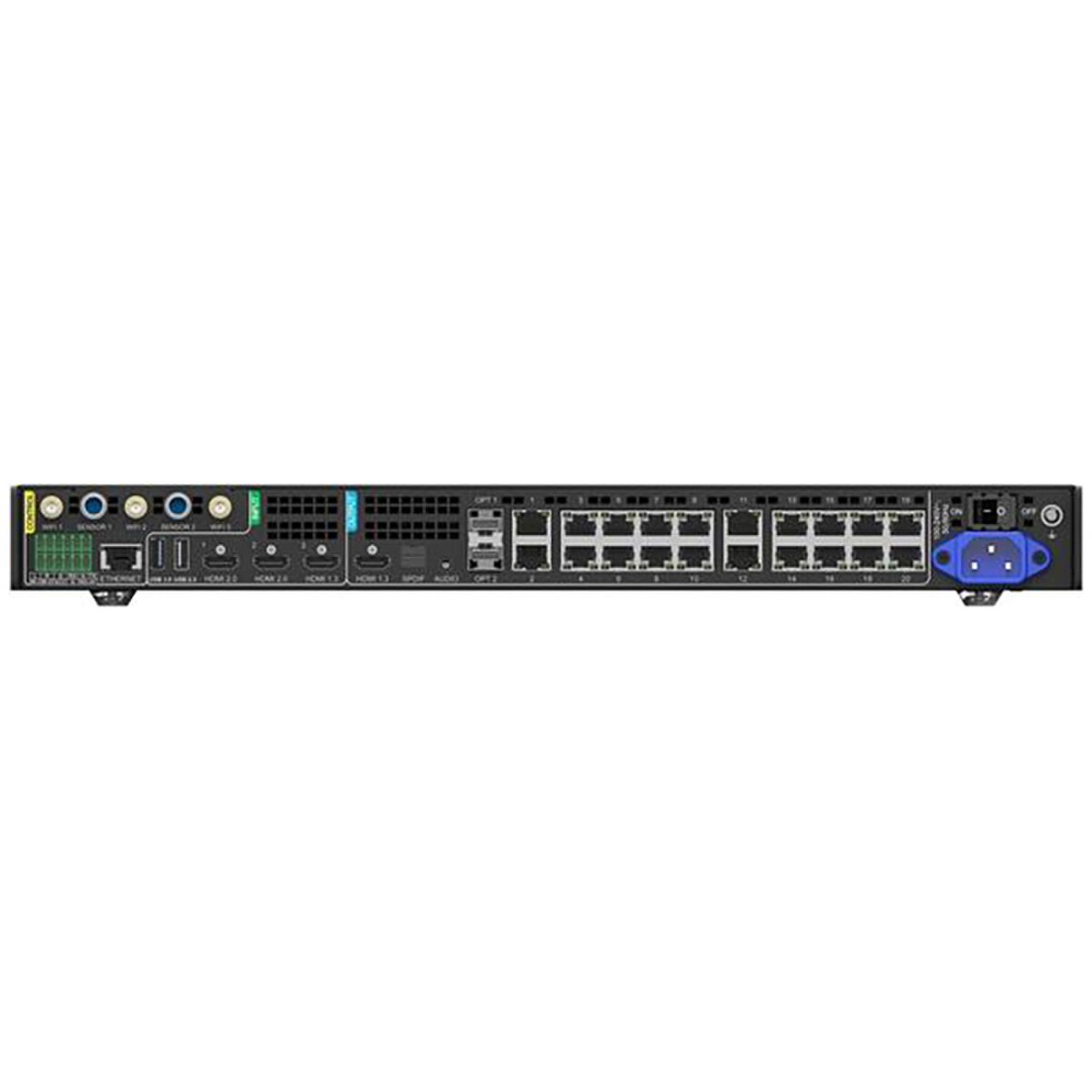

Video Inputs:

• HDMI 1.3: 1
• HDMI 2.0: 2

Video Outputs:

• Ethernet 1G: 20
• Optical SFP 10G (primary): 2
• HDMI 1.3 Loop: 1
