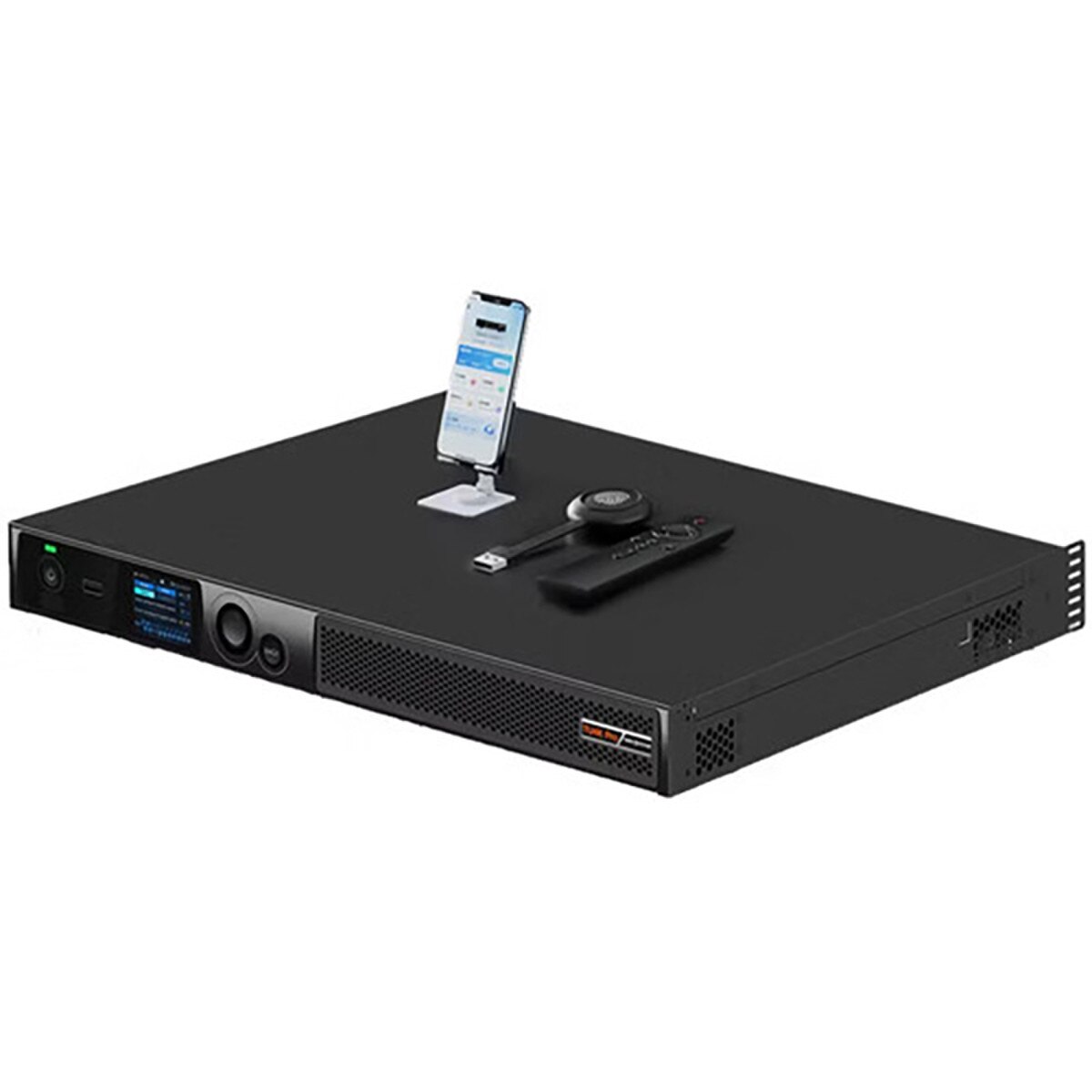

NovaStar TU4K Pro LED Playback Control Processor

Key Features:

• Advanced Controller for LED Displays
• Supports up to 8K Video Playback
• Output Scaling up to 16,384 x 8192
• HDMI & USB In / 20 GbE, Fiber & HDMI Out
• Video Processing, Android-Based Playback
• ViPlex Handy Mobile App Control
• For Windows, macOS, iOS & Android
• 13MP Capacity, Wireless Screen Mirroring
• Supports HDR, Four Display Modes
• Bluetooth 5.1 Control, Dual Wi-Fi Modes

NovaStar TU40 Overview

Get advanced processing for your digital signage, presentation, or showroom with the TU4 4K Pro LED Playback Control Processor from NovaStar. The TU4 4K Pro media processor and playback controller features a 13MP capacity, up to 16,384 x 8192 image scaling, up to 8K video playback, and HDR support.

Interface

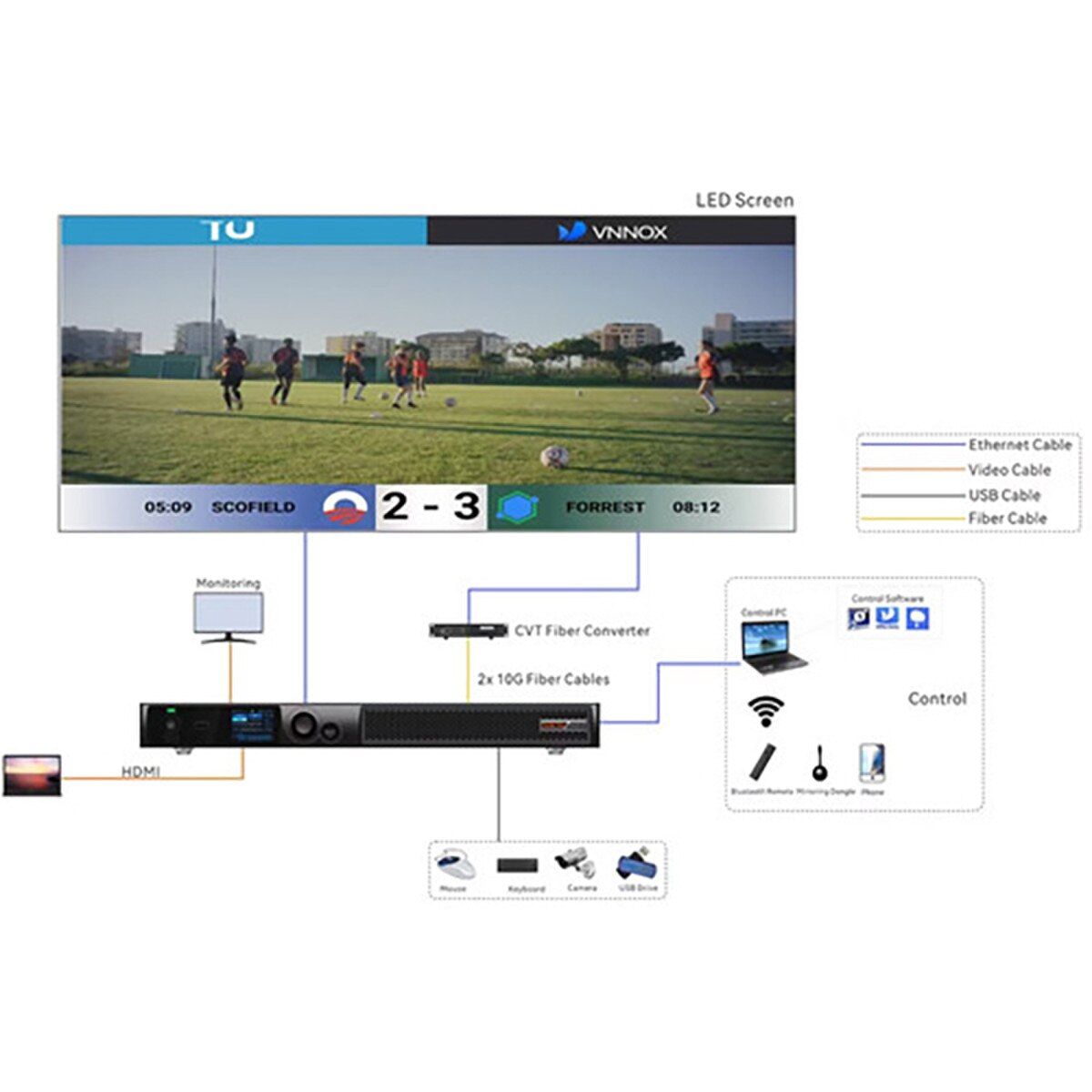

The TU4K Pro playback control processor features HDMI 2.0, HDMI 1.3, USB 3.0, USB 2.0 input ports, and HDMI 1.3, two 10G fiber optic, and twenty GbE Ethernet output ports. Audio outputs comprise S/PDIF, 3.5mm, HDMI eARC, and block outputs.

Playback Control

Advanced playback control includes support for 8K, 4K, 1080p, and 720p video, USB plug-and-play capability, remote control, and ViPlex Handy app control.

Image Processing and Display Modes

The TU4K Pro features Meeting, Standard, Skin, and Vivid display modes, HDR support, and AI image enhancement with improved sharpness, brightness, color saturation, and dynamic motion compensation.

Key Specs

Inputs:

• 1 x HDMI (HDMI 1.3)
• 2 x HDMI (HDMI 2.0)
• 1 x BNC (3G-SDI)
• 1 x 1/8" / 3.5 mm TRS (Microphone)

Embedded Audio:

• Fiber/HDMI/IP/LAN (RJ45)

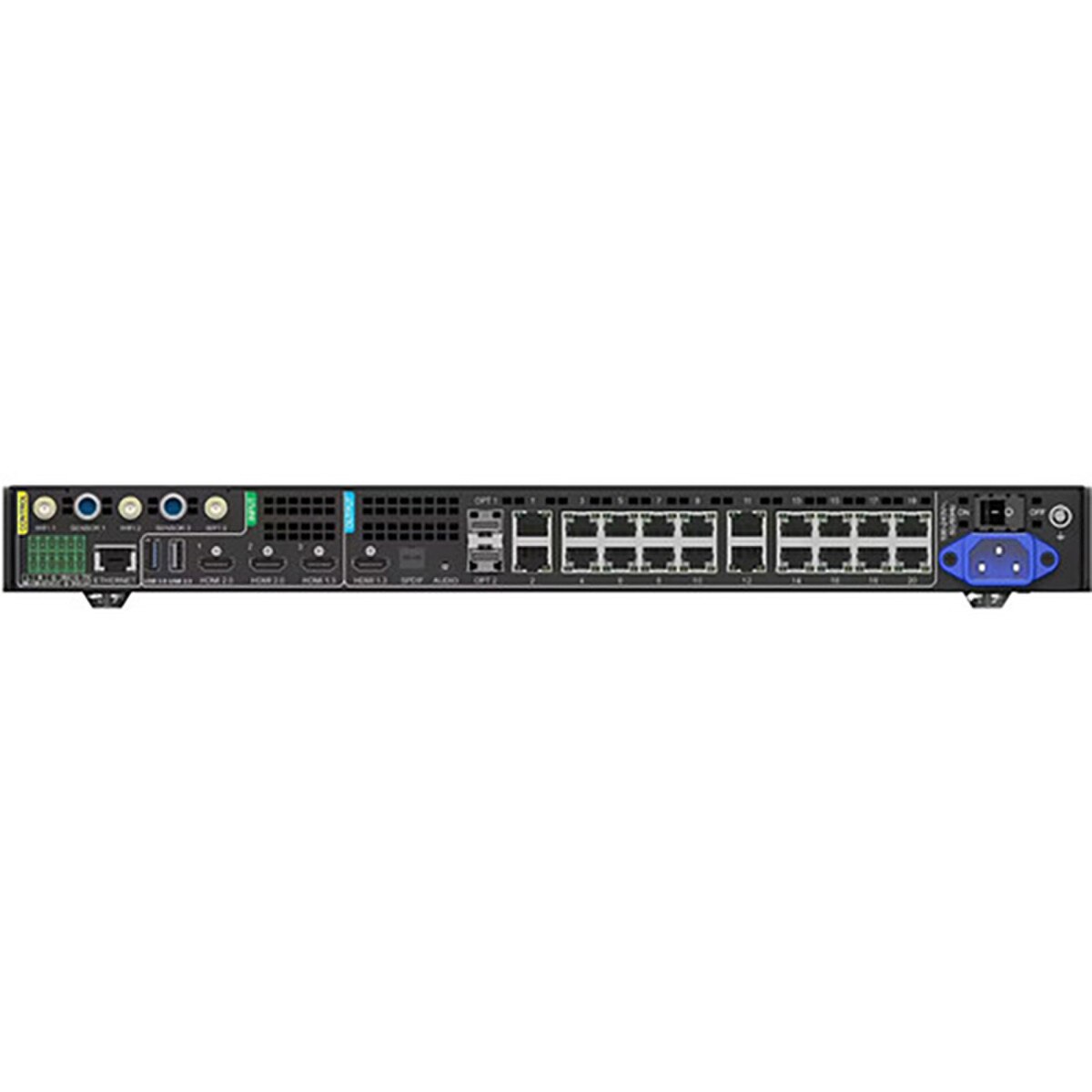

Outputs:

• 1 x HDMI (HDMI 1.3)
• 1 x HDMI (HDMI 2.0, Looping)
• 1 x DB-9 (3G-SDI)
• 20 x RJ45 (LAN)
• 2 x SFP+
• 1 x Block 12-Pin
• 1 x RJ45 (10/100/1000 Ethernet)
• 1 x 1/8" / 3.5 mm TRS
• 1 x S/PDIF

Video Format

HDMI (8/10-Bit):

• 7680 x 3840: 24 fps
• 4096 x 2160: 60 fps
• 2048 x 1152: 60 fps
• 1920 x 1080: 60 fps
• 1080 x 720: 60 fps

RJ45 (8-Bit):

• 7680 x 3840: 24 fps
• 2048 x 1152: 60 fps
• 1920 x 1080: 60 fps
• 1024 x 720: 60 fps

Fiber (8-Bit):

• 7680 x 3840: 24 fps
• 2048 x 1152: 60 fps
• 1920 x 1080: 60 fps
• 1080 x 720: 60 fps

Maximum Multiple Display Configuration:

• 3 x 3

Power

• Power I/O: 1x IEC C14 (100 to 240 VDC up to 2.5 A) Input
• Power Consumption: Device: (53.9 W)

General:

• Certifications: FCC, IC
• Operating Conditions: -4 to 122°F / -20 to 50°C at 5 to 85% Humidity
• Storage Conditions: 68 to 158°F / 20 to 70°C at 5 to 95% Humidity
• Dimensions: 17.5 x 15.0 x 2.0" / 445.0 x 381.8 x 50.1 mm
• Weight: 10.1 lb / 4.6 kg

Items Included:

• NovaStar TU4 4K Pro LED Playback Control Processor
• Power Cord
• Bluetooth Voice Remote
• Ethernet Cable
• HDMI Cable
• 2 x 6-Pin Block Connector
• 3 x Antenna
• 2 x Hanging Bracket
• Limited 1-Year Manufacturer Warranty
