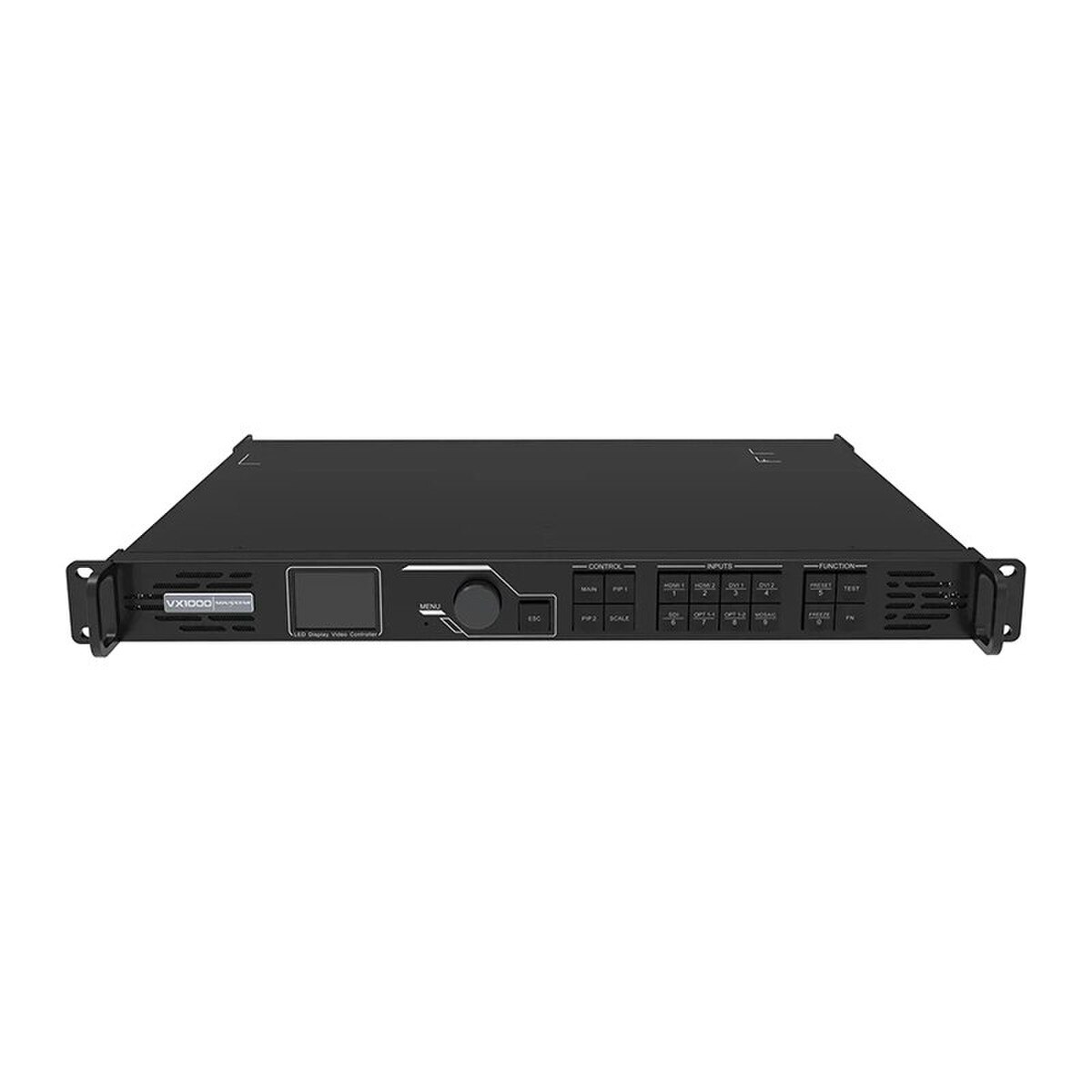

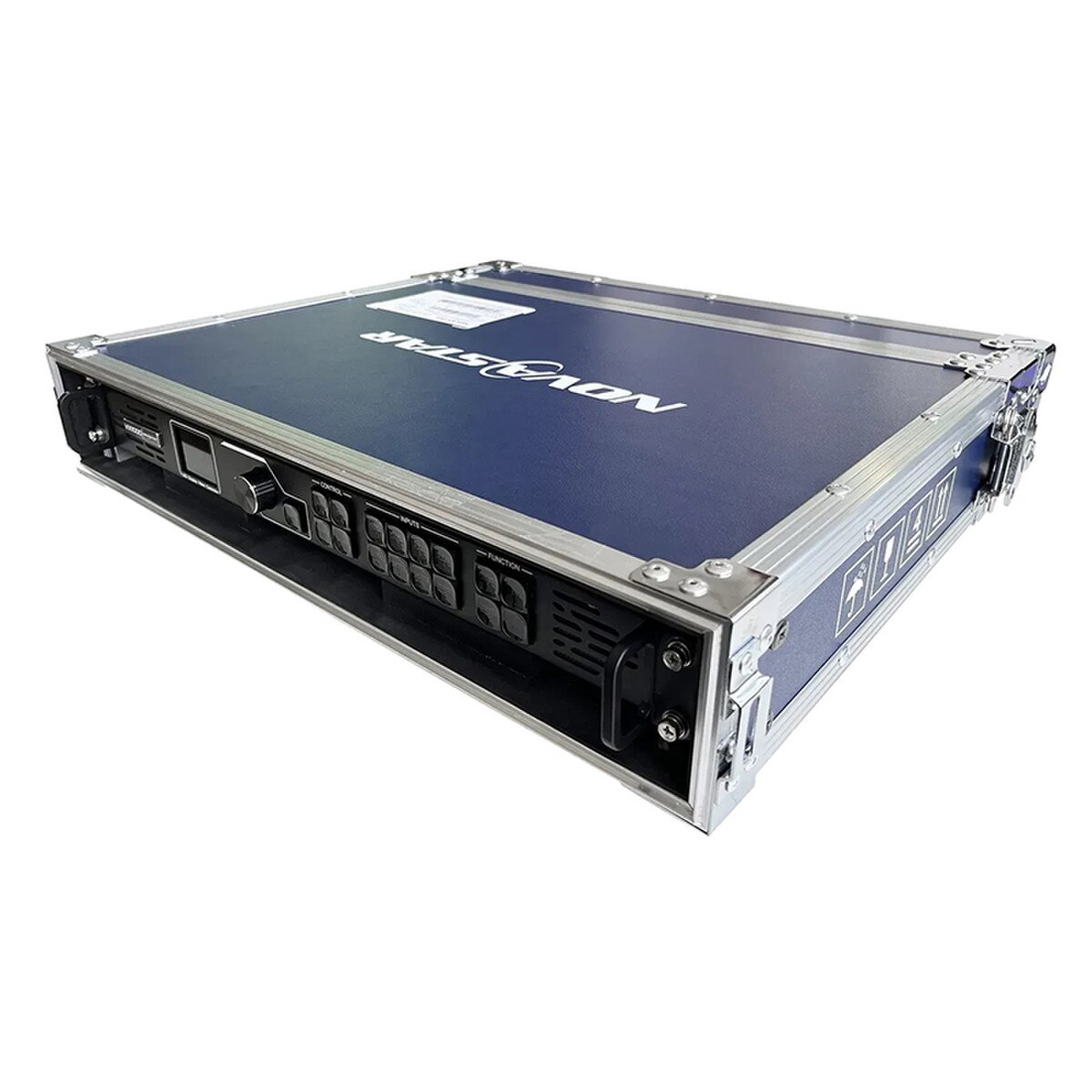

NovaStar VX1000 All-In-1 Controller with Flight Case

At A Glance:

• 2-in-1 video controller & processor
• Drives up to 6.5M pixels with one unit
• Perfect for ultra wide/high screens

Tech Specs

Controller & Processor:

The VX1000 is a 10-port 2-in-1 video controller that combines video processing and video control functions. It can be widely used in the field of medium to high-end rental, stage control and engineering narrow pitch LED display.

Control:

• LCD menu display
• Intuitive display interface
• PC: Ethernet, USB (A/B), Genlock IN + LOOP

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 28W, 1.5A

Dimensions:

• 2" x 19" x 13.3"
• 8.9lbs

General Specs:

• Loading capacity: 6.5m pixels
• Layers: 3 x 4Kx1K@60Hz
• Mosaic input source supported
• Audio input and output
• 3D functions
• Low latency
• Output synchronization

Connectors:

• 2x HDMI 1.4 + LOOP In
• 2x DVI (HDMI 4.1) + LOOP In
• 1x 3G-SDI + LOOP In
• 10x Gigabit Ethernet outputs
• 2x 10G OPT ports
• 1x HDMI 1.3 (monitor)
• 1x RJ45 Ethernet (PC)
• 1x USB Type A (PC)
• 1x USB Type B (cascading)
• 1x Genlock In + LOOP

Warranty:

• 3 Year
