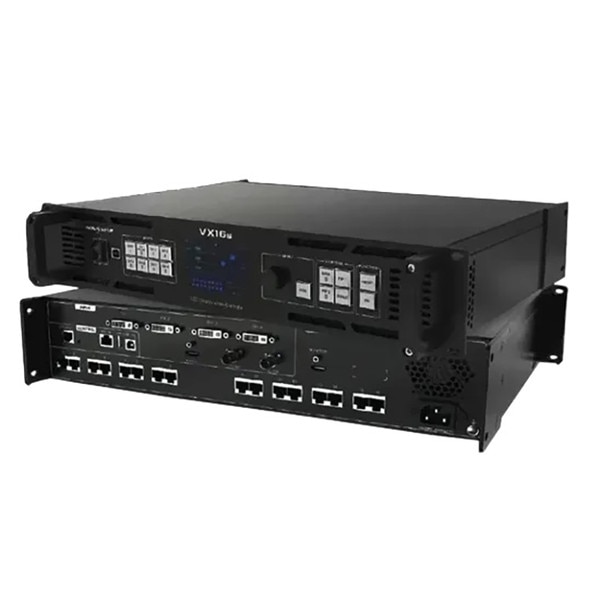

NovaStar VX16s All-In-1 Controller

Built-In Scaling (Auto Fit Content to Wall):

• Yes

Inputs:

• 7 - HDMI 2.0 (1x)
• SL-DVI (4x)
• 3G-SDI (2x)

Outputs:

• LED Outputs - 16

Genlock:

• No

Image Mosaic (Mult. Processors on 1 Wall):

• Yes

Video Loop:

• No

Monitor:

• HDMI

Built in Fiber Slots:

• No

Windows/Layers:

• 3 (via Main Layer, PIP 1, PIP 2)

3D:

• Yes (Supports 3D Effect. Output capacity is cut in half when 3D is enabled)

Control:

• Ethernet(For communicating via network) / USB Type B (PC Control)
• RS232 (For 3rd party control)
• USB Type A (Cascading Multiple Devices)

Loading Capacity:

• Max Pixels Per LED Output: 650,000 pixels

Total Pixels:

• 10.4 million pixels

Maximum Input Resolution:

• 3840 x 2160 @ 60Hz (When using HDMI Input)

Max Output Width/Height:

• 16384 pixels x 8192 pixels (W x H or H x W)
