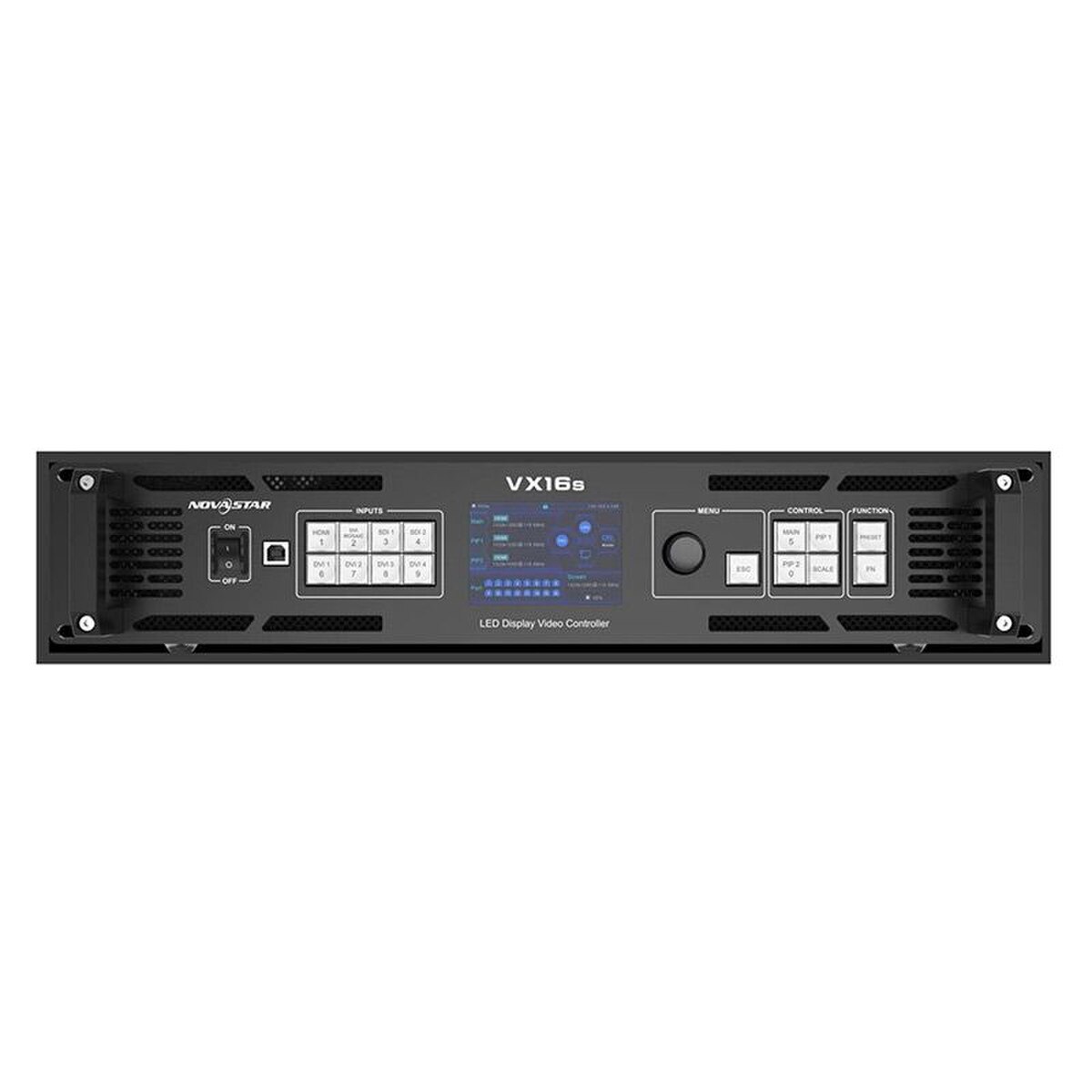

NovaStar VX16s LED Display Video Processor All-In-One LED Controller

(0)No Reviews yet
$4,699.99
SKU: NovaStar VXS160

Details

The VX16s Novastar LED Display Video Processor all-in-one LED controller supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.

Specifications

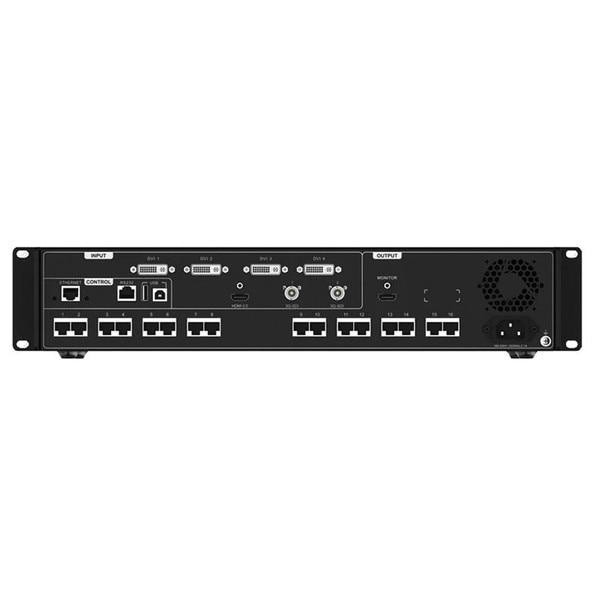

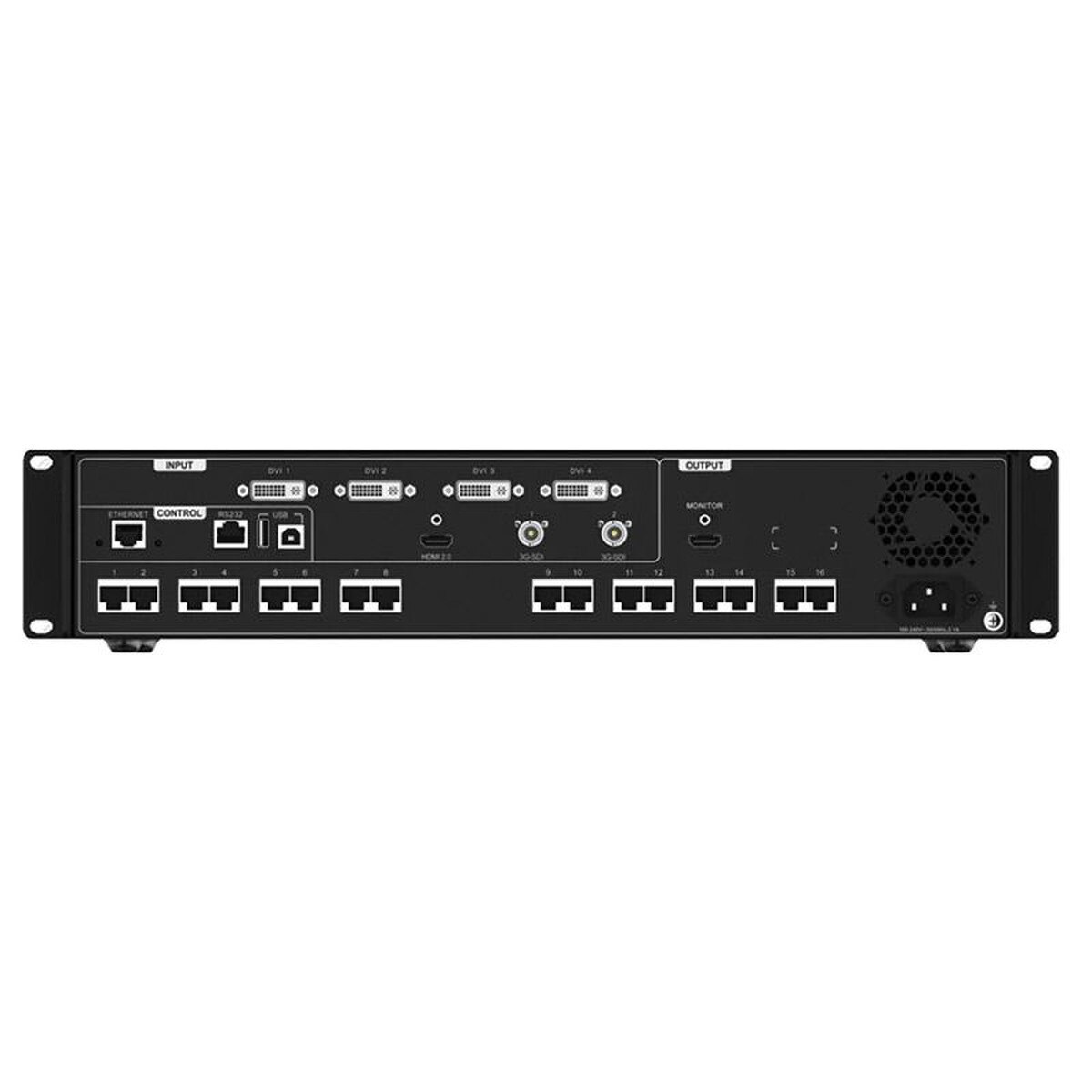

Industry-standard input connectors:

  • 2x 3G-SDI
  • 1x HDMI 2.0
  • 4x SL-DVI

16 Ethernet output ports load up to 10,400,000 pixels.
3 independent layers:

  • 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
  • Adjustable layer priorities

DVI Mosaic:

  • Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.

Decimal frame rate supported:

  • Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

3D:

  • Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling:

  • Three scaling options are pixel-to-pixel, full screen and custom scaling.

Image Mosaic:

  • Up to 4 devices can be linked to load a super large screen when used together with the video distributor.
  • Easy device operation and control through VCan
  • Up to 10 presets can be saved for future use.

EDID management:

  • Custom EDID and standard EDID supported

Device backup design:

  • In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.

Electrical Specifications:

  • Power connector:100–240V~, 50/60Hz, 2.1A
  • Power consumption:70 W

Operating Environment:

  • Temperature:0°C to 50°C
  • Humidity:20% RH to 85% RH, non-condensing

Storage Environment:

  • Temperature:–20°C to +60°C
  • Humidity:10% RH to 85% RH, non-condensing

Physical Specifications:

  • Dimensions:482.6 mm x 372.5 mm x 94.6 mm
  • Net weight:6.22 kg
  • Gross weight:9.78 kg

Packing Information:

  • Carrying case:530.0 mm x 420.0 mm x 193.0 mm
  • Accessories 1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval
  • Packing box:550.0 mm x 440.0 mm x 215.0 mm

Details:


The VX16S video processor is Novastar’s new all-in-one video controller that integrates video processing, video control and led screen configuration into one unit.


Together with Novastar’s V-Can video control software, it enables richer image mosaic effects and easier operations.


The VX16s Novastar led controller supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.


Thanks to its powerful image processing and sending capabilities, the Nova VX16S video screen controller can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
