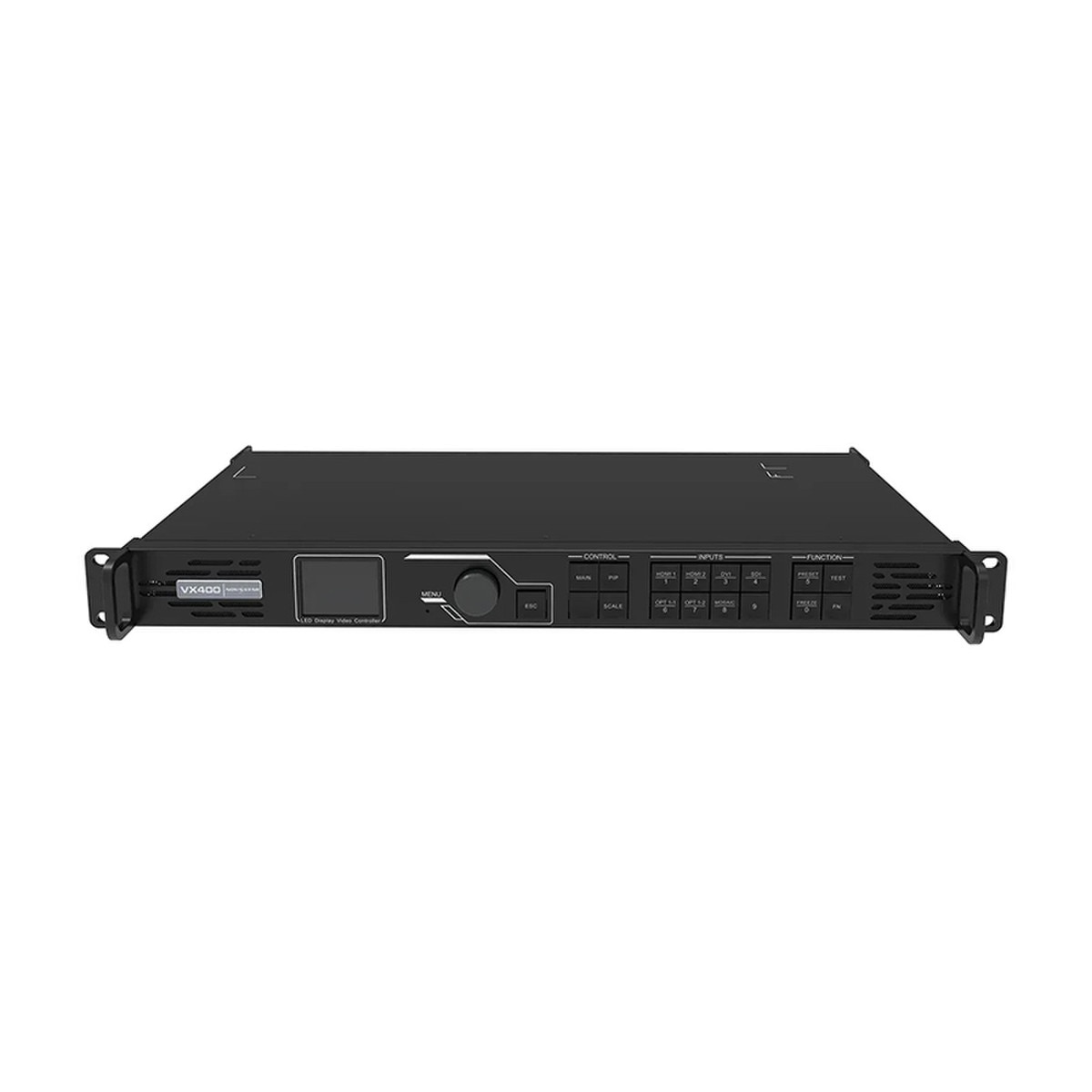

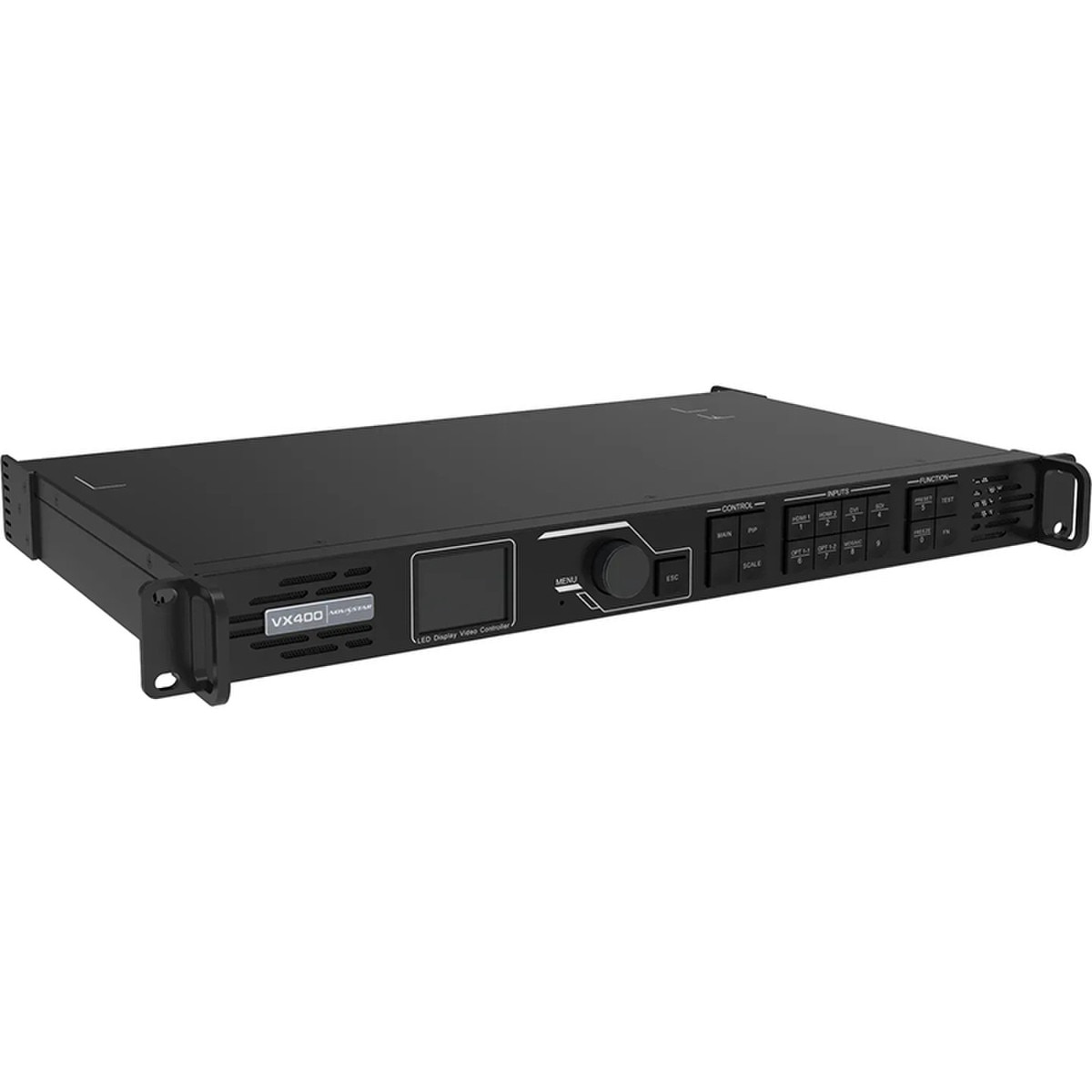

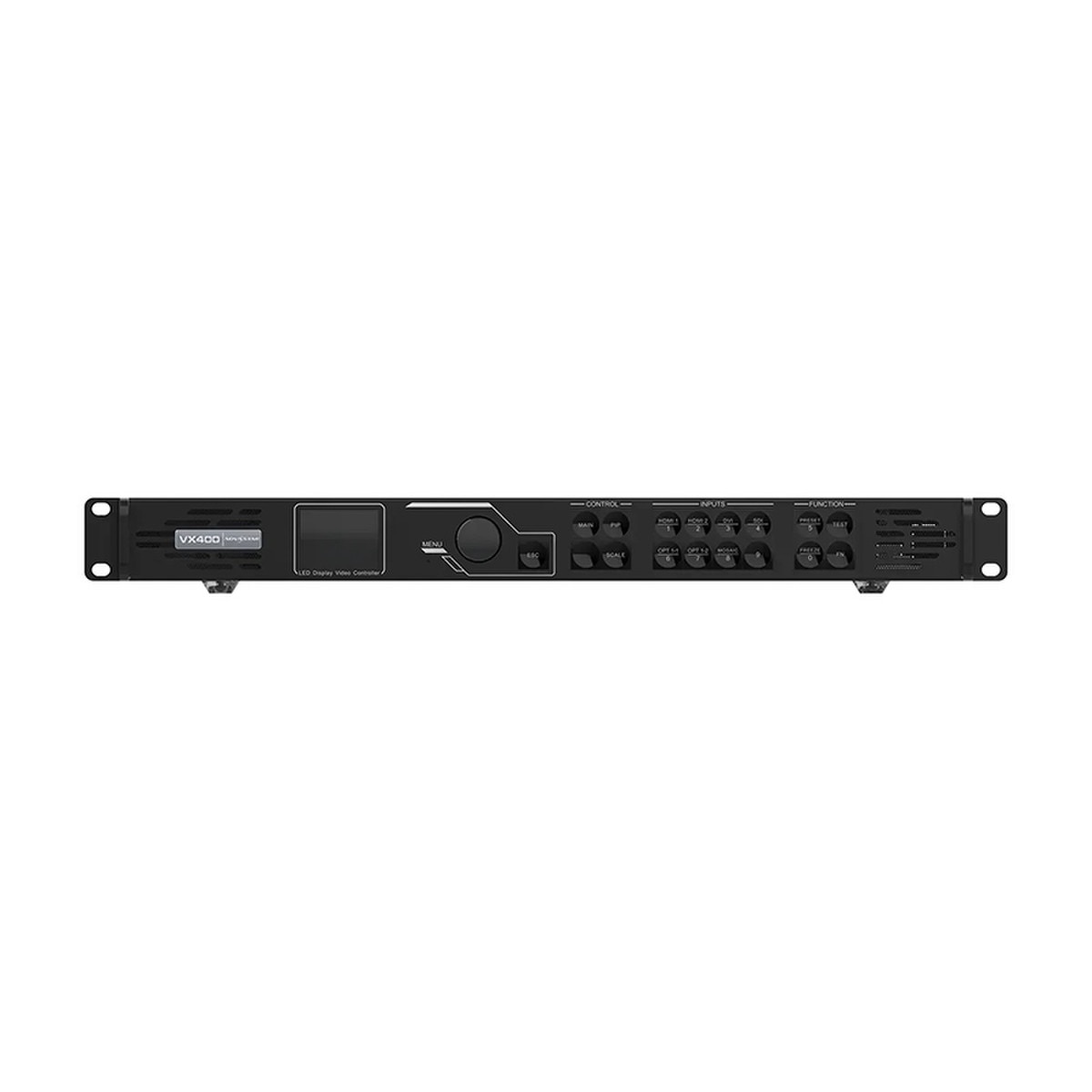

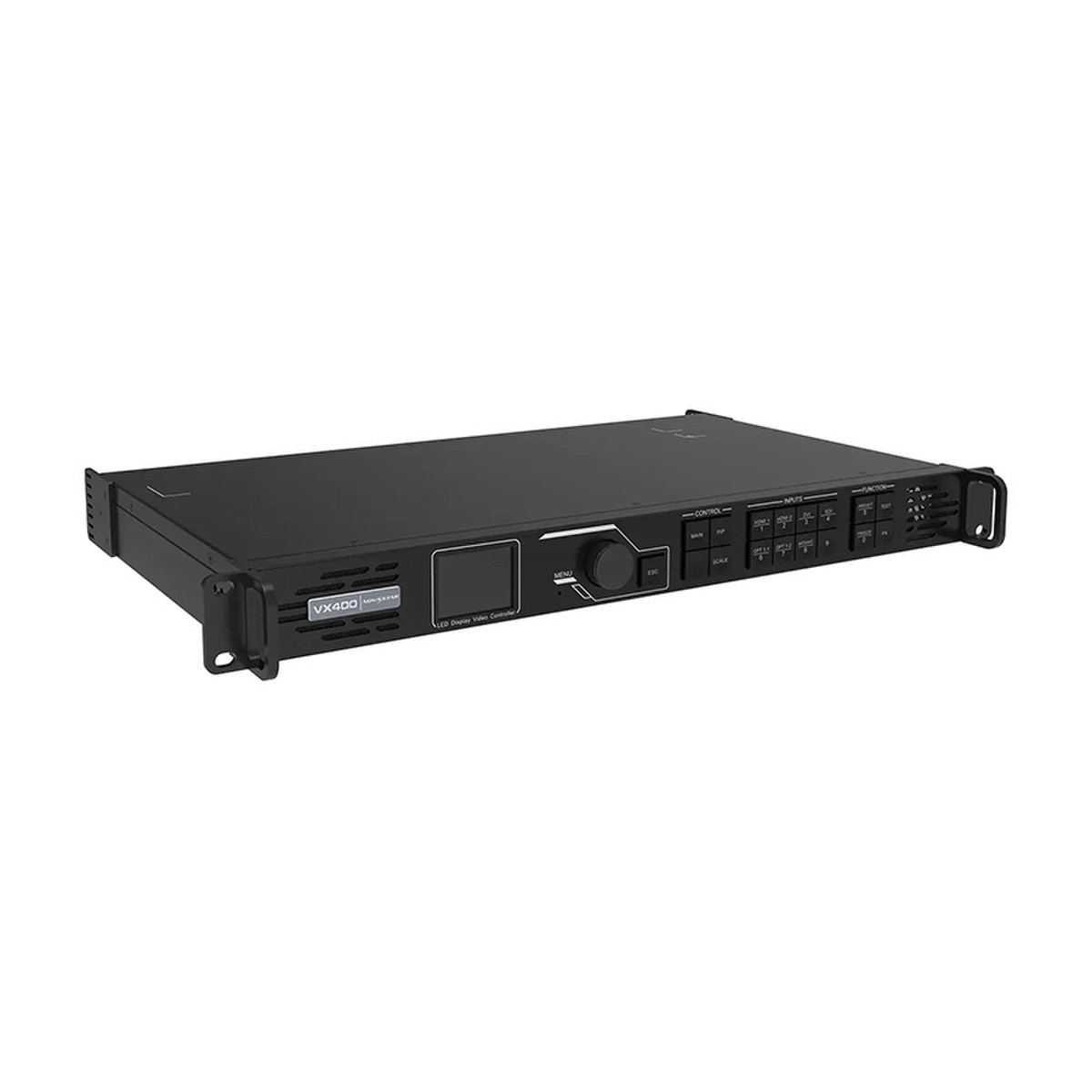

NovaStar VX400 All-In-1 Controller

Tech Specs
Controller & Processor:

The VX400 is a 4-port 2-in-1 video controller that combines video processing and video control functions. It can be widely used in the field of medium to high-end rental, stage control systems and fine-pitch LED screens.

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 28W, 1.5A

Dimensions:

• 2" x 13.9" x 19"
• 8.9lbs

General Specs:

• Loading capacity: 2.9m pixels
• Layers: 2
• Mosaic input source supported
• Audio input and output
• Low latency
• Output synchronization

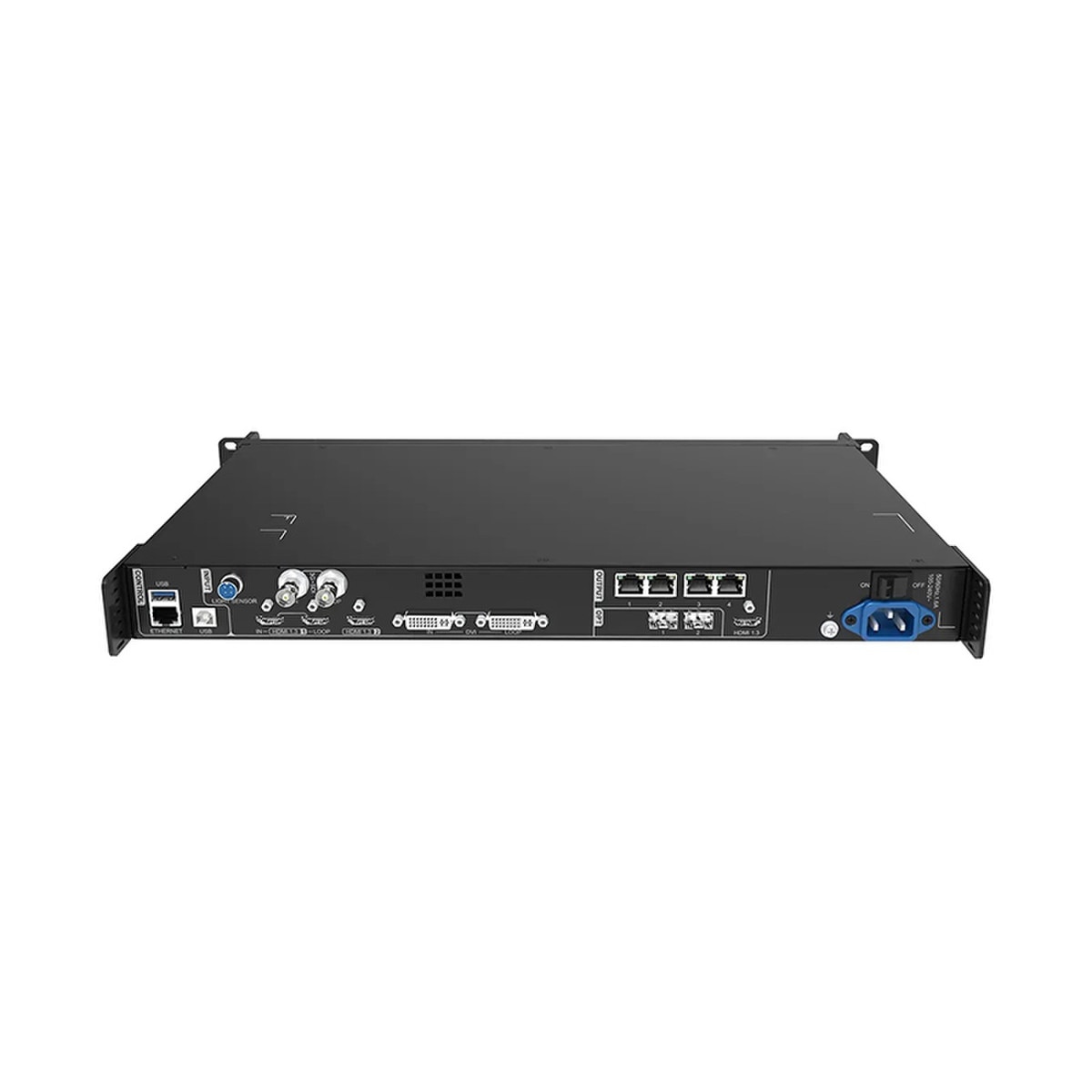

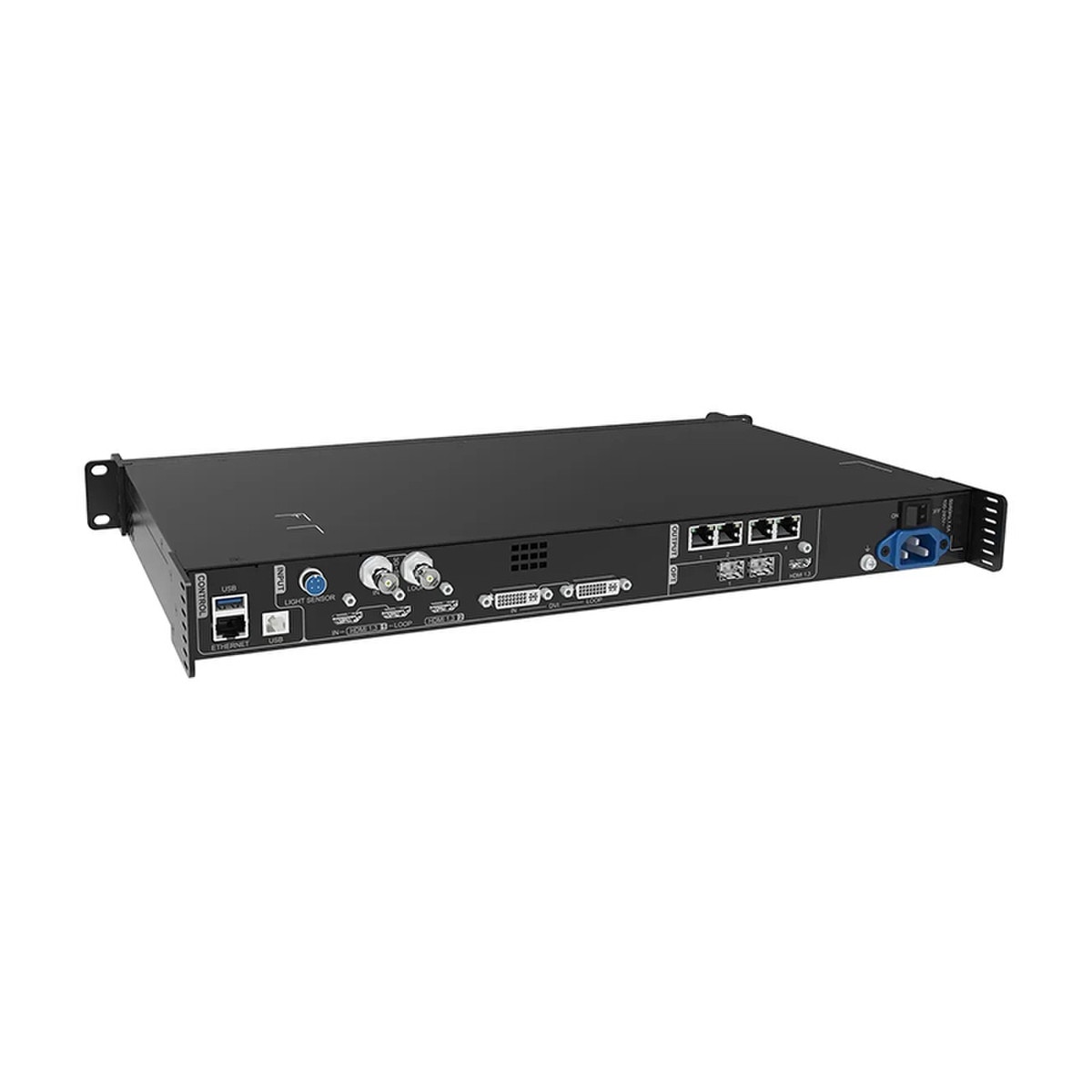

Connectors:

• 2x HDMI 1.3 + LOOP In
• 2x DVI (HDMI 1.3) + LOOP In
• 1x 3G-SDI + LOOP In
• 4x Gigabit Ethernet outputs
• 1x 10G OPT port
• 1x HDMI 1.3 (monitor)
• 1x RJ45 Ethernet (PC)
• 1x USB Type A (cascading)
• 1x USB Type B (PC)

Warranty:

• 3 Year

NovaStar VX400 User Manual.pdf
NovaStar VX400 Controller Specifications.pdf
