NovaStar VX400 Pro All-In-One Multiview Controller

Key Features:

• Supports up to DCI 4K60 Video Input
• Up to 10,240 x 8192 Pixel Display
• HDMI 2.0, 3G-SDI, USB-A, Two HDMI 1.3 In
• HDMI 2.0 &1.3, 3G-SDI, Four GbE Out
• Ultrawide, Ultrahigh LED Screen Support
• Video Controller & Bypass Modes
• OSD, 4Kx2K, 4Kx1K, 2Kx1K Display Options
• Optional Optical Fiber Converter Mode
• Compatible with Third-Party 3D Emitter
• Knob, Unico, NovaLCT, VICP App Control

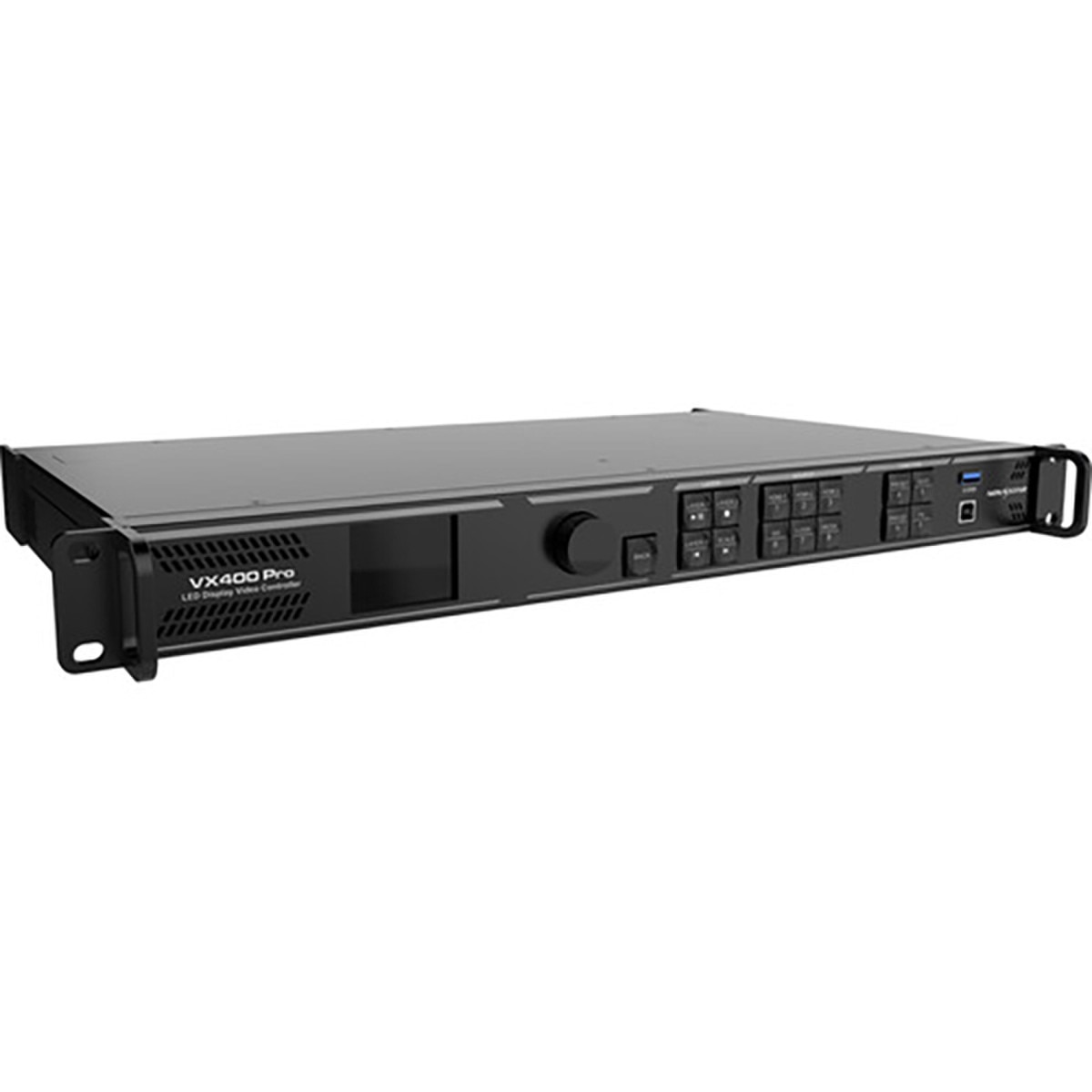

NovaStar VX400 PRO Overview:

The VX400 Pro All-in-One Multiview Controller from NovaStar features video processing and control in a single, on-site unit for ultra-large LED screens. It supports video resolutions up to DCI 4K60 and displays up to 10,240 x 8192. Its interface features four GbE ports, HDMI, 3G-SDI, and USB-A 3.0 connectors, and optional optical fiber outputs.

Powerful Video Processing:

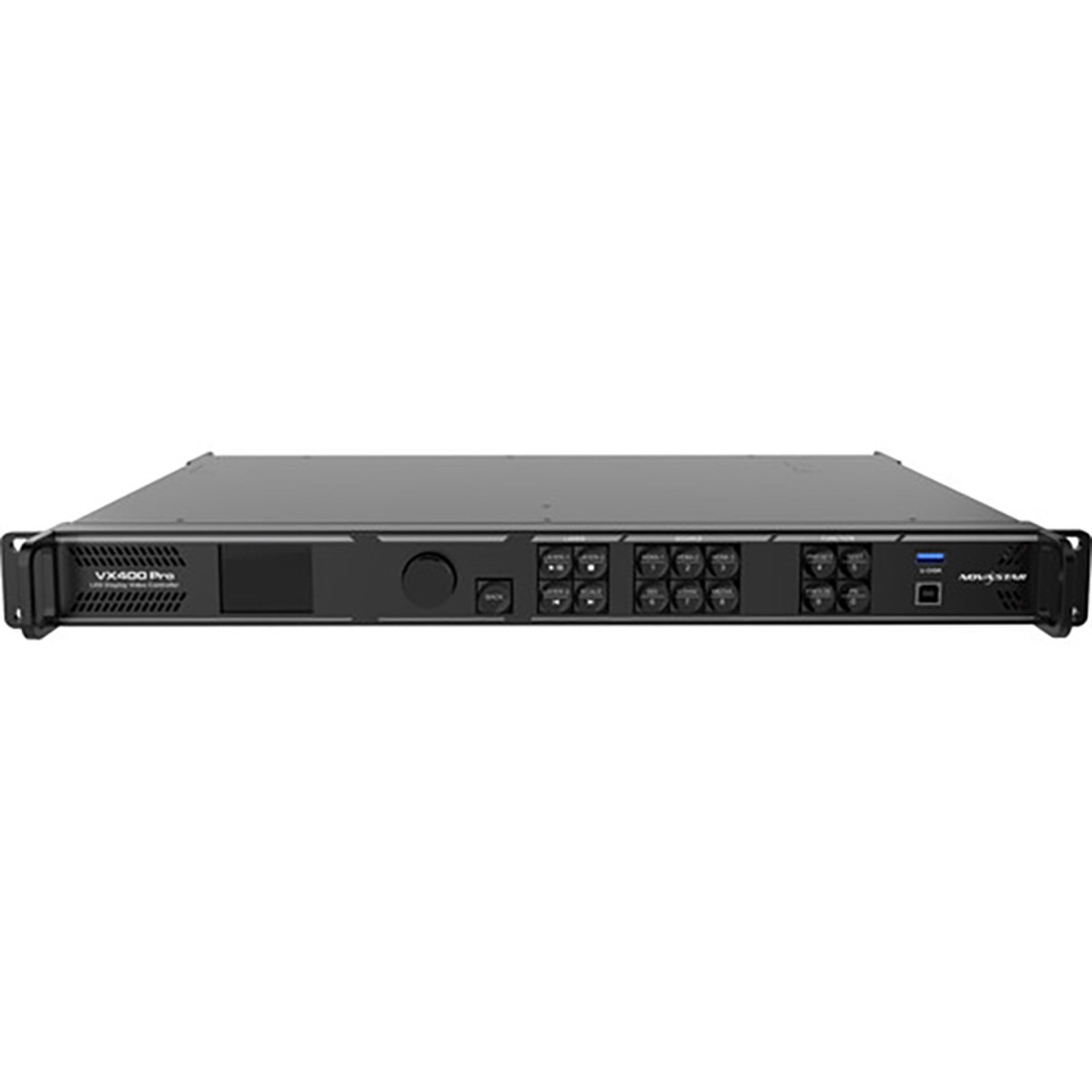

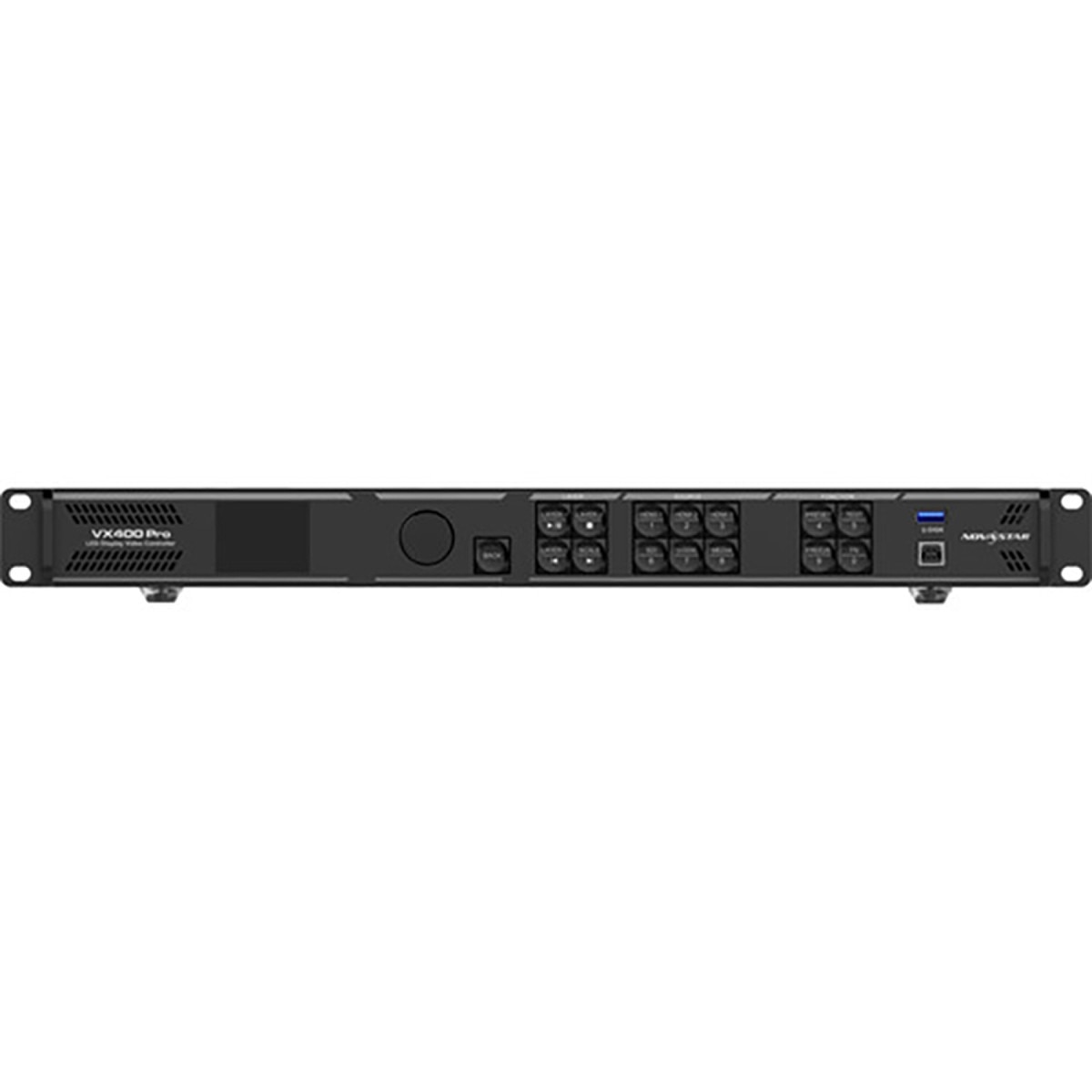

The VX400 Pro offers powerful video processing, including six layers, output scaling, low latency, and pixel-level brightness and chroma calibration. Control options include a front panel dial, display screen, and knobs, NovaLCT, Unico, and VICP apps.

Applications:

Use the VX400 Pro's advanced processing and transmission capabilities for high-end rental applications, stage control systems, and ultra-large, fine-pitch LED screens.

Key Specs

Inputs:

• 1 x HDMI (HDMI 2.0)
• 2 x HDMI (HDMI 1.3)
• 1 x BNC (3G-SDI)
• 1 x 1/8" / 3.5 mm TRS (Microphone)

Embedded Audio:

• HDMI/LAN (RJ45)/SDI/USB

Outputs:

• 1 x HDMI (HDMI 1.3)
• 1 x HDMI (HDMI 2.0, Looping)
• 1 x DB-9 (3G-SDI)
• 4 x RJ45 (LAN, Looping)
• 2 x SFP+
• 1 x 1/8" / 3.5 mm TRS

Video Format

HDMI (4:4:4/4:2:2/4:2:0 RGB, YCC):

• 8192 x 1080: 60 fps
• 1080 x 8188: 60 fps
• 4096 x 2160: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps

SDI:

• 8192 x 2160: 60 fps
• 8192 x 1080: 30 fps
• 1080 x 8188: 60 fps
• 1080 x 2048: 60 fps
• 4096 x 2160: 30/60 fps
• 4096 x 1080: 30/60 fps
• 3840 x 2160: 30/60 fps
• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps

RJ45 (8-Bit):

• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1024 x 1080: 60 fps

USB:

• 3840 x 2160: 30/60 fps

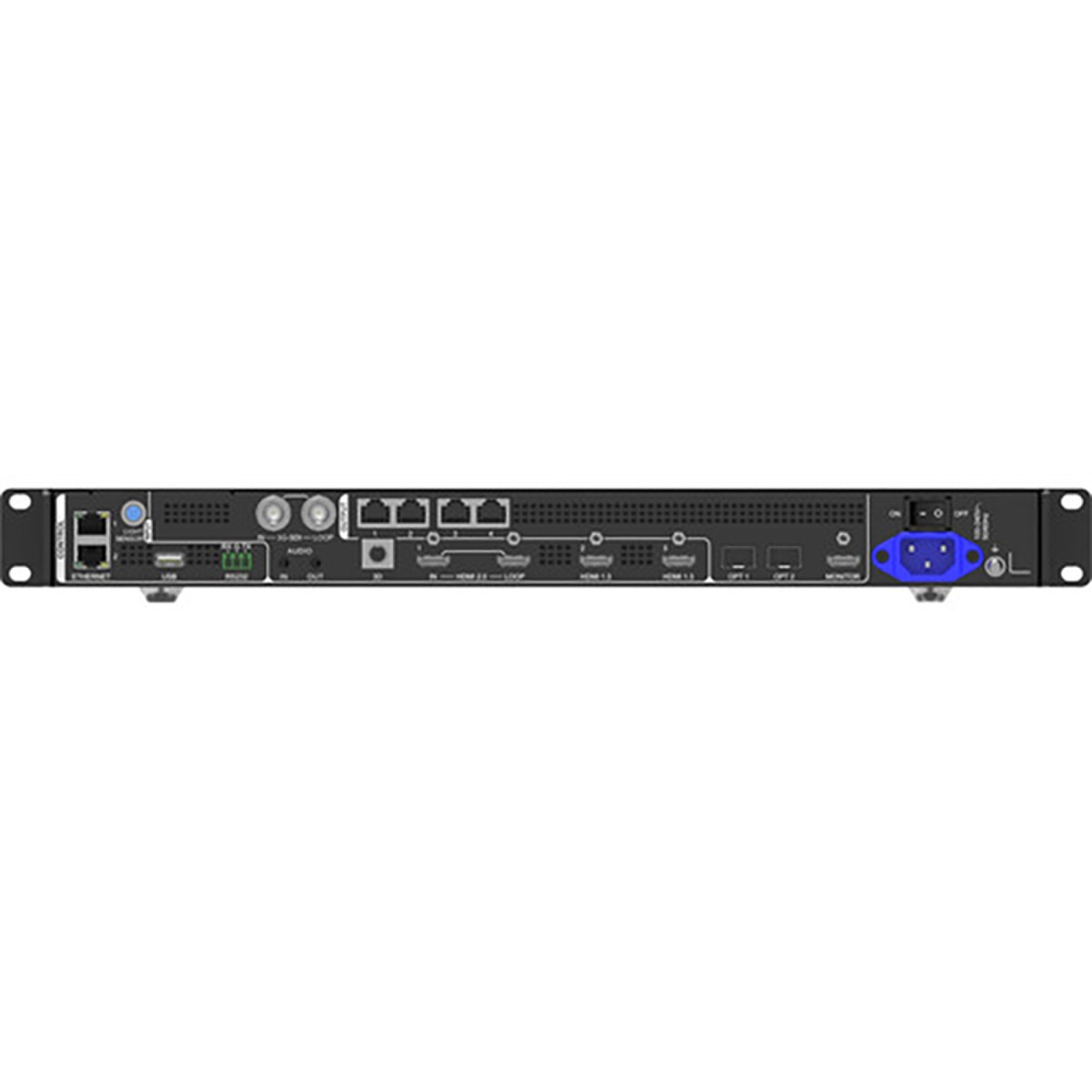

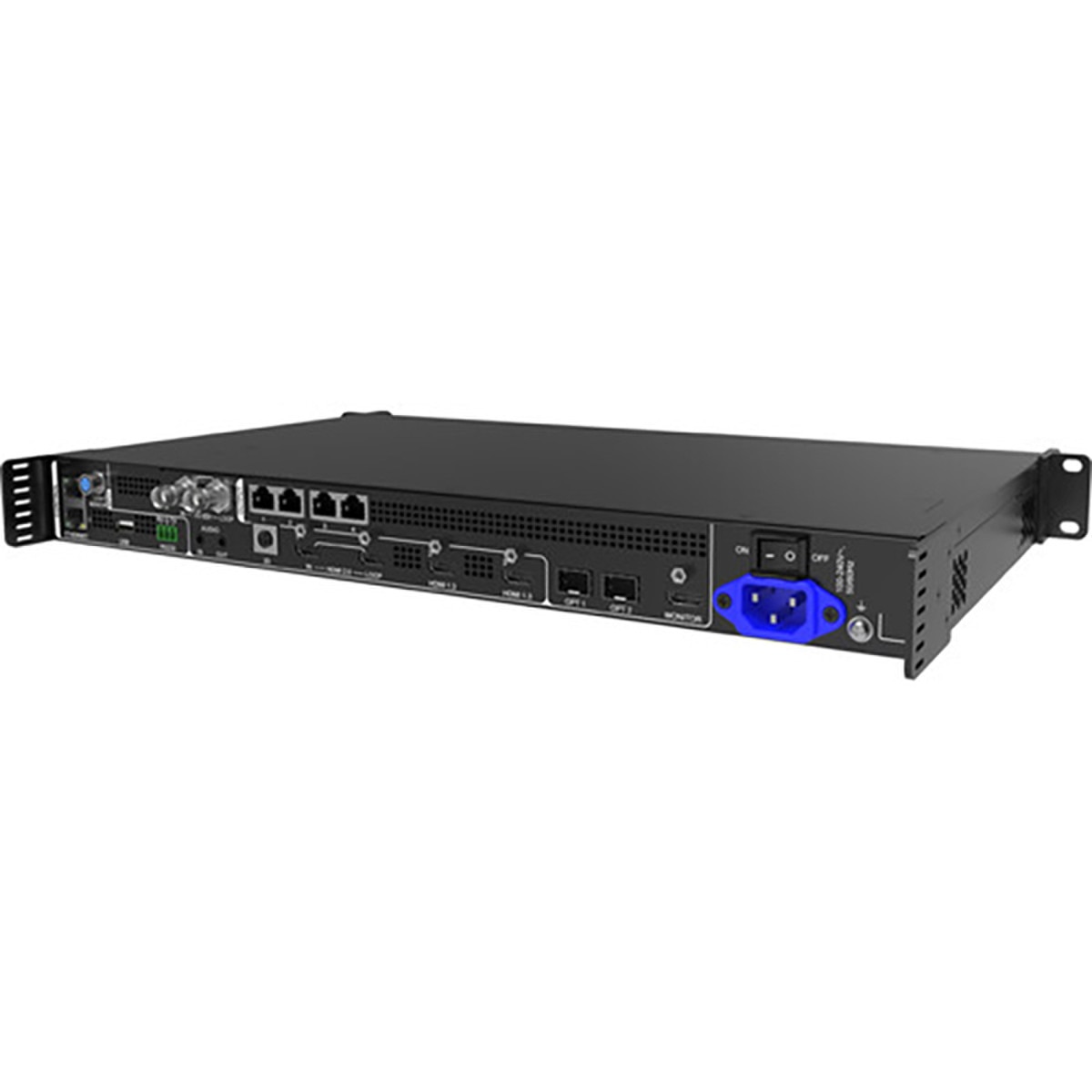

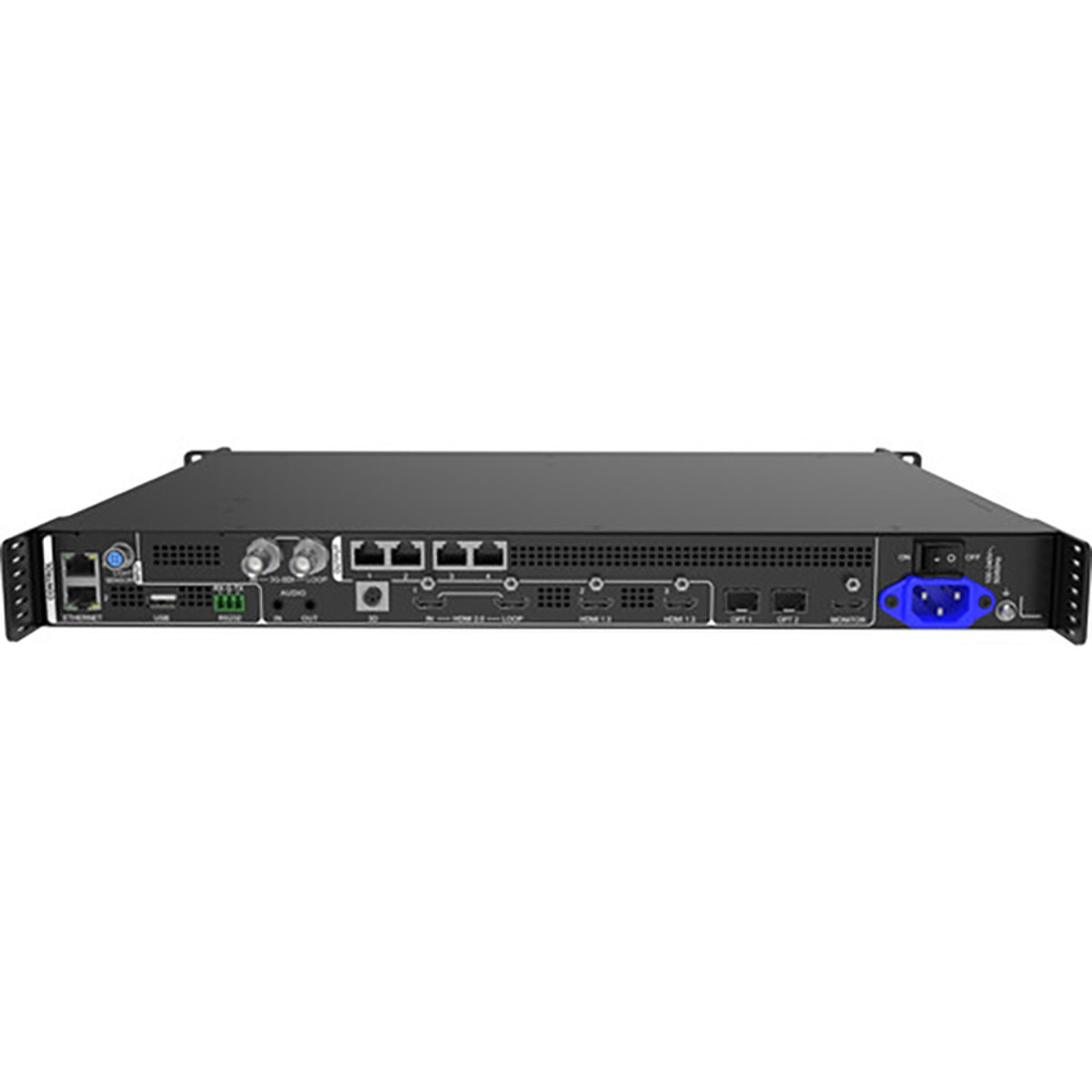

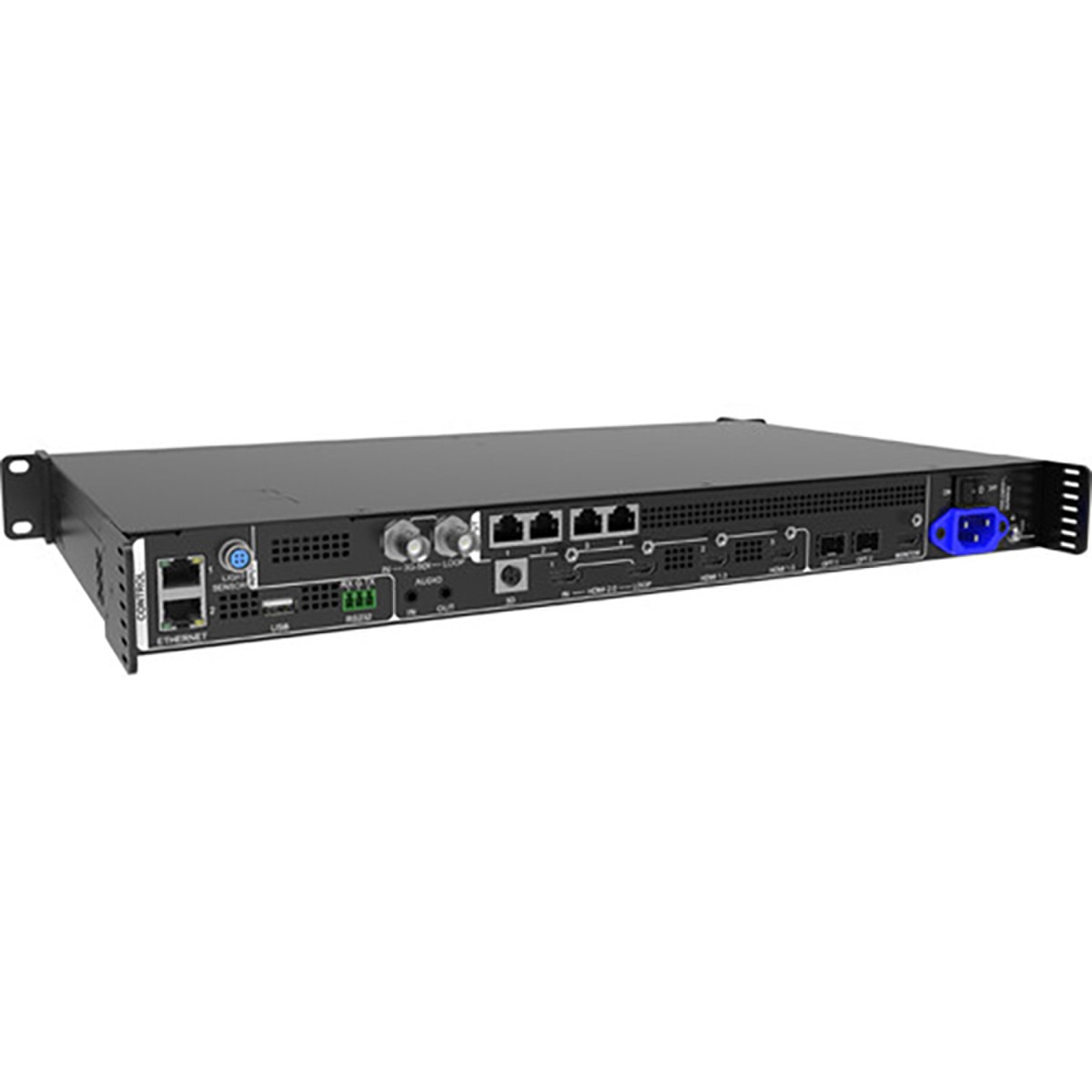

Interfaces

Inputs:

• 1 x HDMI (HDMI 2.0)
• 2 x HDMI (HDMI 1.3)
• 1 x BNC (3G-SDI)
• 1 x 1/8" / 3.5 mm TRS (Microphone)

Embedded Audio:

• HDMI/LAN (RJ45)/SDI/USB

Outputs:

• 1 x HDMI (HDMI 1.3)
• 1 x HDMI (HDMI 2.0, Looping)
• 1 x DB-9 (3G-SDI)
• 4 x RJ45 (LAN, Looping)
• 2 x SFP+
• 1 x 1/8" / 3.5 mm TRS

Other I/O:

• 1 x USB-A 3.0 / 3.1/3.2 Gen 1

Standards:

• Video Standard Compliance: SMPTE 292M/295M/296M/424M/425M-A/425M-B
• EDID Support: Yes (Unspecified Control Method)
• Audio Decoding: AAC, DTS-HD High-Resolution

Transmission

Video Format:

HDMI (4:4:4/4:2:2/4:2:0 RGB, YCC):

• 8192 x 1080: 60 fps
• 1080 x 8188: 60 fps
• 4096 x 2160: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps

SDI:

• 8192 x 2160: 60 fps
• 8192 x 1080: 30 fps
• 1080 x 8188: 60 fps
• 1080 x 2048: 60 fps
• 4096 x 2160: 30/60 fps
• 4096 x 1080: 30/60 fps
• 3840 x 2160: 30/60 fps
• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps

RJ45 (8-Bit):

• 2048 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1920 x 1080: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120/144 fps
• 1024 x 1080: 60 fps

USB:

• 3840 x 2160: 30/60 fps

Maximum Multiple Display Configuration:

• 4 x 2

Audio Format:

• AES/EBU: 24 kHz
• AES/EBU: 48 kHz

Maximum Data Rate:

• 100 Mb/s

Power

• Power I/O: 1 x IEC C14 Input
• Power Consumption: Device: (42 W)

General:

• Certifications: CB, CE, EAC, FCC, IC, KC, PSE, RCM, RoHS, UL
• Operating Conditions: 32 to 122°F / 0 to 50°C at 5 to 85% Humidity
• Storage Conditions: 14 to 140°F / -10 to 60°C at 5 to 95% Humidity
• Dimensions: 19.0 x 11.9 x 2.0" / 482.6 x 302.2 x 50.1 mm
• Weight: 8.4 lb / 3.8 kg

Packaging Info

• Package Weight: 14.44 lb
• Box Dimensions (LxWxH): 22.1 x 17.9 x 7.2"

Items Included:

• NovaStar VX400 Pro All-in-One Multiview Controller
• Power Cord
• Ethernet Cable
• HDMI Cable
• Silicone Dustproof Plug
• USB Cable
• 3-Pin Block Connector
• Limited 1-Year Manufacturer Warranty
