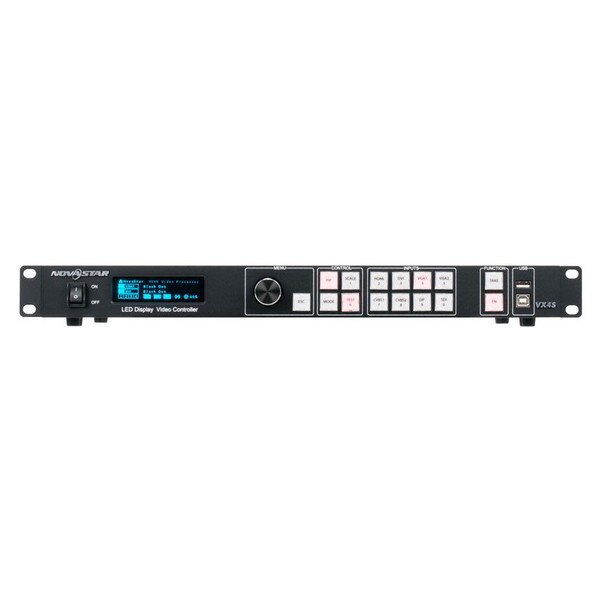

NovaStar VX4S-N

The new NovaStar VX4s-N™ is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova’s new generation point-by-point correction technology.

NOVASTAR VX4s-N™ is compatible with all ADJ video panels.

Features:

• User Friendly LED Display Controller
• Powerful Front End Processor
• Up to 1920 x 1200 p @60Hz Input Resolution
• Multiple Video Signal Format Support
• New Generation Point-By-Point Correction Technology
• Cascade Multiple Units Together Via USB
• Rack Mountable Aluminum Enclosure (screws not included)

Control/Connections:

• (1) RJ45 LAN for IP Based Control
• (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
• (2) USB Type A and (2) USB Type B Ports (1 set on each side)
• (1) 1/8 inch (3.5mm) Audio Input
• Video Input: (1) DP / (1) HDMI / (1) VGA / (1) DVI In+Loop / (1) CVBS / (1) 3G-SDI In+Loop Video Output: (1) DVI Monitor
• Locking IEC Power In(more...)
