Osram 54249 - BRL/T3 - 50W 12V 50HR - Projector/Microfilm/Microscope/Studio
Details

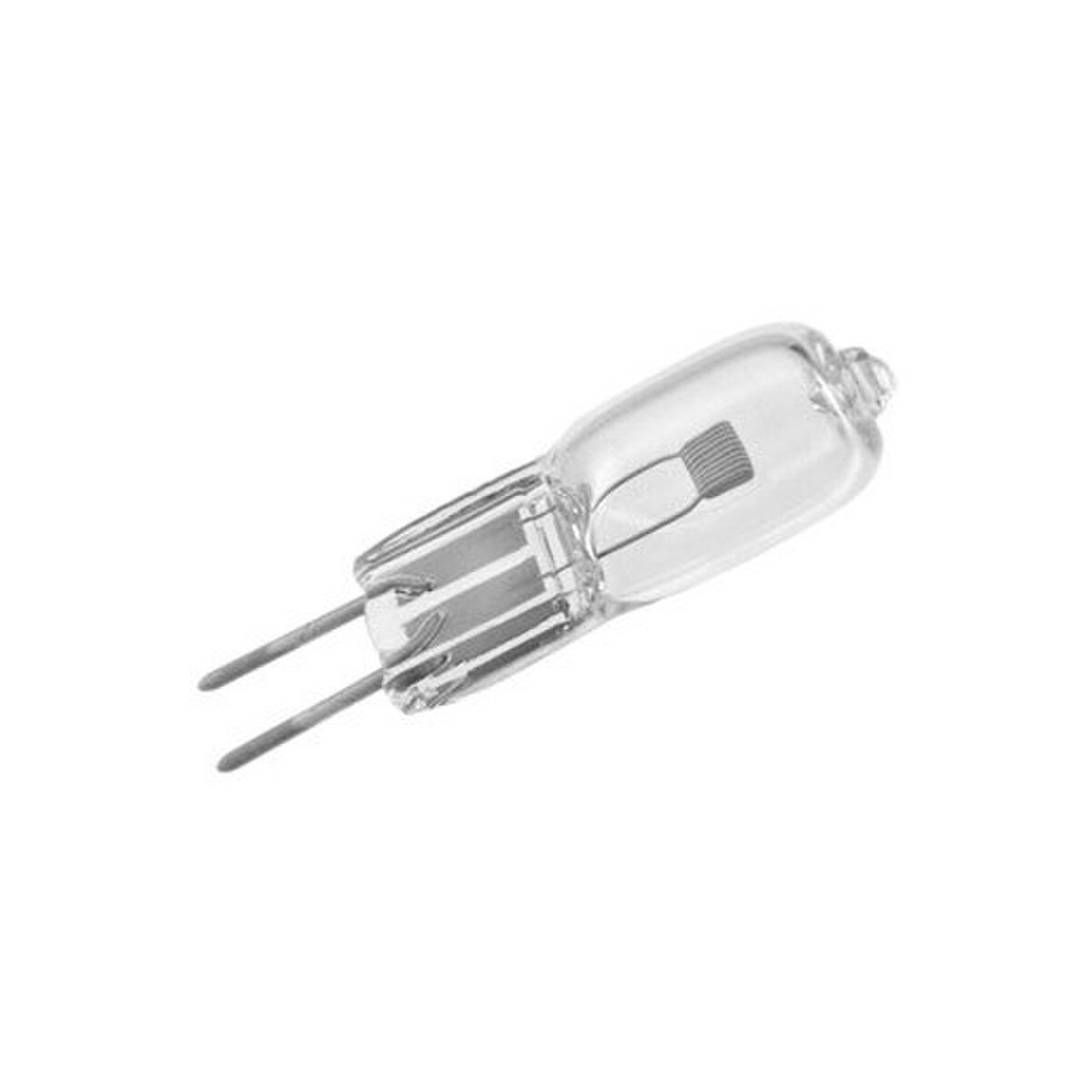

The Sylvania 54249 stage and studio lamp has a T3 bulb shape and a G6.35 base type. It operates at 50 watts and 12 volts and will typically last an average of 50 hours.

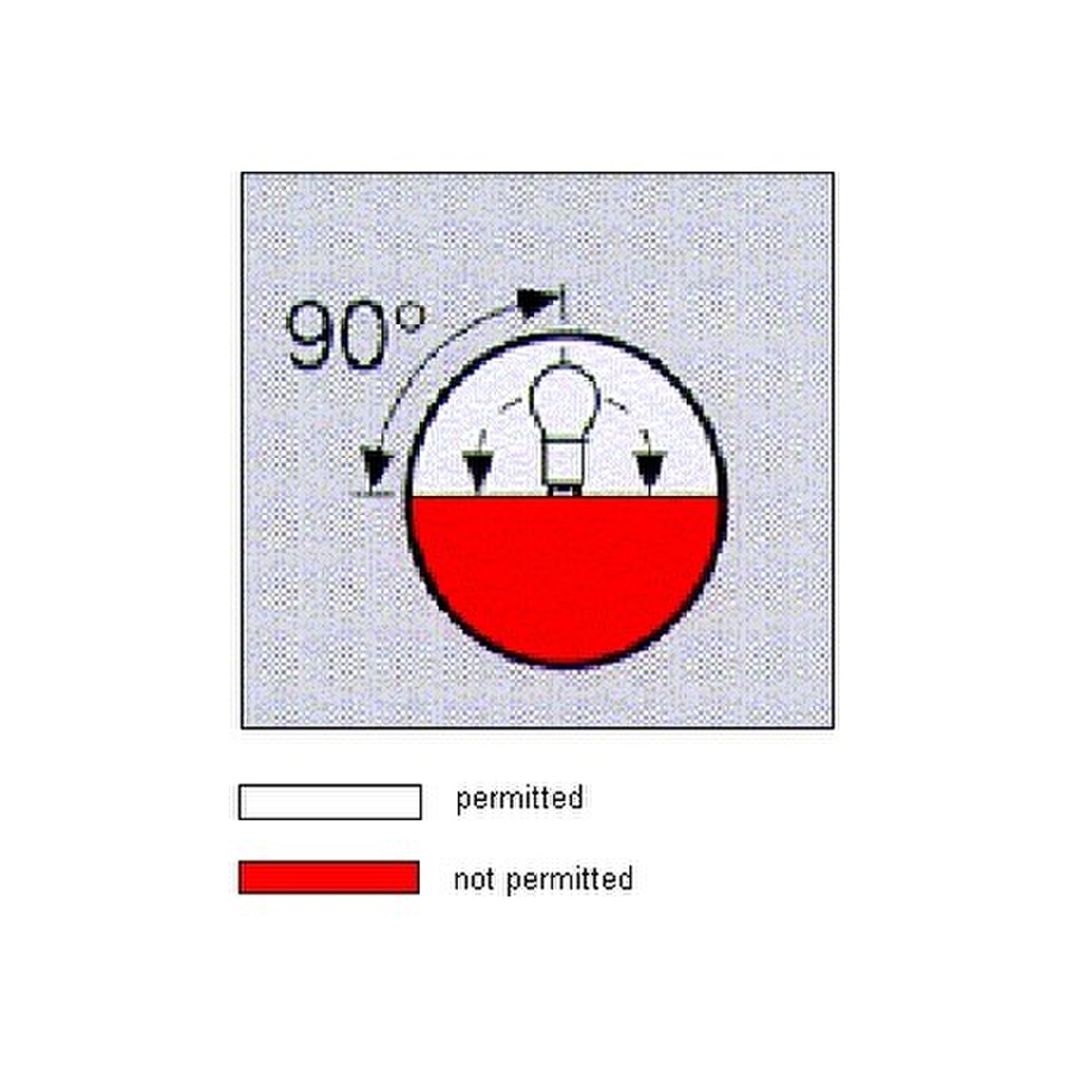

This bulb has a base down/horizontal burning position.
The 54249 bulb's corresponding ANSI codes are BRL/BCD. This lamp has a color temperature of 3300 Kelvin and is typically used in microscopes, medical, ophthalmic, microfilm, and projector applications.
Osram 54249 Data Sheet
This bulb has a base down/horizontal burning position.
The 54249 bulb's corresponding ANSI codes are BRL/BCD. This lamp has a color temperature of 3300 Kelvin and is typically used in microscopes, medical, ophthalmic, microfilm, and projector applications.
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | BRL |
| Average Rated Life (HR): | 50 |

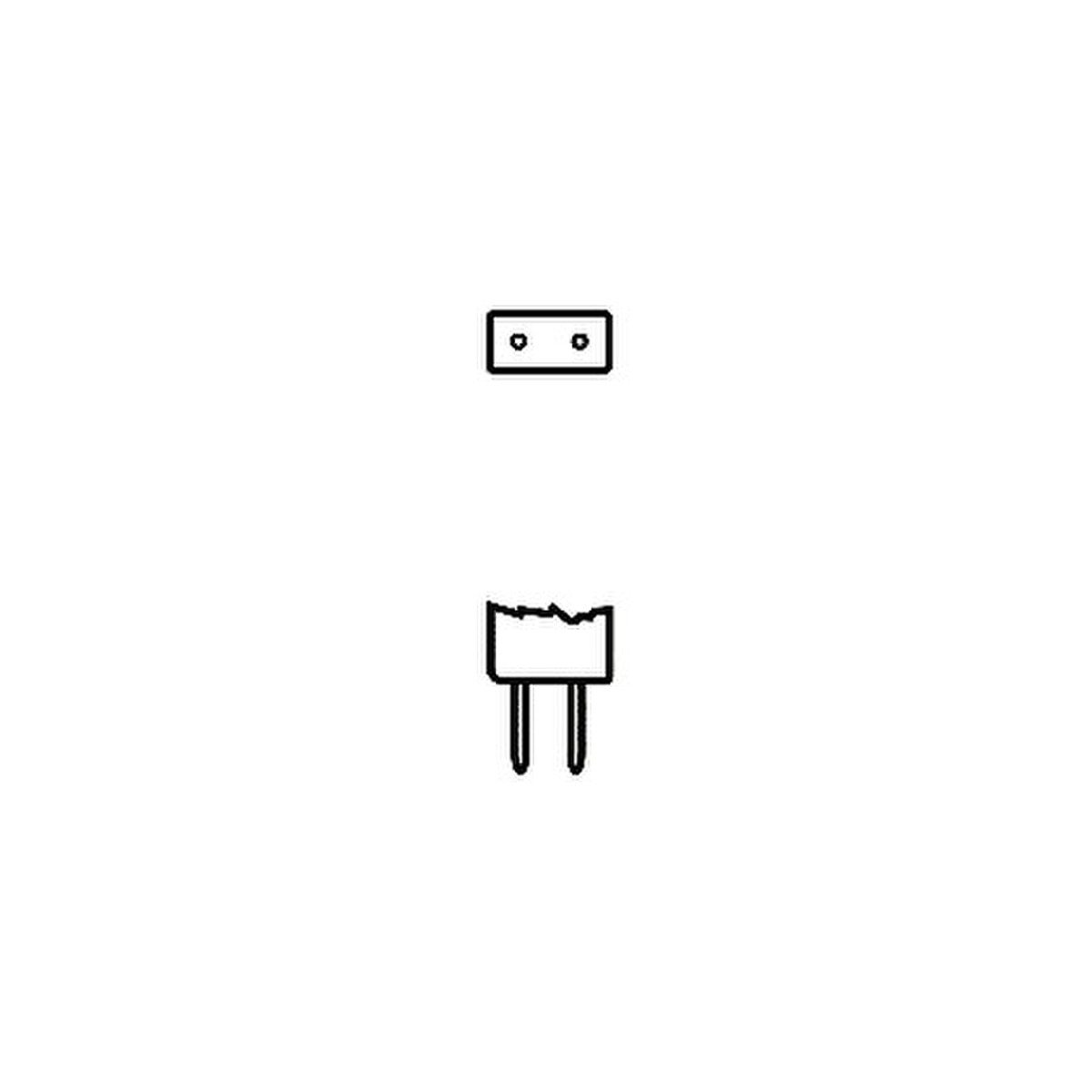

| Base: | G6.35 Bipin |
| Bulb: | T3 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

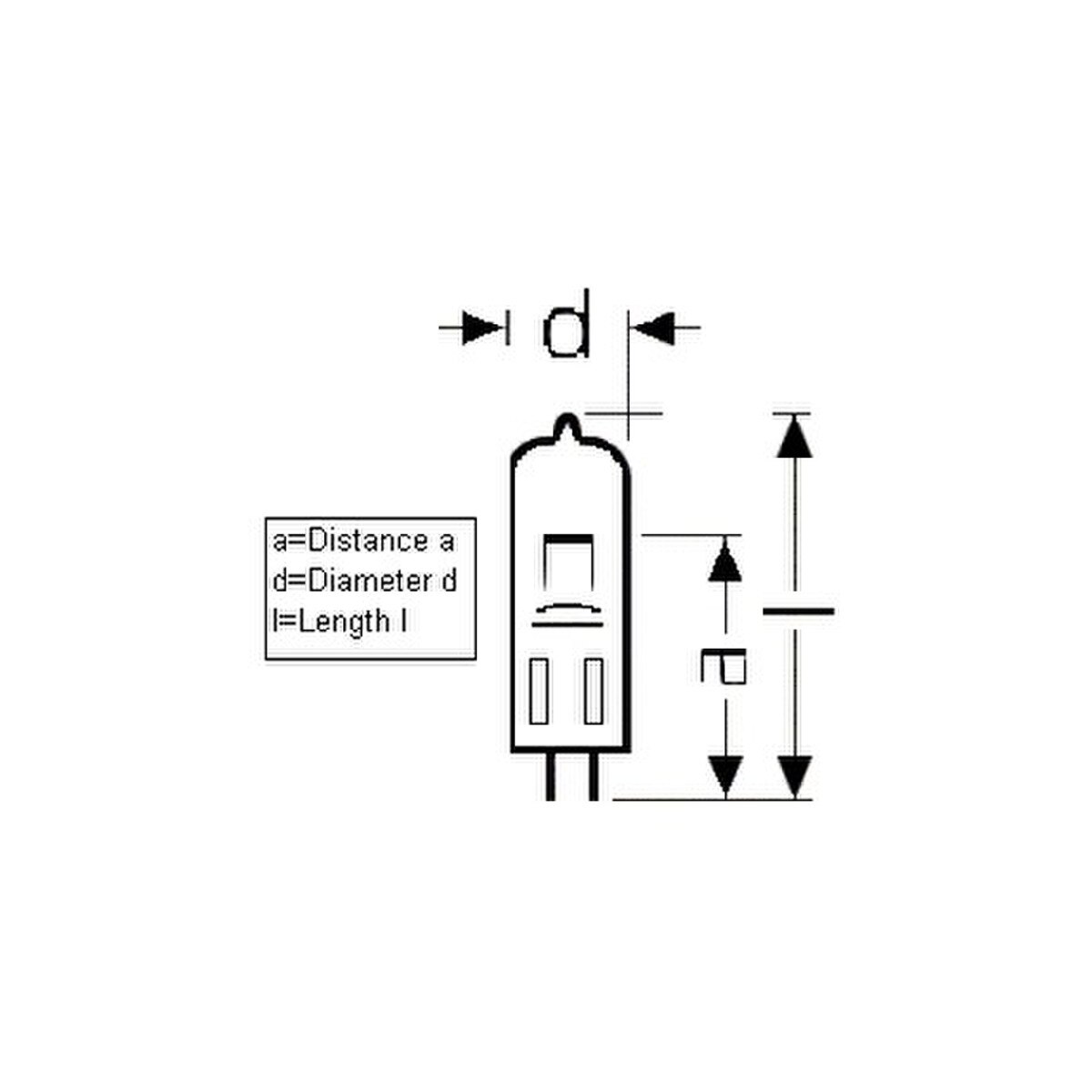

| Diameter d (in): | 0.453 |
| Diameter d (mm): | 11.5 |
| Distance a (in): | 1.17 |
| Distance a (mm): | 30 |
| Filament Dimensions Length (in): | 0.062 |
| Filament Dimensions Length (mm): | 1.6 |
