Osram 54248 - FCR/T3.5 - 100W 12V 50HR - Projector/Microfilm/Microscope/Studio
Details

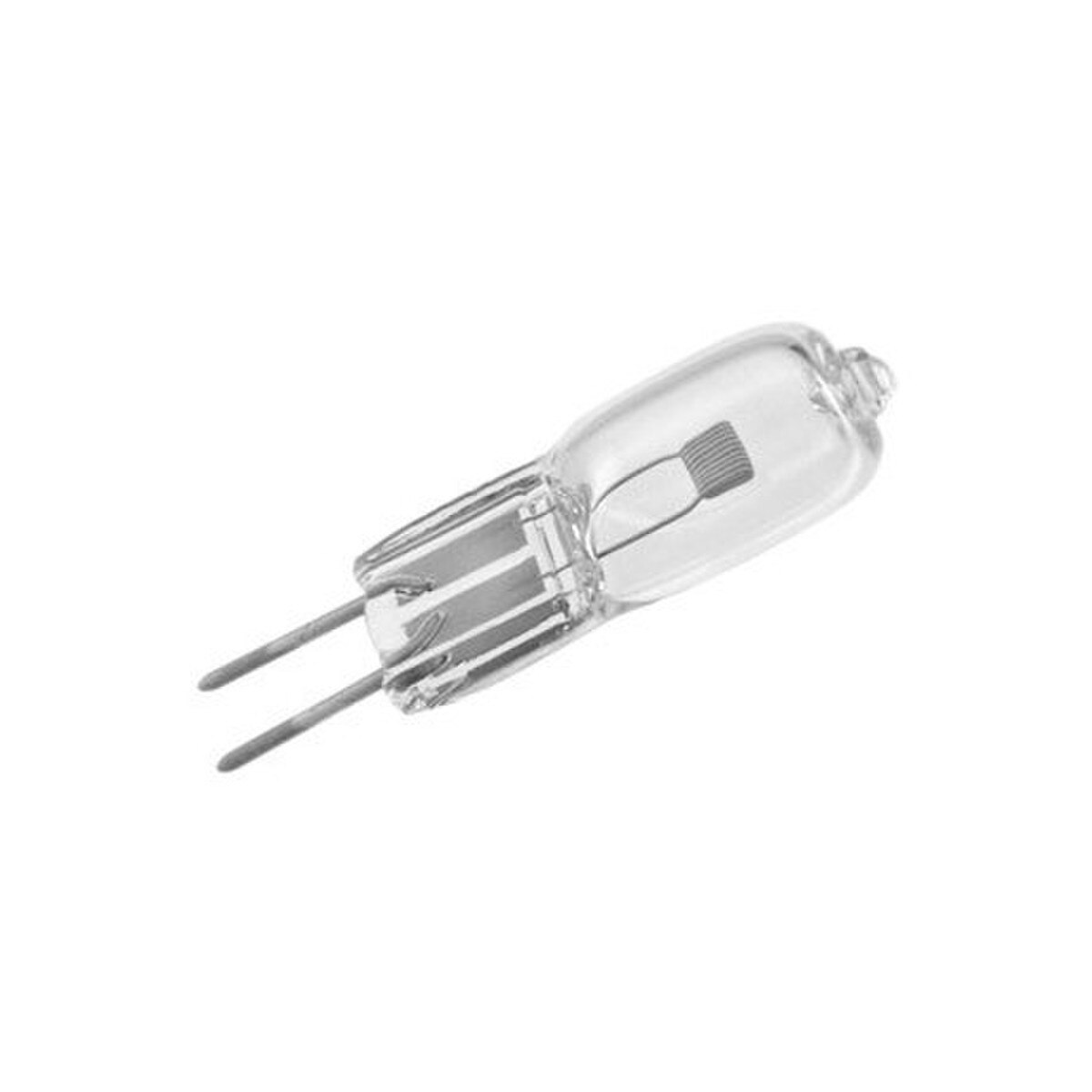

This Sylvania FCR (100W/12V) Lamp is a T3.5 shaped halogen bulb with a GY6.35 base.
This bulb is commonly used for projector, microfilm, microscope, & studio, and has a 50 hour lamp life.
Osram 54248 Data Sheet
This bulb is commonly used for projector, microfilm, microscope, & studio, and has a 50 hour lamp life.
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | FCR |
| Average Rated Life (HR): | 50 |

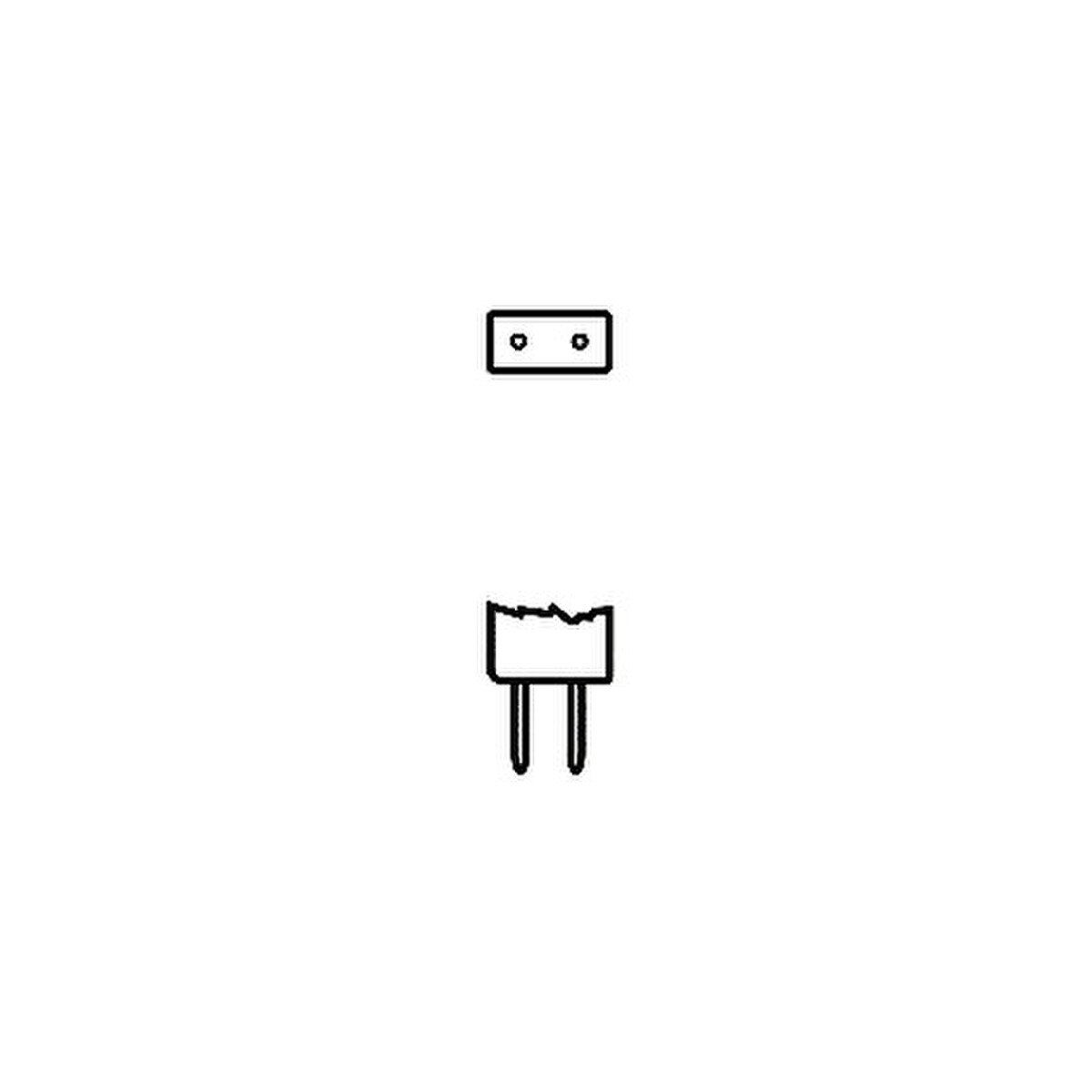

| Base: | GY6.35 Bipin |
| Bulb: | T3.5 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

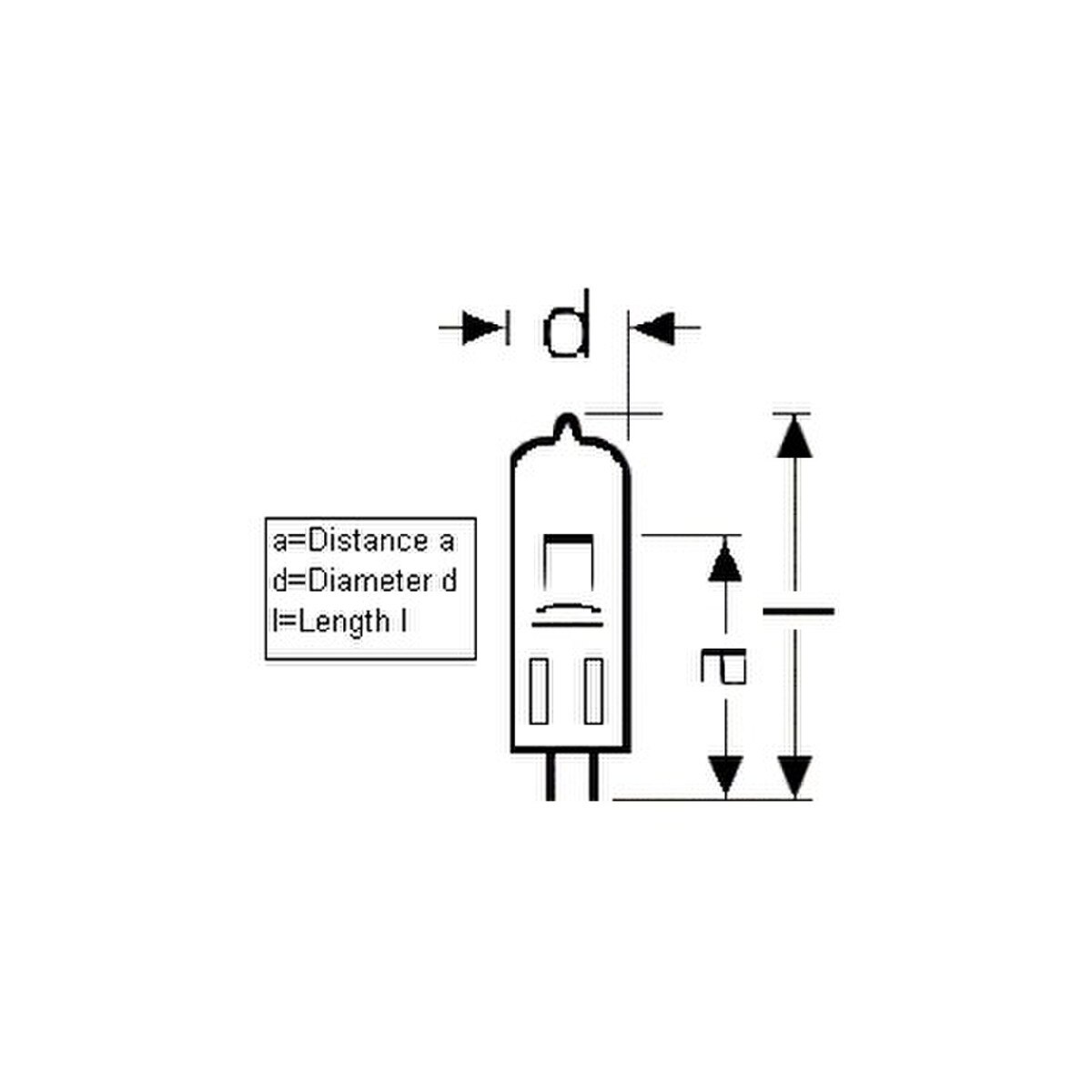

| Diameter d (in): | 0.453 |
| Diameter d (mm): | 11.5 |
| Distance a (in): | 1.18 |
| Distance a (mm): | 30 |
| Filament Dimensions Length (in): | 2.3 |
| Filament Dimensions Length (mm): | 0.09 |
