Osram 54611 - HPLX 750W 115V 1500HR - Stage/Studio
Details
Product features and benefits
- Ultra compact filament design (UCF) for high lumen output
- Unique top bridgeless construction improves beam uniformity for lamps with ≤ 120 volts
- Unique gas fill which improves light output and minimizes risk of arc-out
- Special heat sink base for maximum durability in high temperature applications
- Reinforced pinch seal for extra mechanical strength
- Foam packaging for easier handling and installation
- Optimum system performance with TP22H socket
Areas of application
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment
Lamp Specifications - Listed Alphabetically: | |
Average Rated Life (HR): | 1500 |
Base: | Medium Bipin with Heat Sink |
Bulb: | T6 |
Class: | C (gas) |
Color Rendering Index (CRI): | 100 |
Color Temperature (CCT) (K): | 3050 |

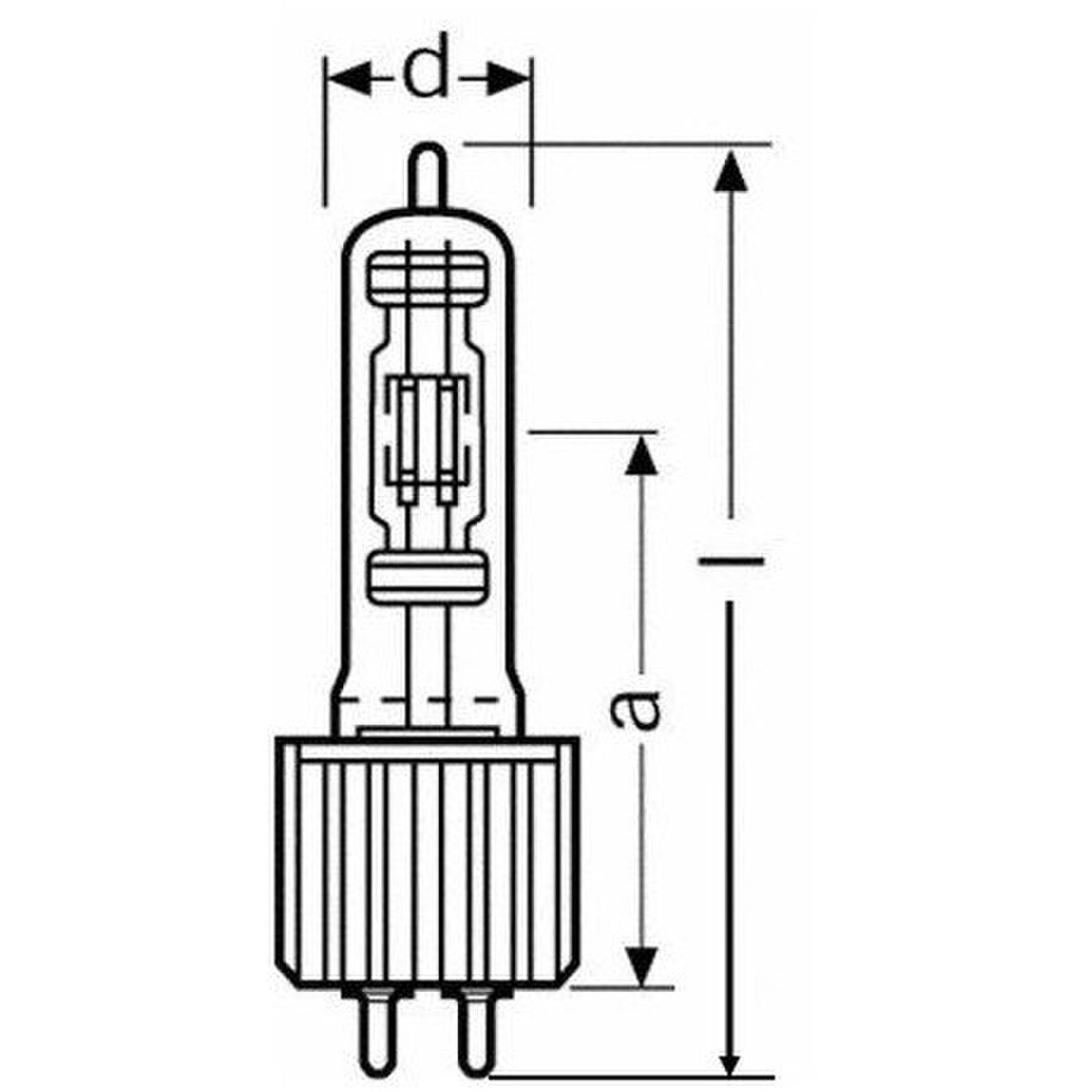

Diameter d (in): | 0.741 |
Diameter d (mm): | 19 |
Distance a (in): | 2.352 |
Distance a (mm): | 60.3 |
Filament (F): | 4-C8 |
Lamp Finish: | Clear |
Length I (in): | 4.1 |
Length I (mm):<(more...) |
Osram 54611 Specs.pdf
