Osram 54129 - HSD/T30 - 575W 80V 7200K - Entertainment/FX/Architectural
Details
575 watt, metal halide, single-ended, with outer jacket, not hot restart, 4ARXS HSD lamp series
The rugged design of the OSRAM HSR and HSD lamps provide optimal thermal and mechanical stability for simple handling and safe operation.
HSR lamps are highly effecient and bright for entertainment effects, while the HSD family provides similar benefits with increased lifetimes for architectural effect lighting.
The HSD family also includes a 300W lamp with the special OSRAM Lok-It! base design for safe and easy installation from the back of the fixture.
Product features and benefits
- Proven, reliable technology for entertainment and architectural fixtures
- Designed with an outer quartz jacket providing compact and rugged construction
- High luminous efficacy of up to 90 lumens/watt
Areas of application
- Concert lighting
- Club & Disco
- Architecture & Architainment
Product Notes
Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.
Lamp Specifications - Listed Alphabetically: | |

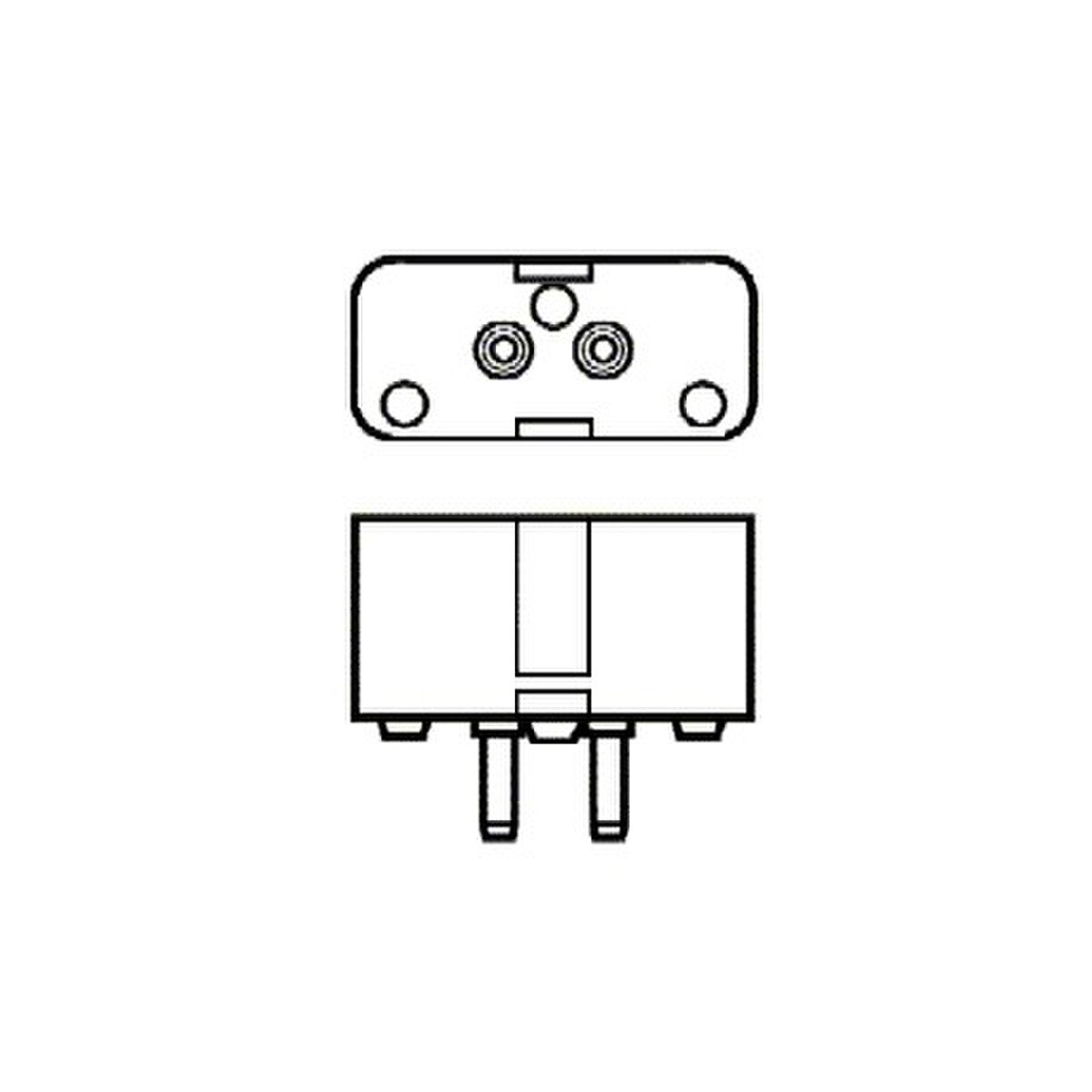

| Base: | GX9.5 Bipin Prefocus |
| Bulb: | T30 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 85 |
| Color Temperature (CCT) (K): | 7200 |
| Cooling: | Convection |
| Current (A): | 7.4 |

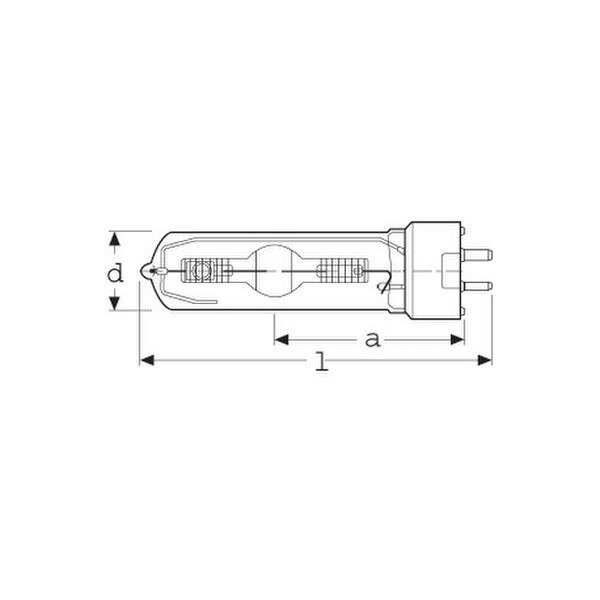

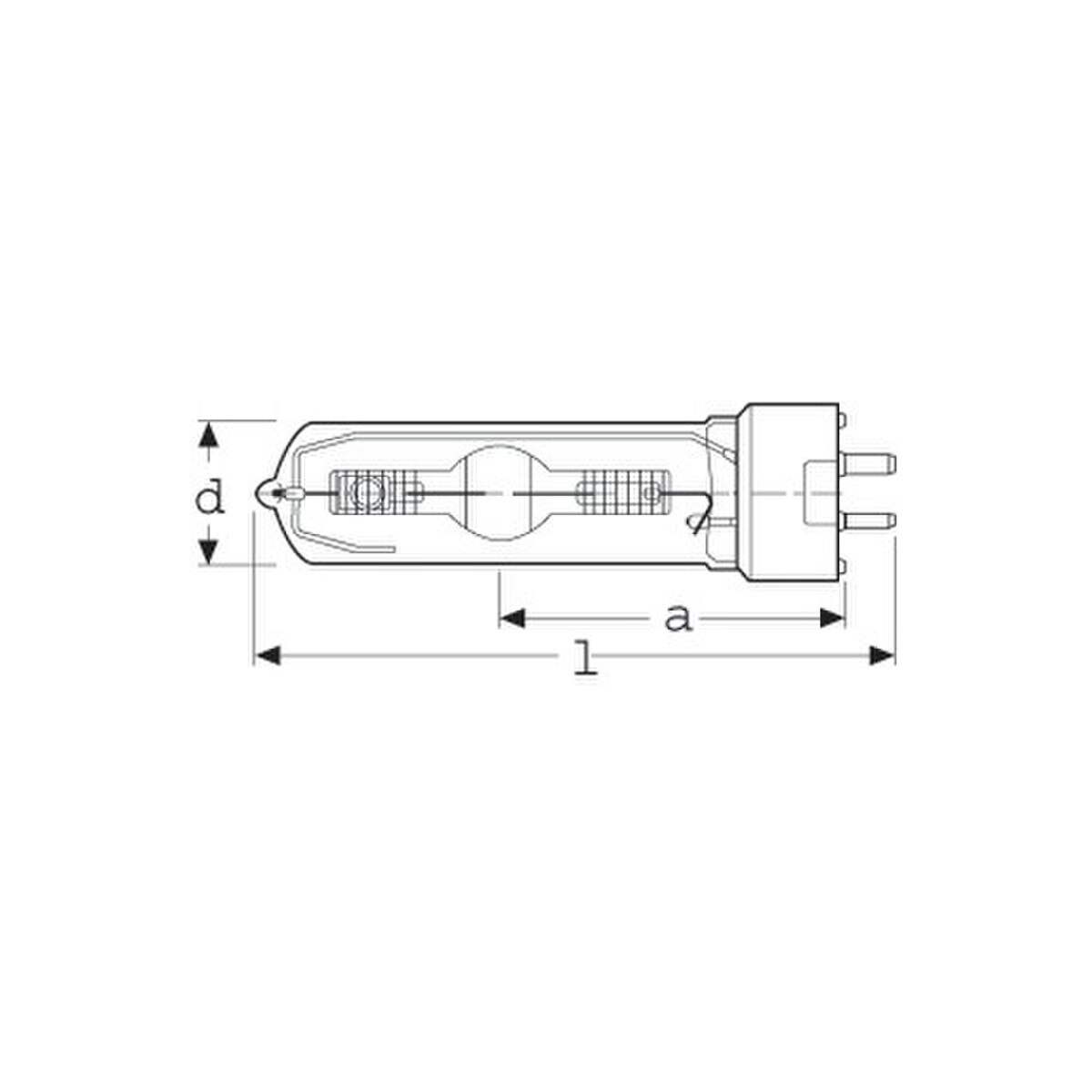

| Diameter d (in): | 1.181 |
| Diameter d (mm): | 30 |
| Distance a (in): | 2.56 |
| Distance a (mm): | 65 |
Osram 54129 Data Sheet
