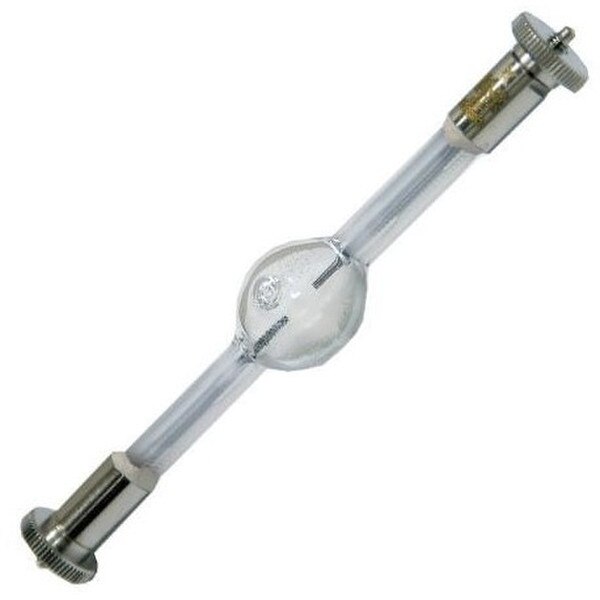

Osram 54242 - HTI/T18 - 700W 70V 750HR 7500K - Entertainment/Effect/Architectural

700 watt, metal halide, double ended, 7500K, SharXS lamp series

OSRAM HTI lamps are short arc lamps that provide bright light with high efficiency.

They are available in single end, reflector, and double end designs. The SHARXS HTI lamps are special double end lamps that include eXtreme Seal (XS) technology allowing temperatures up to 450°C at the pinch seal.

SHARXS lamps are also standardized in both length and base type. The standard SHARXS lamps utilize the SFc-10-4 base and are standardized at a 136mm overall length.

Product features and benefits

• SHARXS lamp family provides consistent lengths and bases for simplified fixture designs
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Consistent lumen output over the life of the lamp
• Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency

Areas of application

• Concert lighting
• Club & Disco
• Stage and theatre
• Studio, TV and film
• Architecture & Architainment

Product Notes

Optimized lamp eXtreme Seal (XS) technology to withstand interior base temperatures of up to 450 degrees celsius.

Lamp is part of the SharXS HTI lamp series. All SharXS HTI lamps are identical in terms of their shape, size, and bases.

Base has notch for pre-alignment.

Lamp bases need to be forced cooled.

Cross Reference Part Numbers

• OSRAM HTI 700W/D4/60 0050814 54282
• PHILIPS MSR GOLD 700/SA/2/DE 0048254 287136
