Osram 69474 - KO156 - 4000W 28V 1500HR 6000K - Cinema Film Projection
Details

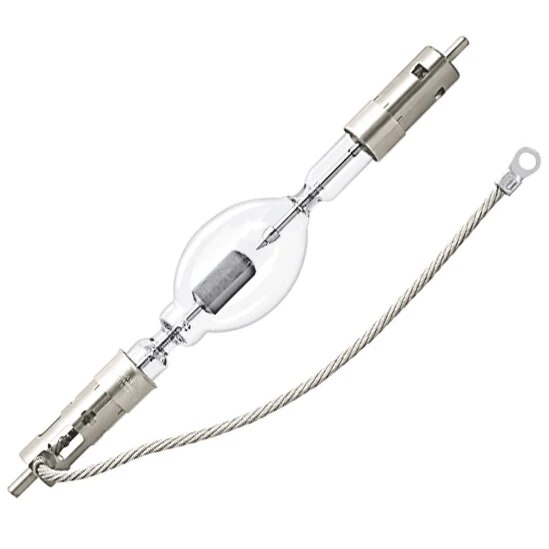

4000 Watt Xenon High Pressure Cinema Lamp
Product features and benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering > 95
- High arc stability
- DC operation
- Hot restart
- Long lamp life with eXtreme Life technology
Areas of application
- Digital
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation
Lamp Specifications - Listed Alphabetically | |
Average Rated Life (HR): | 1500 |
Bulb: | KO156 |
Class: | C (gas) |
Color Temperature (CCT) (K): | 6000 |
Cooling: | Required |
Current (A): | 135 |
Distance a (in): | 6.73 |
Distance a (mm): | 171 |
Electrode Gap (cold) (mm): | 7 |
Lamp Finish: | Clear |
Length l1 Max.(in): | 16.14 |
Length l1 Max.(mm): | 410 |
Length l2 Max.(in): | 14.57 |
Osram 69474 Data Sheet
