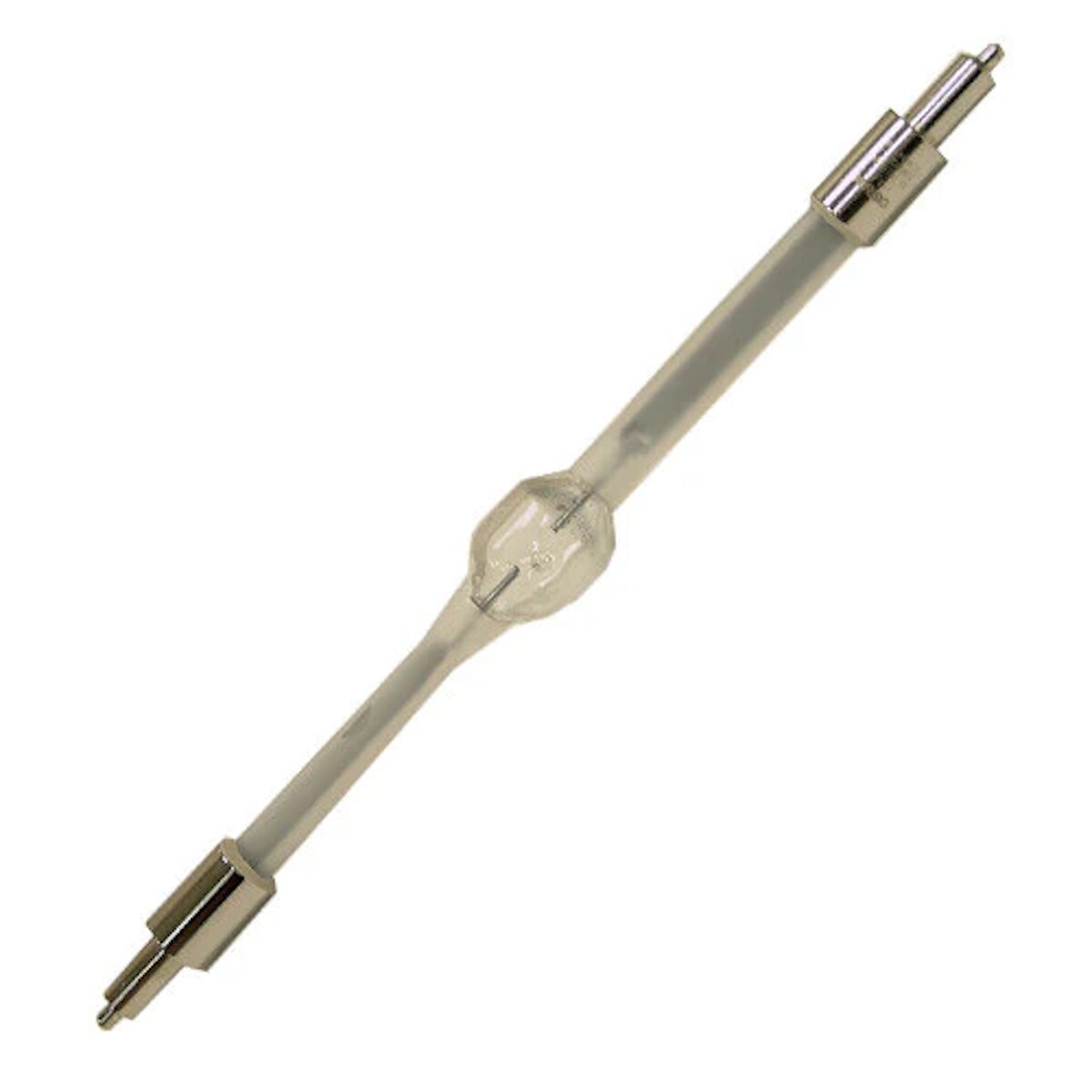

OSRAM SYLVANIA - HMI 4000W/DXS - 54314 4000W 200V Metal Halide Lamp
Details
OSRAM 54314 HMI 4000W/DXS HMI lamps are the professional's choice for exterior and interior daylight lighting.
Thanks to the special blend of mercury and metal halide in the arc tube, HMI lamps generate the 6000K color temperature required to match natural daylight, making them very effective for stage lighting and large screen projection applications.
Excellent hot-restart.
- GE CSR 4000/DE
- USHIO UMI - 4000
- SLI BA 4000 W DE
- Koto DI-40
Osram 54314 Data Sheet
Thanks to the special blend of mercury and metal halide in the arc tube, HMI lamps generate the 6000K color temperature required to match natural daylight, making them very effective for stage lighting and large screen projection applications.
Excellent hot-restart.
Cross Reference:
- OSRAM 54314 HMI 4000 W/DXS- GE CSR 4000/DE
- USHIO UMI - 4000
- SLI BA 4000 W DE
- Koto DI-40
| Average Rated Life (HR): | 500 |
| Base: | SFa21 |
| Bulb: | R36X65/700 |
| Class: | Display/Optic Specialty |
| Current (A): | 24 |
| Diameter (in): | 1.417 |
| Diameter (mm): | 35.9918 |
| Lamp Finish: | Clear |
| Maximum Overall Length (MOL) (in): | 15.95 |
| Maximum Overall Length (MOL) (mm): | 405.13 |
| Type: | Metal Halide |
| Wattage (W): | 4000 |
| Voltage (V): | 200 |
Osram 54314 Data Sheet
