Obsidian NX Wing

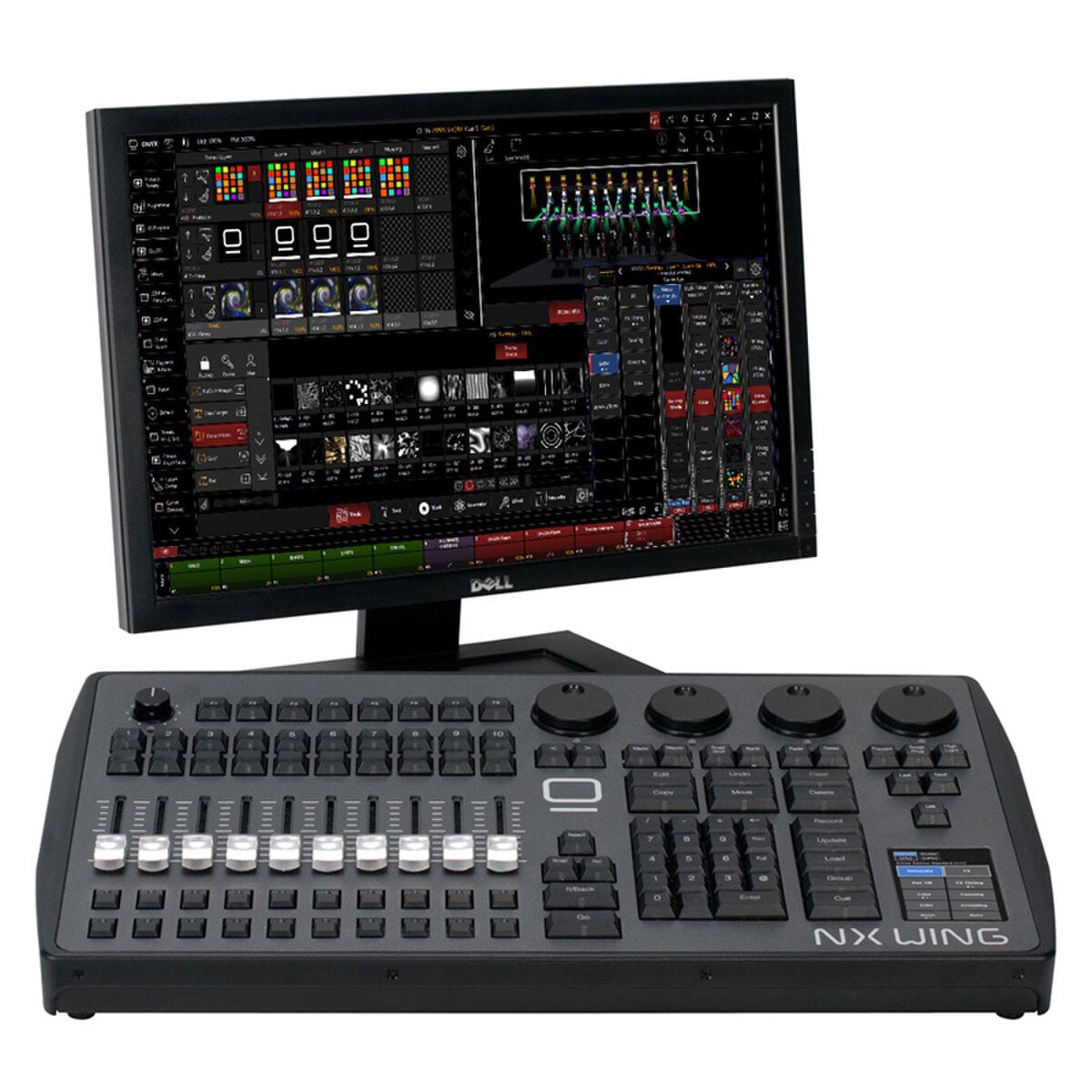

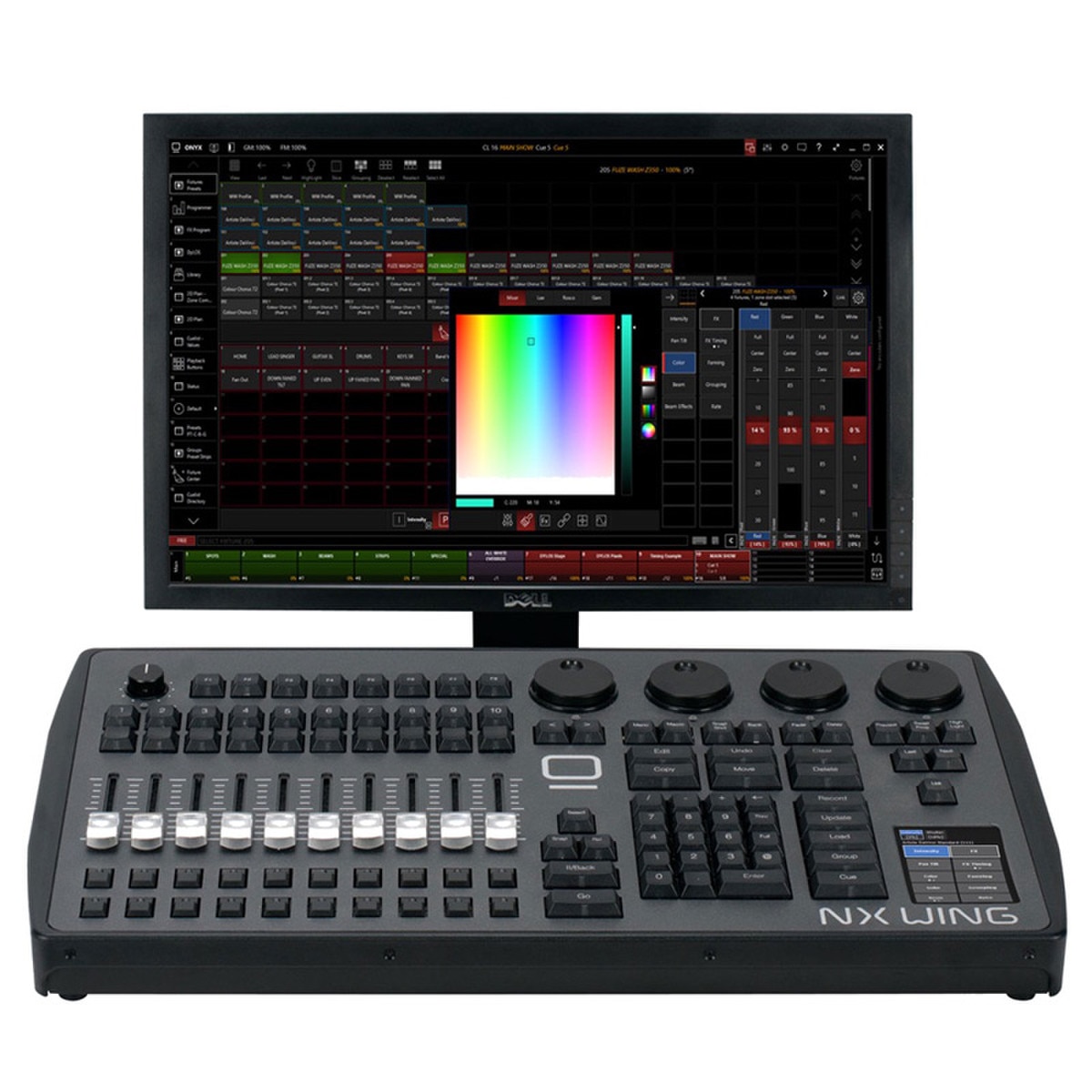

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX2 provides a responsive professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 128 Universes of control when connected to ONYX on a PC.

Features

• Fully featured control surface, portable and lightweight
• 10 Playbacks, Encoders, Keypad and internal touchscreen
• DMX, Timecode and Midi Connectivity
• 128 Universe License for ONYX included
• Plug and Play USB device for any PC with ONYX

Specifications

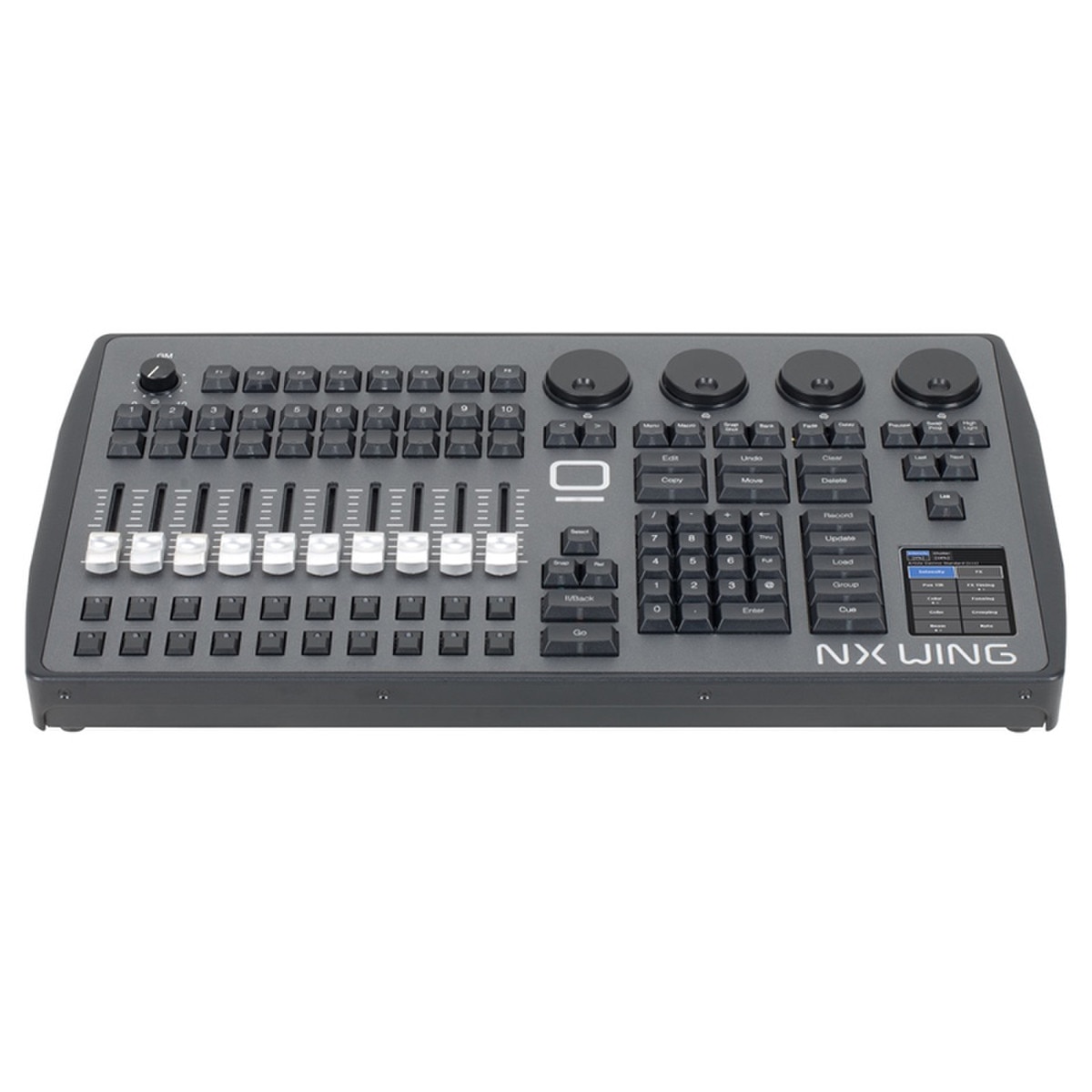

• Surface
  • 10 x 60 mm playback faders, each with 4 x function- assignable buttons
  • 8 x customizable multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
  • 4 x digital rotary encoders with push function and status LED for fixture parameter control
  • 3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
  • Grand master rotary fader and button
  • Blind/HighLight/Last/Next buttons
  • Full numerical keypad and command keys

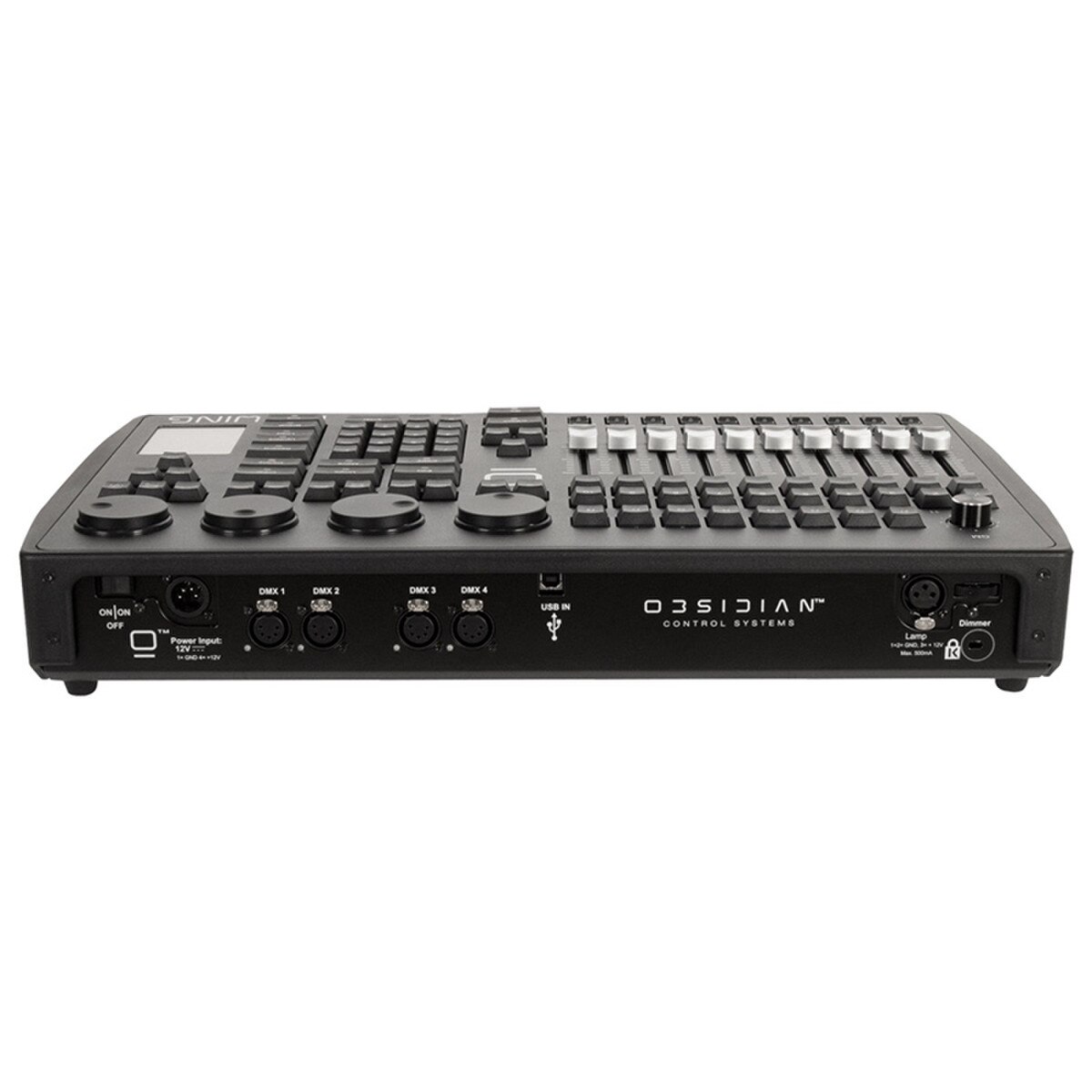

• 4 x DMX / RDM Universe In/Out: 5-pin locking XLR

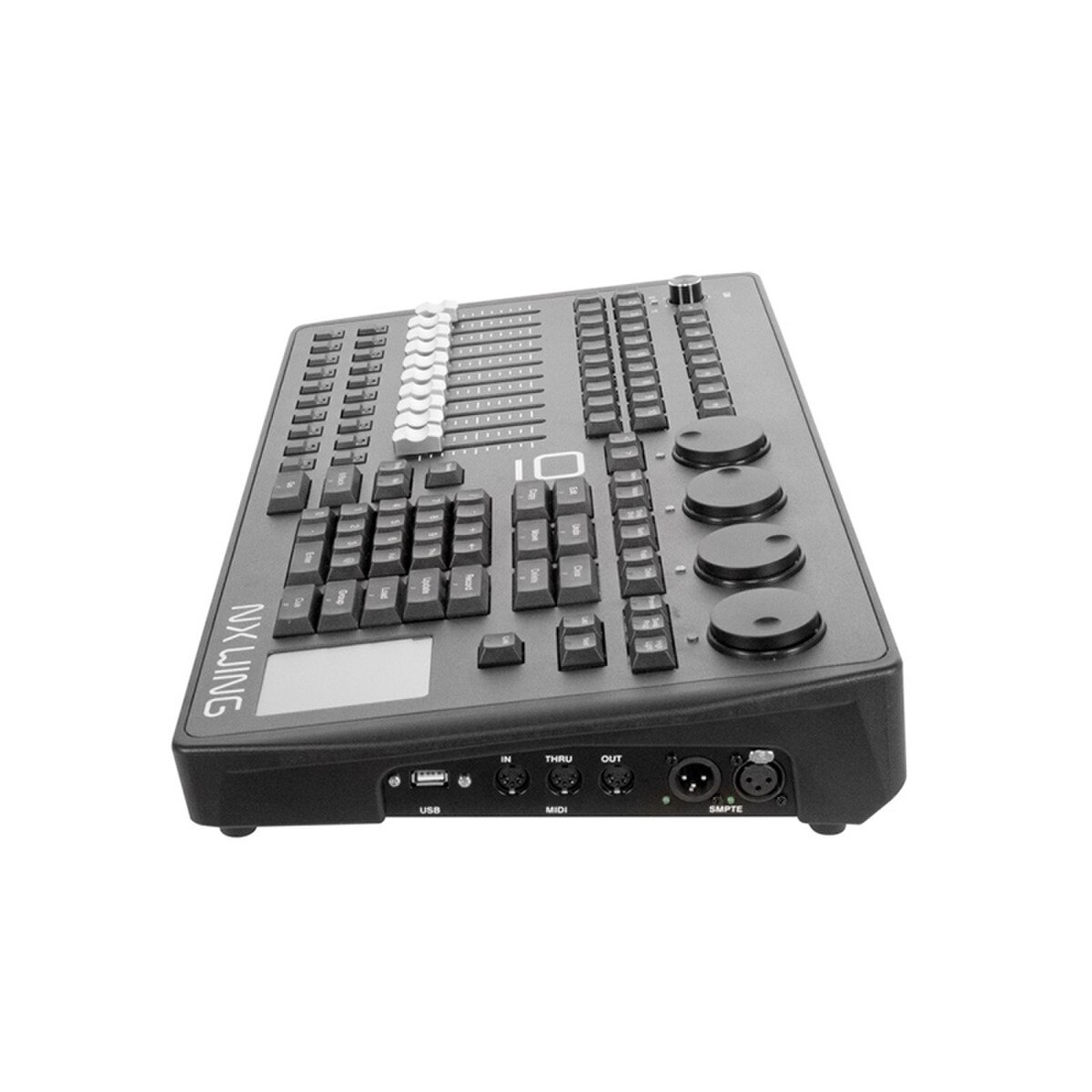

• Internal MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI timecode)
• Internal SMPTE Timecode In/Out: 3-pin XLR
• 12 VDC power supply input: 4-pin XLR
• Desk lamp: XLR 12V
• USB Input: USB 2.0 B
• Dimensions: 11.9 X 21.3 x 3.9"
• Weight: 10.2 lbs.
• AC mains power to 12 VDC external PSU (included): 100 240 V nominal, 50/60 Hz
• Maximum current: 1.4 A
• 12 VDC output: 5 A, 60 W max.

Included Items

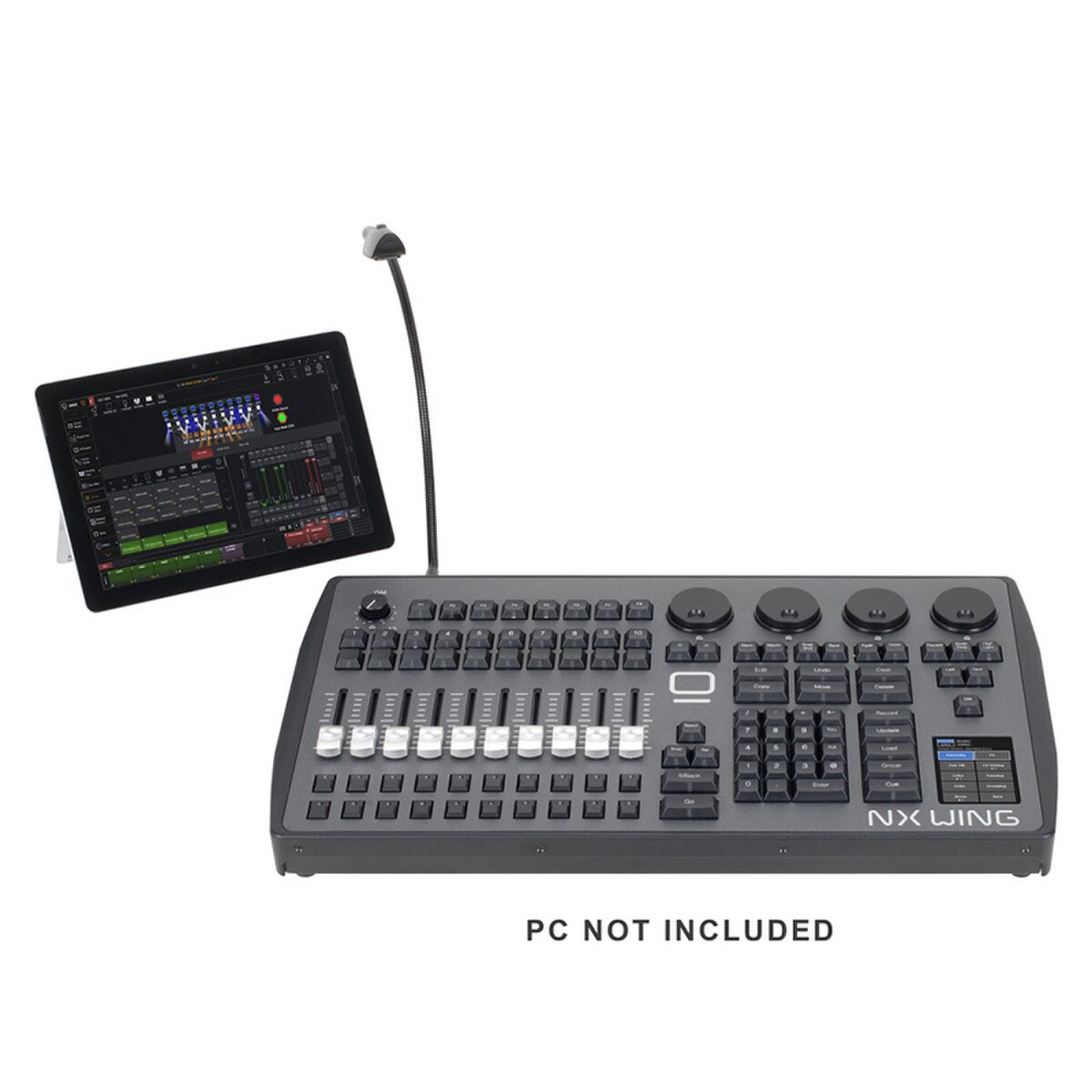

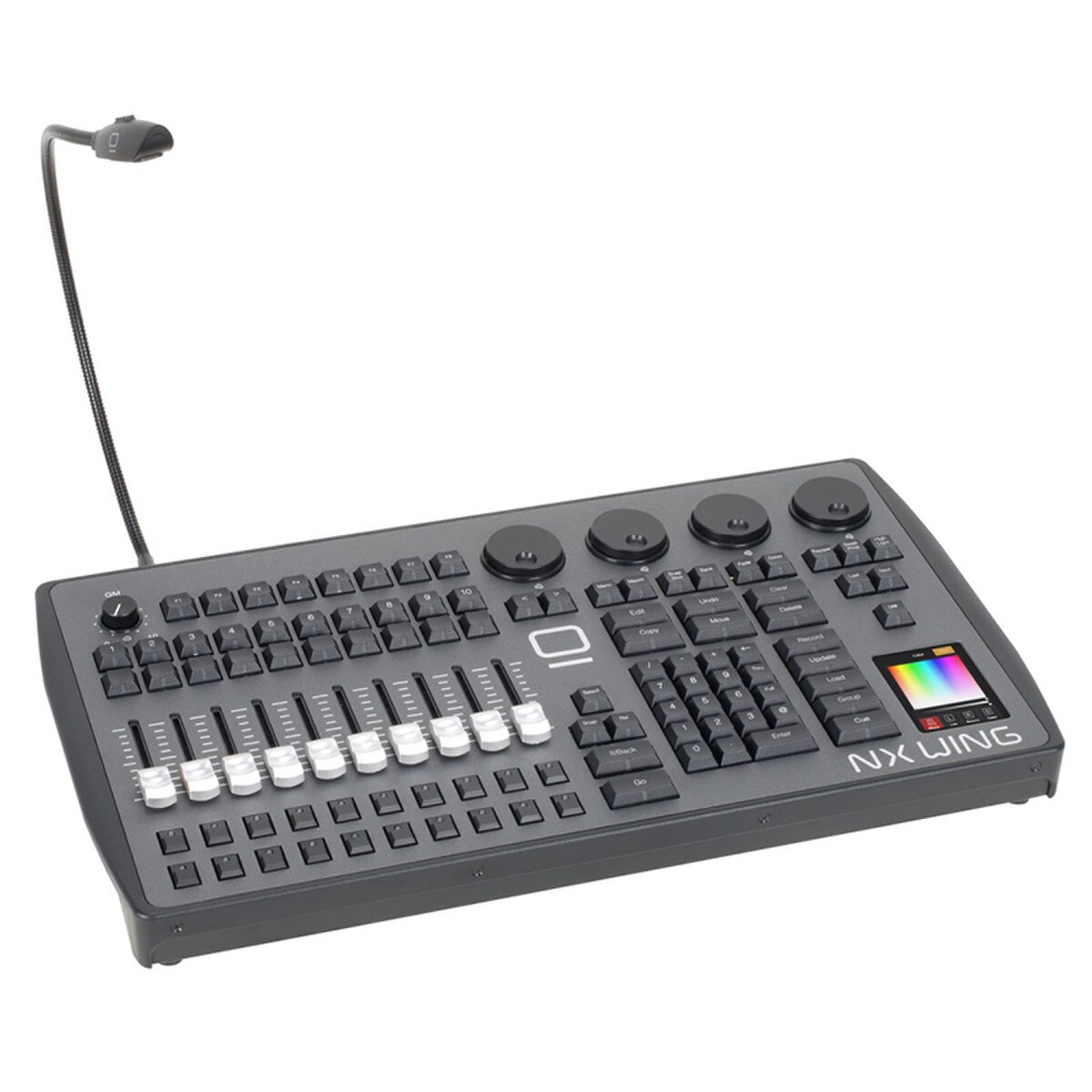

• RGB LED desk lamp, angular XLR connector, 13"
• Dust Cover
• USB Cable
• External PSU (12V 5A)
• 1.5 m power cable, 3-pin IEC (EU or US version)
