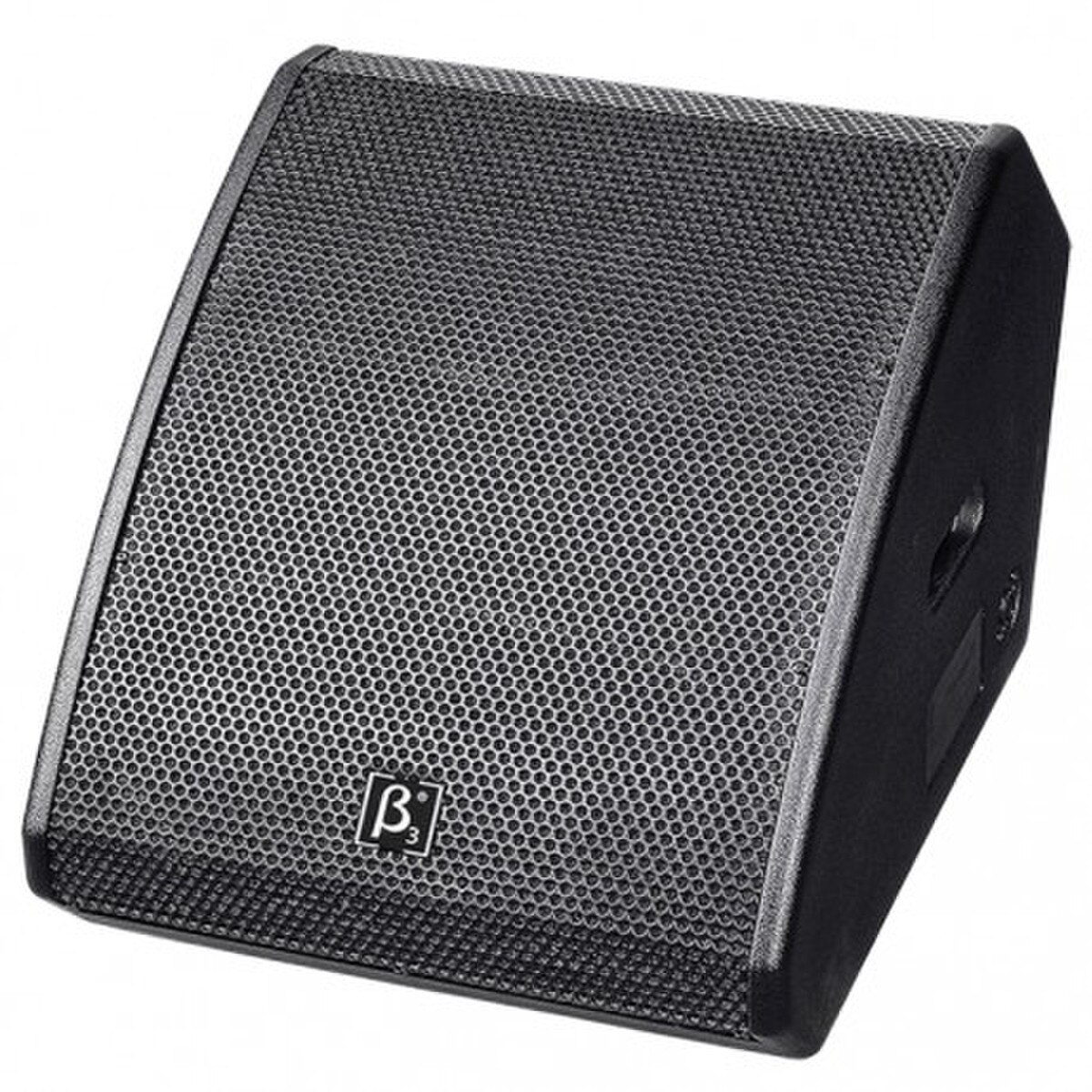

OmniSistem Beta 3 12” 2-Way Full Range Monitor Speaker

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The MU Series delivers extraordinary performance at unmatched value.

Features

• High output SPL and sensitivity
• 1 x 12” high power Neodymium transducer with 75mm voice coil
• 1 x 3” Neodymium compression driver
• Passive configuration
• 45º x 45º controlled coverage pattern
• Computer aided design to optimize frequency and phase response
• Cabinet design for monitor use
• Portable system or for permanent installation
• For ease of cabling there is an NL4 connector on either side of the speaker
• Powder coated grill with foam backing
• Durable Polyurethane textured base paint
• 1 x NL4 connector included in packaging

Specifications

• Frequency Response(-3db): 80Hz-16kHz
• Max SPL @ 1m: 121dB/127dB(PEAK)
• Dispersion (H x V): 45° x 45°
• Compression driver: 1 x 3" HF Compression Driver
• Woofer: 1 x 12" LF
• Input signal: Balanced 20kΩ, Unbalanced 10kΩ
• Input Connectors: 2 x NL4
• Crossover frequencies: 1.8kHz
• Total Power: 350W(RMS); 700W(PROGRAM); 1400W(PEAK)
• Sensitivity (1W @ 1m): 97dB
• Cabinet/Case Material: 15mm Birch Plywood
• Dimension (W x D x H): 410 x 548 x 450mm / (16.1 x 21.6 x 17.7in)
