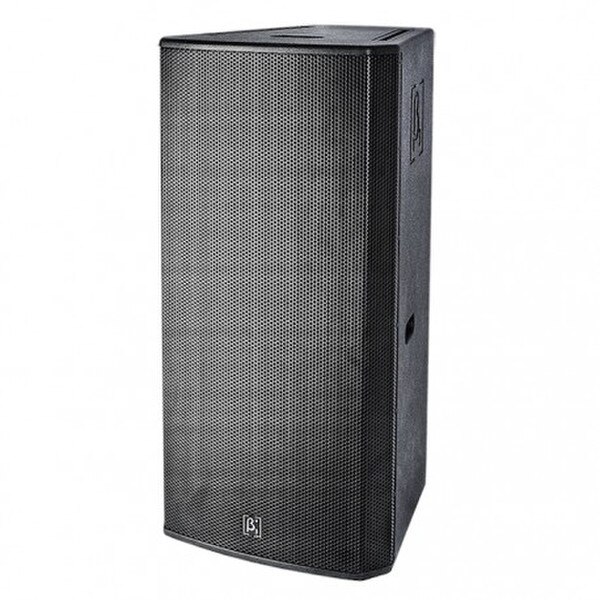

OmniSistem Beta 3 15" Dual Full Range Active Speaker

Beta 3 MU Series Active Dual 15" Full Range Active Speaker

Features

• High sensitivity and SPL
• 2 x 15” high power Neodymium transducers with 75mm voice coil
• 1 x 3″ compression driver
• 90° x 40° controlled coverage pattern
• Built-in power amplifier module
• Master volume control
• XLR input and output connectors
• 120Hz low cut switch
• Computer aided design to optimize frequency and phase response
• Suitable for use as a main system with or without sub speaker augmentation
• Cabinet design for FOH and Monitor use
• Portable system (stand), or permanent installation (wall, ceiling, under balcony)
• Adjustable flying track on the top and bottom of the speaker
• Arrays with MU18B and MU18Ba high power sub speakers for extended low frequency, high quality music reproduction
• Durable polyurethane textured base paint
• Powder coated grill with foam backing

Specifications

• Construction: 15mm Birch Plywood
• Transducers:
  • 1 x 3″ HF Compression Driver
  • 2 x 15″ LF
• Crossover: 1.5kHz
• Frequency Response (-3dB): 45Hz-16kHz
• Rated Power: 600W (RMS)
• Maximum SPL (1W @ 1m): 124dB/130dB (Peak)
• Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ
• Rated Impedance: 4Ω
• Dispersion (H x V): 90° x 40°
• Net Dimensions: 20.9″ x 20.9″ x 42.3″
