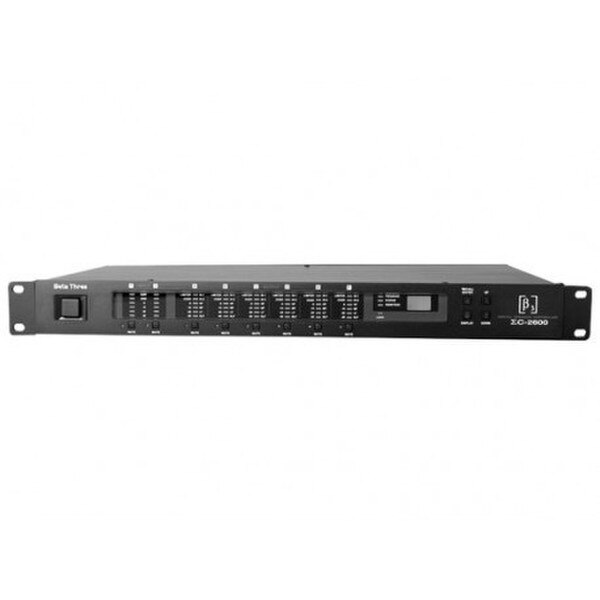

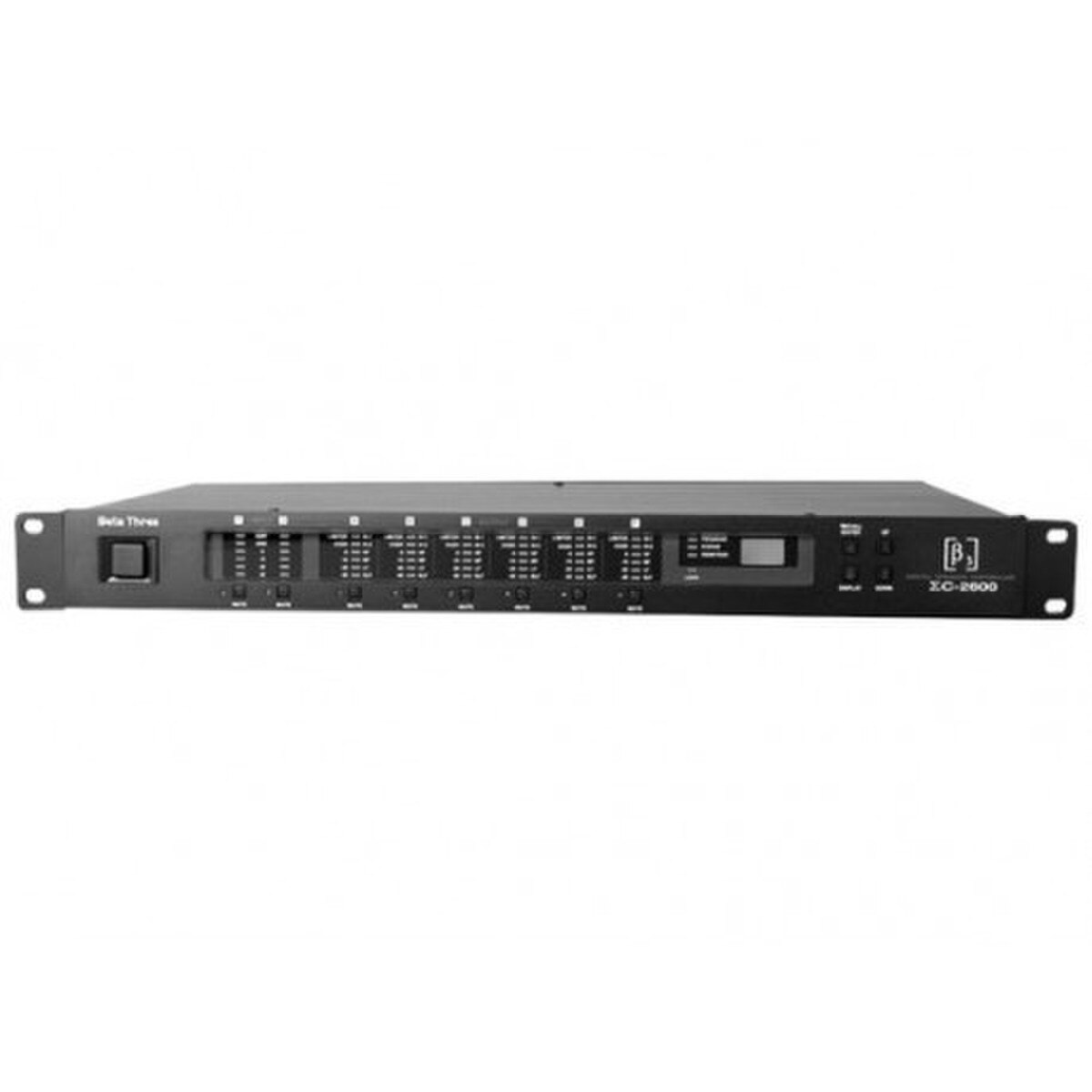

Omnisistem Beta 3 Speaker Controller & Audio Processor

The ΣC2600U is one of Omnisistem's top of the line digital speaker controller and audio processors. It adopts their advanced 32bits floating-point dSP and digital filter technologies, and utilizes 24bits AD/DA conversions. The ΣC2600U has a dynamic range of over 100dB, and can control/monitor more than 100 sets of instruments in the range of the RS-485 network through the control software via the PC. Transmission distance can reach over 3200 feet in optimal conditions.

The ΣC2600U can flexibly distribute two-way input signal via to six output. Configuration is either three-way stereo or six-way mono crossover. In addition, it has the ability to implement a delayer, compressor/limiter, parameter equalizer or graphic equalizer among other functions. This unit excels at improving timbre in the venues that use sound reinforcements.

Specifications:

• Power: 110V/60Hz
• Power Consumption: 25W
• Analog Input:
  • Port: Balance-able 6.35 mike socket (BGM signal) / XLR-3-31 input socket
  • Input Impedance: 10k Ω
  • Max. Input Power: +20dBu
  • A/D Conversion: Frequency 64kHz, 24 bits
• Analog Output:
  • Port: Balance-able XLR-3-32 output socket
  • Output Impedance: 47 Ω
  • Load Impedance: = 600 Ω
  • Max. Output Level: +20dBu
• Analog Characteristics:
  • Frequency Response: 20Hz-20kHz(+0.3/-0.3dB), 10Hz-30kHz(+0.3/-3.0dB)
  • S/N Radio: 110dB (A Weight)
  • Distortion + Noise: < 0.006%
  • System Min. Delay: 1.2ms (signal output and input setting are "0")
• Working Temperature: 0°- 40°C
• Storage Temperature: -10° - 60°C
• Unit Weight: 8 Lbs
• Unit Dimensions: 19" x 1.77" x 9"
