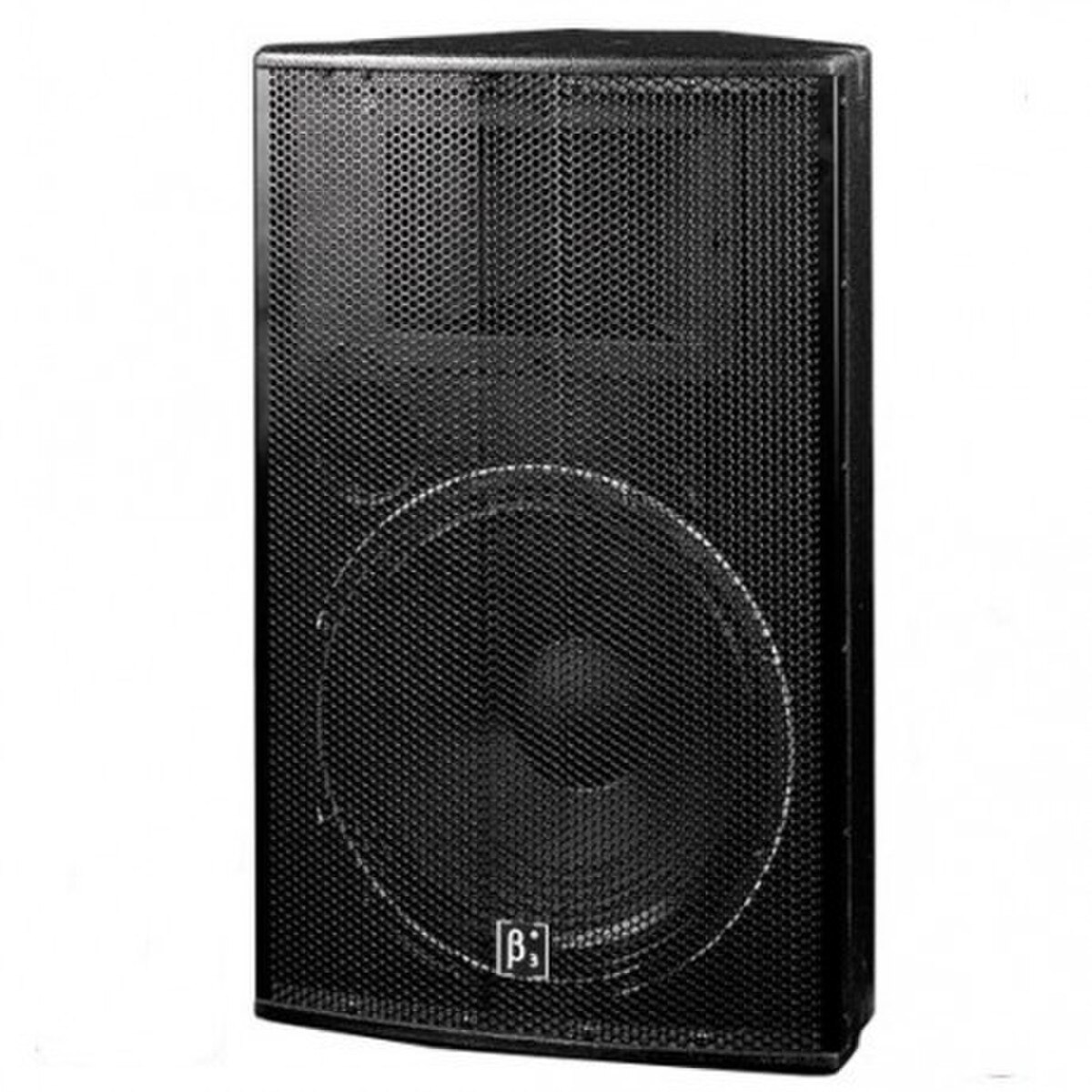

Omnisistem Speaker With Built-in DSP Module
Details
Features:
- Knob controls the volume of Mic and line, the tone of HF & LF
- RS232 connects to the series port of computer to control with software
- Input/Output: 2 x XLR female socket input, 1 x XLR male output
- Max. Output Power (1.0% THD @6.3KHz): 400W
- Loading Impedance: 4 Ω
- THD: 0.05%
- Protection Function: Over current protection, auto limit, avoid concussion when ON/OFF
- Max. Output Power (1.0% THD @6.3KHz): 50W
- Loading Impedance: 4 Ω
- THD: 0.05%
- Protection Function: Over current protection, auto limit, avoid concussion when ON/OFF
- Line Input Sensitivity: 200mV
- Mic. Input Sensitivity: 20mV
- HF Adjust Range: ±12dB@10KHz
- LF Adjust Range: ±12dB@10KHz
- Type: Peaking/Bandpass/Hi-shelf/Lo-shelf/Notch
- Frequency: 1/12Oct20Hz~20KHz
- Q Value: 0.31~19.4
- Gain Range: ±12dB, 0.5dB/Step
- Type: ButterWorth/Bessel/LinkWitz-Riley
- Slope: -12dB/Oct~-36dB/Oct
- Crossover Point: 1KHz~3.15KHz adjustable, cutting time of HF/LF
- Frequency Response: ±0.5dB@direct pass status of crossover and EQ
- Crossover Point Of Amplifier Module: 1KHz~3.15KHz adjustable
- High Cutting of HF: OFF ~ 10KHz
- Low Cutting of LF: OFF ~ 100Hz
- Input Impedance: 10K(Line), 1K(MIC)
- THD+N: < 0.0080% @+4dBu
- Dynamic Control Range (Compression/Limit): Limit value 0dB ~ -49.5dB
- Compression ratio 1:1 ~ 99:1, Infinity (limit)
- RMS checking time: 0.010ms ~ 15s
- Attack Time: 0.010 ms ~ 15s
- Release Time: 0.010 ms ~ 15s
- Unit Dimensions: 14.85" x 15.56" x 24.02"
- Unit Weight: 62 Lbs
