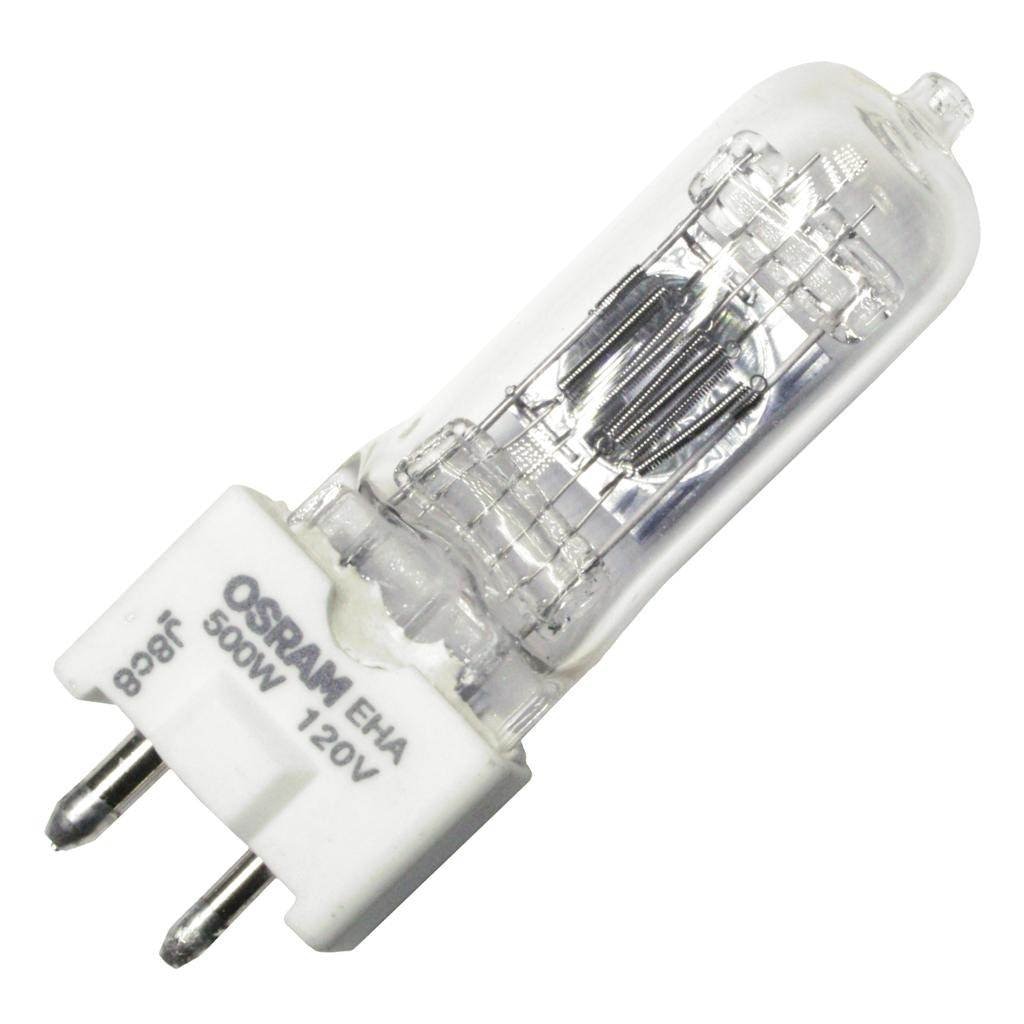

Osram 54585 - EHA/T6 - 500W 120V 50HR - Projector/Stage/Studio
Details
OSRAM 54585 - EHA 500 watts 120 volts GY9.5 BIPIN Base 50 hours Halogen light Bulb
- Osram 54585
- Philips 5968
OSRAM 54585 Data Sheet
Cross Reference:
Ushio 1000285 JCS120V-500W- Osram 54585
- Philips 5968
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | EHA |
| Average Rated Life (HR): | 50 |

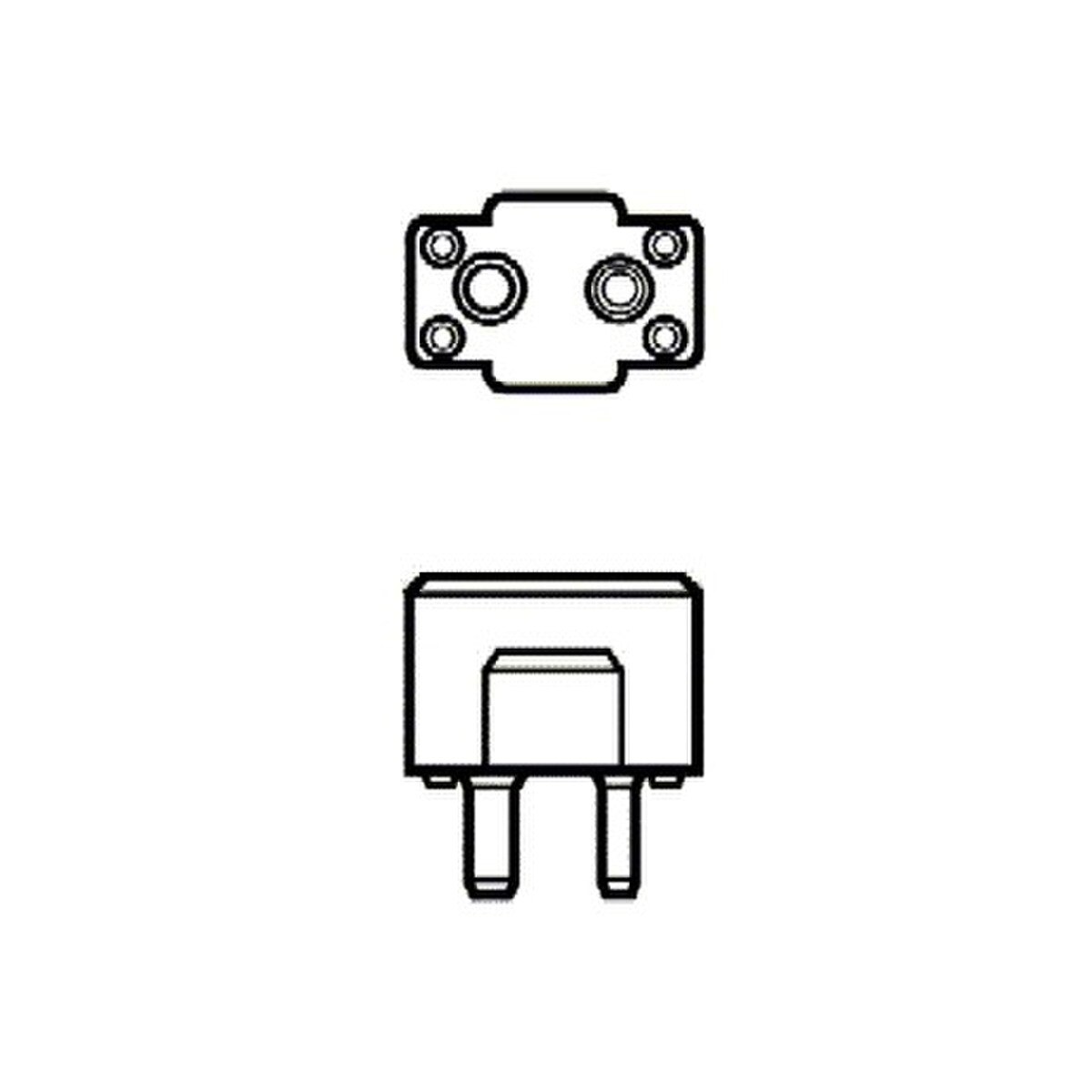

| Base: | GY9.5 BIPIN |
| Bulb: | T6 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |
| Color Temperature (CCT) (K): | 3200 |

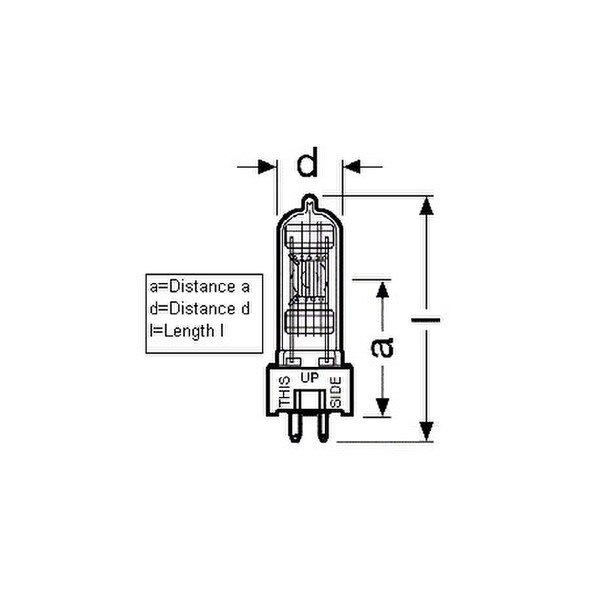

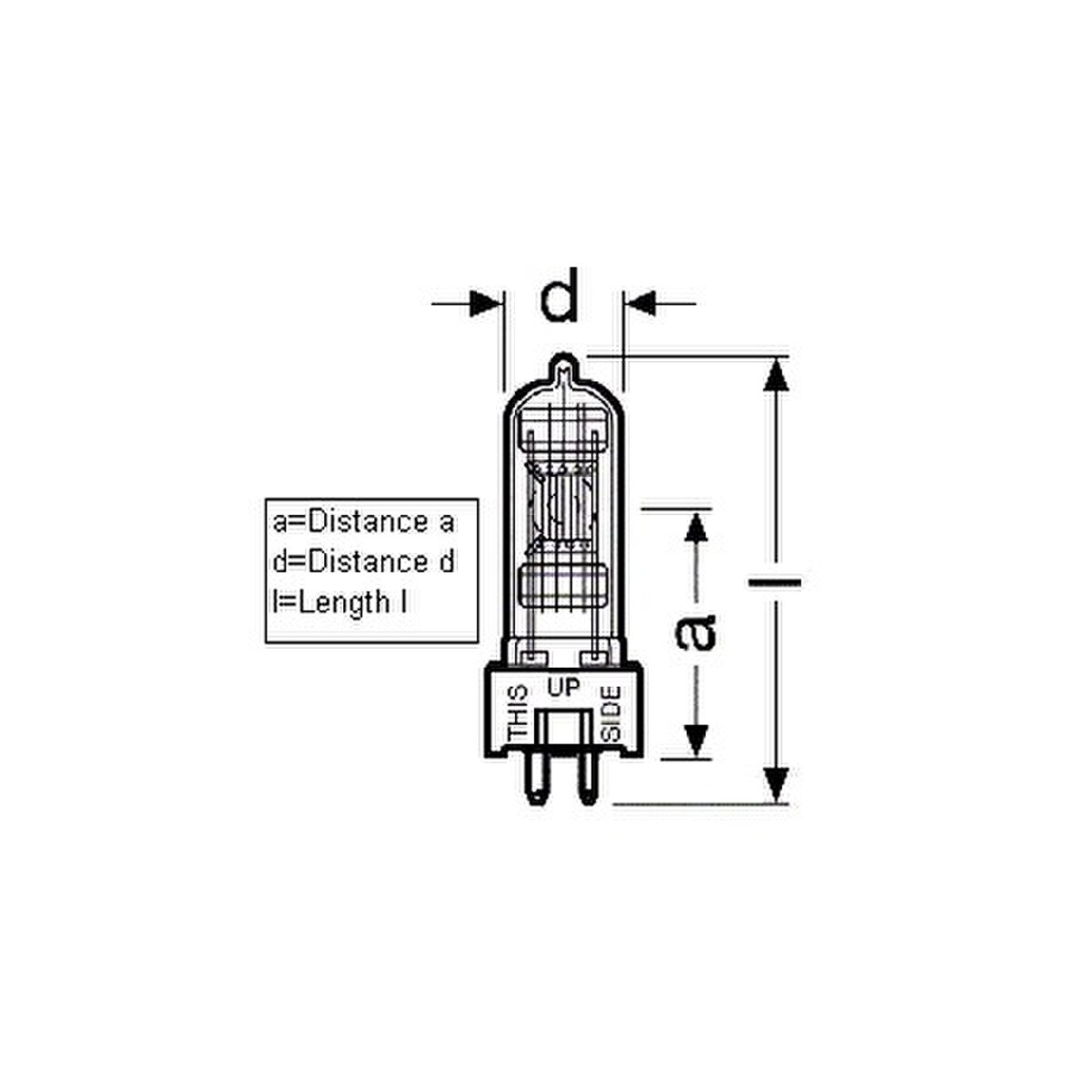

| Diameter d (in): | 0.76 |
| Diameter d (mm): | 19.3 |
| Distance a (in): | 1.424 |
| Distance a (mm): | 36.5 |
| Filament (F): | C-13D |
| Lamp Finish: | Clear |
OSRAM 54585 Data Sheet
