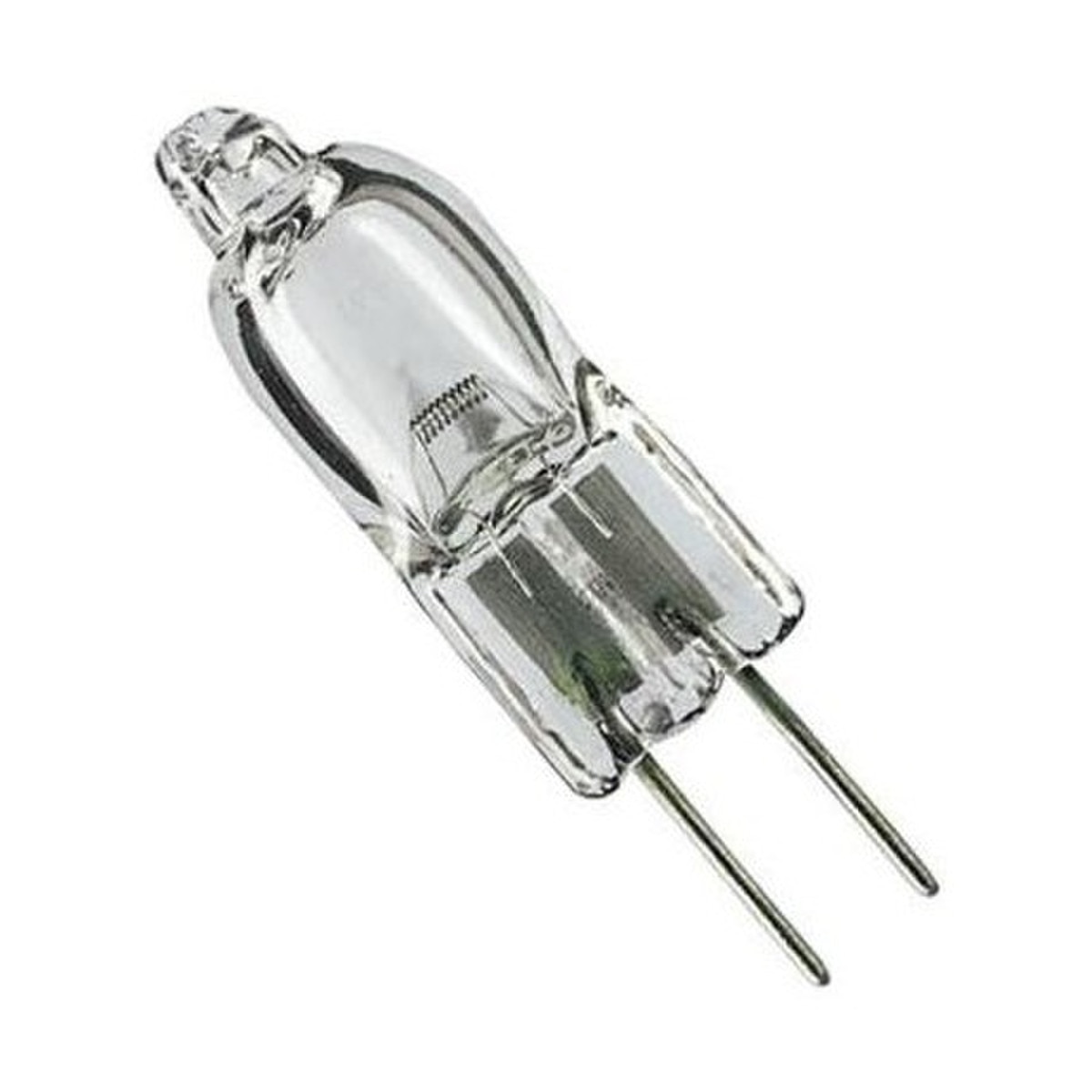

Osram 54260 - ESA/FHD/T3 - 10W 6V 100HR - Projector
Details
OSRAM offers an extensive line of low voltage halogen lamps. The state-of-the-art processes provide precision filament alignment making these lamps ideal for applications that require accurate positioning, as in the medical and scientific markets.
Lamps designed as HLX utilize Xenon gas in place of Krypton and provide up to 10% greater output over the life of the lamps. A selection of eXtra long life lamp options are also available and are designated with an "/ X".
Product features and benefits
- Precise filament alignment with patented quartz pinch technology
- OSRAM HLX lamps provide 10% higher luminous efficacy over standard halogen
- Instant on and nearly constant luminous flux over the life of the lamp
- Dimmable
Areas of application
- Microscopy
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Surgical & Dental Overhead
- Club & Disco
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | ESA/FHD |
| Average Rated Life (HR): | 100 |
| Base: | G4 Bipin |
| Bulb: | T3 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

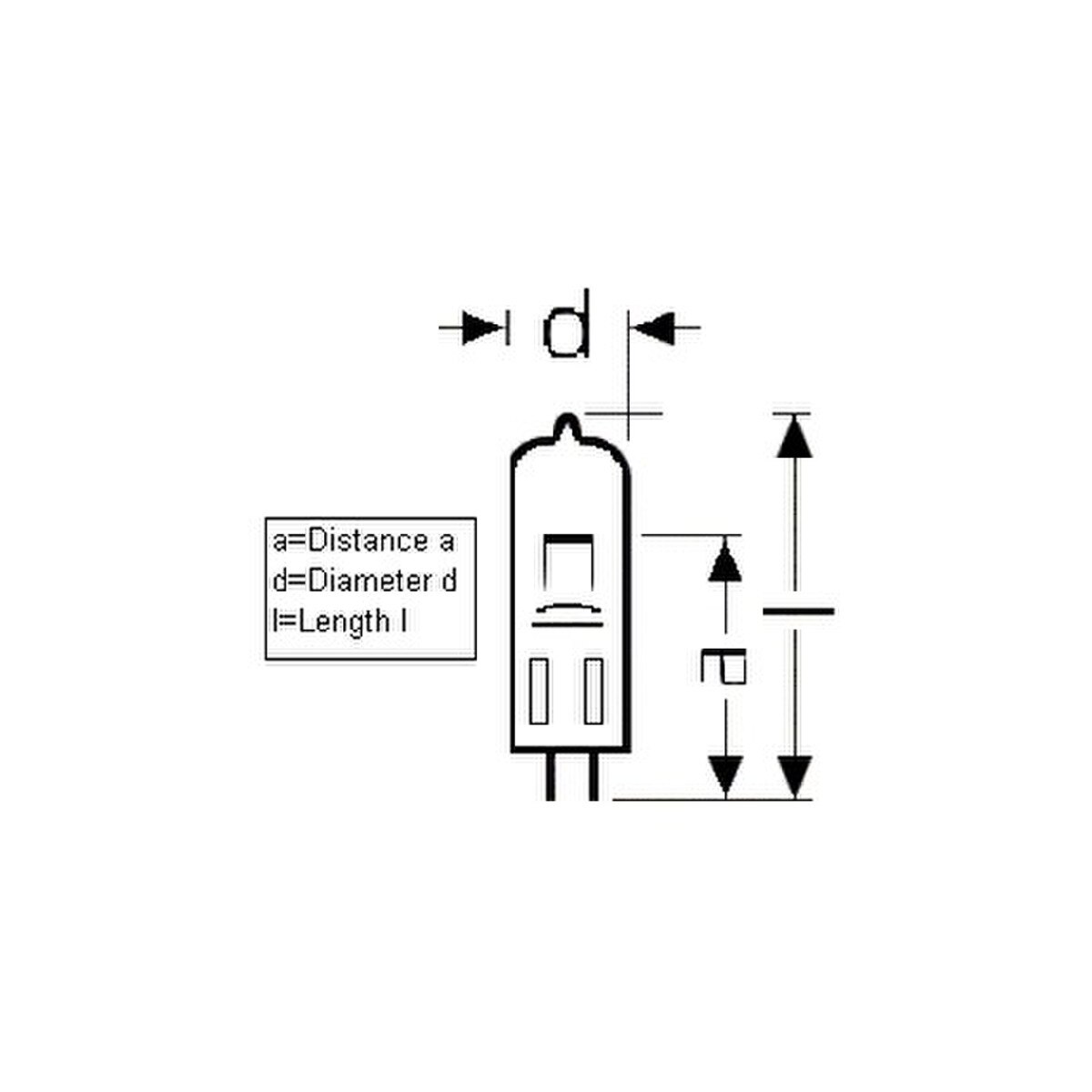

| Diameter d (in): | 0.354 |
| Diameter d (mm): | 9 |
| Distance a (in): | 0.761 |
| Distance a (mm): | 19.5 |
| Filament Dimensions Length (in): | 0.025 |
| Filament Dimensions Length (mm): | 0.65 |
Osram 54260 Data Sheet
