Osram 54261 - ESB/T3.5 - 20W 6V 100HR - Projector
Details
20 Watt, tungsten halogen, low voltage without reflector
Features & Benefits
- Precise filament alignment with patented quartz pinch technology
- OSRAM HLX lamps provide 10% higher luminous efficacy over standard halogen
- Instant on and nearly constant luminous flux over the life of the lamp
- Dimmable
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | ESB |
| Average Rated Life (HR): | 100 |
| Base: | G4 Bipin |
| Bulb: | T3.5 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

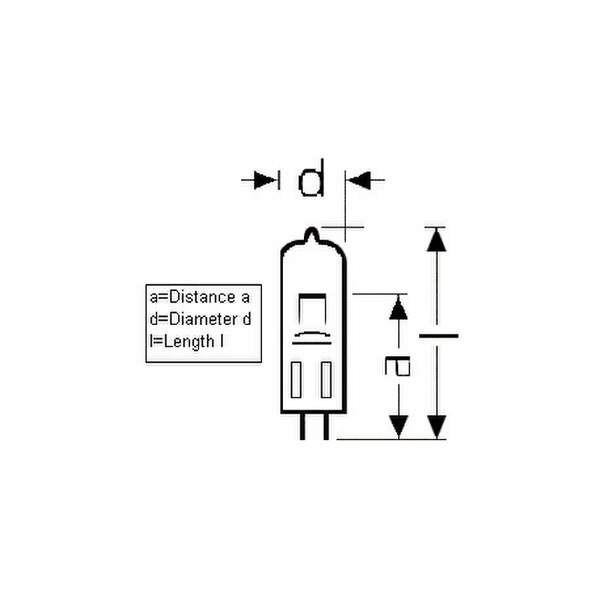

| Diameter d (in): | 0.354 |
| Diameter d (mm): | 9 |
| Distance a (in): | 0.761 |
| Distance a (mm): | 19.5 |
| Filament Dimensions Length (in): | 0.031 |
| Filament Dimensions Length (mm): | 0.8 |
Osram 54261 Data Sheet
