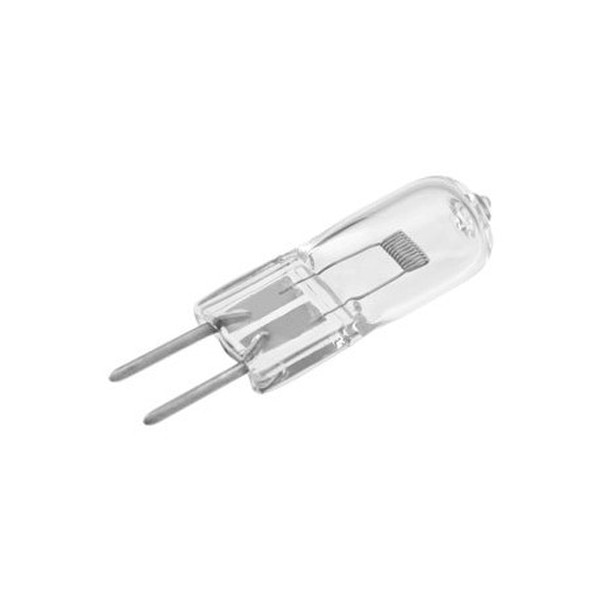

Osram 54251 - EVA/T12 - 100W 12V 2000HR - Projector/Microfilm/Microscope/Studio
Details
Applications
- Dental
- Ophthalmic
- Microfilm
- Microscope
- Projector
- Scientific
- Studio
Features
- Osram HLX 64623 Halogen Lamp
- Single Ended Bulb
- EVA 64623HLX
- Low Voltage Lamp
- Replacement Bulb for Machine Vision Measurement - Optical Comparator
- Replacement Bulb for Microscope - Illuminator
- Replacement Bulb for Scientific - Oscillograph Recorder
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | EVA |
| Average Rated Life (HR): | 2000 |

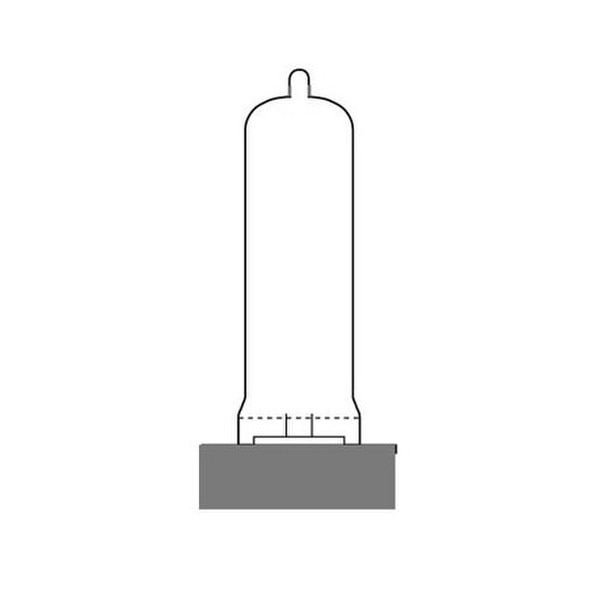

| Base: | GY6.35 Bipin |
| Bulb: | T12 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

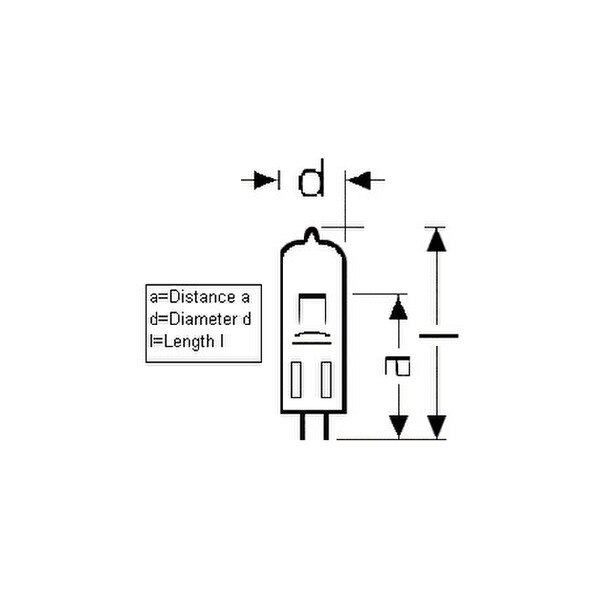

| Diameter d (in): | 0.453 |
| Diameter d (mm): | 11.5 |
| Distance a (in): | 1.17 |
| Distance a (mm): | 30 |

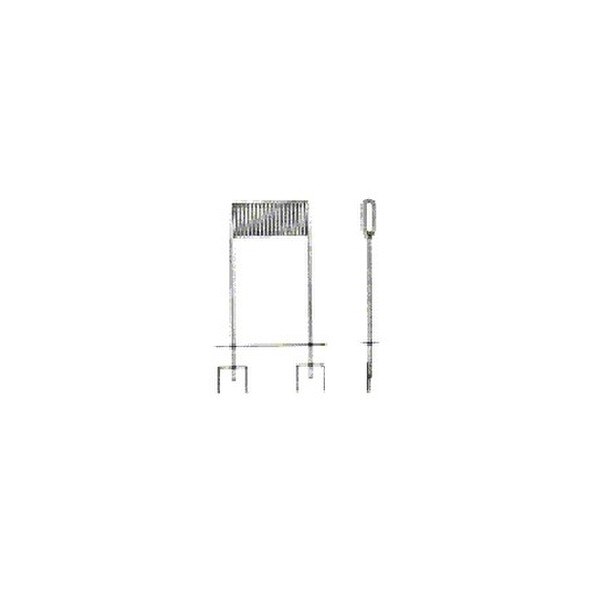

| Filament (F): | C-6 |
Osram 54251 Data Sheet
