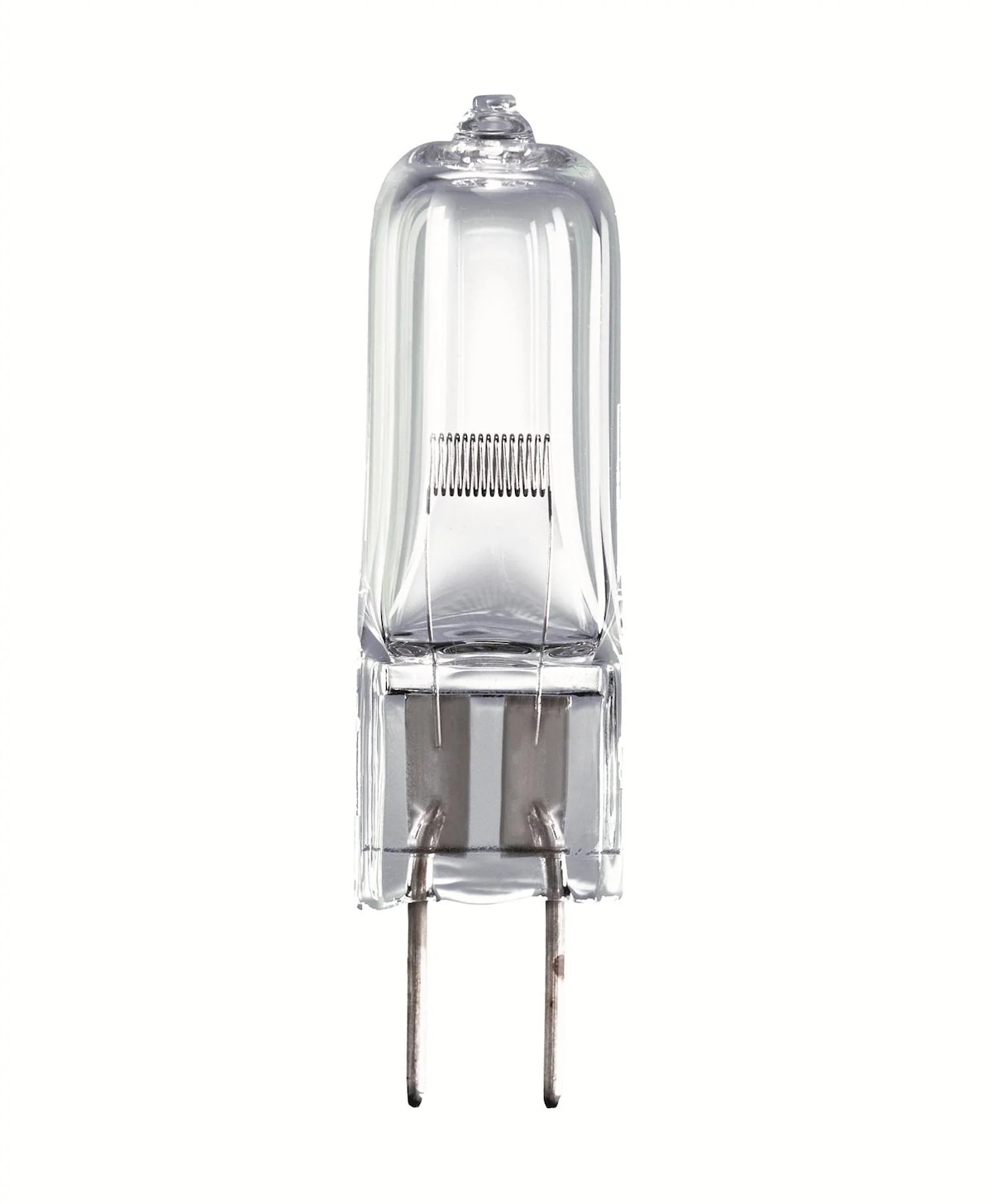

Osram 54255 - EVC/T12 - 250W 24V 300HR - Projector/Microfilm/Microscope/Studio
Details
250 Watt, tungsten Halogen, Low voltage without reflector
Features & Benefits
- Precise filament alignment with patented quartz pinch technology
- OSRAM HLX lamps provide 10% higher luminous efficacy over standard halogen
- Instant on and nearly constant luminous flux over the life of the lamp
- Dimmable
Product Notes

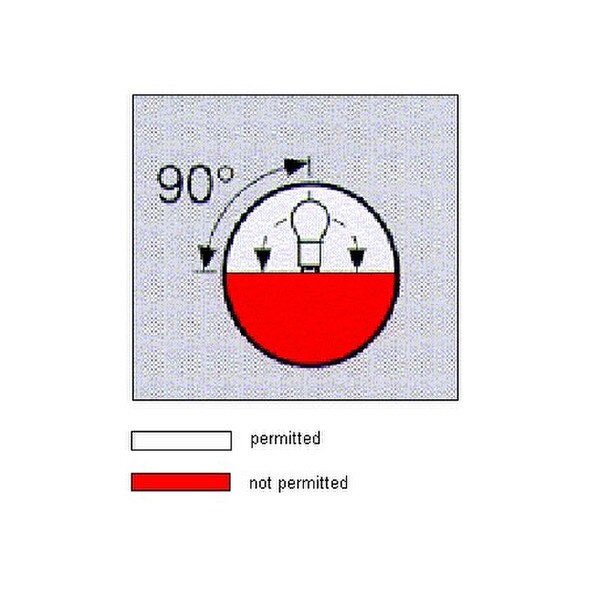

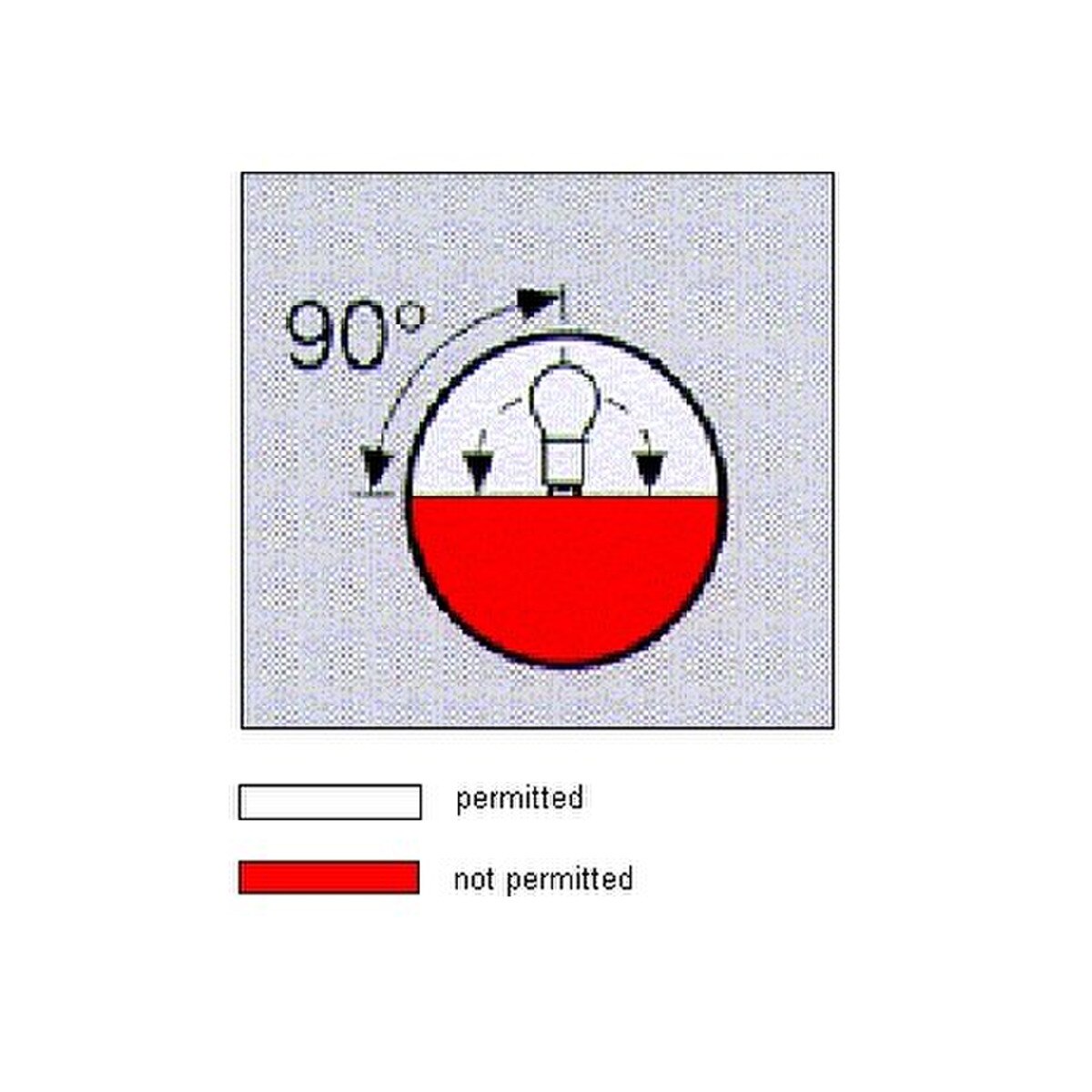

s (Operating Position) = Vertical, base down
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | EVC |
| Average Rated Life (HR): | 300 |

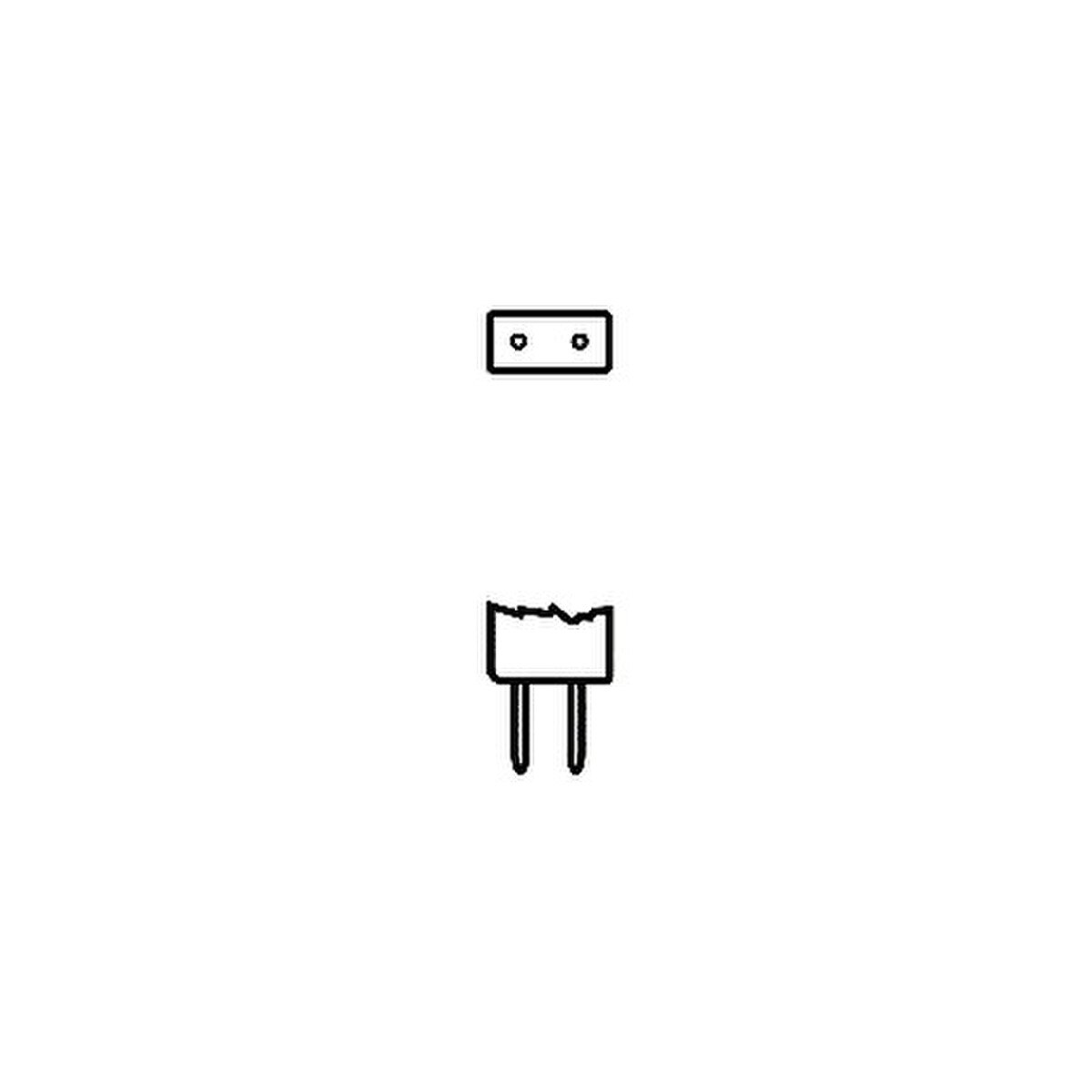

| Base: | G6.35 Bipin |
| Bulb: | T12 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

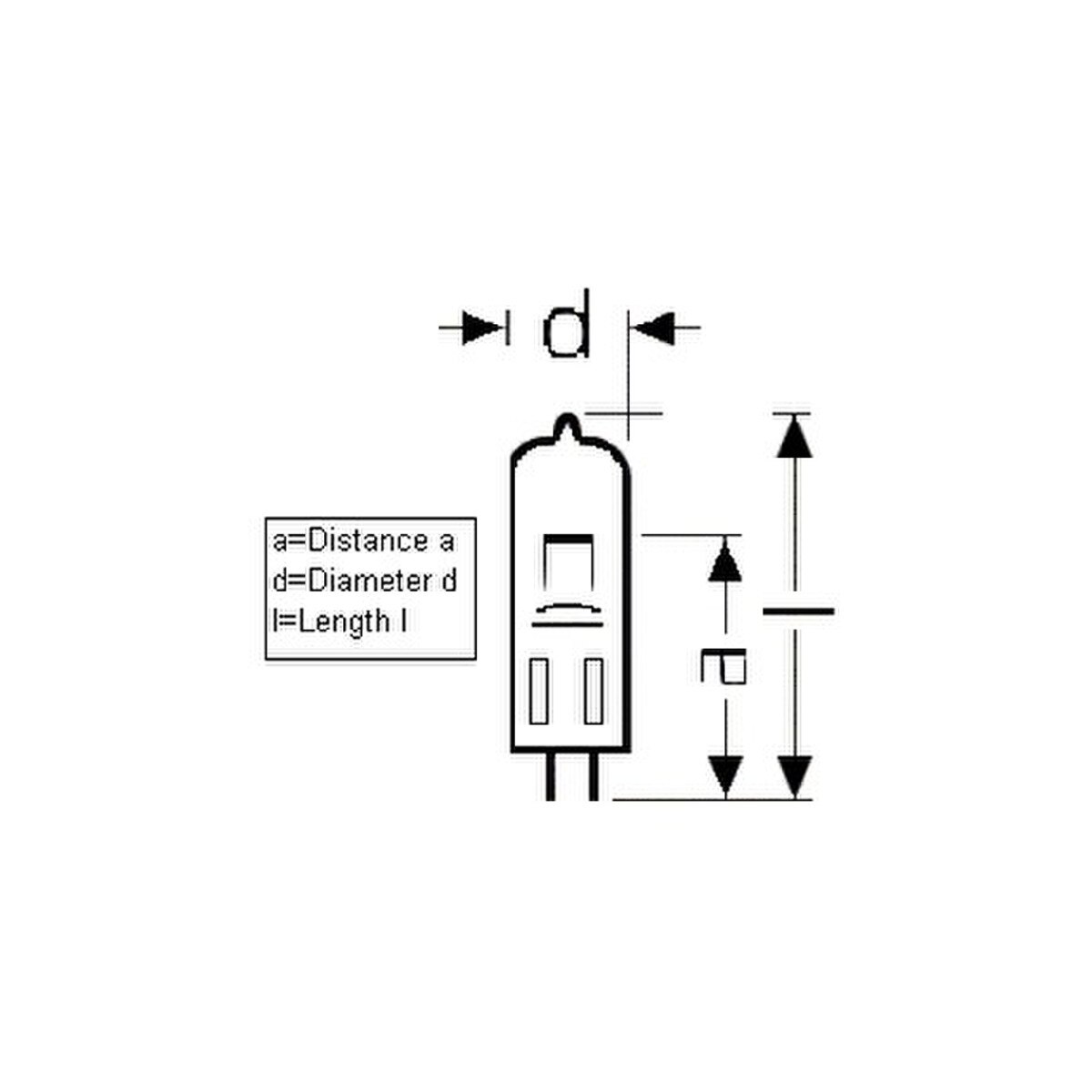

| Diameter d (in): | 0.551 |
| Diameter d (mm): | 14 |
| Distance a (in): | 1.287 |
| Distance a (mm): | 33 |
| Filament Dimensions Length (in): | 0.156 |
