Osram 54574 - FAD/T4 - 650W 120V 100HR - Stage/Studio
Details

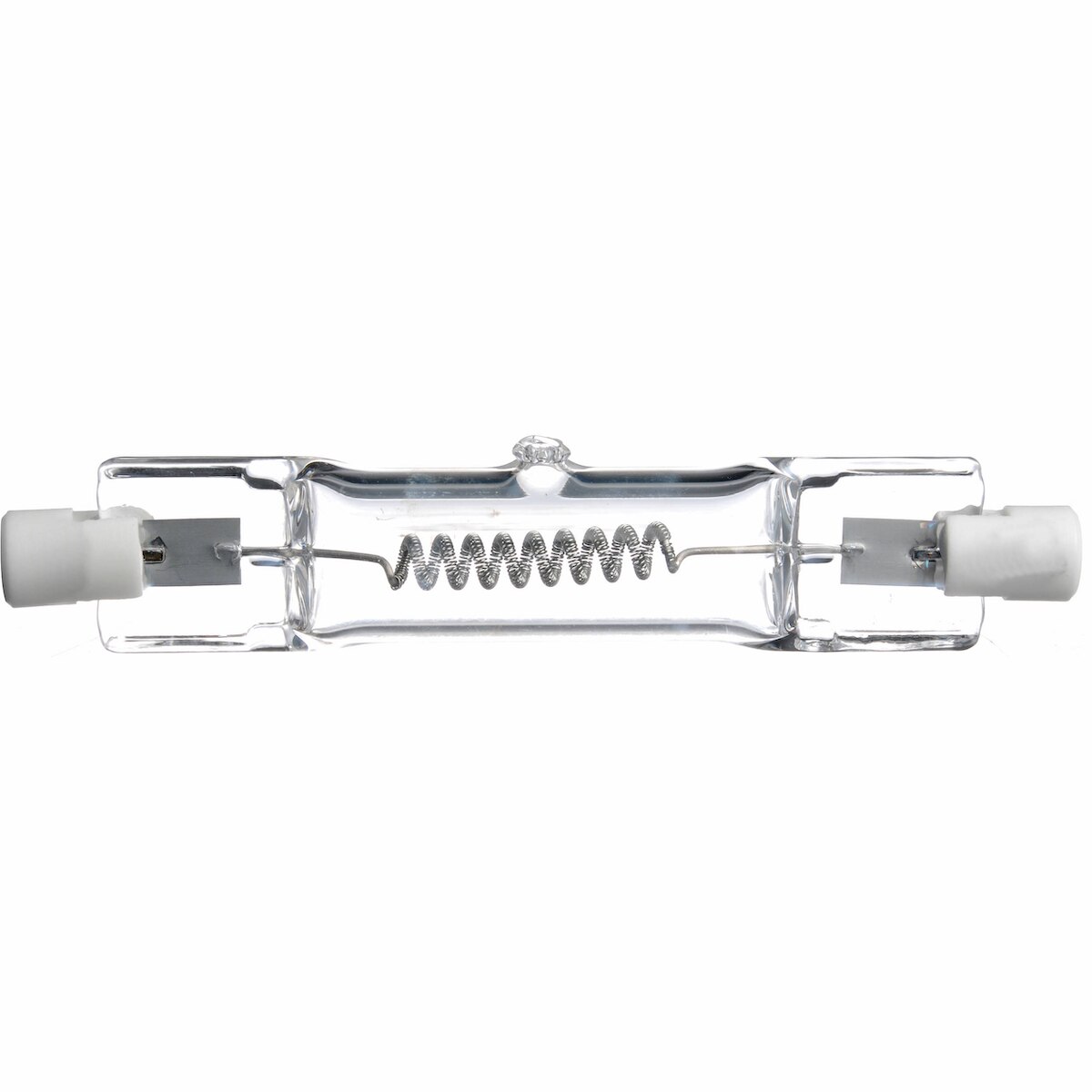

OSRAM 54574 FAD - 650w 120v R7s Double Ended Halogen Light Bulb
The OSRAM FAD bulb is a Halogen double ended bulb with R7s Recessed Single Contact base.
The maximum overall lenght is 3.1inch.and has a rated life of 100 hours.
- Voltge 120V
- Base: R7S
- Light Output: 16500Lm
- Rated Life: 100 hours
- Atlas/Thorn P2/6
- Bogen FAD
- Bulbrite 762285 FAD
- Colortran B6-32
- Colortran 176-001
- Colotran 176-071
- EYE JPD650WC FAD
- GE 30325 FAD-Q650T4/CL
- Leitz 098-724
- Mole-Richardson 4051
- Nuarc VE-366
- Osram 64725
- Osram 64551
- Osram Sylvania 54574 FAD
- Philips 6365R
- Smith-Victor 620040 FAD (clear)
- Sunlite 70200 FAD
- Ushio 1000471 FAD, JPD120V-650WC
Osram 54574 Data Sheet
The OSRAM FAD bulb is a Halogen double ended bulb with R7s Recessed Single Contact base.
The maximum overall lenght is 3.1inch.and has a rated life of 100 hours.
Features:
- Wattage: 650w- Voltge 120V
- Base: R7S
- Light Output: 16500Lm
- Rated Life: 100 hours
CROSS REFERENCES
- Imported Lamp Code 603016- Atlas/Thorn P2/6
- Bogen FAD
- Bulbrite 762285 FAD
- Colortran B6-32
- Colortran 176-001
- Colotran 176-071
- EYE JPD650WC FAD
- GE 30325 FAD-Q650T4/CL
- Leitz 098-724
- Mole-Richardson 4051
- Nuarc VE-366
- Osram 64725
- Osram 64551
- Osram Sylvania 54574 FAD
- Philips 6365R
- Smith-Victor 620040 FAD (clear)
- Sunlite 70200 FAD
- Ushio 1000471 FAD, JPD120V-650WC
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | FAD |
| Average Rated Life (HR): | 100 |
| Base: | R7s |
| Bulb: | T4 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |
| Color Temperature (CCT) (K): | 3200 |
| Filament (F): | CC-8 |
| Lamp Finish: | Clear |

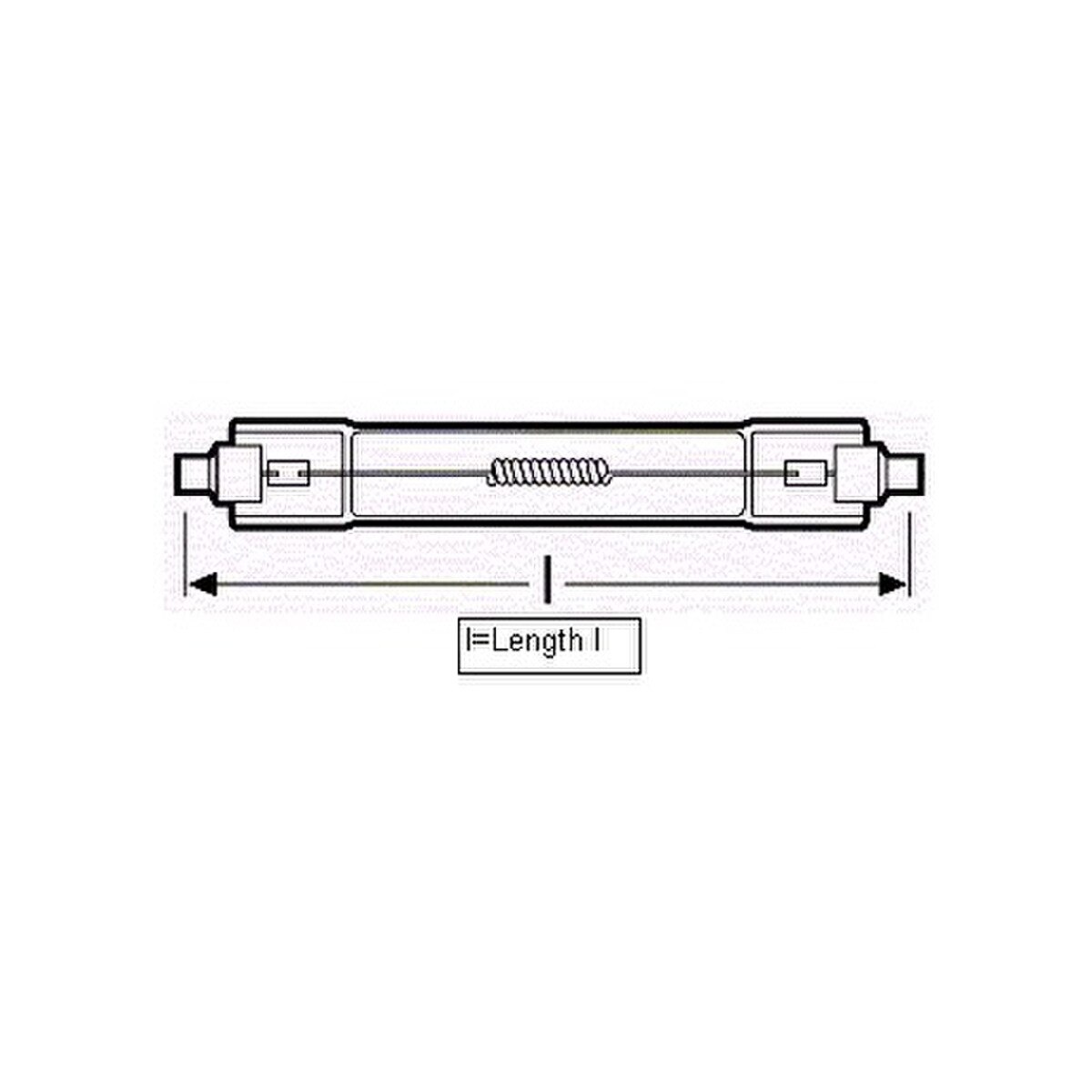

| Length I (in): | 3.097 |
| Length I (mm): | 79.4 |
| Length I Max.(in): | 3.097 |
| Length I Max.(mm): | 79.4 |
