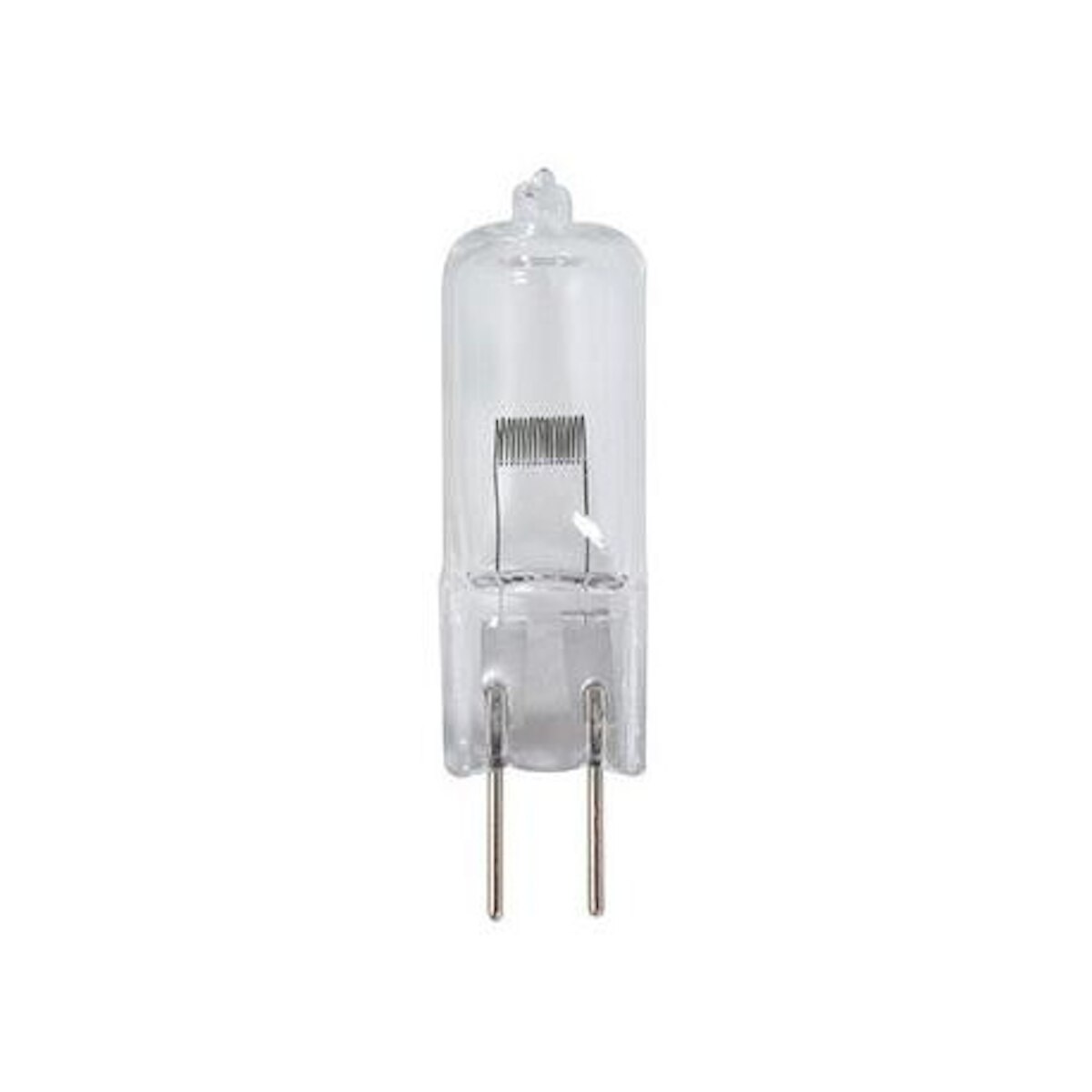

Osram 54263 - FCS/T12 - 150W 24V 50HR - Projector
Details
This bulb is an FCS Bulb. It uses 150 watts and 24 volts.
Another Ansi Code for it is 64640. It has a G6.35 Bi-Pin base.
This bulb produces 6000 lumens and has a rated life of 50 hours.
APPLICATIONS:
- Surgical Operating Room- X-Ray Machine Collimator
- CROSS REFERENCES:
- Imported Lamp Code PN230
- Imported Lamp Code 50520
- Imported Lamp Code 140310
- Imported Lamp Code 605024
- 3M 78-8002-1775
- A-Dec FCS
- ALM 79330
- American DJ ZB-FCS
- Atlas/Thorn A1/216
- Bulbrite 761155 FCS
- EFOS 4075
- Eiko 10404 FCS
- Eurodent FCS Dental Lamp
- EYE FCS24V150W FCS
- FARO FCS
- GE 13598 FCS
- Grainger 6VM92
- Leitz 501-109
- Leitz 799-892
- Nikon 71826
- Olympus 58101
- Osram Sylvania 54263 FCS 64640 HLX
- Osram Sylvania 54041 FCS 64640 HLX
- Osram Sylvania 54042 FCS 64640 HLX BULK
- Philips 7158
- Philips 20607-8 FCS 24V 100PK
- Solus/Birtcher GS9255
- Sunlite 70210 FCS
- Swift MA786
- Ushio 1000492 FCS, JC24V-150WUI
Lamp Specifications - Listed Alphabetically: | |
ANSI code: | FCS |
Average Rated Life (HR): | 50 |

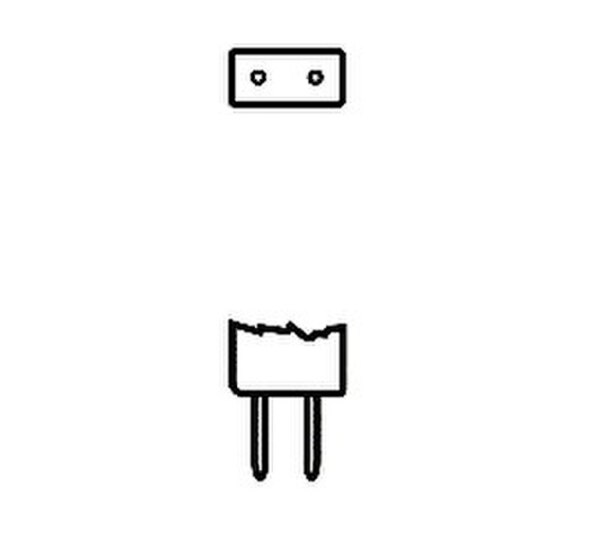

Base: | G6.35 Bipin |
Bulb: | T12 |
Class: | C (gas) |
Color Rendering Index (CRI): | 100 |

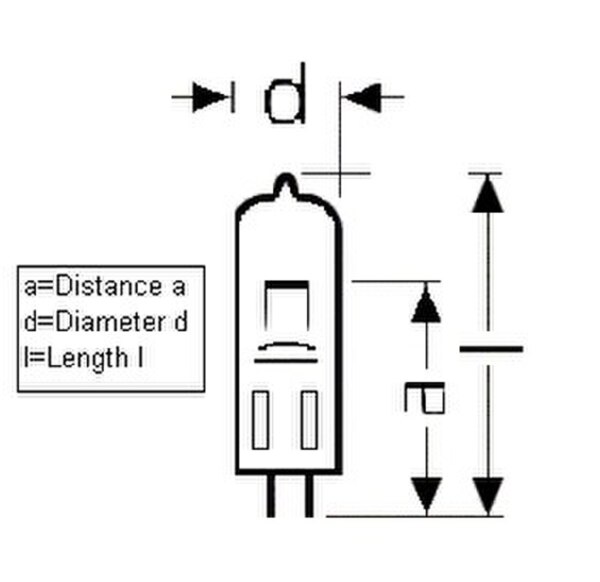

Diameter d (in): | 0.453 |
Diameter d (mm): | 11.5 |
Distance a (in): | 1.248 |
Distance a (mm): | 32 |
Filament Dimensions Length (in): | 0.113 |
Filament Dimensions Length (mm): | 2.9 |
