Osram 54277 - FDS/DZE/T5 - 150W 24V 100HR - Projector/Microfilm/Microscope/Studio
Details
The Maxi SharXS "HTI" 2000 W/D10/60 is a compact Double-Ended Metal Halide Lamp– the first member of the new high-power Maxi SharXS series with 2,000 W.
Due to its extra-short arc of 10 mm, this lamp has a very high luminance and provides a high output for intelligent entertainment lighting.
Its eXtreme Seal technology enables higher pinch temperatures of up to 450 °C max. Being doubleended (with a pre-focus base), the lamp is suitable for hot restart.
Due to its extra-short arc of 10 mm, this lamp has a very high luminance and provides a high output for intelligent entertainment lighting.
Its eXtreme Seal technology enables higher pinch temperatures of up to 450 °C max. Being doubleended (with a pre-focus base), the lamp is suitable for hot restart.
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | FDS/DZE |
| Average Rated Life (HR): | 100 |

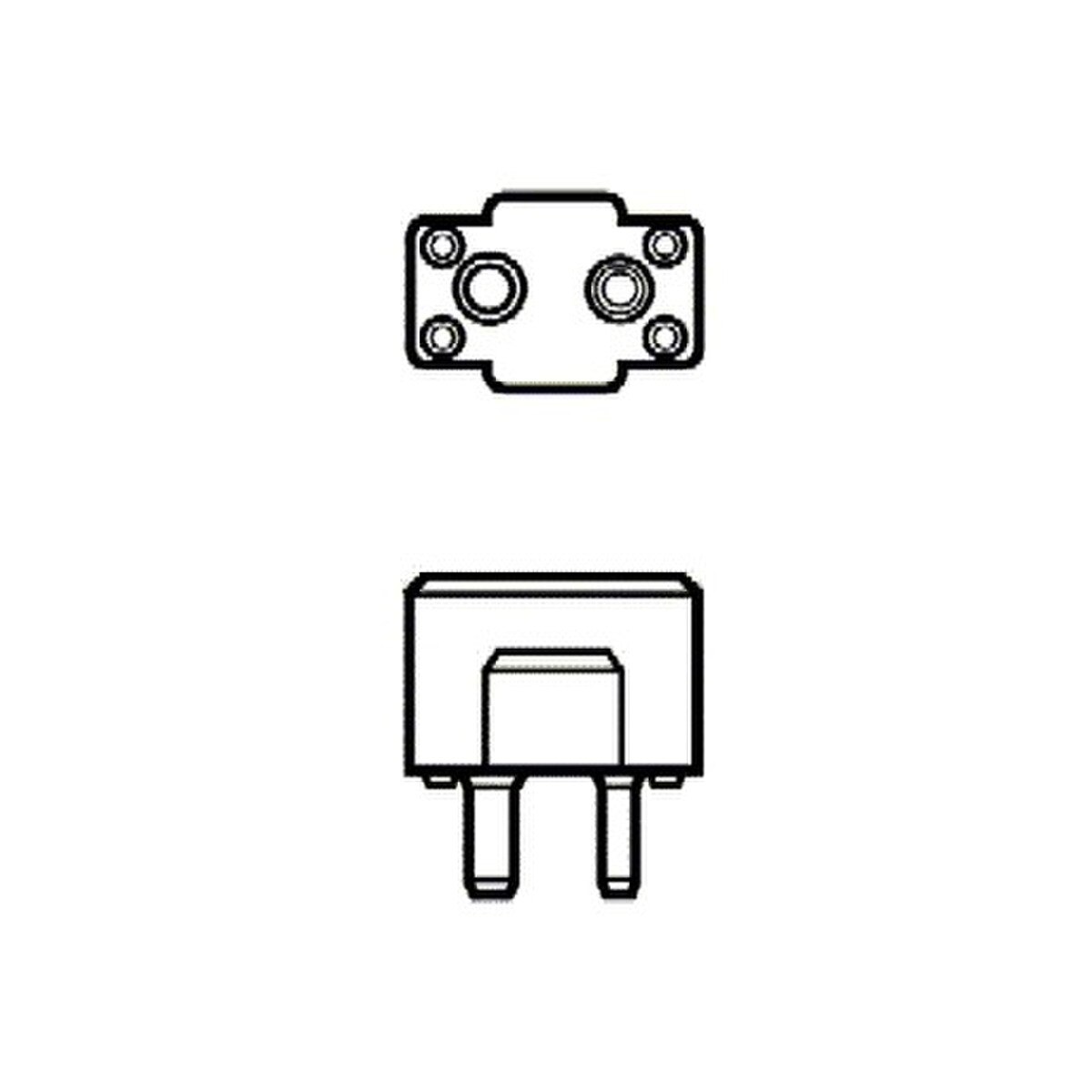

| Base: | GY9.5 BIPIN |
| Bulb: | T5 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |

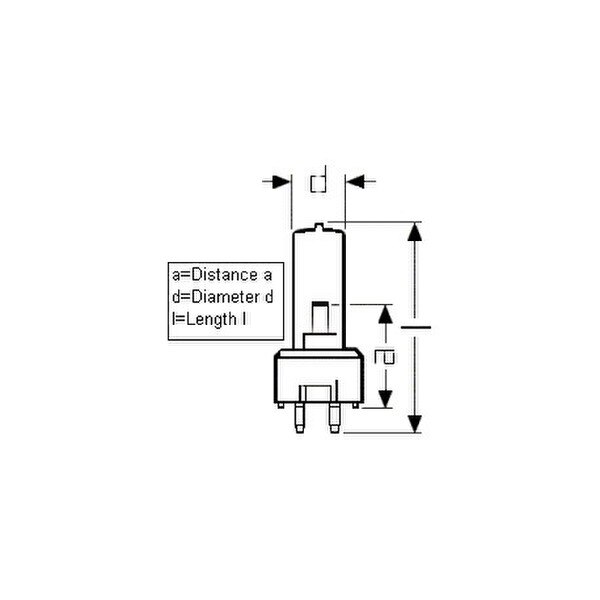

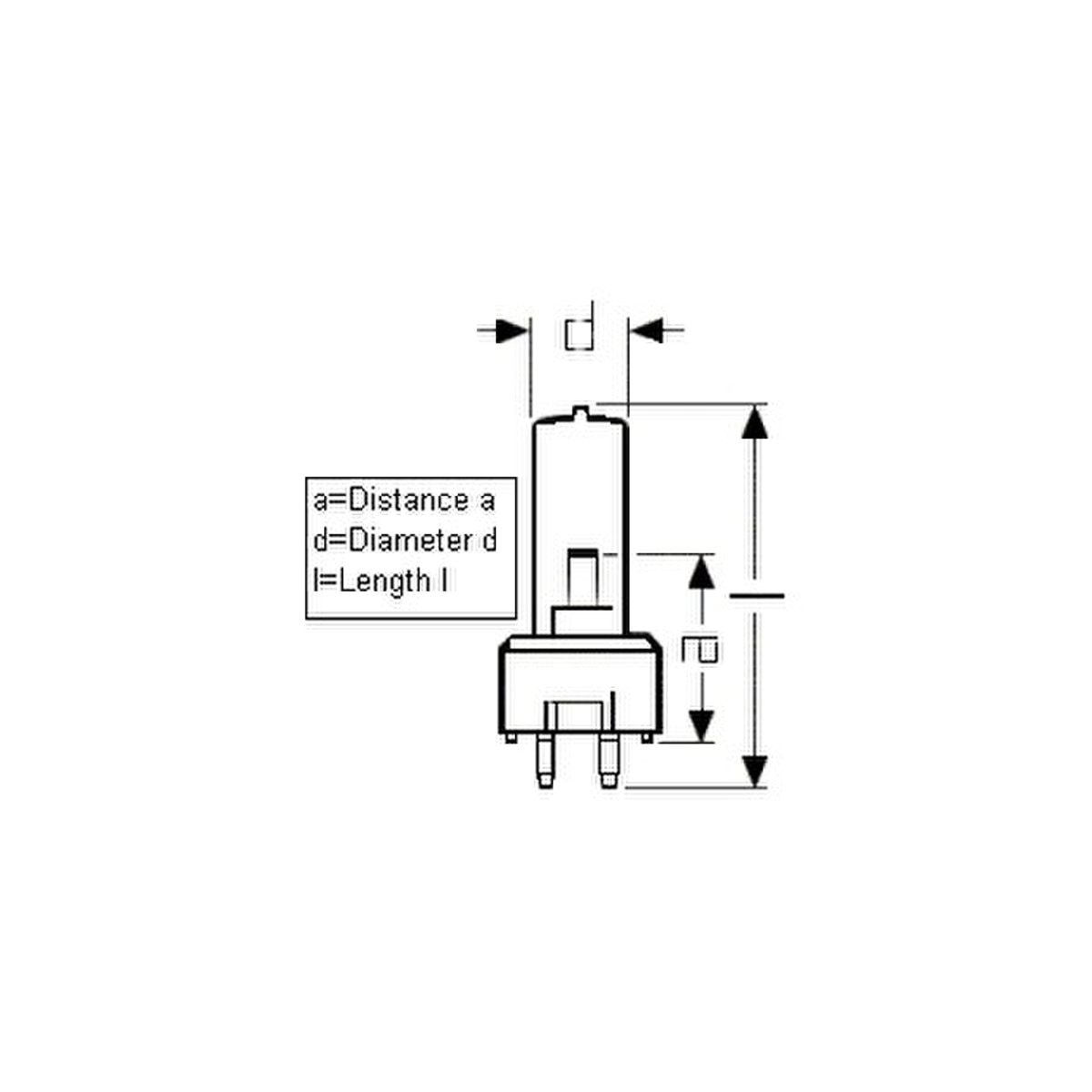

| Diameter d (in): | 0.591 |
| Diameter d (mm): | 15 |
| Distance a (in): | 1.32 |
| Distance a (mm): | 33.5 |
| Filament Dimensions Length (in): | 0.117 |
