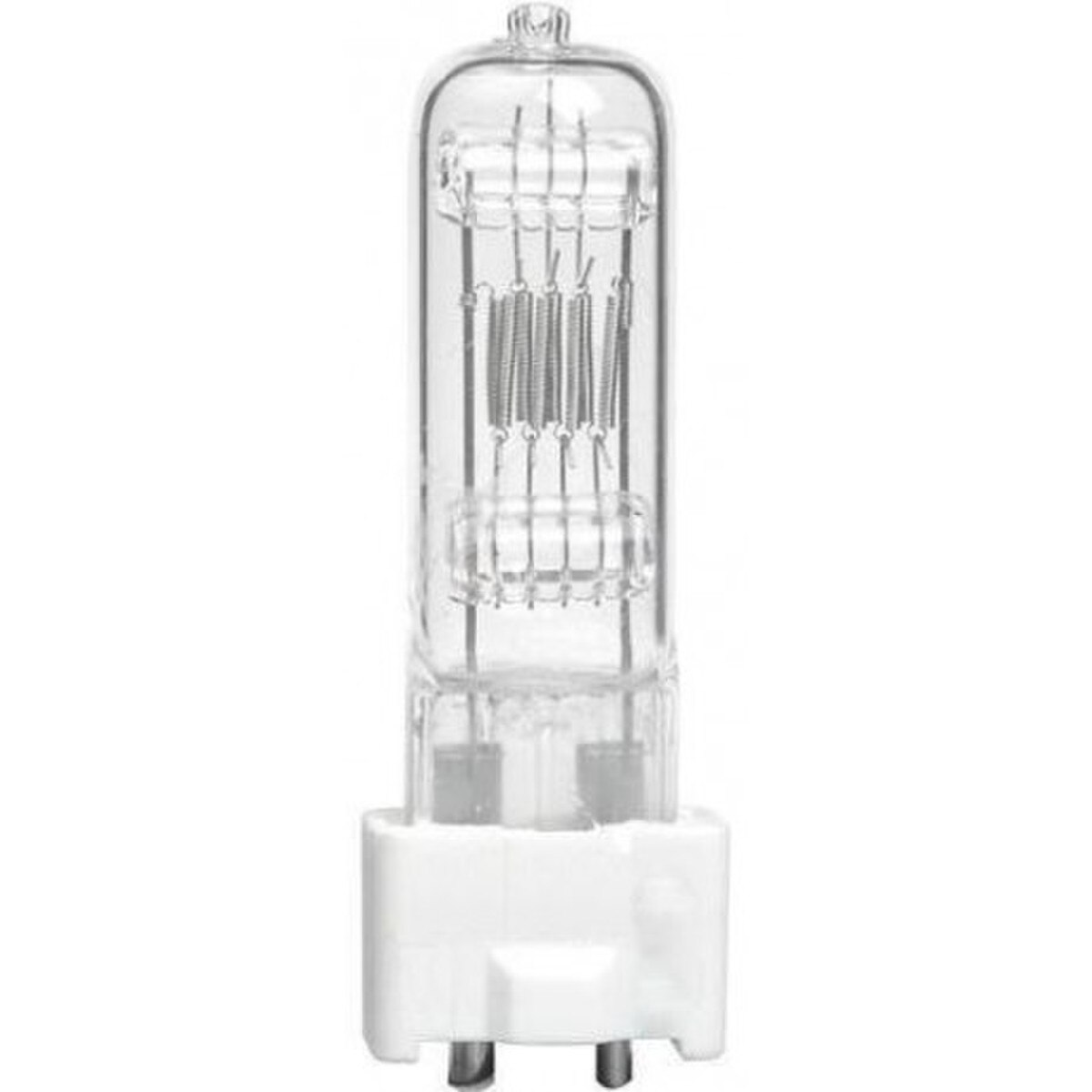

Osram 54638 - FRL/T21 - 650W 230V 150HR - Stage/Studio
Details
Product family features
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
- HLX tungsten halogen low-voltage lamp with or without reflector
- Dimmable (HLX)
Product family benefits
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
- Instant light (HLX)
Areas of application
- Lamps for special luminaires
- Medical fiber optics (HLX)
Lamp Specifications - Listed Alphabetically: | |
| ANSI code: | FRL |
| Average Rated Life (HR): | 150 |

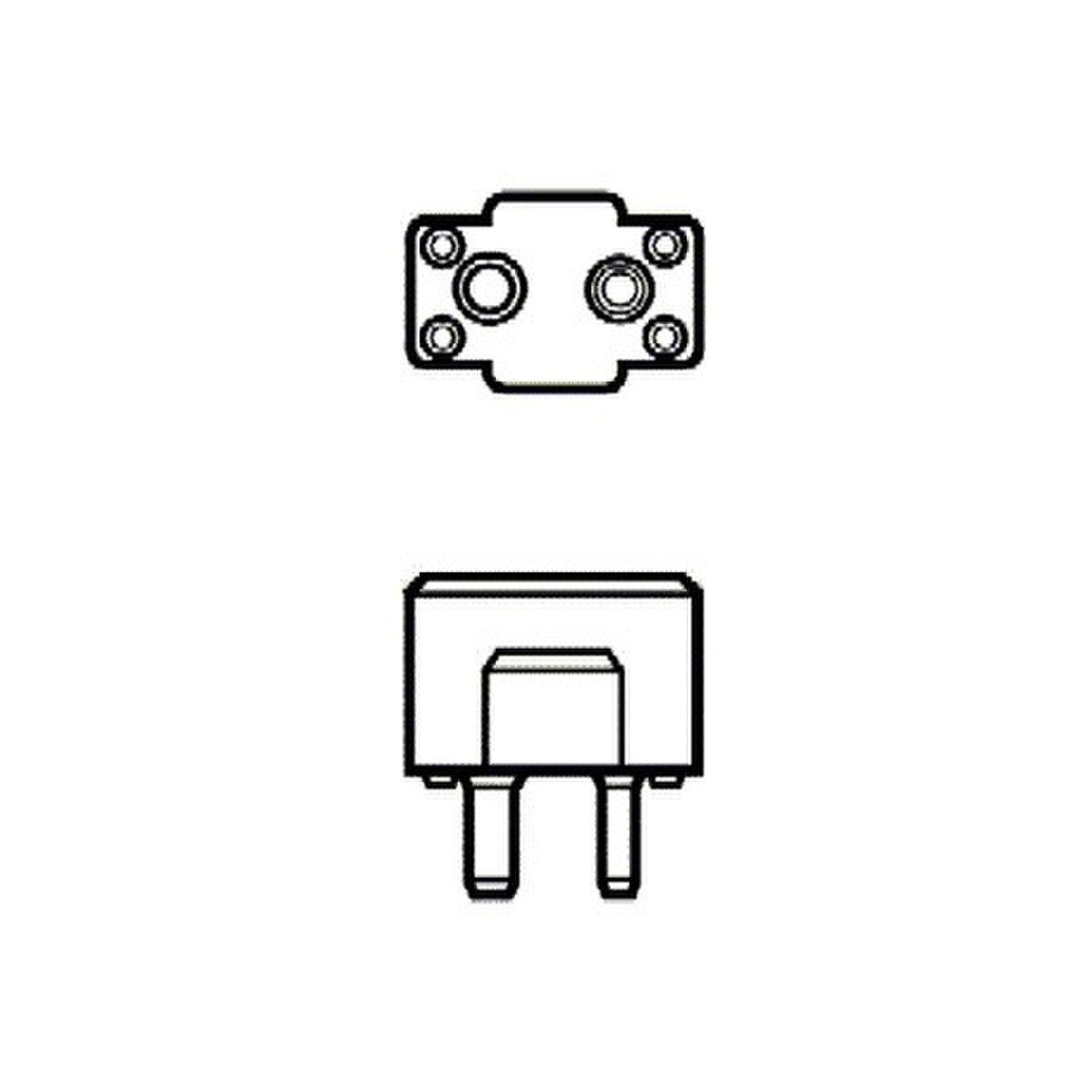

| Base: | GY9.5 BIPIN |
| Bulb: | T21 |
| Class: | C (gas) |
| Color Rendering Index (CRI): | 100 |
| Color Temperature (CCT) (K): | 3200 |

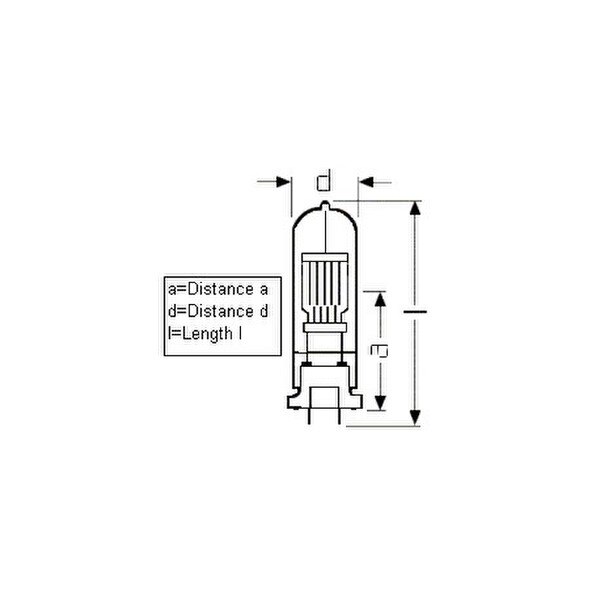

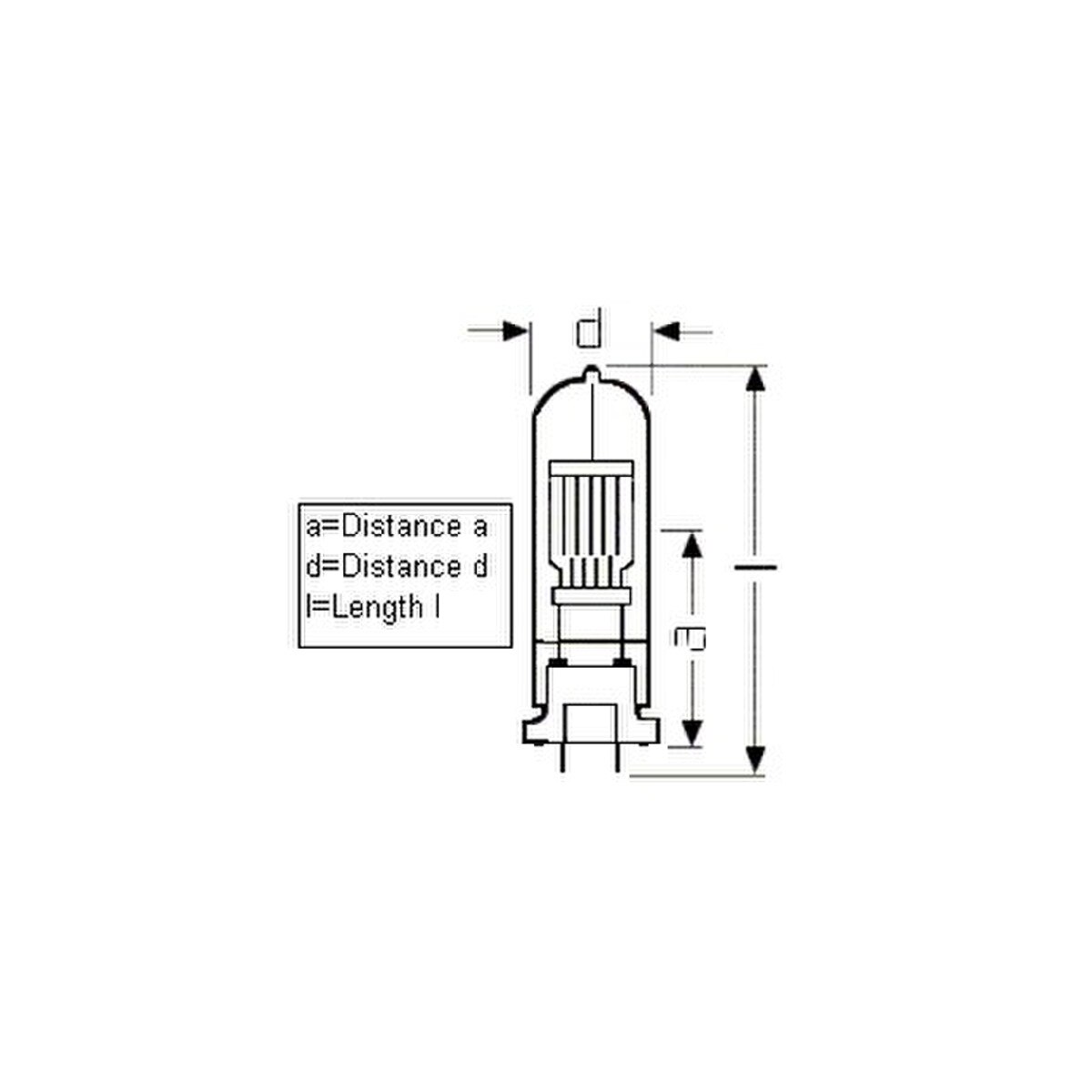

| Diameter d (in): | 0.906 |
| Diameter d (mm): | 23 |
| Distance a (in): | 1.83 |
| Distance a (mm): | 46.5 |
| Filament (F): | C-13 |
| Filament Dimensions Length (in): | 0.433 |
Osram 54638 Data Sheet
