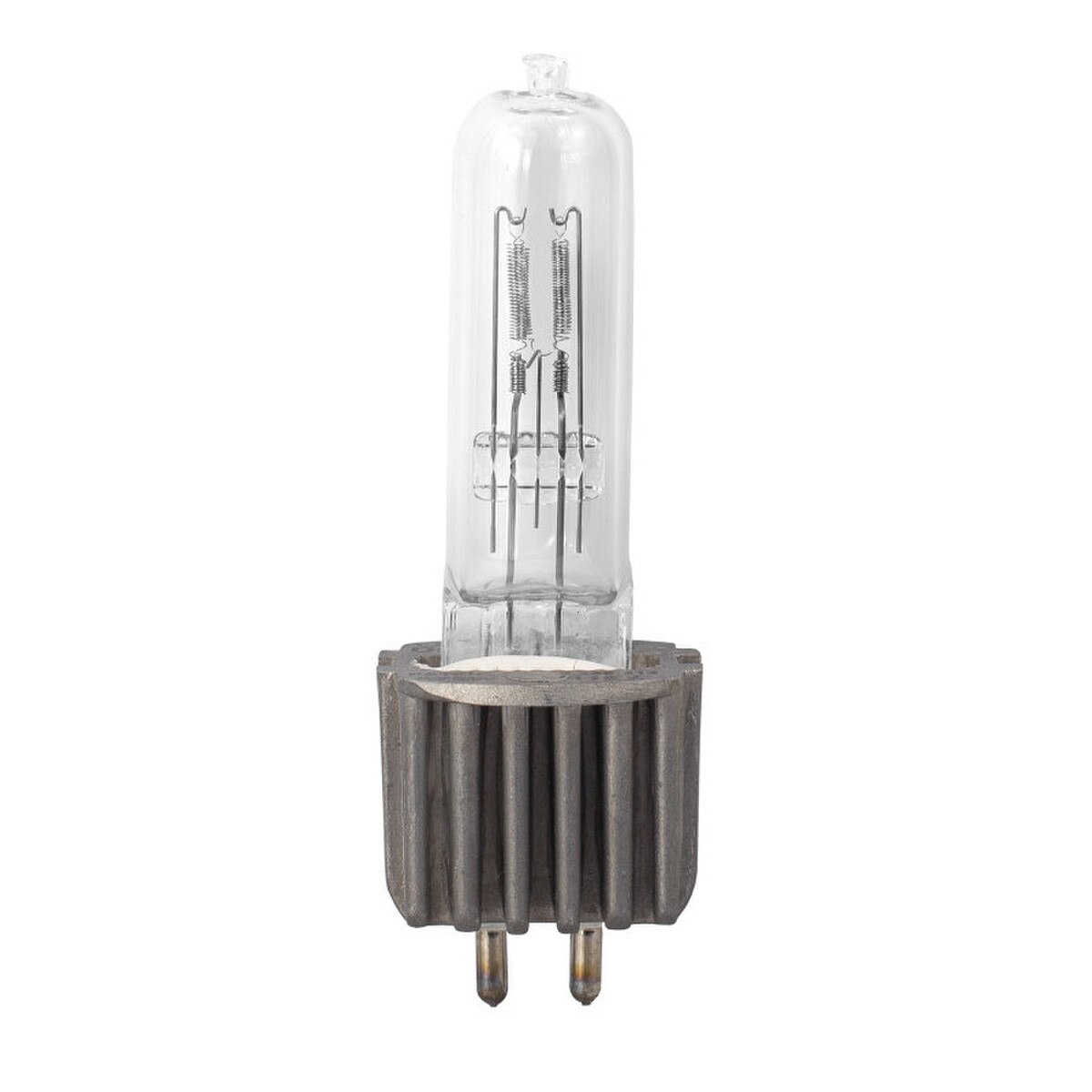

Osram 54625 - HPL 375W 115V 300HR - Stage/Studio
Details
Product features and benefits:
- Ultra compact filament design (UCF) for high lumen output
- Unique top bridgeless construction improves beam uniformity for lamps with ≤ 120 volts
- Unique gas fill which improves light output and minimizes risk of arc-out
- Special heat sink base for maximum durability in high temperature applications
- Reinforced pinch seal for extra mechanical strength
- Foam packaging for easier handling and installation
- Optimum system performance with TP22H socket
Areas of application:
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment
Lamp Specifications - Listed Alphabetically: | ||
| Average Rated Life (HR): | 300 | |

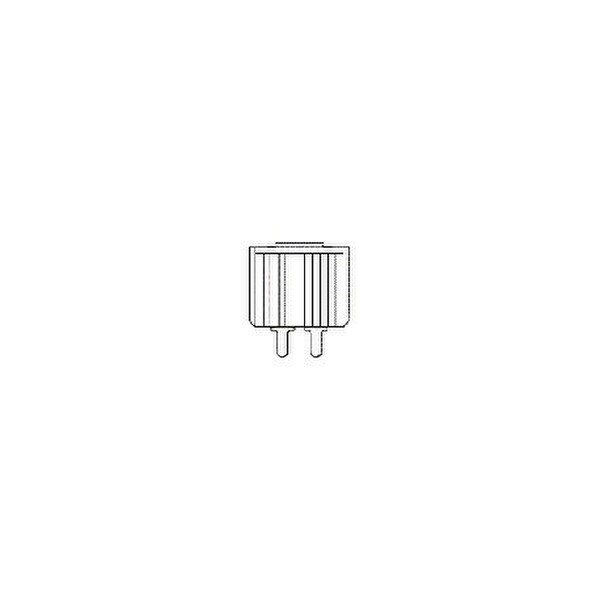

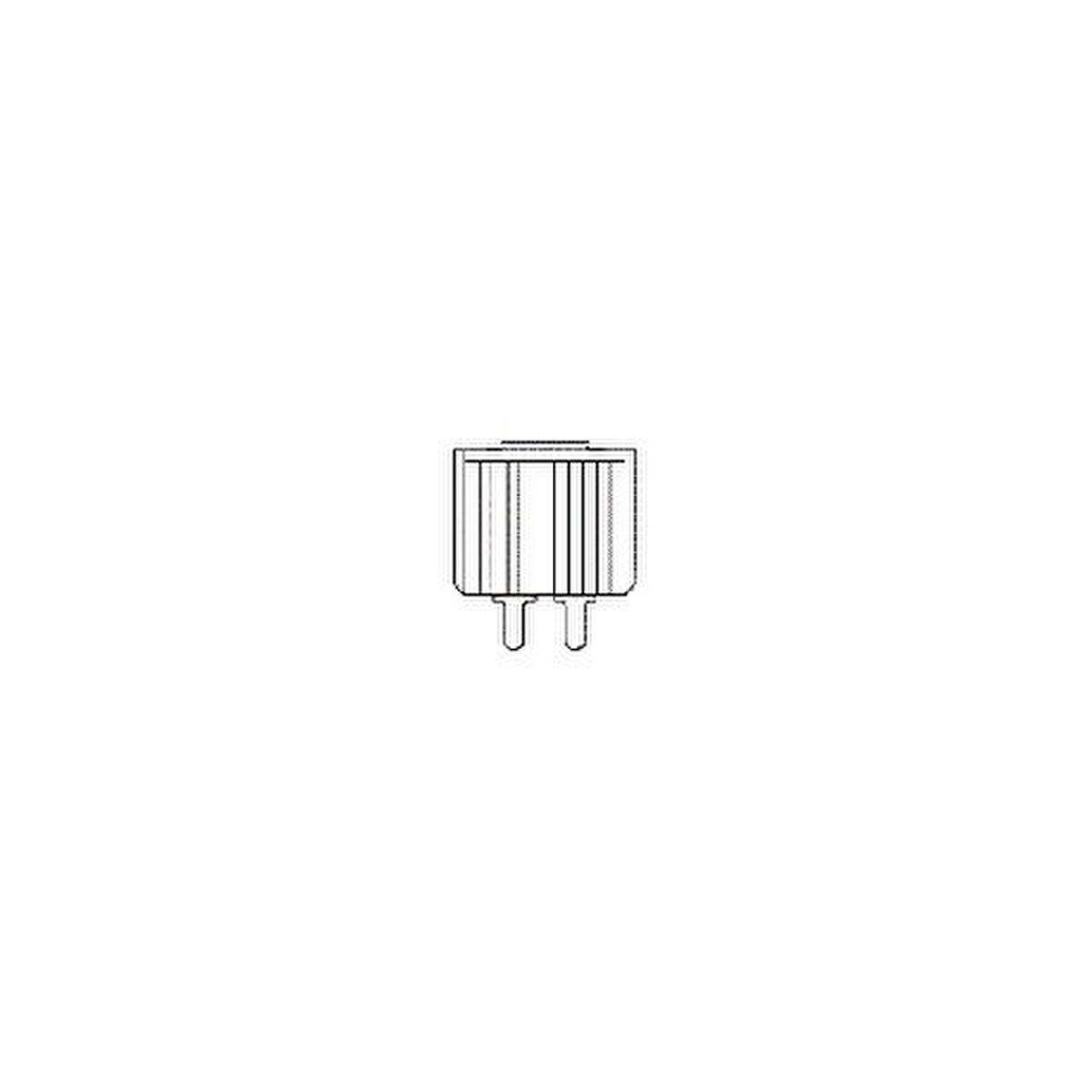

| Base: | Medium Bipin with Heat Sink | |
| Bulb: | T6 | |
| Class: | C (gas) | |
| Color Rendering Index (CRI): | 100 | |
| Color Temperature (CCT) (K): | 3200 | |

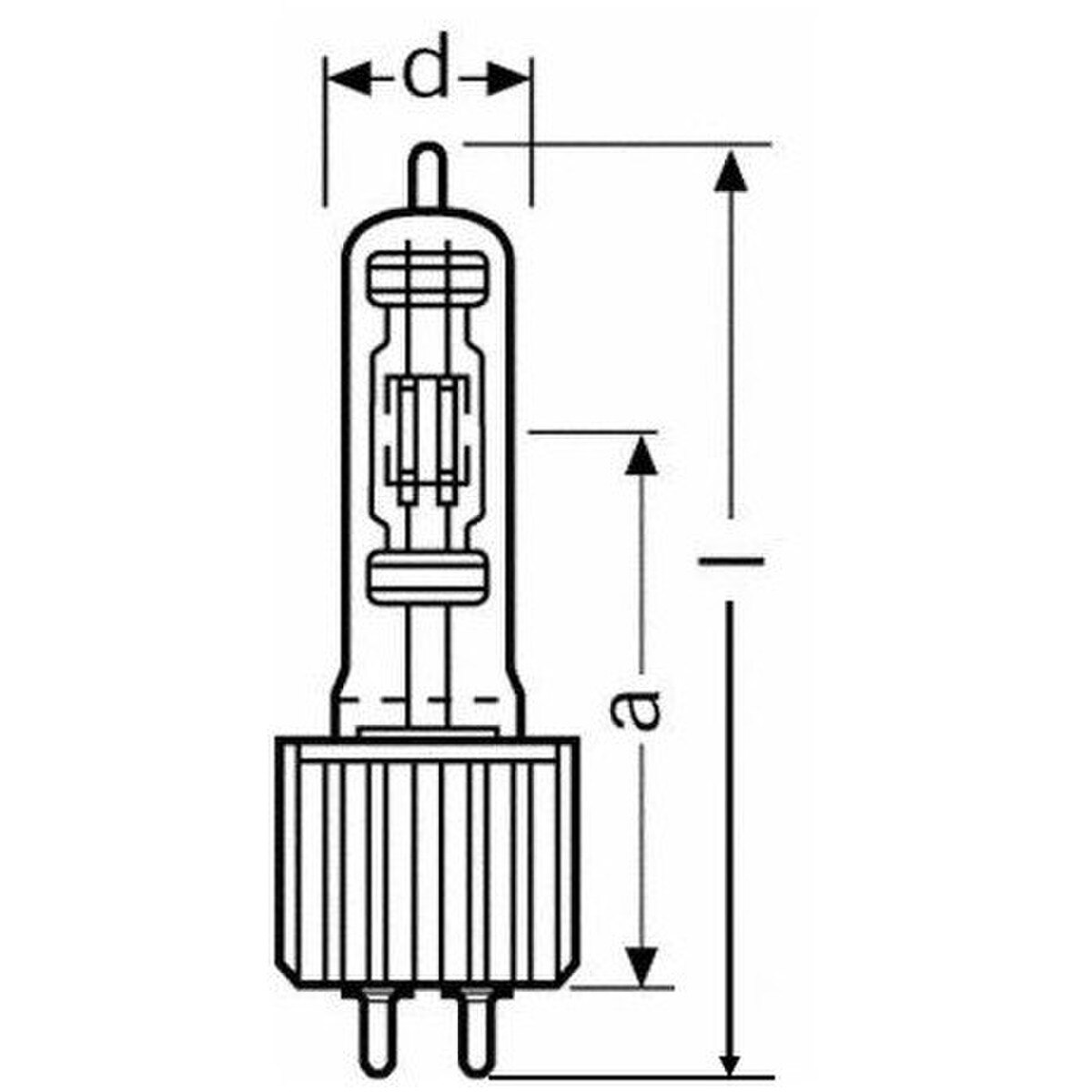

| Diameter d (in): | 0.741 | |
| Diameter d (mm): | 19 | |
| Distance a (in): | 2.352 | |
| Distance a (mm): | 60.3 | |
| Filament (F): | 4-C8 | |
| Lamp Finish: | Clear | |
| Length I (in): | 4.1 | |
Osram 54625 Specs.pdf
