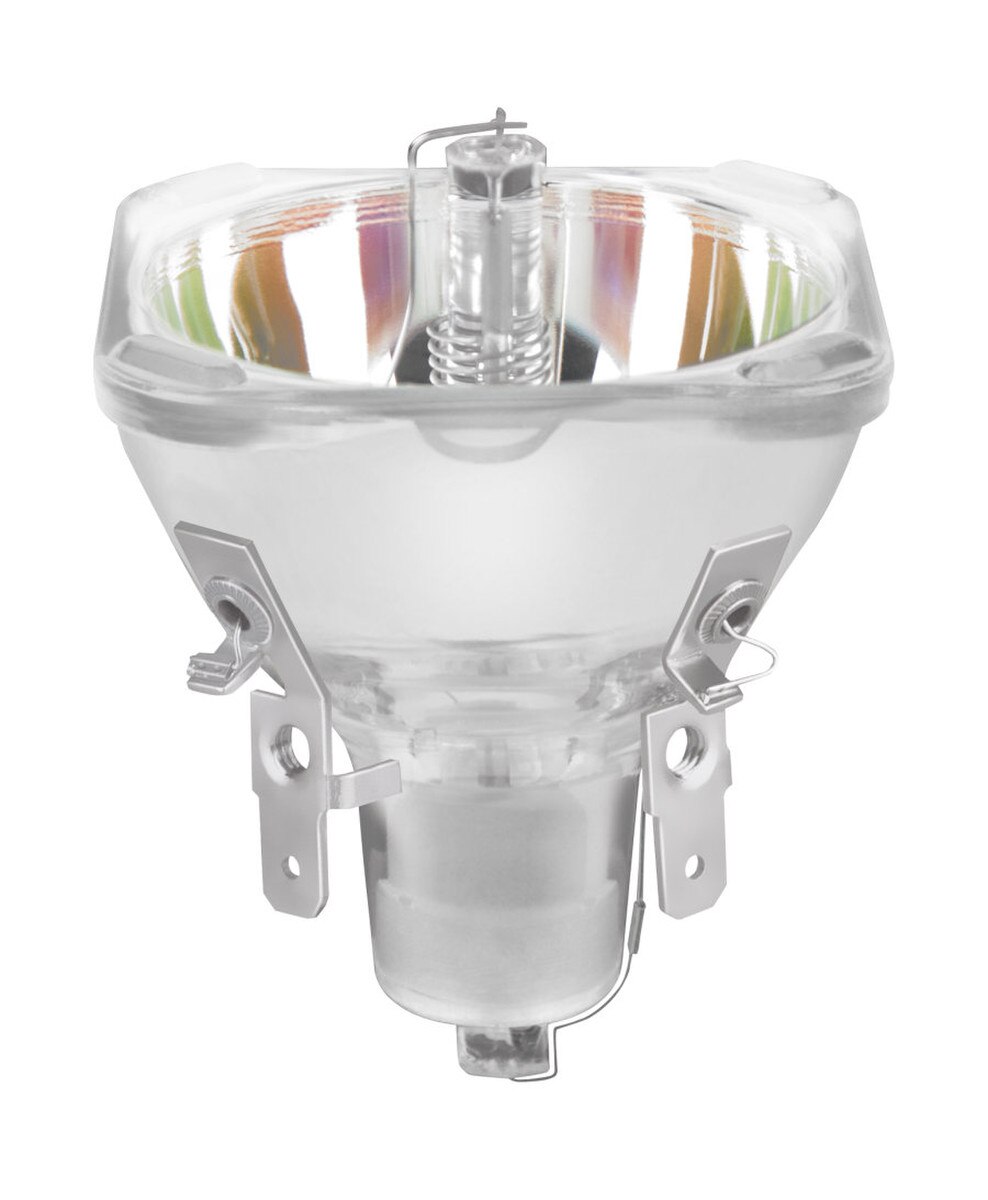

Osram HRI100 100w Mercury Short Arc Reflector Sirius Lamp
Details
Product family benefits
- Lightweight and compact reflector lamps
- Perfectly suited for small and lightweight moving heads
- Optimized burner design allows any burning position
- High luminance through very short arc and high pressure
- Bright light for brilliant light effects
- Long lifetime
- Easy lamp replacement
- Stable light output over the entire lifetime
Areas of application
- Concert lighting
- Club and disco
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
| ANSI code: | HRI |
| Average Rated Life (HR): | 6000 |
| Base: | Special |
| Color Rendering Index (CRI): | 60 |
| Color Temperature (CCT) (K): | 9200 |
| Diameter (mm): | 45 |
| Lumens: | 3680 |
| Max Ignition Voltage (kV): | 2.5 |
| Maximum Overall Length (MOL) (mm): | 42 |
| Nominal Voltage (V): | 62 |
| Nominal Wattage (W): | 100 |
| Rated Current (A): | 1.8 |
| Wattage (W): | 100 |
| Voltage (V): | 62 |
Osram LHRI100W-O Data Sheet
